2013 MINI Clubman technical data

Contents
The fastest way to find information on a particu-
lar topic or item is by using the index, refer to
page252.
4 Notes
7 Reporting safety defects
AT A GLANCE 9
10Cockpit
16 Onboard computer
20 Letters and numbers
21 Voice activation system
CONTROLS 25
26Opening and closing
38 Adjustments
44 Transporting children safely
47 Driving
57 Controls overview
68 Technology for drivin g comfort and safety
81 Lamps
85 Climate
90 Practical interior accessories
DRIVING TIPS 99
100Things to remember when driving
NAVIGATION 109
110Navigation system
112 Destination entry
121 Route guidance
129 What to do if…
ENTERTAINMENT 131
132On/off and tone
135 Radio
143 CD player
145 External devices
COMMUNICATIONS 155
156Hands-free device Bluetooth
166 Mobile phone preparation Bluetooth
179 Office
187 MINI Connected
MOBILITY 191
192Refueling
195 Wheels and tires
207 Engine compartment
211 Maintenance
213 Care
217 Replacing components
231 Giving and receiving assistance
REFERENCE 237
238Technical data
245 Short commands for the voice activation
system
252 Everything from A to Z

00320051004F004C00510048000300280047004C0057004C005200510003

Notes
6
>California Emission Control System Limited
Warranty
Detailed information about these warranties is
listed in the Service and Warranty Information
Booklet for US models or in the Warranty and
Service Guide Booklet for Canadian models.
Your vehicle has been specifically adapted and
designed to meet the pa rticular operating con-
ditions and registration requirements in your
country and continental region in order to
deliver the full driving pleasure while the vehicle
is operated under those conditions. If you wish
to operate your vehicle in another country or
region, you may be required to adapt your vehi-
cle to meet different prevailing operating condi-
tions and registration re quirements. You should
also be aware of any a pplicable warranty limita-
tions or exclusions for such country or region. In
such a case, please contact Customer Relations
for further information.
Maintenance
Maintain the vehicle regularly to sustain road
safety, operational reliab ility and the New Vehi-
cle Limited Warranty.
Specifications for required maintenance mea-
sures:
> MINI Maintenance System
> Service and Warranty Information Booklet
for US models
> Warranty and Service Guide Booklet for
Canadian models
If the vehicle is not ma intained according to
these specifications, this could result in serious
damage to the vehicle. Such damage is not cov-
ered by the MINI New Vehicle Limited Warranty.
Data memory
A variety of electronic components in your vehi-
cle include data storage devices, which store
technical information on the condition of your
vehicle, events and errors, either temporarily or
permanently. In general, this technical informa- tion documents the condition of a component, a
module, a system or
the surroundings:
> Operating conditions of system compo-
nents, e.g., fill levels.
> Status messages regarding the vehicle and
of its individual comp onents, such as wheel
rpm/vehicle speed, response delay, lateral
acceleration.
> Malfunctions and defects in the major sys-
tem components, such as the lights and
brakes.
> Responses of the vehicle in special driving
situations, such as the deployment of an air-
bag, the utilization of stability control sys-
tems.
> Environmental conditio ns, such as tempera-
ture.
These data are exclusively of a technical nature
and are used for the detection and correction of
errors, as well as the optimization of vehicle
functions. Motion profiles of traveled routes can
not be deduced from these data. If services are
required, such as repair services, service pro-
cesses, warranty claims an d quality assurance,
then this technical info rmation can be read out
by employees of service departments, including
the manufacturer, from the event and error data
storage devices by usin g special diagnostic
equipment. There, if necessary, you will receive
further information. Afte r remedying an error,
the information in the error memory is deleted
or progressively overwritten.
When using the vehicle, situations are conceiv-
able in which this techni cal data, in conjunction
with other information, su ch as accident reports,
vehicle damage, witness statements, etc. - pos-
sibly with the assistance of an expert - could be
traced to particular individuals. Additional func-
tions that are agreed upon contractually with
the customer, such as vehi cle tracking in case of
emergency, permit the transmission of certain
vehicle data from the vehicle.

00320051004F004C00510048000300280047004C0057004C005200510003

REFERENCETechnical data
238
Technical data
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. Equipment is also described
that is not available, for example due to the selected options or national-market version.
This also applies to safety related functions and
systems.
Engine data
Cooper Cooper SJohn Cooper Works
Displacement
cu in/
cmμ 97.5/
1,598 97.5/
1,598 97.5/
1,598
Number of cylinders 44 4
Maximum power out-
put hp
121181 208
At engine speed rpm 6,0005,500 6,000
Maximum torque
with overboost lb ft/
Nm
114/155
– 177/240
192/260 192/260
207/280
At engine speed
with overboost rpm
4,250
– 1,600-5,000
1,730-4,500 1,750-5,500
2,000-5,100
Overboost briefly raises the maximum torque at high rates of acceleration, e. g. when passing.

00320051004F004C00510048000300280047004C0057004C005200510003

Technical dataREFERENCE
239

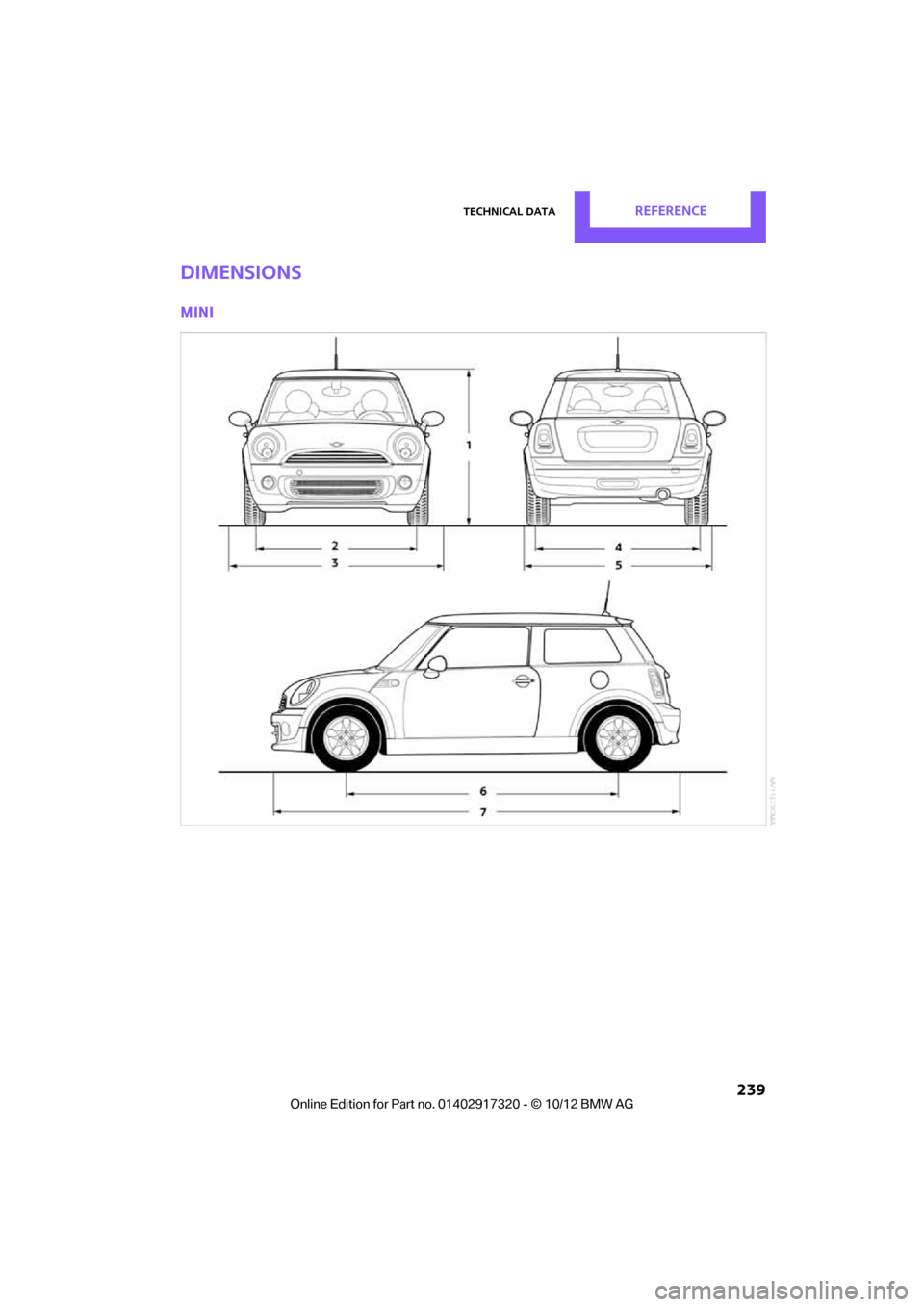

Dimensions
MINI

00320051004F004C00510048000300280047004C0057004C005200510003

REFERENCETechnical data
240
CooperCooper S, John Cooper Works
1Vehicle height without roof
antenna 55.4/1,407 55.4/1,407
2 Track, front 57.4/1,459 57.2/1,453
3 Vehicle width, with outside mirror 75.3/1,913 75.3/1,913
4 Track, rear 57.8/1,467 57.5/1,461
5 Vehicle width, without outside
mirror 66.3/1,683 66.3/1,683
6 Wheelbase 97.1/2,467 97.1/2,467
7 Vehicle length
with aerodynamic bumpers 146.6/3,723 146.8/3,729
148/3,758
All dimensions in in/mm. Minimum tu rning radius dia.: 35 ft 10 in/10.7 m.

00320051004F004C00510048000300280047004C0057004C005200510003

Technical dataREFERENCE
241
MINI Clubman

00320051004F004C00510048000300280047004C0057004C005200510003

REFERENCETechnical data
242
Weights
Never exceed either the approved axle loads or the gross vehicle weight.
MINI
CooperCooper S, John Cooper Works
1Vehicle height without roof
antenna 56.1/1,426 56.4/1,432
2 Track, front 57.4/1,459 57.2/1,453
3 Vehicle width, with outside mirror 75.3/1,913 75.3/1,913
4 Track, rear 57.8/1,467 57.5/1,461
5 Vehicle width, without outside
mirror 75.3/1,913 75.3/1,913
6 Wheelbase 100.3/2,547 100.3/2,547
7 Vehicle length 155.9/3,961 155.9/3,961
All dimensions in in/mm. Minimum turning radius dia.: 36 ft/11.0 m.
CooperCooper SJohn Cooper Works
Curb weight, ready for travel , with all optional extras
> Manual transmission lbs/kg 2, 535/1,150 2,668/1,210 2,679/1,215
> Automatic transmission lbs/kg 2,612/1,185 2,712/1,230 2,723/1,235
Approved gross weight
> Manual transmission lbs/kg 3, 384/1,535 3,494/1,585 3,527/1,600
> Automatic transmission lbs/kg 3,461/1,570 3,538/1,605 3,571/1,620

00320051004F004C00510048000300280047004C0057004C005200510003

Technical dataREFERENCE
243
MINI Clubman:
Loadlbs/kg
Approved front axle load
> Manual transmission lb s/kg 1,830/830 1,918/870 1,929/875
> Automatic transmission lbs/kg 1,907/865 1,962/890 1,973/895
Approved rear axle load lbs/kg 1,664/755 1,664/755 1,676/760
Approved roof load capacity lbs/kg 165/75165/75165/75
Cargo area capacity cu ft/
liters 5.7 - 24.0/
160 - 680 5.7 - 24.0/
160 - 680 5.7 - 24.0/
160 - 680
CooperCooper SJohn Cooper Works
CooperCooper SJohn Cooper Works
Curb weight, ready for travel , with all optional extras
> Manual transmission lbs/kg 2, 712/1,230 2,833/1,285 2,844/1,290
> Automatic transmission lbs/kg 2,789/1,265 2,877/1,305 2,888/1,310
Approved gross weight
> Manual transmission lbs/kg 3, 549/1,610 3,671/1,665 3,715/1,685
> Automatic transmission lbs/kg 3,627/1,645 3,726/1,690 3,759/1,705
Load lbs/kg
Approved front axle load
> Manual transmission lb s/kg 1,830/830 1,918/870 1,940/880
> Automatic transmission lbs/kg 1,907/865 1,962/890 1,984/900
Approved rear axle load lbs/kg 1,830/830 1,841/835 1,863/845
Approved roof load capacity lbs/kg 165/75165/75165/75
Cargo area capacity cu ft/
liters 9.2 - 32.8/
260 - 930 9.2 - 32.8/
260 - 930 9.2 - 32.8/
260 - 930
