2013 MERCEDES-BENZ GLK-CLASS SUV garage door opener

Fuel tank
Capacity ........................................ 366
Problem (malfunction) ...................157
see Fuel tank
Fuse allocation chart (vehicle tool
kit) ...................................................... 312
Fuses Allocation chart ............................. 323
Before changing
.............................323
Dashboard fuse box ....................... 323
Fuse box in the cargo
compartment ................................. 324
Fuse box in the engine
compartment ................................. 324
Important safety notes .................. 323
see Fuses G
Garage door opener Clearing the memory ..................... 294
Important safety notes ..................291
Opening/closing the garage door ..293
Programming (button in the rear-
view mirror) ................................... 291
Gear or selector lever (cleaning
guidelines)

......................................... 308
Genuine ................................................ 22
Glove box ........................................... 271
GTW (Gross Trailer Weight)
(definition) ......................................... 350H
Handbrake see Parking brake


Hazard warning lamps ......................113
Headlamps Adding fluid to cleaning system .....303
Cleaning system (function) ............ 113
Cleaning system (notes) ................372
Fogging up ..................................... 115
see Automatic headlamp mode
Head restraints
Adjusting ......................................... 99
Adjusting (electrically) .....................99
Adjusting (manually) ........................ 99Adjusting (rear) ................................
99
Installing/removing (rear) .............. 100
see NECK-PRO head restraints/
NECK-PRO luxury head restraints



Heating
see Climate control
High-beam headlamps
Changing bulbs .............................. 118
Display message ............................ 241
Switching Adaptive Highbeam
Assist on/off ................................. 114
Switching on/off ........................... 113
Hill start assist .................................. 144
HOLD function Deactivating ................................... 180
Display message ............................ 247
Function/notes ............................. 179
Hood
Closing ........................................... 300
Display message ............................ 255
Important safety notes .................. 299
Opening ......................................... 300
Hydroplaning ..................................... 166 I
Ignition lock see Key positions



Immobilizer .......................................... 71
Indicator lamps see Warning and indicator lamps
Instrument cluster
Overview .......................................... 31
Settings ......................................... 226
Warning and indicator lamps ...........32
Instrument cluster lighting .............. 227
Interior lighting ................................. 115
Automatic control .......................... 116
Delayed switch-off (on-board
computer) ...................................... 228
Emergency lighting ........................ 116
Manual control ............................... 116
Overview ........................................ 115
Reading lamp ................................. 115
Setting the brightness of the
display/switch (on-board
computer) ...................................... 227 Index
11

PRE-SAFE
®
Brake
Activating/deactivating ................. 225
Display message ............................ 235
Function/notes ................................
69
Warning lamp ................................. 267
Program selector button .................. 151
Protection of the environment General notes .................................. 22
Pulling away
Automatic transmission ................. 143Q
Qualified specialist workshop ...........27 R
Radar sensor system Activating/deactivating
................. 229
Display message
............................ 247
Radio
Selecting a station .........................222
see separate operating instructions


Reading lamp ..................................... 115
Rear compartment Setting the airflow ......................... 134
Setting the air vents ......................138
Rear fog lamp
Display message ............................ 241
Switching on/off ........................... 112
Rear view camera
Cleaning instructions ..................... 307
Function/notes ............................. 188
Switching on/off ........................... 189
Rear-view mirror
Anti-glare (manual) ........................103
Dipping (automatic) .......................105
Rear window defroster
Problem (malfunction) ...................136
Switching on/off ........................... 135
Rear window wiper
Replacing the wiper blade .............. 122
Switching on/off ........................... 121
Refrigerant (air-conditioning
system)
Important safety notes .................. 372
Refueling
Fuel gauge ....................................... 31Important safety notes ..................
154
Refueling process .......................... 155
see Fuel


Remote control
Garage door opener .......................291
Programming (garage door
opener) .......................................... 291
Reporting safety defects .................... 27
Reserve (fuel tank) see Fuel
Reserve fuel
Display message ............................ 245
Warning lamp ................................. 264
see Fuel
Residual heat (climate control) ........136
Restraint system see SRS (Supplemental Restraint
System)
Reversing feature
Panorama sliding sunroof ................ 90
Roller sunblinds ............................... 91
Side windows ................................... 86
Roadside Assistance (breakdown) ....24
Roller blind see Roller sunblind
Roller sunblind
Opening/closing .............................. 92
Panorama roof with power tilt/
sliding panel ..................................... 91
Roof carrier ........................................ 277
Roof lining and carpets (cleaning
guidelines) ......................................... 310
Roof load (maximum) ........................373
Route (navigation) see Route guidance (navigation)
Route guidance (navigation) ............221 S
Safety Children in the vehicle .....................58
Child restraint systems ....................58
Occupant Classification System
(OCS) ............................................... 47
Overview of occupant safety
systems ........................................... 40
Safety system
see Driving safety systems

Index
15

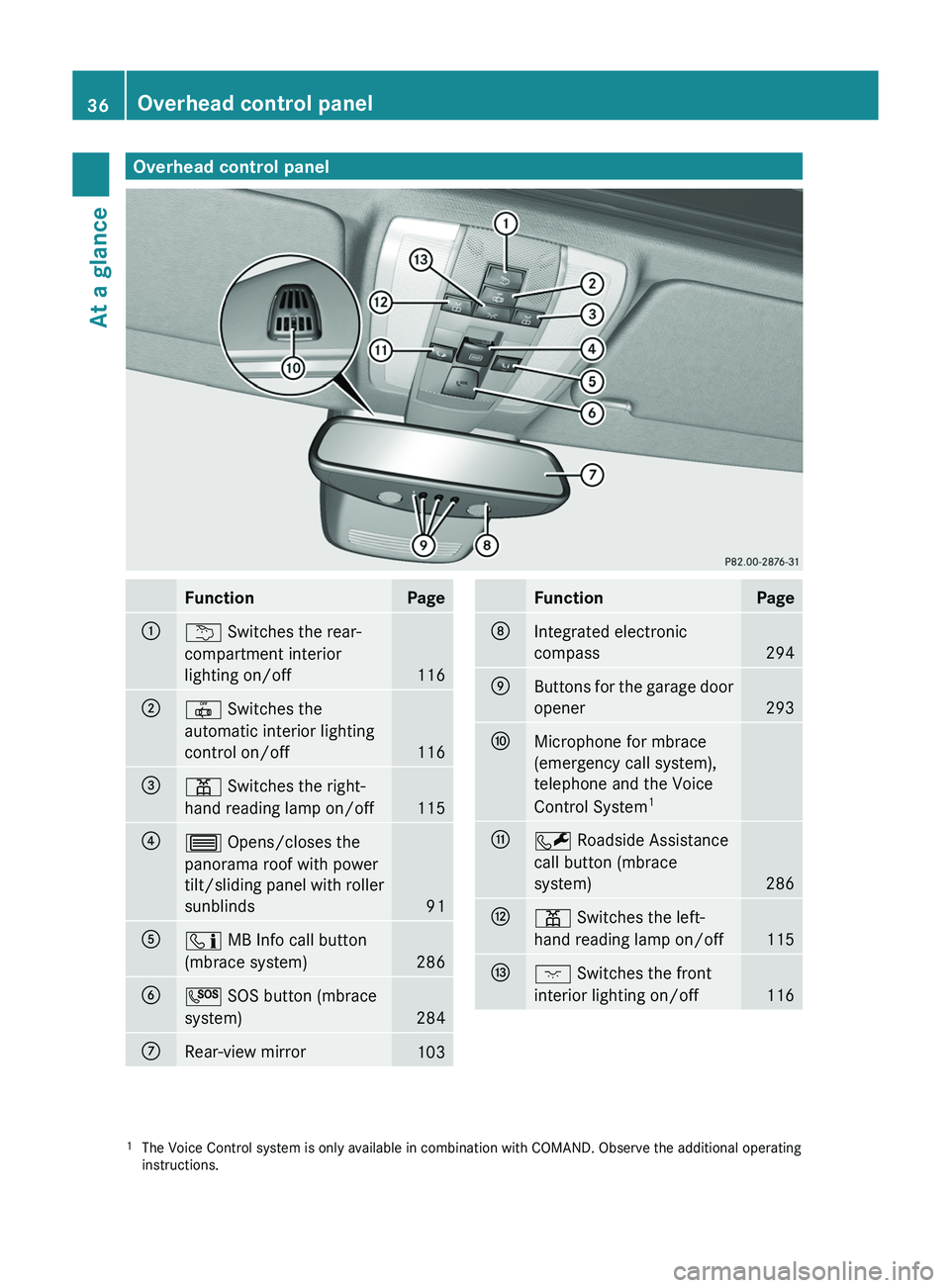

Overhead control panel
Function Page
0043
0042 Switches the rear-
compartment interior
lighting on/off
116
0044
0033 Switches the
automatic interior lighting
control on/off
116
0087
003D Switches the right-
hand reading lamp on/off
115
0085
0057 Opens/closes the
panorama roof with power
tilt/sliding panel with roller
sunblinds
91
0083
00D9 MB Info call button
(mbrace system)
286
0084
0053 SOS button (mbrace
system)
284
006B
Rear-view mirror
103 Function Page
006C
Integrated electronic
compass
294
006D
Buttons for the garage door
opener
293
006E
Microphone for mbrace
(emergency call system),
telephone and the Voice
Control System
1 006F
0052 Roadside Assistance
call button (mbrace
system)
286
0070
003D Switches the left-
hand reading lamp on/off
115
0071
004A Switches the front
interior lighting on/off
116
1
The Voice Control system is only available in combination with COMAND. Observe the additional operating
instructions.36
Overhead control panelAt a glance

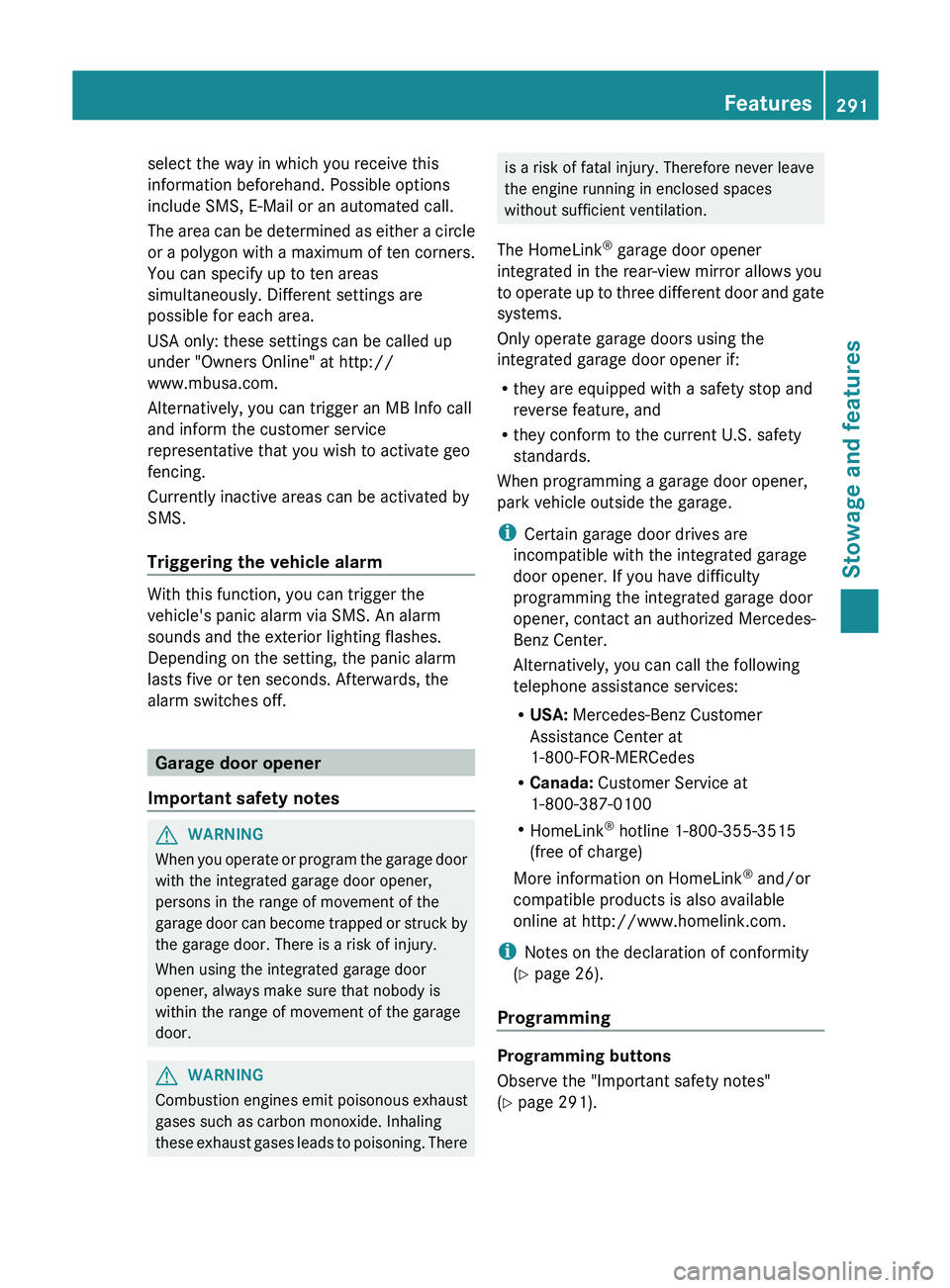

select the way in which you receive this
information beforehand. Possible options
include SMS, E-Mail or an automated call.
The area can be
determined
as either a circle
or a polygon with a maximum of ten corners.
You can specify up to ten areas
simultaneously. Different settings are
possible for each area.
USA only: these settings can be called up
under "Owners Online" at http://
www.mbusa.com.
Alternatively, you can trigger an MB Info call
and inform the customer service
representative that you wish to activate geo
fencing.
Currently inactive areas can be activated by
SMS.
Triggering the vehicle alarm With this function, you can trigger the
vehicle's panic alarm via SMS. An alarm
sounds and the exterior lighting flashes.
Depending on the setting, the panic alarm
lasts five or ten seconds. Afterwards, the
alarm switches off.
Garage door opener
Important safety notes G
WARNING
When you operate or program the garage door
with the integrated garage door opener,
persons in the range of movement of the
garage door can become trapped

or struck by
the garage door. There is a risk of injury.
When using the integrated garage door
opener, always make sure that nobody is
within the range of movement of the garage
door. G
WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Inhaling
these exhaust gases leads to

poisoning. There is a risk of fatal injury. Therefore never leave
the engine running in enclosed spaces
without sufficient ventilation.
The HomeLink ®
garage door opener
integrated in the rear-view mirror allows you
to operate up to three

different door and gate
systems.
Only operate garage doors using the
integrated garage door opener if:
R they are equipped with a safety stop and
reverse feature, and
R they conform to the current U.S. safety
standards.
When programming a garage door opener,
park vehicle outside the garage.
i Certain garage door drives are
incompatible with the integrated garage
door opener. If you have difficulty
programming the integrated garage door
opener, contact an authorized Mercedes-
Benz Center.
Alternatively, you can call the following
telephone assistance services:
R USA: Mercedes-Benz Customer
Assistance Center at
1-800-FOR-MERCedes
R Canada: Customer Service at
1-800-387-0100
R HomeLink ®
hotline 1-800-355-3515
(free of charge)
More information on HomeLink ®
and/or
compatible products is also available
online at http://www.homelink.com.
i Notes on the declaration of conformity
(Y page 26).
Programming Programming buttons
Observe the "Important safety notes"
(Y page 291). Features
291
Stowage and features Z

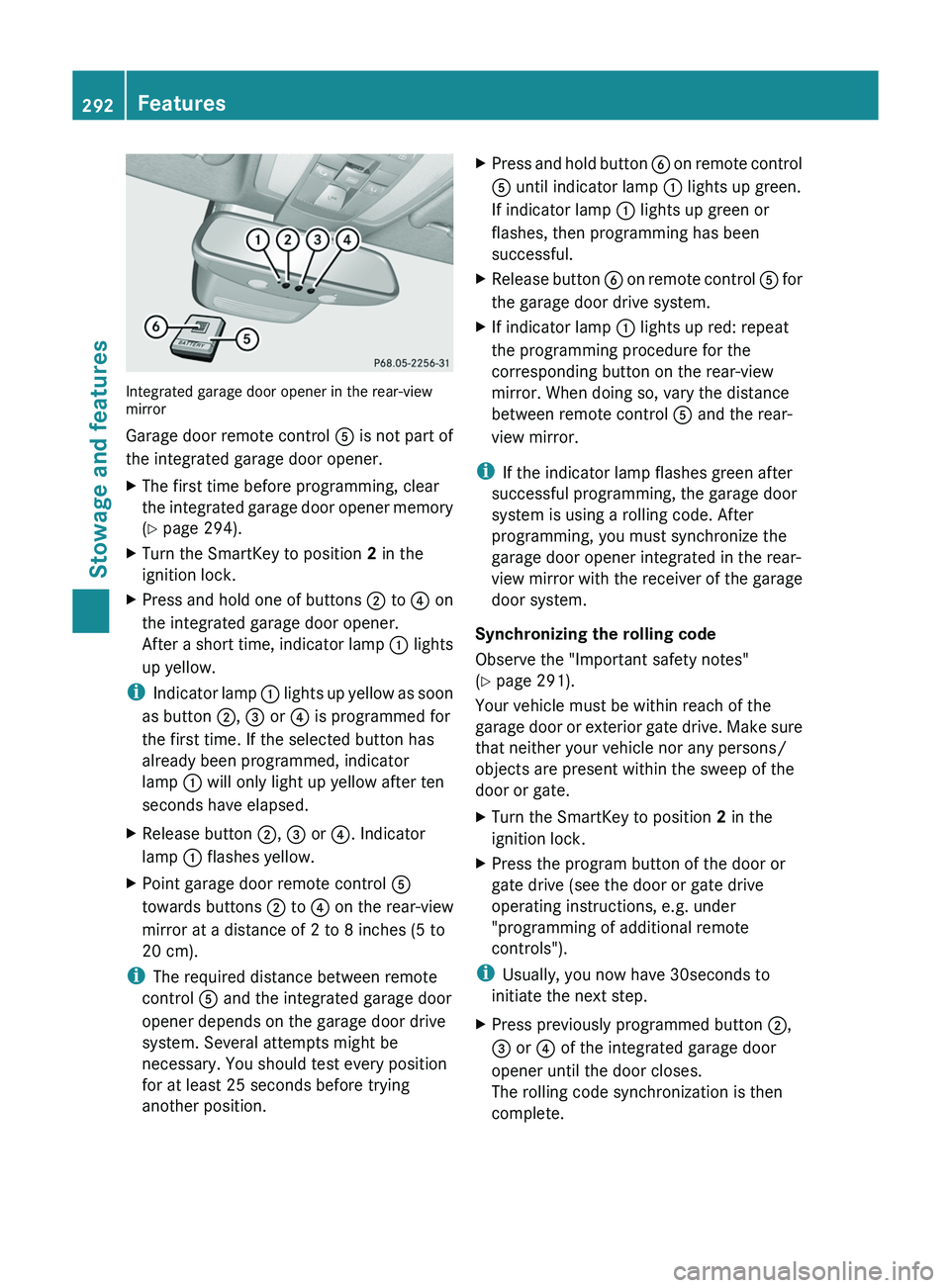

Integrated garage door opener in the rear-view
mirror
Garage door remote control
0083 is not part of
the integrated garage door opener.
X The first time before programming, clear
the integrated garage door opener
memory
(Y page 294).
X Turn the SmartKey to position 2 in the
ignition lock.
X Press and hold one of buttons 0044 to 0085 on
the integrated garage door opener.
After a short time, indicator

lamp 0043 lights
up yellow.
i Indicator lamp
0043 lights up

yellow as soon
as button 0044, 0087 or 0085 is programmed for
the first time. If the selected button has
already been programmed, indicator
lamp 0043 will only light up yellow after ten
seconds have elapsed.
X Release button 0044, 0087 or 0085. Indicator
lamp 0043 flashes yellow.
X Point garage door remote control 0083
towards buttons 0044 to 0085 on the rear-view
mirror at a distance of 2 to 8 inches (5 to
20 cm).
i The required distance between remote
control 0083 and the integrated garage door
opener depends on the garage door drive
system. Several attempts might be
necessary. You should test every position
for at least 25 seconds before trying
another position. X
Press and hold
button
0084 on remote control
0083 until indicator lamp 0043

lights up green.
If indicator lamp 0043 lights up green or
flashes, then programming has been
successful.
X Release button 0084 on remote control
0083
for
the garage door drive system.
X If indicator lamp 0043 lights up red: repeat
the programming procedure for the
corresponding button on the rear-view
mirror. When doing so, vary the distance
between remote control 0083 and the rear-
view mirror.
i If the indicator lamp flashes green after
successful programming, the garage door
system is using a rolling code. After
programming, you must synchronize the
garage door opener integrated in the rear-
view mirror with the
receiver

of the garage
door system.
Synchronizing the rolling code
Observe the "Important safety notes"
(Y page 291).
Your vehicle must be within reach of the
garage door or exterior gate drive. Make sure
that neither your vehicle nor any persons/
objects are present within the sweep of the
door or gate.
X Turn the SmartKey to position 2 in the
ignition lock.
X Press the program button of the door or
gate drive (see the door or gate drive
operating instructions, e.g. under
"programming of additional remote
controls").
i Usually, you now have 30seconds to
initiate the next step.
X Press previously programmed button 0044,
0087 or 0085

of the integrated garage door
opener until the door closes.
The rolling code synchronization is then
complete. 292
Features
Stowage and features

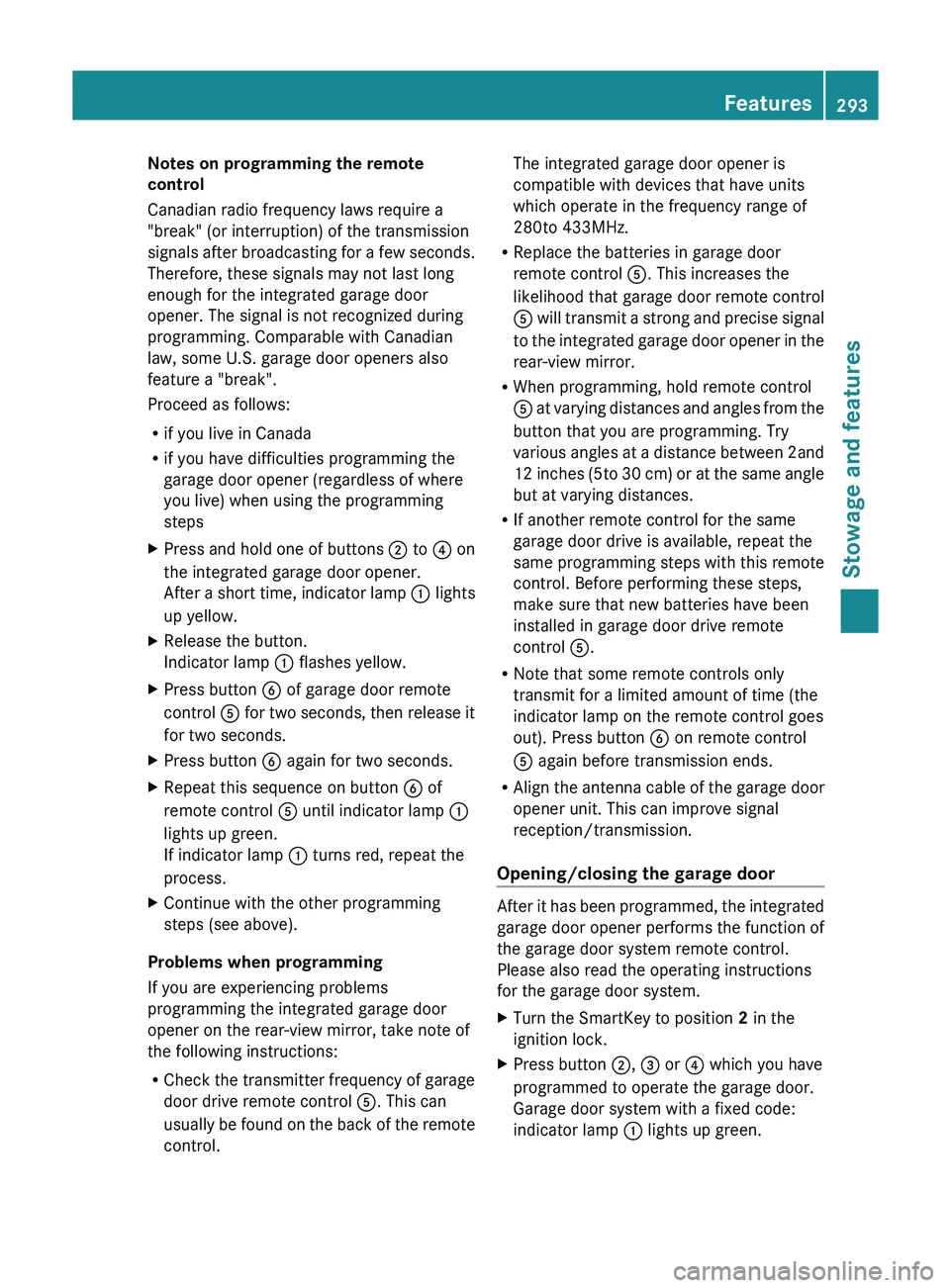

Notes on programming the remote
control
Canadian radio frequency laws require a
"break" (or interruption) of the transmission
signals after broadcasting for
a
few seconds.
Therefore, these signals may not last long
enough for the integrated garage door
opener. The signal is not recognized during
programming. Comparable with Canadian
law, some U.S. garage door openers also
feature a "break".
Proceed as follows:
R if you live in Canada
R if you have difficulties programming the
garage door opener (regardless of where
you live) when using the programming
steps
X Press and hold one of buttons 0044 to 0085 on
the integrated garage door opener.
After a short time, indicator

lamp 0043 lights
up yellow.
X Release the button.
Indicator lamp 0043 flashes yellow.
X Press button 0084 of garage door remote
control 0083 for two seconds, then

release it
for two seconds.
X Press button 0084 again for two seconds.
X Repeat this sequence on button 0084 of
remote control 0083 until indicator lamp 0043
lights up green.
If indicator lamp 0043 turns red, repeat the
process.
X Continue with the other programming
steps (see above).
Problems when programming
If you are experiencing problems
programming the integrated garage door
opener on the rear-view mirror, take note of
the following instructions:
R Check the transmitter frequency
of

garage
door drive remote control 0083. This can
usually be found on the back of the remote
control. The integrated garage door opener is
compatible with devices that have units
which operate in the frequency range of
280to 433
MHz.
R Replace the batteries in garage door
remote control 0083. This increases the
likelihood that garage door remote control
0083 will

transmit a strong and precise signal
to the integrated garage door opener in the
rear-view mirror.
R When programming, hold remote control
0083 at varying distances and angles from the
button that you are programming. Try
various angles at a distance between 2and
12 inches (5to 30 cm) or at the same angle
but at varying distances.
R If another remote control for the same
garage door drive is available, repeat the
same programming steps with this remote
control. Before performing these steps,
make sure that new batteries have been
installed in garage door drive remote
control 0083.
R Note that some remote controls only
transmit for a limited amount of time (the
indicator lamp on the remote control goes
out). Press button 0084 on remote control
0083 again before transmission ends.
R Align the antenna cable of the garage door
opener unit. This can improve signal
reception/transmission.
Opening/closing the garage door After it has been programmed, the integrated
garage door opener performs the function of
the garage door system remote control.
Please also read the operating instructions
for the garage door system.
X
Turn the SmartKey to position 2 in the
ignition lock.
X Press button 0044, 0087 or 0085 which you have
programmed to operate the garage door.
Garage door system with a fixed code:
indicator lamp 0043 lights up green. Features
293
Stowage and features Z

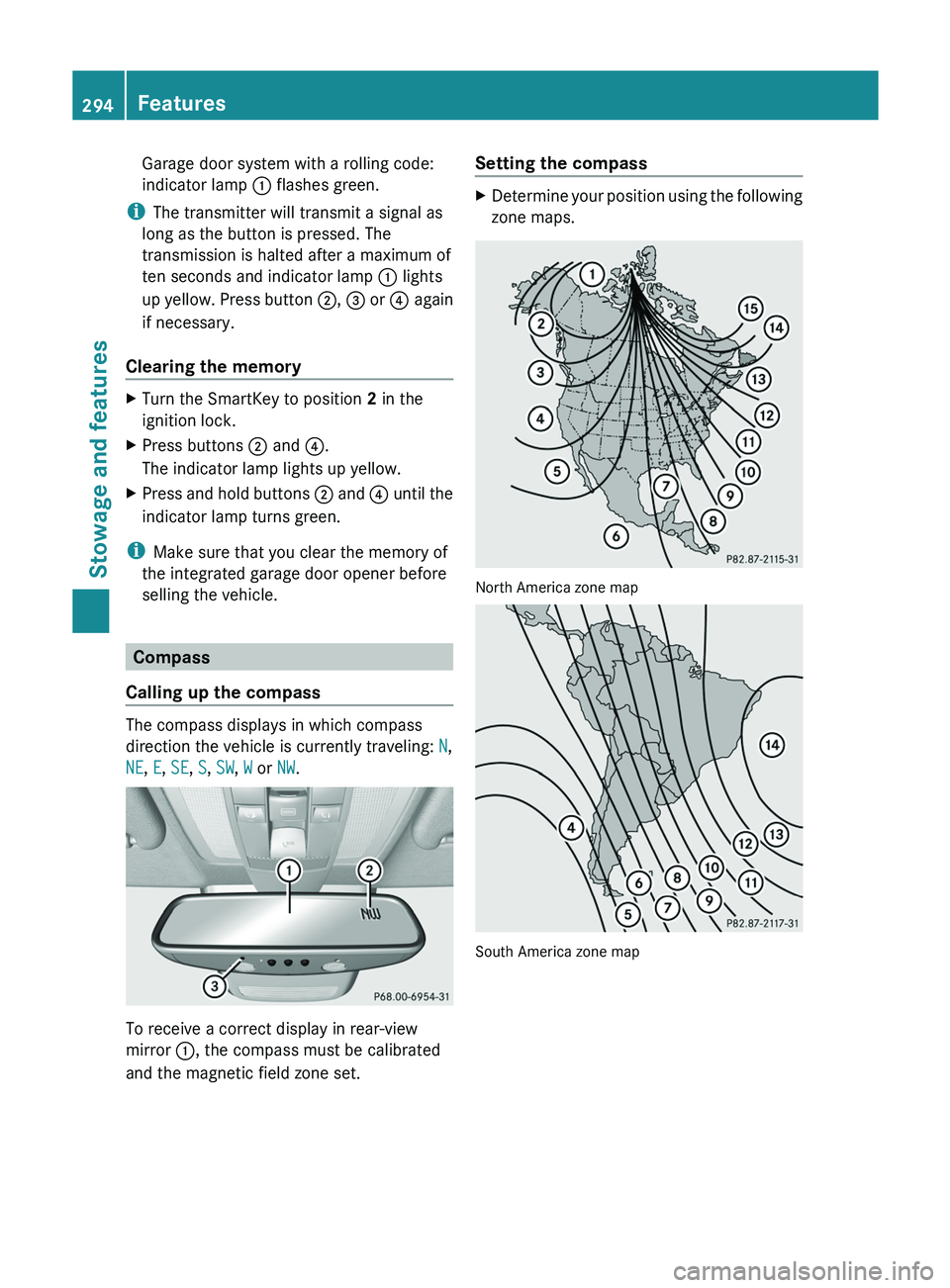

Garage door system with a rolling code:
indicator lamp
0043 flashes green.
i The transmitter will transmit a signal as
long as the button is pressed. The
transmission is halted after a maximum of
ten seconds and indicator lamp 0043 lights
up yellow. Press button 0044, 0087
or 0085 again
if necessary.
Clearing the memory X
Turn the SmartKey to position 2 in the
ignition lock.
X Press buttons 0044 and 0085.
The indicator lamp lights up yellow.
X Press and hold buttons 0044 and 0085 until the
indicator lamp turns green.
i Make sure that you clear the memory of
the integrated garage door opener before
selling the vehicle. Compass
Calling up the compass The compass displays in which compass
direction the vehicle is currently traveling: N,
NE, E, SE, S, SW, W or NW.
To receive a correct display in rear-view
mirror 0043, the compass must be calibrated
and the magnetic field zone set. Setting the compass X
Determine your position using the following
zone maps. North America zone map
South America zone map294
Features
Stowage and features
