2013 MERCEDES-BENZ GLK-CLASS SUV airbag off

Odometer ...........................................
219
see Trip odometer

Off-road driving
Checklist after driving off-road ...... 167
Checklist before driving off-road .... 167
General information ....................... 167
Important safety notes .................. 167
Traveling uphill ............................... 168
Oil
see Engine oil
On-board computer
Assistance menu ........................... 224
Audio menu ................................... 222
Convenience submenu .................. 229
Displaying a service message ........ 298
Display messages ..........................231
Factory settings submenu ............. 230
Important safety notes .................. 216
Instrument cluster submenu ..........226
Lighting submenu .......................... 227
Menu overview .............................. 219
Message memory .......................... 231
Navigation menu ............................ 221
Operation ....................................... 217
Service menu ................................. 226
Settings menu ............................... 226
Standard display ............................ 219
Telephone menu ............................ 223
Trip menu ...................................... 219
Vehicle submenu ........................... 228
Video DVD operation ..................... 223
Opening and closing the side trim
panels ................................................. 119
Operating system see On-board computer
Outside temperature display ...........217
Overhead control panel ......................36
Override feature Rear side windows ........................... 63P
Paint code number ............................ 364
Paintwork (cleaning instructions) ...305
Panic alarm .......................................... 40Panorama roof with power tilt/
sliding panel
Opening/closing .............................. 91
Opening/closing the roller
sunblind ........................................... 92
Problem (malfunction) .....................92
Resetting ......................................... 92
Panorama sliding sunroof
Important safety notes .................... 89
Parking ............................................... 160
Important safety notes
..................160
Parking brake ................................ 161
Position of exterior mirror, front-
passenger side ............................... 105
Rear view camera .......................... 188
see PARKTRONIC
Parking aid
Active Parking Assist .....................184
see Exterior mirrors
see PARKTRONIC
Parking brake
Display message ............................ 233
Notes/function .............................. 161
Parking lamps
Changing bulbs .............................. 118
Switching on/off ........................... 112
PARKTRONIC
Deactivating/activating ................. 182
Driving system ............................... 180
Function/notes ............................. 180
Important safety notes .................. 180
Problem (malfunction) ...................184
Range of the sensors ..................... 181
Trailer towing ................................. 183
Warning display ............................. 182
PASSENGER AIRBAG OFF
Problems (malfunction) .................. 238
PASSENGER AIR BAG OFF indicator
lamp ...................................................... 47
Plastic trim (cleaning instructions) . 308
Power washers .................................. 304
Power windows see Side windows
PRE-SAFE ®
(anticipatory occupant
protection) Display message ............................ 234
Operation ......................................... 5214

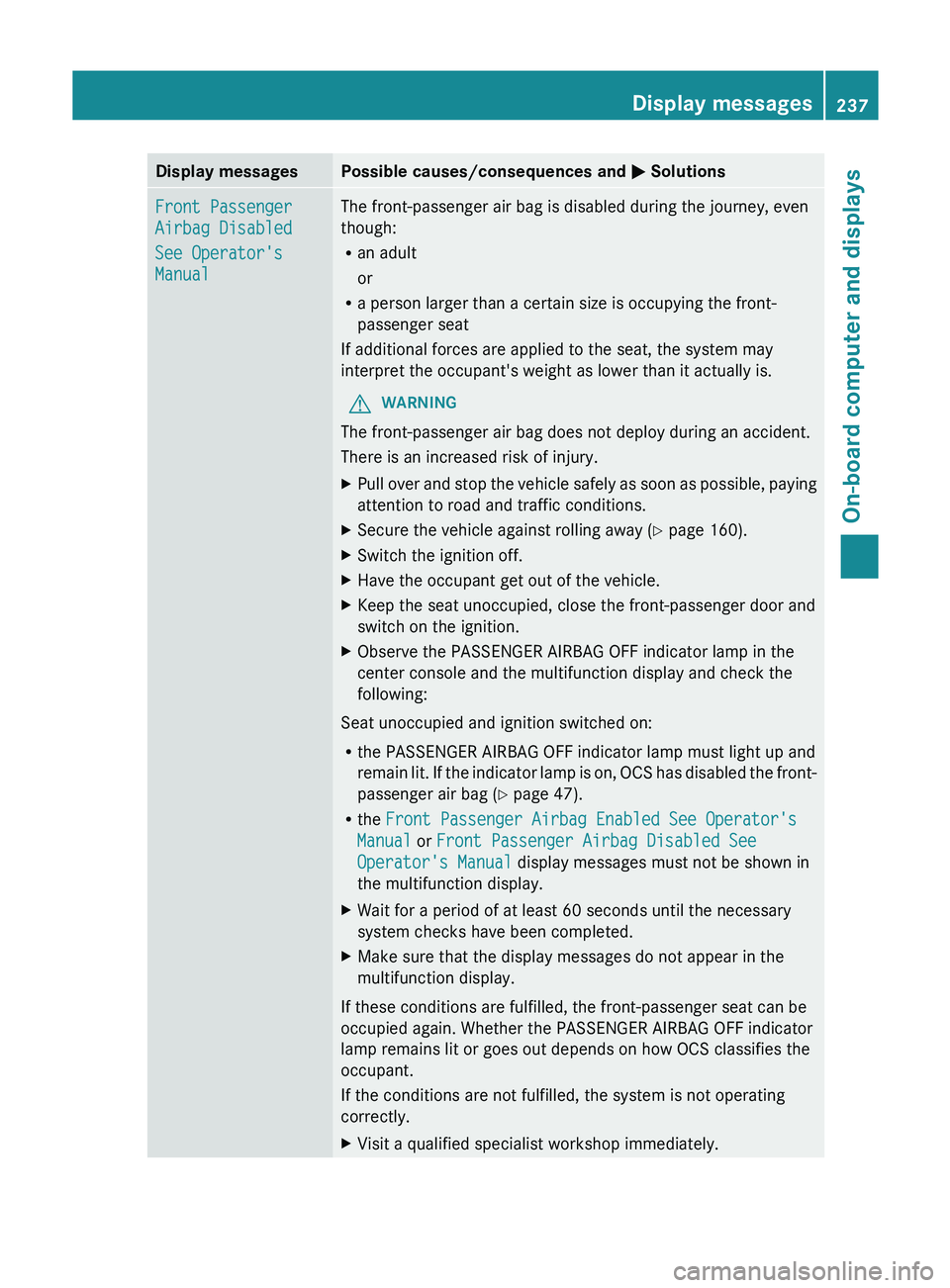

Index

Display messages Possible causes/consequences and
0050 SolutionsFront Passenger
Airbag Disabled
See Operator's
Manual The front-passenger air bag is disabled during the journey, even
though:
R
an adult
or
R a person larger than a certain size is occupying the front-
passenger seat
If additional forces are applied to the seat, the system may
interpret the occupant's weight as lower than it actually is.
G WARNING
The front-passenger air bag does not deploy during an accident.
There is an increased risk of injury.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Y page 160).
X Switch the ignition off.
X Have the occupant get out of the vehicle.
X Keep the seat unoccupied, close the front-passenger door and
switch on the ignition.
X Observe the PASSENGER AIRBAG OFF indicator lamp in the
center console and the multifunction display and check the
following:
Seat unoccupied and ignition switched on:
R the PASSENGER AIRBAG OFF indicator lamp must light up and
remain lit. If
the indicator
lamp is on, OCS has disabled the front-
passenger air bag ( Y page 47).
R the Front Passenger Airbag Enabled See Operator's
Manual or Front Passenger Airbag Disabled See
Operator's Manual display messages must not be shown in
the multifunction display.
X Wait for a period of at least 60 seconds until the necessary
system checks have been completed.
X Make sure that the display messages do not appear in the
multifunction display.
If these conditions are fulfilled, the front-passenger seat can be
occupied again. Whether the PASSENGER AIRBAG OFF indicator
lamp remains lit or goes out depends on how OCS classifies the
occupant.
If the conditions are not fulfilled, the system is not operating
correctly.
X Visit a qualified specialist workshop immediately. Display messages
237
On-board computer and displays Z

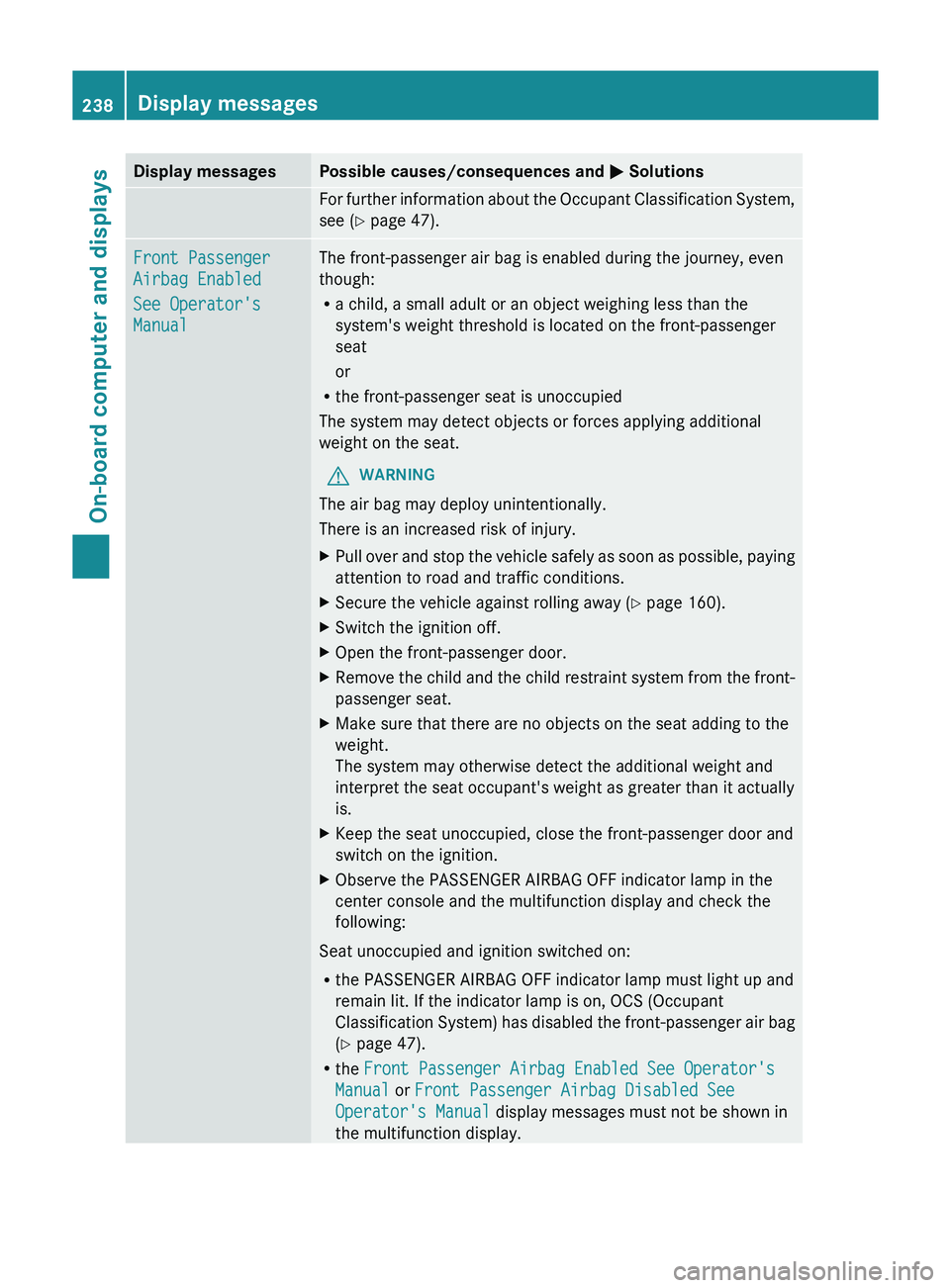

Display messages Possible causes/consequences and
0050 SolutionsFor further information about the Occupant Classification System,
see (
Y page 47). Front Passenger
Airbag Enabled
See Operator's
Manual The front-passenger air bag is enabled during the journey, even
though:
R
a child, a small adult or an object weighing less than the
system's weight threshold is located on the front-passenger
seat
or
R the front-passenger seat is unoccupied
The system may detect objects or forces applying additional
weight on the seat.
G WARNING
The air bag may deploy unintentionally.
There is an increased risk of injury.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Y page 160).
X Switch the ignition off.
X Open the front-passenger door.
X Remove the child and the child restraint system from the front-
passenger seat.
X Make sure that there are no objects on the seat adding to the
weight.
The system may otherwise detect the additional weight and
interpret the seat occupant's weight as greater than it actually
is.
X Keep the seat unoccupied, close the front-passenger door and
switch on the ignition.
X Observe the PASSENGER AIRBAG OFF indicator lamp in the
center console and the multifunction display and check the
following:
Seat unoccupied and ignition switched on:
R the PASSENGER AIRBAG OFF indicator lamp must light up and
remain lit. If the indicator lamp is on, OCS (Occupant
Classification System) has
disabled the
front-passenger air bag
(Y page 47).
R the Front Passenger Airbag Enabled See Operator's
Manual or Front Passenger Airbag Disabled See
Operator's Manual display messages must not be shown in
the multifunction display.238
Display messages
On-board computer and displays

Display messages Possible causes/consequences and
0050 SolutionsX
Wait for a period of at least 60 seconds until the necessary
system checks have been completed.
X Make sure that the display messages do not appear in the
multifunction display.
If these conditions are fulfilled, the front-passenger seat can be
occupied again. Whether the PASSENGER AIRBAG OFF indicator
lamp remains lit or goes out depends on how OCS classifies the
occupant.
If the conditions are not fulfilled, the system is not operating
correctly.
X Visit a qualified specialist workshop immediately.
For further information about the Occupant Classification System,
see ( Y page 47). Lights
i Display messages about LEDs:
This display message will only appear if all LEDs have failed. Display messages Possible causes/consequences and
0050 Solutions0049
Check Left
Cornering Light
 or 
Check Right
Cornering Light The left or right-hand cornering light is defective.
X
Check whether you are permitted to replace the bulb yourself
(Y page 116).
or
X Visit a qualified specialist workshop. 0049
Check Left Low
Beam or Check
Right Low Beam The left or right-hand low-beam headlamp is defective.
X
Check whether you are permitted to replace the bulb yourself
(Y page 116).
or
X Visit a qualified specialist workshop. 0049
Check Trailer Left
Tail Lamp
 or Check
Trailer Right
Tail
Lamp The left or right-hand trailer tail lamp is faulty.
X
Check whether you are permitted to change the bulb yourself.
or
X Visit a qualified specialist workshop. Display messages
239
On-board computer and displays Z
