Engine electronics
Problem (malfunction) ...................144
Engine oil
Adding ........................................... 291
Additives ........................................ 354
Checking the oil level ..................... 289
Display message ............................ 236
Filling capacity
............................... 353
Notes about oil grades ................... 353
Temperature (on-board computer) . 222
Viscosity ........................................ 354
Environmental protection
Note ................................................. 20
ESP ®
(Electronic Stability
Program) AMG menu (on-board computer) ... 222
Deactivating/activating ................... 63
Display message ............................ 226
Function/notes ................................ 62
Important safety information ........... 62
Trailer stabilization ........................... 64
Warning lamp ................................. 252
Exhaust check ................................... 159
Exhaust tail pipe (cleaning
instructions) ...................................... 298
Exterior lighting see Lights
Exterior mirrors
Adjusting ......................................... 93
Dipping (automatic) .........................94
Folding in/out (automatically) ......... 94
Folding in/out (electrically) ............. 93
Folding in when locking (on-board
computer) ...................................... 221
Out of position (troubleshooting) .....94
Setting ............................................. 93
Storing settings (memory
function) .......................................... 95
Storing the parking position ............. 94 F
Filler cap see Fuel filler flap


First-aid kit ......................................... 302
Flat tire Preparing the vehicle .....................304
Floormat ............................................. 284Fog lamps
Switching on/off ........................... 101
Folding the seat backrest (rear)
forwards/back

.................................. 265
Front fog lamp (display message) ...233
Front fog lamps Switching on/off ........................... 101
Fuel
Additives ........................................ 353
Consumption statistics ..................213
Displaying the current
consumption .................................. 213
Displaying the range ...................... 213
Fuel gauge ..................................... 209
Grade (gasoline) ............................ 351
Important safety notes .................. 351
Notes for AMG vehicles ................. 352
Premium-grade unleaded gasoline . 351
Problem (malfunction) ...................156
Refueling ........................................ 153
Tank content/reserve fuel .............351
Fuel/water separator
Service ........................................... 294
Fuel consumption
Notes ............................................. 159
Fuel filler flap
Emergency release ........................ 155
Opening/closing ............................ 154
Fuel level
Calling up the range (on-board
computer) ...................................... 213
Fuel tank
Capacity ........................................ 351
Problem (malfunction) ...................156
Fuse allocation chart ........................313
Fuse box Battery case ................................... 315
Dashboard ..................................... 314
Front-passenger footwell ...............314
Transmission tunnel ....................... 314
Fuse extractor ................................... 313
Fuses Allocation chart ............................. 313
Before changing ............................. 313
Dashboard fuse box ....................... 314
Fuse allocation chart ..................... 313
Fuse box in the front-passenger
footwell .......................................... 314 Index
9

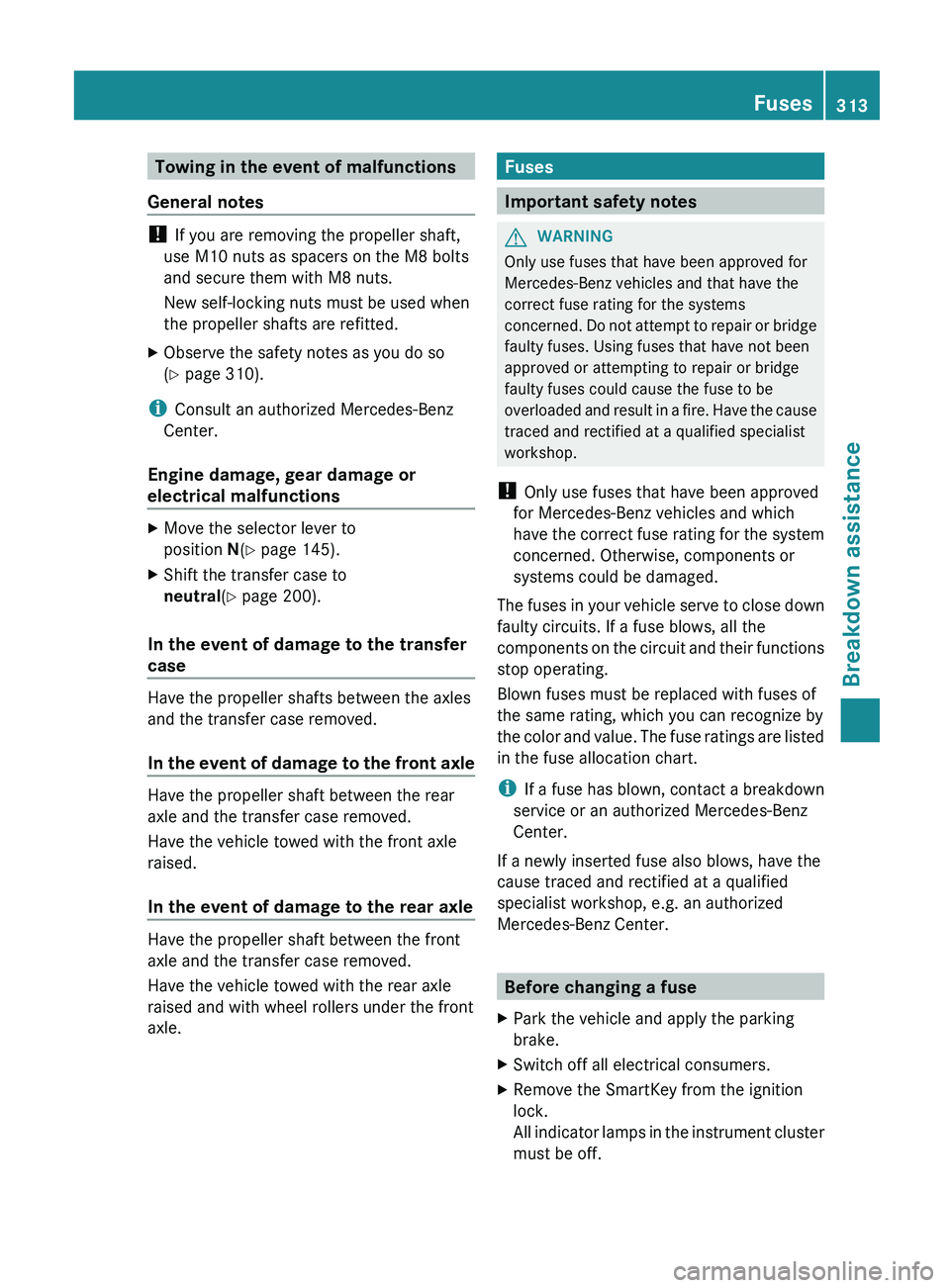

Towing in the event of malfunctions
General notes !
If you are removing the propeller shaft,
use M10 nuts as spacers on the M8 bolts
and secure them with M8 nuts.
New self-locking nuts must be used when
the propeller shafts are refitted.
X Observe the safety notes as you do so
(Y page 310).
i Consult an authorized Mercedes-Benz
Center.
Engine damage, gear damage or
electrical malfunctions X
Move the selector lever to
position N(Y page 145).
X Shift the transfer case to
neutral (Y page 200).
In the event of damage to the transfer
case Have the propeller shafts between the axles
and the transfer case removed.
In the event
of
damage to the front axleHave the propeller shaft between the rear
axle and the transfer case removed.
Have the vehicle towed with the front axle
raised.
In the event of damage to the rear axle
Have the propeller shaft between the front
axle and the transfer case removed.
Have the vehicle towed with the rear axle
raised and with wheel rollers under the front
axle. Fuses
Important safety notes
G
WARNING
Only use fuses that have been approved for
Mercedes-Benz vehicles and that have the
correct fuse rating for the systems
concerned. Do not attempt

to repair or bridge
faulty fuses. Using fuses that have not been
approved or attempting to repair or bridge
faulty fuses could cause the fuse to be
overloaded and result in a fire. Have the cause
traced and rectified at a qualified specialist
workshop.
! Only use fuses that have been approved
for Mercedes-Benz vehicles and which
have the correct fuse rating for the system
concerned. Otherwise, components or
systems could be damaged.
The fuses in your vehicle serve to close down
faulty circuits. If a fuse blows, all the
components on the circuit and their functions
stop operating.
Blown fuses must be replaced with fuses of
the same rating, which you can recognize by
the color and value. The fuse ratings are listed
in the fuse allocation chart.
i If a fuse has blown, contact a breakdown
service or an authorized Mercedes-Benz
Center.
If a newly inserted fuse also blows, have the
cause traced and rectified at a qualified
specialist workshop, e.g. an authorized
Mercedes-Benz Center. Before changing a fuse
X Park the vehicle and apply the parking
brake.
X Switch off all electrical consumers.
X Remove the SmartKey from the ignition
lock.
All indicator lamps in

the instrument cluster
must be off. Fuses
313
Breakdown assistance Z

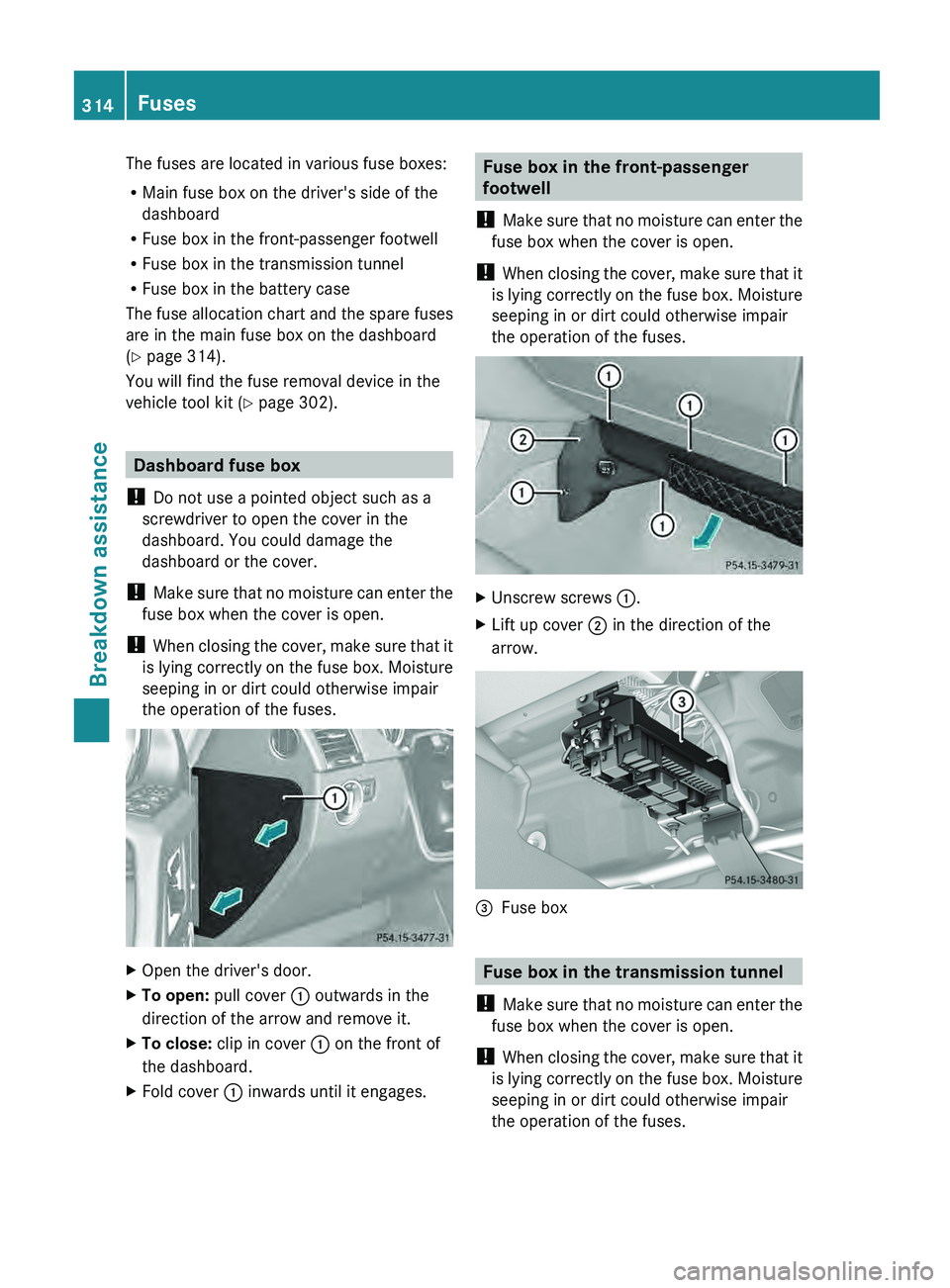

The fuses are located in various fuse boxes:
R
Main fuse box on the driver's side of the
dashboard
R Fuse box in the front-passenger footwell
R Fuse box in the transmission tunnel
R Fuse box in the battery case
The fuse allocation chart
and the spare fuses
are in the main fuse box on the dashboard
(Y page 314).
You will find the fuse removal device in the
vehicle tool kit (Y page 302). Dashboard fuse box
! Do not use a pointed object such as a
screwdriver to open the cover in the
dashboard. You could damage the
dashboard or the cover.
! Make sure that no

moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses. X
Open the driver's door.
X To open: pull cover 0043 outwards in the
direction of the arrow and remove it.
X To close: clip in cover 0043 on the front of
the dashboard.
X Fold cover 0043 inwards until it engages. Fuse box in the front-passenger
footwell
! Make sure that no

moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses. X
Unscrew screws 0043.
X Lift up cover 0044 in the direction of the
arrow. 0087
Fuse box Fuse box in the transmission tunnel
! Make sure that no

moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses. 314
Fuses
Breakdown assistance
