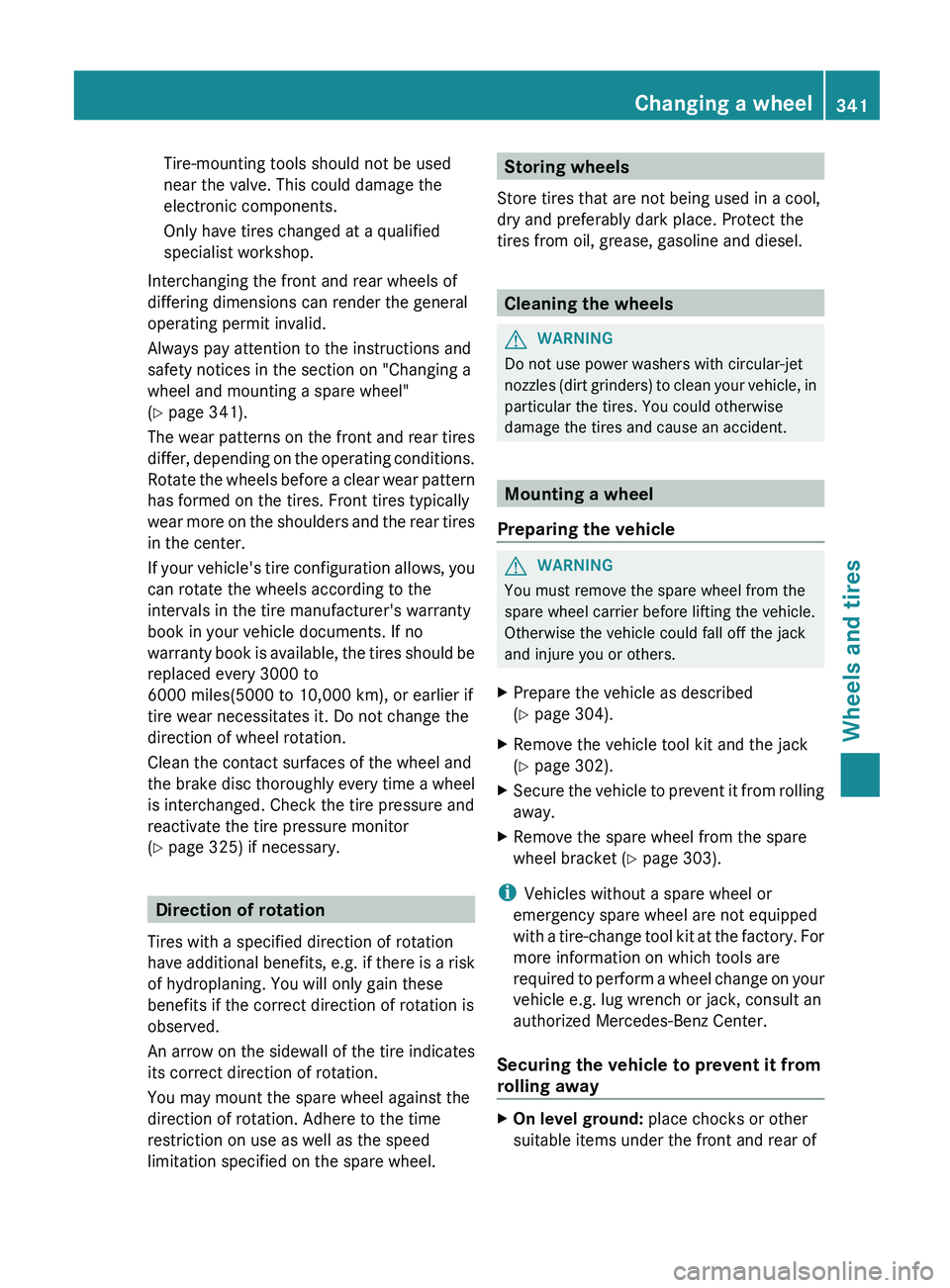

Tire-mounting tools should not be used
near the valve. This could damage the
electronic components.
Only have tires changed at a qualified
specialist workshop.
Interchanging the front and rear wheels of
differing dimensions can render the general
operating permit invalid.
Always pay attention to the instructions and
safety notices in the section on "Changing a
wheel and mounting a spare wheel"
(Y page 341).
The wear patterns on the front and rear tires
differ, depending on the
operating conditions.
Rotate the wheels before a clear wear pattern
has formed on the tires. Front tires typically
wear more on the shoulders and the rear tires
in the center.
If your vehicle's tire configuration allows, you
can rotate the wheels according to the
intervals in the tire manufacturer's warranty
book in your vehicle documents. If no
warranty book is available, the tires should be
replaced every 3000 to
6000 miles(5000 to 10,000 km), or earlier if
tire wear necessitates it. Do not change the
direction of wheel rotation.
Clean the contact surfaces of the wheel and
the brake disc thoroughly every time a wheel
is interchanged. Check the tire pressure and
reactivate the tire pressure monitor
(Y page 325) if necessary. Direction of rotation
Tires with a specified direction of rotation
have additional benefits, e.g.

if there is a risk
of hydroplaning. You will only gain these
benefits if the correct direction of rotation is
observed.
An arrow on the sidewall of the tire indicates
its correct direction of rotation.
You may mount the spare wheel against the
direction of rotation. Adhere to the time
restriction on use as well as the speed
limitation specified on the spare wheel. Storing wheels
Store tires that are not being used in a cool,
dry and preferably dark place. Protect the
tires from oil, grease, gasoline and diesel. Cleaning the wheels
G
WARNING
Do not use power washers with circular-jet
nozzles (dirt grinders) to

clean your vehicle, in
particular the tires. You could otherwise
damage the tires and cause an accident. Mounting a wheel
Preparing the vehicle G
WARNING
You must remove the spare wheel from the
spare wheel carrier before lifting the vehicle.
Otherwise the vehicle could fall off the jack
and injure you or others.
X Prepare the vehicle as described
(Y page 304).
X Remove the vehicle tool kit and the jack
(Y page 302).
X Secure the vehicle to prevent it from rolling
away.
X Remove the spare wheel from the spare
wheel bracket ( Y page 303).
i Vehicles without a spare wheel or
emergency spare wheel are not equipped
with a tire-change tool

kit at the factory. For
more information on which tools are
required to perform a wheel change on your
vehicle e.g. lug wrench or jack, consult an
authorized Mercedes-Benz Center.
Securing the vehicle to prevent it from
rolling away X
On level ground: place chocks or other
suitable items under the front and rear of Changing a wheel
341
Wheels and tires Z

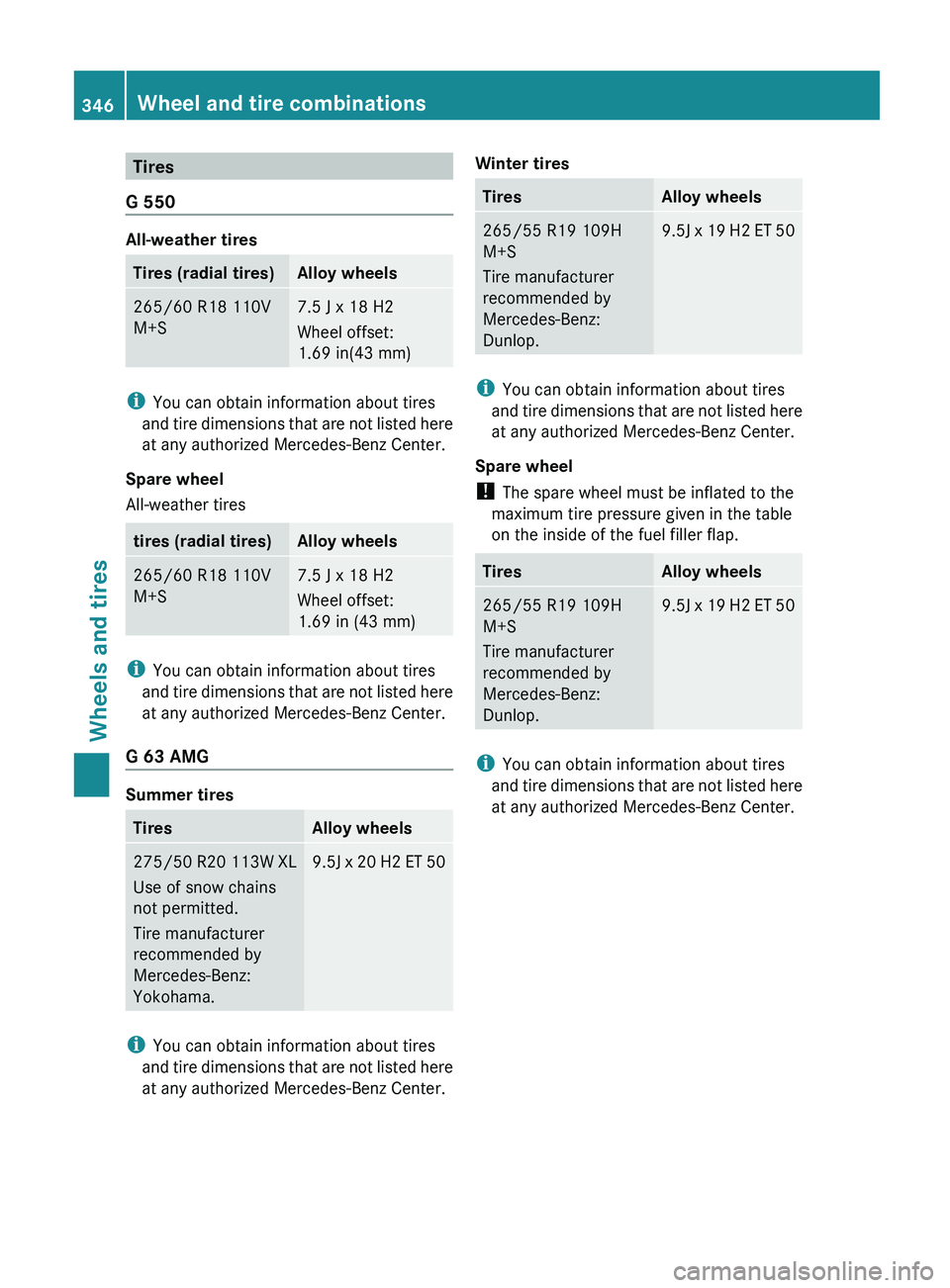

Tires
G 550 All-weather tires
Tires (radial tires) Alloy wheels
265/60 R18 110V
M+S 7.5 J x 18 H2
Wheel offset:
1.69 in(43 mm)
i
You can obtain information about tires
and tire dimensions that
are not listed here
at any authorized Mercedes-Benz Center.
Spare wheel
All-weather tires tires (radial tires) Alloy wheels
265/60 R18 110V
M+S 7.5 J x 18 H2
Wheel offset:
1.69 in (43 mm)
i
You can obtain information about tires
and tire dimensions that

are not listed here
at any authorized Mercedes-Benz Center.
G 63 AMG Summer tires
Tires Alloy wheels
275/50 R20 113W XL
Use of snow chains
not permitted.
Tire manufacturer
recommended by
Mercedes-Benz:
Yokohama. 9.5J x 20 H2 ET 50
i
You can obtain information about tires
and tire dimensions that

are not listed here
at any authorized Mercedes-Benz Center. Winter tires Tires Alloy wheels
265/55 R19 109H
M+S
Tire manufacturer
recommended by
Mercedes-Benz:
Dunlop. 9.5J x 19 H2 ET 50
i
You can obtain information about tires
and tire dimensions that

are not listed here
at any authorized Mercedes-Benz Center.
Spare wheel
! The spare wheel must be inflated to the
maximum tire pressure given in the table
on the inside of the fuel filler flap. Tires Alloy wheels
265/55 R19 109H
M+S
Tire manufacturer
recommended by
Mercedes-Benz:
Dunlop. 9.5J x 19 H2 ET 50
i
You can obtain information about tires
and tire dimensions that

are not listed here
at any authorized Mercedes-Benz Center. 346
Wheel and tire combinations
Wheels and tires

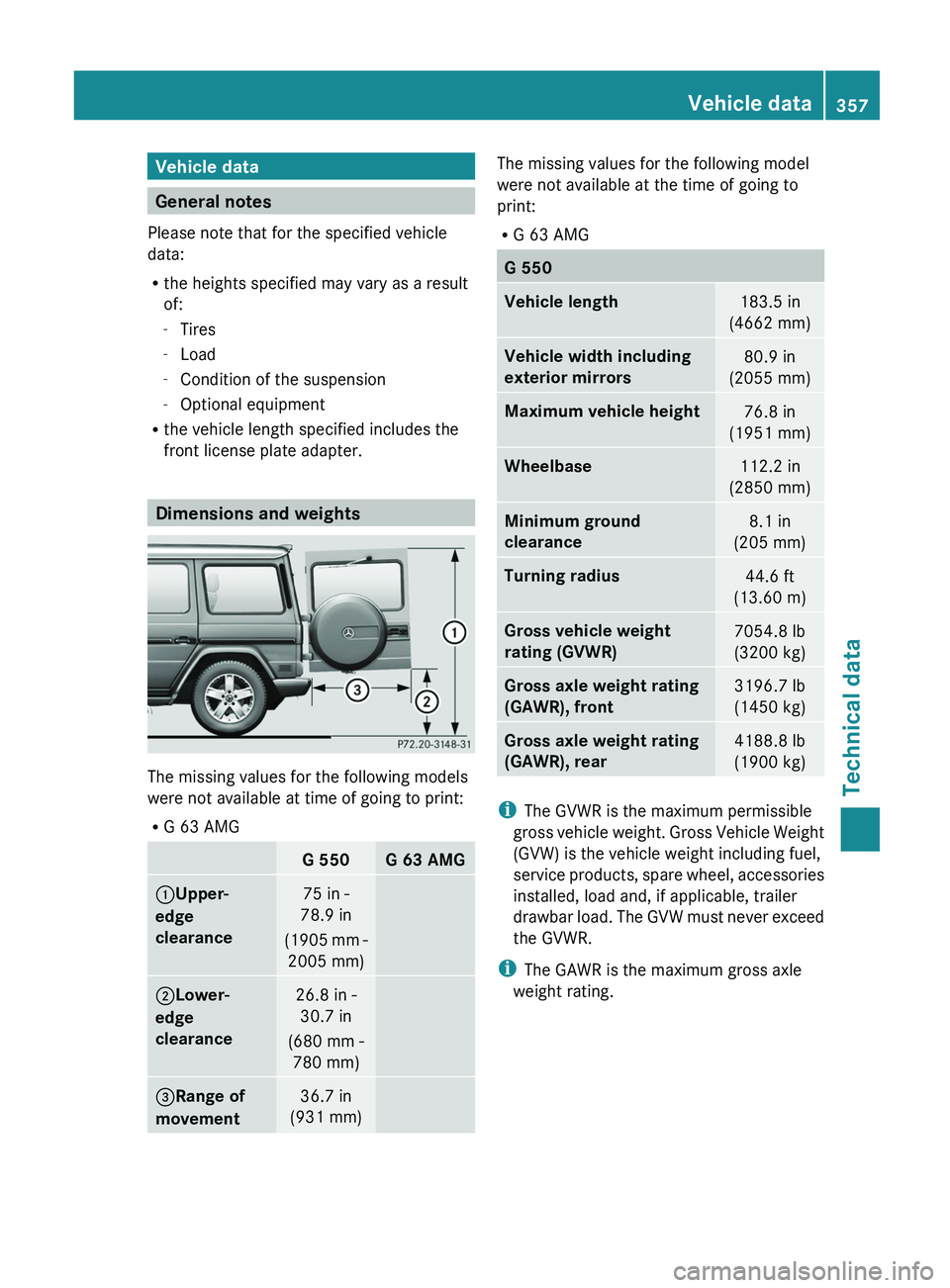

Vehicle data
General notes
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
-Tires
- Load
- Condition of the suspension
- Optional equipment
R the vehicle length specified includes the
front license plate adapter. Dimensions and weights
The missing values for the following models
were not available at time of going to print:
R
G 63 AMG G 550 G 63 AMG
0043Upper-
edge
clearance 75 in -
78.9 in
(1905 mm -
2005 mm
) 0044Lower-
edge
clearance 26.8 in -
30.7 in
(680 mm - 780 mm) 0087Range of
movement 36.7 in
(931 mm) The missing values for the following model
were not available at the time of going to
print:
R
G 63 AMG G 550
Vehicle length
183.5 in
(4662 mm) Vehicle width including
exterior mirrors
80.9 in
(2055 mm) Maximum vehicle height
76.8 in
(1951 mm) Wheelbase
112.2 in
(2850 mm) Minimum ground
clearance
8.1 in
(205 mm) Turning radius
44.6 ft
(13.60 m) Gross vehicle weight
rating (GVWR)
7054.8 lb
(3200 kg) Gross axle weight rating
(GAWR), front
3196.7 lb
(1450 kg) Gross axle weight rating
(GAWR), rear
4188.8 lb
(1900 kg) i
The GVWR is the maximum permissible
gross vehicle weight. Gross

Vehicle Weight
(GVW) is the vehicle weight including fuel,
service products, spare wheel, accessories
installed, load and, if applicable, trailer
drawbar load. The GVW must never exceed
the GVWR.
i The GAWR is the maximum gross axle
weight rating. Vehicle data
357Technical data Z

Trailer tow hitch
Mounting dimensions
G
WARNING
Only have a trailer tow hitch retrofitted at a
qualified specialist workshop.
! If you have a trailer tow hitch retrofitted,
changes to the engine
cooling system may
be necessary, depending on the vehicle
type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the
chassis frame. Anchorage points for the trailer tow hitch
0043
Anchorage points
0044 Overhang dimension
For trailer tow hitches installed at the factory,
the overhang dimension including protective
covering is 35.2 in (895 mm). Trailer loads
G 550
G 63 AMG
Permissible trailer load,
unbraked
1653 lbs
(750 kg) Permissible trailer load,
braked (at a minimum
gradient-climbing
capability of 12% from a
standstill)
7000 lbs
(3175 kg) Permissible rear axle
load when towing a
trailer (the drawbar
noseweight is not
included in the towing
weight)
4188 lbs
(1900 kg) Trailer drawbar noseweight
Number
of
passeng
ers each
weighin
g
150 lbs
(68 kg) Seat
occupa
ncy Trunk
load Maximu
m
drawbar
nosewei
ght
2 Front
seats 220 lbs
(100 kg) 562 lbs
(255 kg) 3 2 front
seats
1 rear seat 176 lbs
(80 kg) 562 lbs
(255 kg) 4 2 front
seats
2 rear seats 132 lbs
(60 kg) 456 lbs
(207 kg) 5 2 front
seats
3 rear seats 0 lbs
(0 kg) 423 lbs
(192 kg) 358
Trailer tow hitch
Technical data

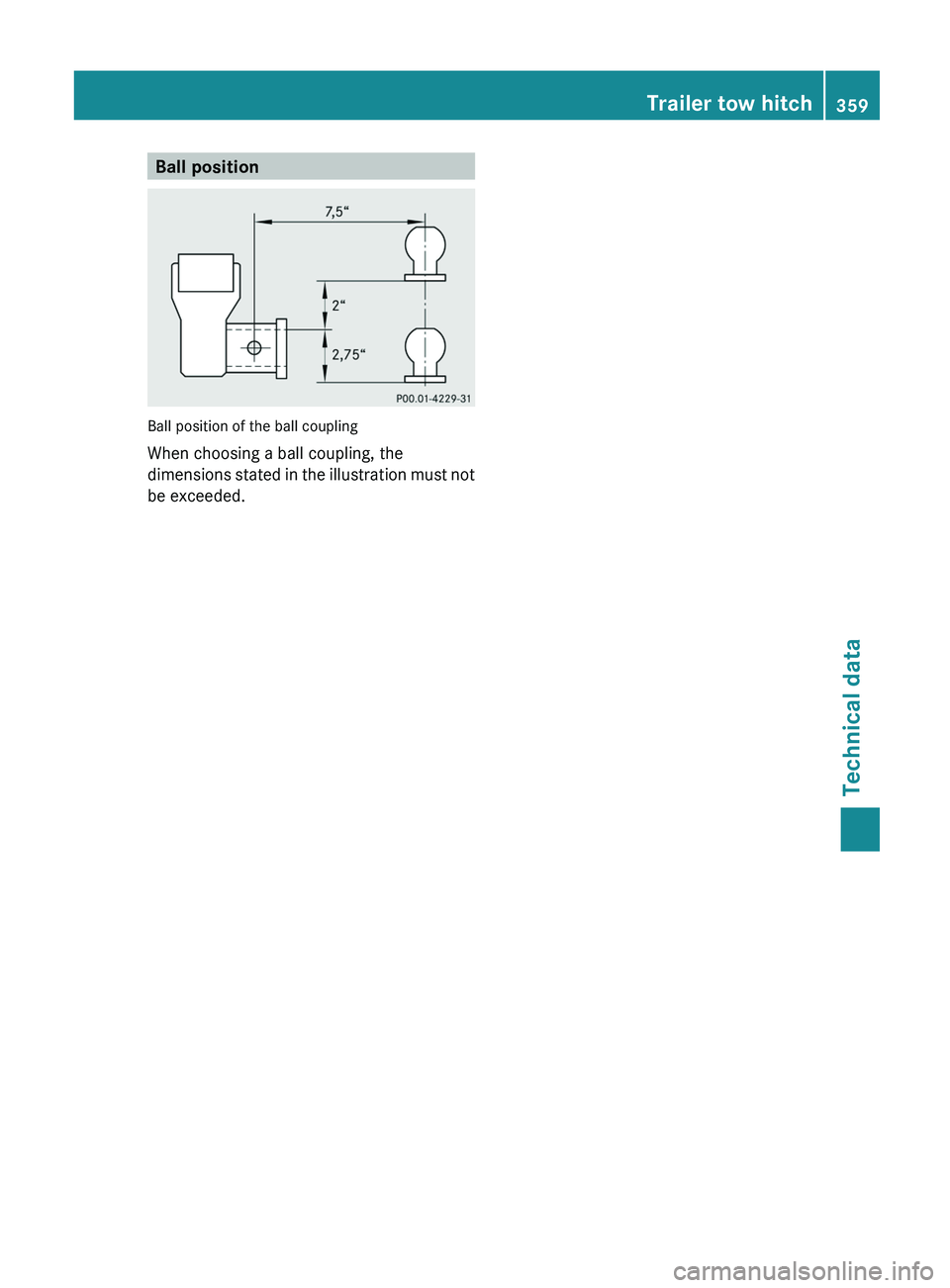

Ball position
Ball position of the ball coupling
When choosing a ball coupling, the
dimensions stated in
the
illustration must not
be exceeded. Trailer tow hitch
