Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the cover.
8-58
Maintenance and Care
Owner Maintenance
Mazda3_8CV6-EA-12H_Edition3 Page522
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (523,1)

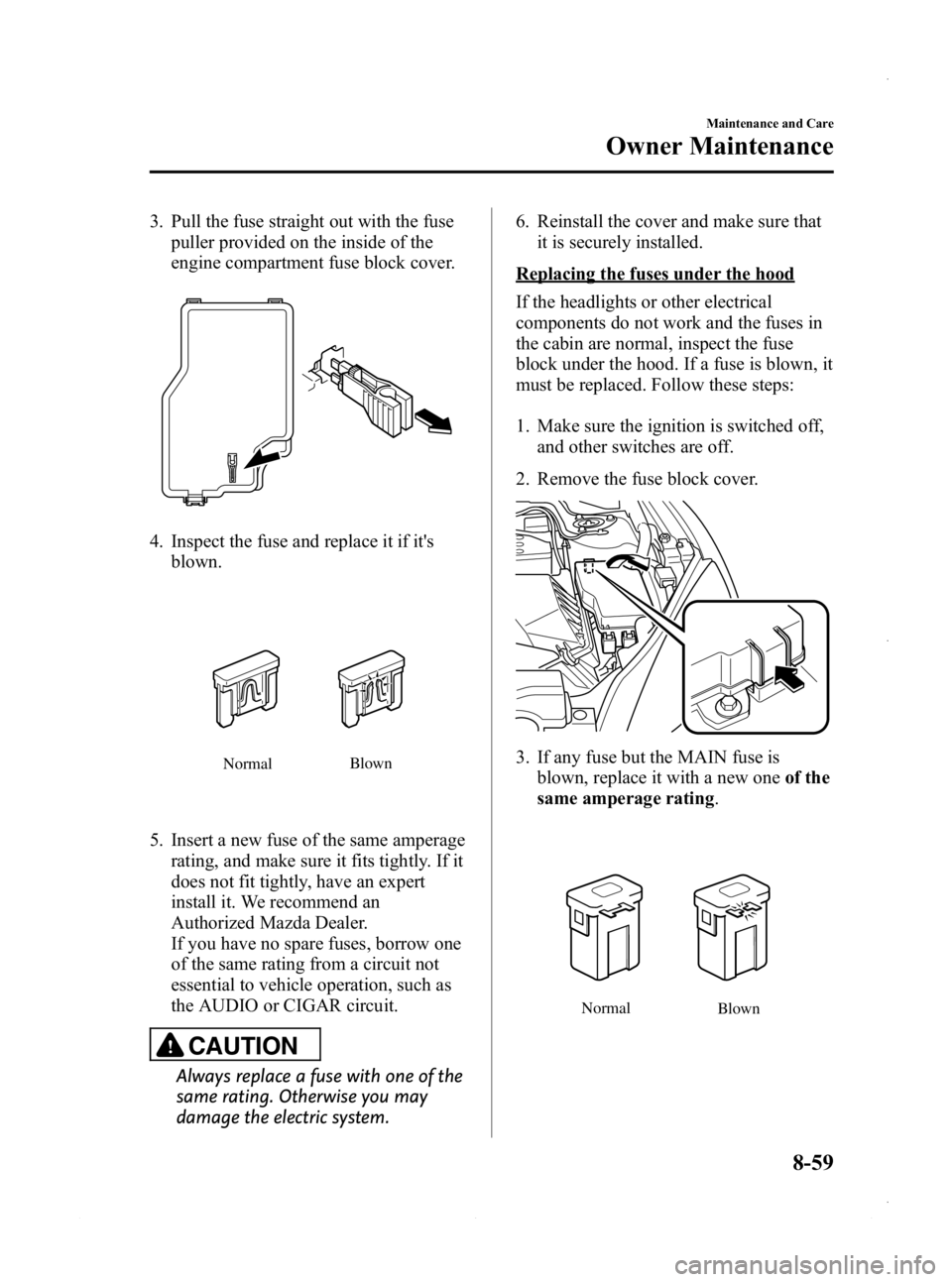

3. Pull the fuse straight out with the fusepuller provided on the inside of the
engine compartment fuse block cover.
4. Inspect the fuse and replace it if it'sblown.
Normal Blown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system. 6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the
same amperage rating .
Normal
Blown
Maintenance and Care
Owner Maintenance
8-59
Mazda3_8CV6-EA-12H_Edition3 Page523
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (596,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-40.
Standard tire
(Except MZR 2.3 DISI Turbo)
Tire size Inflation pressure
Front Rear
P205/55R16
89H
SKYACTIV-G 2.0250 kPa (36 psi) 250 kPa (36 psi)
Except
SKYACTIV-G
2.0 240 kPa (35 psi)
240 kPa (35 psi)
P205/50R17 88V 220 kPa (32 psi)220 kPa (32 psi)
(MZR 2.3 DISI Turbo)
Tire size Inflation pressure
Front Rear
P225/40R18 88Y 240 kPa (35 psi)230 kPa (34 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M 420 kPa (60 psi)
T125/70D16 96M 420 kPa (60 psi)
T125/70D17 98M 420 kPa (60 psi)
q Fuses
Refer to Fuses on page 8-58.
