2013 MAZDA MODEL 3 4-DOOR sensor

Black plate (61,1)
Do not place luggage or other objects under the front seats:Placing luggage or other objects under the front seats is dangerous. The components
essential to the supplemental restraint system could be damaged, and in the event of
a side collision, the appropriate air bags may not deploy, which could result in death
or serious injury. To prevent damage to the components essential to the
supplemental restraint system, do not place luggage or other objects under the front
seats.
Do not touch the components of the supplemental restraint system after the air bags
have inflated: Touching the components of the supplemental restraint system after the air bags
have inflated is dangerous. Immediately after inflation, they are very hot. You could
get burned.
Never install any front-end equipment to your vehicle: Installation of front-end equipment, such as frontal protection bar (kangaroo bar,
bull bar, push bar, or other similar devices), snowplow, or winches, is dangerous. The
air bag crash sensor system could be affected. This could cause air bags to inflate
unexpectedly, or it could prevent the air bags from inflating during an accident.
Front occupants could be seriously injured.
Do not modify the suspension: Modifying the vehicle suspension is dangerous. If the vehicle's height or the
suspension is modified, the vehicle will be unable to accurately detect a collision
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
Do not modify a front door or leave any damage unrepaired. Always have an
Authorized Mazda Dealer inspect a damaged front door: Modifying a front door or leaving any damage unrepaired is dangerous. Each front
door has a side crash sensor as a component of the supplemental restraint system. If
holes are drilled in a front door, a door speaker is left removed, or a damaged door is
left unrepaired, the sensor could be adversely affected causing it to not detect the
pressure of an impact correctly during a side collision. If a sensor does not detect a
side impact correctly, the side and curtain air bags and the front seat belt
pretensioner may not operate normally which could result in serious injury to
occupants.
Essential Safety Equipment
SRS Air Bags
2-47
Mazda3_8CV6-EA-12H_Edition3 Page61
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (62,1)
Do not modify the supplemental restraint system:Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Do not make
any modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag modules. It also includes installing extra
electrical equipment on or near system components or wiring. An Authorized Mazda
Dealer can provide the special care needed in the removal and installation of front
seats. It is important to protect the air bag wiring and connections to assure that the
bags do not accidentally deploy, the front passenger seat weight sensors are not
damaged and that the seats retain an undamaged air bag connection.
NOTE
lWhen an air bag deploys, a loud inflation noise can be heard and some smoke will be released.
Neither is likely to cause injury, however, the texture of the air bags may cause light skin injuries
on body parts not covered with clothing through friction.
lShould you sell your Mazda, we urge you to tell the new owner of its air bag systems and that
familiarization with all instructions about them, from the Owner's Manual, is important.
lThis highly-visible label is displayed which warns against the use of rear-facing child-restraint
systems on the front passenger seat.
2-48
Essential Safety Equipment
SRS Air Bags
Mazda3_8CV6-EA-12H_Edition3 Page62
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (63,1)

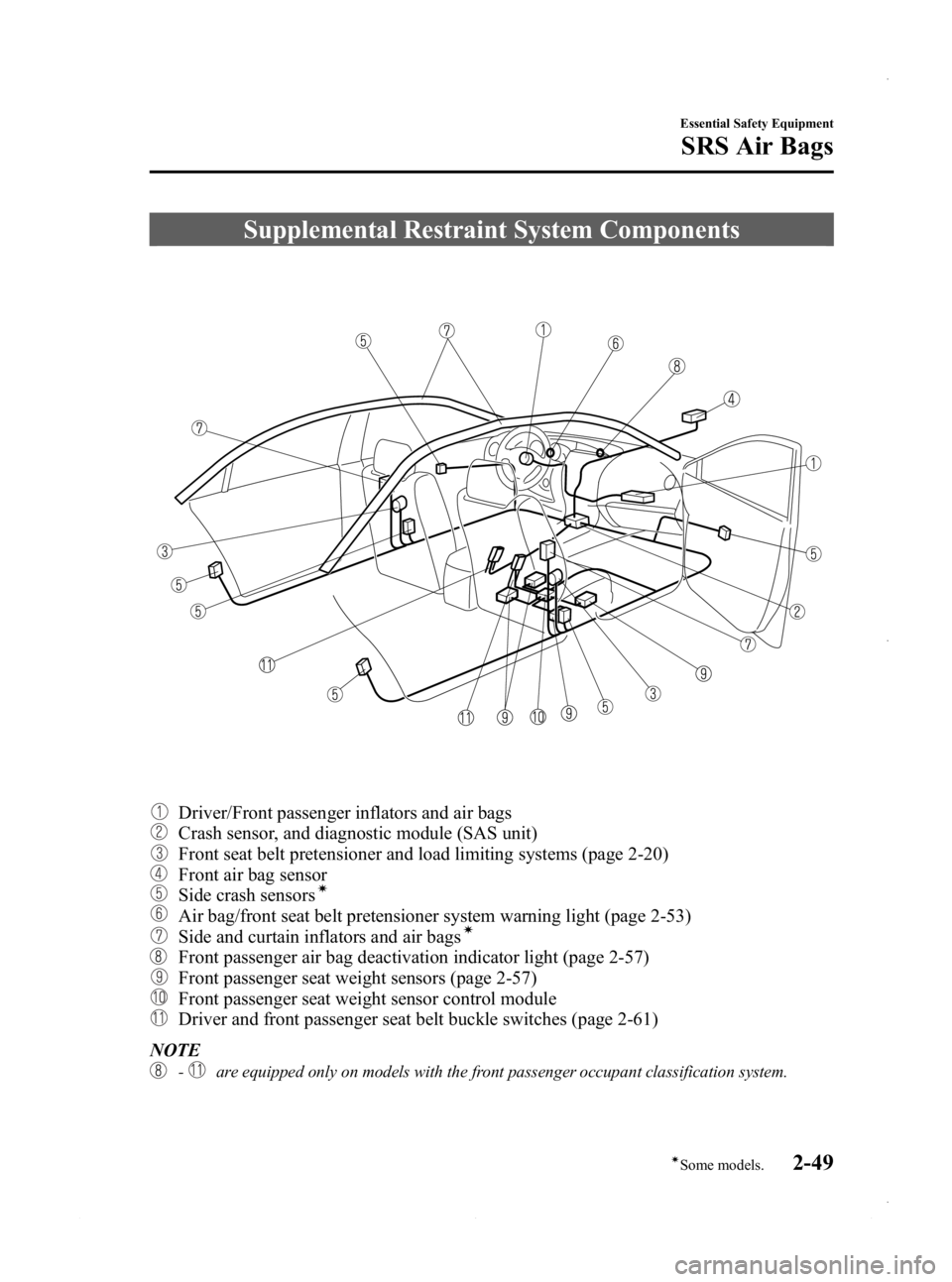

Supplemental Restraint System Components
Driver/Front passenger inflators and air bags
Crash sensor, and diagnostic module (SAS unit)
Front seat belt pretensioner and load limiting systems (page 2-20)
Front air bag sensor
Side crash sensorsí
Air bag/front seat belt pretensioner system warning light (page 2-53)
Side and curtain inflators and air bagsí
Front passenger air bag deactivation indicator light (page 2-57)
Front passenger seat weight sensors (page 2-57)
Front passenger seat weight sensor control module
Driver and front passenger seat belt buckle switches (page 2-61)
NOTE
-are equipped only on models with the front passenger occupant classification system.
Essential Safety Equipment
SRS Air Bags
2-49íSome models.
Mazda3_8CV6-EA-12H_Edition3 Page63
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (64,1)
How the SRS Air Bags Work
Your Mazda is equipped with the following types of SRS air bags. SRS air bags are
designed to work together with the seat belts to help to reduce injuries during an accident.
The SRS air bags are designed to provide further protection for passengers in addition to
the seat belt functions. Be sure to wear seat belts properly.
qFront Seat Belt Pretensioners
The front seat belt pretensioners are designed to deploy in moderate or severe frontal, near
frontal collisions.
(With Front Passenger Occupant Classification System)
In addition, during a side collision, the pretensioner operates on the side in which the
collision occurs.
qDriver Air Bag
The driver's air bag is mounted in the steering wheel.
When air bag crash sensors detect a frontal impact of greater than moderate force, the
driver's air bag inflates quickly helping to reduce injury mainly to the driver's head or chest
caused by directly hitting the steering wheel.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria ”
(page 2-54).
(With Front Passenger Occupant Classification System)
The driver's dual-stage air bag controls air bag inflation in two energy stages. During an
impact of moderate severity the driver's air bag deploys with lesser energy, whereas during
more severe impacts, it deploys with more energy.
2-50
Essential Safety Equipment
SRS Air Bags
Mazda3_8CV6-EA-12H_Edition3 Page64
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (65,1)
qFront Passenger Air Bag
The front passenger air bag is mounted in the front passenger dashboard. The inflation
mechanism for the front passenger air bag is the same as the driver's air bag, as mentioned
above.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria ”
(page 2-54).
(With Front Passenger Occupant Classification System)
In addition, the front passenger air bag is designed to only deploy in accordance with the
total seated weight on the front passenger seat. For details, refer to the front passenger
occupant classification system (page 2-57).
q Side Air Bagsí
The side air bags are mounted in the outboard sides of the front seatbacks.
When the air bag crash sensors detect a side impact of greater than moderate force, the
system inflates the side air bag only on the side in which the vehicle was hit. The side air
bag inflates quickly to reduce injury to the driver or front passenger's chest caused by
directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria ”
(page 2-54).
Essential Safety Equipment
SRS Air Bags
2-51íSome models.
Mazda3_8CV6-EA-12H_Edition3 Page65
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (66,1)
(With Front Passenger Occupant Classification System)
In addition, the front passenger side air bag is designed to only deploy in accordance with
the total seated weight on the front passenger seat. For details, refer to the front passenger
occupant classification system (page 2-57).
qCurtain Air Bagsí
The curtain air bags are mounted in the front and rear window pillars, and the roof edge
along both sides.
When the air bag crash sensors detect a side impact of greater than moderate force, the
curtain air bag inflates quickly and helps to reduce injury mainly to the rear outboard
passenger's head caused by directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria ”
(page 2-54).
In a side impact:
Greater than moderate impact to one side of the vehicle will cause the curtain air bag on
that side only to inflate.
The side and curtain air bags will deploy only on the side the
vehicle receives the force of the impact.
2-52
Essential Safety Equipment
íSome models.
SRS Air Bags
Mazda3_8CV6-EA-12H_Edition3 Page66
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (71,1)
Front Passenger Occupant Classification Systemí
First, please read“Supplemental Restraint System (SRS) Precautions ”(page 2-44)
carefully.
q Front Passenger Seat Weight Sensors
Your vehicle is equipped with a front passenger seat weight sensors as a part of the
supplemental restraint system. These sensors are located under both of the front passenger
seat rails. These sensors determine the total seated weight on the front passenger seat and
monitor the seat belt buckle for the front passenger seat. The SAS unit is designed to
prevent the front passenger front and side air bags and seat belt pretensioner system from
deploying if the front passenger air bag deactivation indicator light illuminates.
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when the front passenger air bag deactivation indicator light
illuminates. Refer to the following table for the front passenger air bag deactivation
indicator light illumination conditions.
This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light illuminates
according to the following table.
The air bag/front seat belt pretensioner system warning light flashes and the front
passenger air bag deactivation indicator light illuminates if the sensors have a possible
malfunction. If this happens, the front passenger front and side air bags and seat belt
pretensioner system will not deploy.
Front passenger air bag deactivation indicator light
This indicator light illuminates to remind you that the front passenger front and side air
bags and seat belt pretensioner will not deploy during a collision.
Essential Safety Equipment
SRS Air Bags
2-57íSome models.
Mazda3_8CV6-EA-12H_Edition3 Page71
Thursday, February 28 2013 11:26 AM
Form No.8CV6-EA-12H

Black plate (72,1)
If the front passenger weight sensors are normal, the indicator light illuminates when the
ignition is switched ON. The light turns off after a few seconds.
The front passenger air bag deactivation indicator light illuminates or is off under the following conditions:Condition detected by the
front passenger occupant classification system Front passenger air bag
deactivation indicator light Front passenger front and
side air bags Front passenger seat
belt pretensioner system
Empty (Not occupied)
*1Off Deactivated Deactivated
Child or child-restraint
system
*2On Deactivated Deactivated
Adult
*3Off ReadyReady
*1 : If the front passenger seat belt is buckled, the front passenger air bag deactivation indicator light illuminates, however this does not indicate a malfunction.
*2 : If a larger child sits on the front passenger seat, the sensors might detect the child as being an adult depending on the child's physique.
*3 : If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child depending on the person's physique.
The curtain air bag is ready for inflating regardless of the chart above.
If the front passenger air bag deactivation indicator light does not illuminate when the
ignition is switched ON and does not illuminate as indicated in the above chart, do not
allow a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as
soon as possible. The system may not work properly in an accident.
