2013 LINCOLN NAVIGATOR key

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtective Circuits
1 30A Driver window
2 15A Driver side memory module
3 15A Audio rear seat controls, Satellite
radio, SYNC
4 30A Passenger window
5 10A Keypad illumination, 3rd row seat
enable, Brake-shift interlock,
Smart fuse panel logic power
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Switch backlighting, Puddle lamps
272Fuses
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

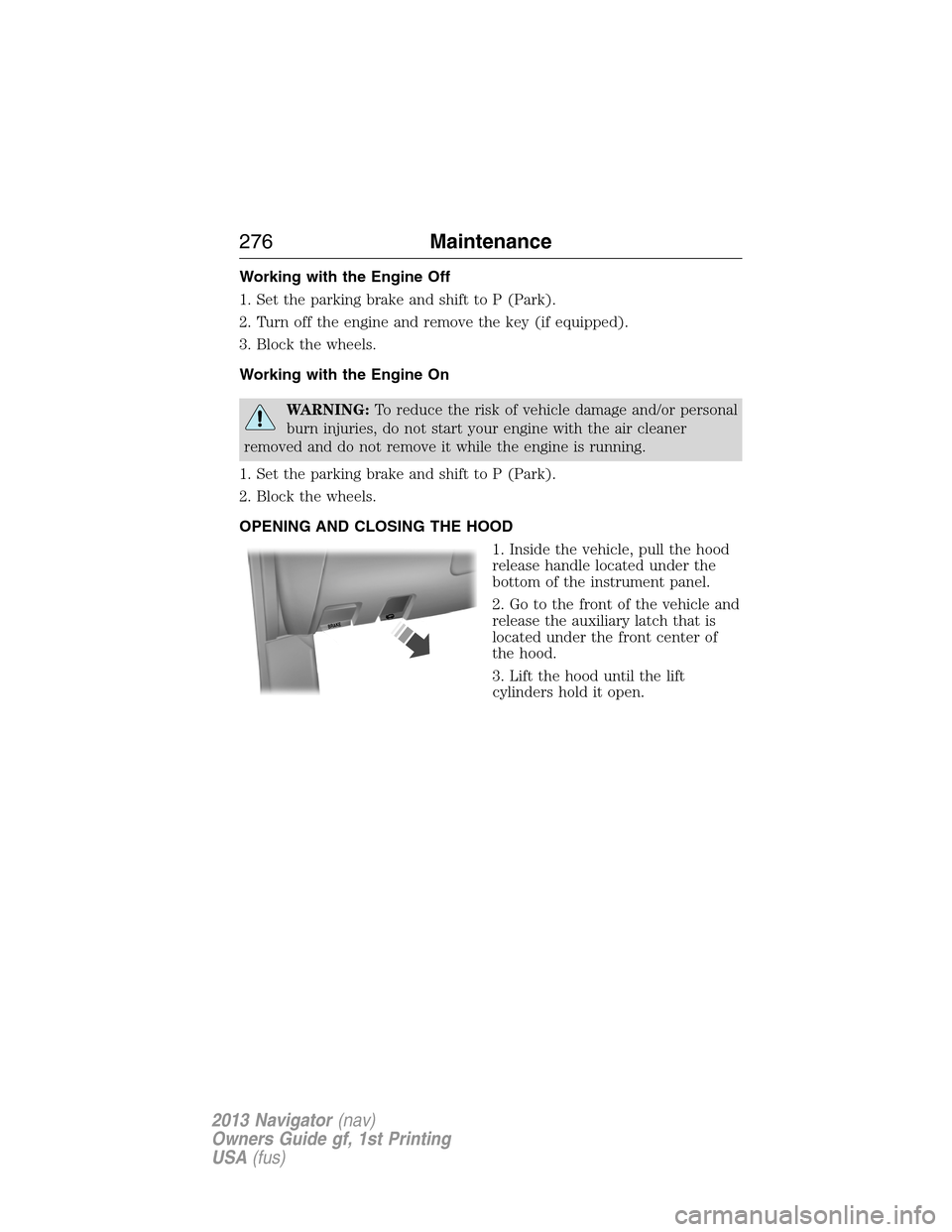

Working with the Engine Off
1. Set the parking brake and shift to P (Park).
2. Turn off the engine and remove the key (if equipped).
3. Block the wheels.
Working with the Engine On
WARNING:To reduce the risk of vehicle damage and/or personal
burn injuries, do not start your engine with the air cleaner
removed and do not remove it while the engine is running.
1. Set the parking brake and shift to P (Park).
2. Block the wheels.
OPENING AND CLOSING THE HOOD
1. Inside the vehicle, pull the hood
release handle located under the
bottom of the instrument panel.
2. Go to the front of the vehicle and
release the auxiliary latch that is
located under the front center of
the hood.
3. Lift the hood until the lift
cylinders hold it open.
B
R
A
K
E

276Maintenance
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

4. To attach the new wiper to the
wiper arm, align the cross pin and
keyway (denoted with the arrows)
and firmly press the wiper blade
into the wiper arm until an audible
snap is heard.
If you find this procedure too difficult, please see your dealer.
AIR FILTER CHECK
WARNING:To reduce the risk of vehicle damage and/or personal
burn injuries do not start your engine with the air cleaner
removed and do not remove it while the engine is running.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraftpart numbersin theCapacities and
Specificationschapter.
Refer toScheduled Maintenancefor the appropriate intervals for
changing the air filter element.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
288Maintenance
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

If you select: You can:
System Settings Languageallows you to choose between
English, Spanish and French.
Unitsallows you to choose between English
and Metric measurements.
Keyboard Layoutallows you to choose
between an ABC or QWERTY keyboard.
Delete Stored Itemsallows you to choose
to delete all of the entries from Address Book,
Previous Destinations, Avoid Areas, Saved
Photos and Voice Recognition Profiles. Touch
View to see what entries have been stored.
Restore Factory Default Settingsallows
you to restore factory default settings.
Valet ModeLock and unlock the system using a four-digit
PIN.
Note:The PIN can be reset by
simultaneously pressing and holding presets 1
and 5 while on the PIN entry screen. After
approximately five seconds, the system
transitions to the valet mode screen indicating
that the PIN is reset. Once you have reset the
PIN, the system then allows you to set a new
PIN.
Voice ControlSet the system to automatically listen for USB
or SYNC voice commands first. This
eliminates the need to say “USB” or “User
Device” before any SYNC media commands.
Navigation System (If Equipped)423
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

When you select: You can:
Channel GuideSee a list of channels sorted by genre and
also skip or lock out certain channels. Select
the desired genre and choose a channel by
pressing the channel name button. You can
then choose to Skip or Lock a certain
channel. A skipped channel is not accessible
using the tune knob, scan or seek functions.
(To access the skipped channel, select Direct
Tune and enter the channel number.) A
locked channel can only be accessed by
entering the Channel Guide and then entering
the system’s PIN.
Direct TuneEnter the desired satellite channel number
using the on-screen keypad.
Set GenreAllows you to choose from a list of genres.
Once a genre is chosen and you press SEEK,
it only looks for channels in that genre.
432Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

SIRIUS troubleshooting tips
Radio Display Condition Possible Action
Acquiring Radio requires more than
two seconds to produce
audio for the selected
channel.None. This message
should disappear shortly.
Sat Fault/SIRIUS
system failureInternal module or
system failure present.If this message does not
clear shortly, or with an
ignition key cycle, your
receiver may have a
fault. See your
authorized dealer for
service.
Invalid Channel Channel no longer
available.Tune to another channel
or choose another
preset.
Unsubscribed
ChannelSubscription not
available for this channel.Contact SIRIUS at
1–888–539–7474 to
subscribe to the channel,
or tune to another
channel.
No Signal Loss of signal from the
SIRIUS satellite or
SIRIUS tower to the
vehicle antenna.The signal is currently
being blocked. When you
move into an open area,
the signal should return.
Updating Update of channel
programming in progress.None. The process may
take up to three minutes.
Call SIRIUS
1–888–539–7474Satellite service has been
deactivated by SIRIUS
Satellite Radio.Call SIRIUS at
1–888–539–7474 to
reactivate or resolve
subscription issues.
No Channels
AvailableAll the channels in the
selected category are
locked or skipped.Unlock or unskip the
channels using the
channel guide.
Subscription Updated SIRIUS has updated the
channels available for
your vehicle.None.
436Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

When you select: You can:
Settings Video Display Settingsallows you to adjust
the brightness and contrast. You can also
choose to return to the default settings by
pressing Restore Default.
Audio Languageallows you to choose which
language you would like the DVD audio track
to play in.
Subtitle Displayallows you to turn subtitles
on and off.
Subtitle Languageallows you to choose
which language you would like the subtitles to
appear in.
Aspect Ratioallows you to choose wide, full,
normal or cinema display.
Angle Mark Notificationallows you to have
more viewing angles from which to select.
Once you have made your selection, press
ENTER to confirm.
SearchGo to a specific title or chapter using the
keypad.
Note:Some of the above settings are disc-dependent and availability and
operation may vary.
During disc play, you can also touch
the screen to access the virtual
remote which allows you to Move
Controls on the screen as well as
use the cursor controls, Enter and
Return to navigate and make
selections within the menus.
Dolbynoise reduction is manufactured under license from Dolby
Laboratories Licensing Corporation. Dolbyand the double-D symbol are
registered trademarks of DolbyLaboratories Licensing Corporation.
Navigation System (If Equipped)439
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

snow and ice ...........................211
through water .................210, 250
Dual automatic temperature
control (DATC) .................146, 148
DVD (if equipped) ....................127
DVD region coding ...................135
DVD system ...............................127
E
Electronic message center .......104
Electronic stability control ......217
Emergencies, roadside
jump-starting ..........................255
running out of fuel .................192
Emission control system ..........196
End user license agreement ....457
Engine ........................................339
cleaning ...................................300
coolant .....................................279
fail-safe cooling .......................282
idle speed control ...................285
lubrication specifications .......340
refill capacities ........................340
service points ..........................277
Engine block heater .................188
Engine oil
checking and adding ..............278
dipstick ....................................278
filter, specifications ................343
refill capacities ........................340
specifications ..........................340
Event data recording ..................12
Exhaust fumes ..........................188
F
Fail safe cooling ........................282Fleet MyKey programming ........58
Flexible Fuel Vehicle (FFV) ....190
Floor mats .................................251
Fluid capacities .........................340
Fog lamps ....................................87
Forward and reverse sensing
system ........................................219
Four-Wheel Drive vehicles .......205
description ..............................206
driving off road .......................207
indicator light .........................205
Fuel
cap ...........................................194
capacity ...................................340
choosing the right fuel ...........191
filler funnel .............................192
filling your vehicle with fuel ..194
filter, specifications ................284
fuel pump shut-off ..................254
octane rating ...................192, 339
quality ......................................191
running out of fuel .................192
safety information relating to
automotive fuels .....................190
Fuel - flex fuel vehicle
(FFV) .................................190–191
Fuses ..........................266–267, 271
G
Garage door opener ..........171, 175
Gas cap (see Fuel cap) ............194
Gauges .........................................97
H
Hazard flashers .........................254
HD Radio™ ...............................427
