2013 LINCOLN NAVIGATOR display

Maintenance
MessagesAction / Description
ENGINE OIL
CHANGE SOONDisplayed when the engine oil life is nearing
its end.
OIL CHANGE
REQUIREDDisplayed when the oil life left reaches 0%.
WASHER FLUID
LEVEL LOWIndicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level.
MyKeyMessages Action / Description
MYKEY ACTIVE
DRIVE SAFELYDisplayed when MyKeyis active.
VEHICLE NEAR
TOP SPEEDDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is approaching 80 mph (130 km/h).
VEHICLE AT TOP
SPEED - MYKEY
SETTINGDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is 80 mph (130 km/h).
TOP SPEED MYKEY
SETTINGDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is 80 mph (130 km/h).
SPEED LIMITED TO
80 MPHDisplayed when starting the vehicle and
MyKeyis in use and the MyKey speed limit is
on.
VEHICLE SPEED
80 MPH MAXDisplayed when a MyKeyis in use and the
Admin has enabled the MyKey speed limit and
the vehicle speed is 80 mph (130 km/h).
CHECK SPEED
DRIVE SAFELYDisplayed when a MyKeyis in use and the
optional setting is on and the vehicle exceeds
a preselected speed.
BUCKLE UP TO
UNMUTE AUDIODisplayed when a MyKeyis in use and
Belt-Minderis activated.
11 2Information Displays
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

MyKeyMessages Action / Description
KEY COULD NOT
PROGRAMDisplayed when an attempt is made to
program a spare key using two existing
MyKeys.
ADVTRAC ON
MYKEY SETTINGDisplayed when a MyKeyis in use when
trying to disable the AdvanceTracsystem and
the optional setting is on.
Park Aid Messages Action / Description
CHECK PARK AIDDisplayed when the transmission is in R
(Reverse).
Suspension
MessagesAction / Description
AIR SUSPENSION
OFFDisplayed when the air suspension is off.
CHECK AIR
SUSPENSIONDisplayed when the air suspension system is
not operating properly. If this message is
displayed while driving, pull off the road as
soon as safely possible.
Tire Messages Action / Description
LOW TIRE
PRESSUREDisplays when one or more tires on your
vehicle have low tire pressure.
TIRE PRESSURE
MONITOR FAULTDisplays when the tire pressure monitoring
system is malfunctioning. If the warning stays
on or continues to come on, contact your
authorized dealer.
TIRE PRESSURE
SENSOR FAULTDisplayed when a tire pressure sensor is
malfunctioning, or your spare tire is in use.
For more information on how the system
operates under these conditions. If the
warning stays on or continues to come on,
contact your authorized dealer as soon as
possible.
Information Displays11 3
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Trailer Messages Action / Description
TRAILER SWAY
REDUCE SPEEDDisplayed when the trailer sway control has
detected trailer sway.
4WD Messages Action / Description
4X4 SHIFT IN
PROGRESSDisplayed when the 4X4 system is making a
shift.
CLOCK
Press A to move the time display
backwards.
Press B to move the time display
forwards.
AB
LINCOLN
11 4Information Displays
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

MP3 Track and Folder Structure
Audio systems capable of recognizing and playing MP3 individual tracks
and folder structures work as follows:
•There are two different modes for MP3 disc playback: MP3 track
mode (system default) and MP3 folder mode.
•MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.Note:The maximum
number of playable MP3 files may be less depending on the structure
of the CD and exact model of radio present.
•MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
•Creating discs with only one level of folders helps with navigation
through the disc files.
If you are burning your own MP3 discs, it is important to understand
how the system reads the structures you create. While various files may
be present, (files with extensions other than mp3), only files with the
.mp3 extension are played; other files are ignored by the system. This
enables you to use the same MP3 disc for a variety of tasks on your work
computer, home computer and your in-vehicle system.
In track mode, the system displays and plays the structure as if it were
only one level deep (all .mp3 files are played, regardless of being in a
specific folder). In folder mode, the system only plays the .mp3 files in
the current folder.
11 6Audio System
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

C.Tune/Phone:
•In radio mode, turn to manually search the frequency band.
•In MP3 mode, turn to go to the next or previous folder (when folder
mode is active).
•In satellite radio mode, press the SEEK buttons to tune to the next
or previous channel.
•In category mode, turn to scroll through the list of available satellite
radio channel categories.
•In phone mode, press to access the phone features of the SYNC
system. See theSYNCchapter for more information.
D.MENU:Access audio system functions, such as sound settings for
Bass, Treble, Balance and Fade.
•If your vehicle is equipped with satellite radio, you can access
different menus by pressing OK and the up and down arrow buttons
(E) to make selections.
•RBDS displays text transmitted by certain radio stations and to
search for music categories. To search for music categories, switch on
RBDS, press the up and down arrow buttons to scroll through
categories, then use the SEEK or SCAN buttons to begin the search.
•Set the strongest stations on the radio frequency by pressing MENU
until AUTOSET appears. AUTOSET does not override your original
presets. Use the up and down arrow buttons to switch on and off.
•SPEEDVOL (speed compensated volume) allows you to adjust radio
volume to compensate for noise levels when vehicle speed increases.
•Occupancy mode allows you to select and optimize sound for all
seating positions, driver seat or front seats. Use the up and down
arrow buttons to switch on and off.
•COMPRESS (compression) is only available in CD mode. Use the up
and down arrow buttons to switch it on and off. Switching
compression on brings the soft and loud passages together for a more
consistent listening level.
•Family entertainment options (if equipped) are also available when
scrolling through MENU options.
E.Up and down arrow buttons:Make selections in MENU mode.
F.Play/Pause/OK:
•Play/Pause allows you to play or pause a track when listening to a
CD.
•OK allows you to confirm commands with phone and media features
of the SYNC system. See theSYNCchapter for more information.
11 8Audio System
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

G.SEEK:
•In radio mode, select a frequency band and press the SEEK button.
The system stops at the next station up the band.
•In CD/MP3 mode, press to select the next track or press and hold to
advance within the same track.
H.FWD:Manually fast forward in a CD track or MP3 file.
I.TEXT/SCAN:
•In radio and CD/MP3 mode, press and hold to hear a brief sampling
of radio stations, CD tracks or MP3 files.
•In CD/MP3 mode, press and release to display track title, artist name
and disc title.
Note:In text mode, sometimes the display requires additional text to be
displayed. When the > or < indicator is present, press the SEEK arrows
to view the additional text.
J.REV:Manually rewind in a CD track or MP3 file.
K.SEEK:
•In radio mode, select a frequency band and press the SEEK button.
The system stops at the previous station down the band.
•In CD/MP3 mode, press to select the previous track or press and hold
to advance within the same track.
L.SHUFFLE:Play music on the selected CD or MP3 folder in random
order.
M.AM/FM:Select a frequency band.
N.CD:Enter CD/MP3 mode.
O.AUX:Access the media features of the SYNC system. See theSYNC
chapter for more information.
P.VOL-PUSH:Press the power control to turn the system on and off.
Turn to adjust the volume.
Q.CD slot:Insert a CD.
R.LOAD:Load a CD.
•Press LOAD and a memory preset button to load a CD to a specific
slot.
•Press and hold to autoload up to six CDs. The last disc inserted
automatically plays.
Audio System11 9
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

REAR AUDIO CONTROLS
Your vehicle is equipped with rear seat audio controls. This allows front
and middle seat passengers to listen to different media sources (radio,
CD, SYNC or DVD) simultaneously.
Note:The front and middle seat passengers cannot listen to two
different radio stations at the same time.
A.Headphone/SpeakerPress to turn the rear speakers on (Single Play
mode) or off (Dual Play mode).
B.MEDIAPush to scroll through available playing medias, such as AM,
FM1, FM2, CD, SAT1, SAT2, SAT3 (if equipped with satellite radio), DVD
(if equipped) and SYNC(if equipped).
•If in Dual Play mode, SHARED illuminates in the audio display when
the front and rear modes are set to the same media.
•If SYNC is selected, press + or – to scroll through the different
options: SYNC USB, SYNC BTST and SYNC LINE. For more
information on SYNC, see theSYNCchapter.
C.Right arrow button
•In radio mode, press and release to scroll through memory presets.
Press and hold to seek to the next station.
•In CD and SYNC mode, press and release to go to the next track.
Press and hold to fast forward within that track.
D.Wired headphone jack
MEDIA
VOLUME
B
HFGEDCI
A
J
120Audio System
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

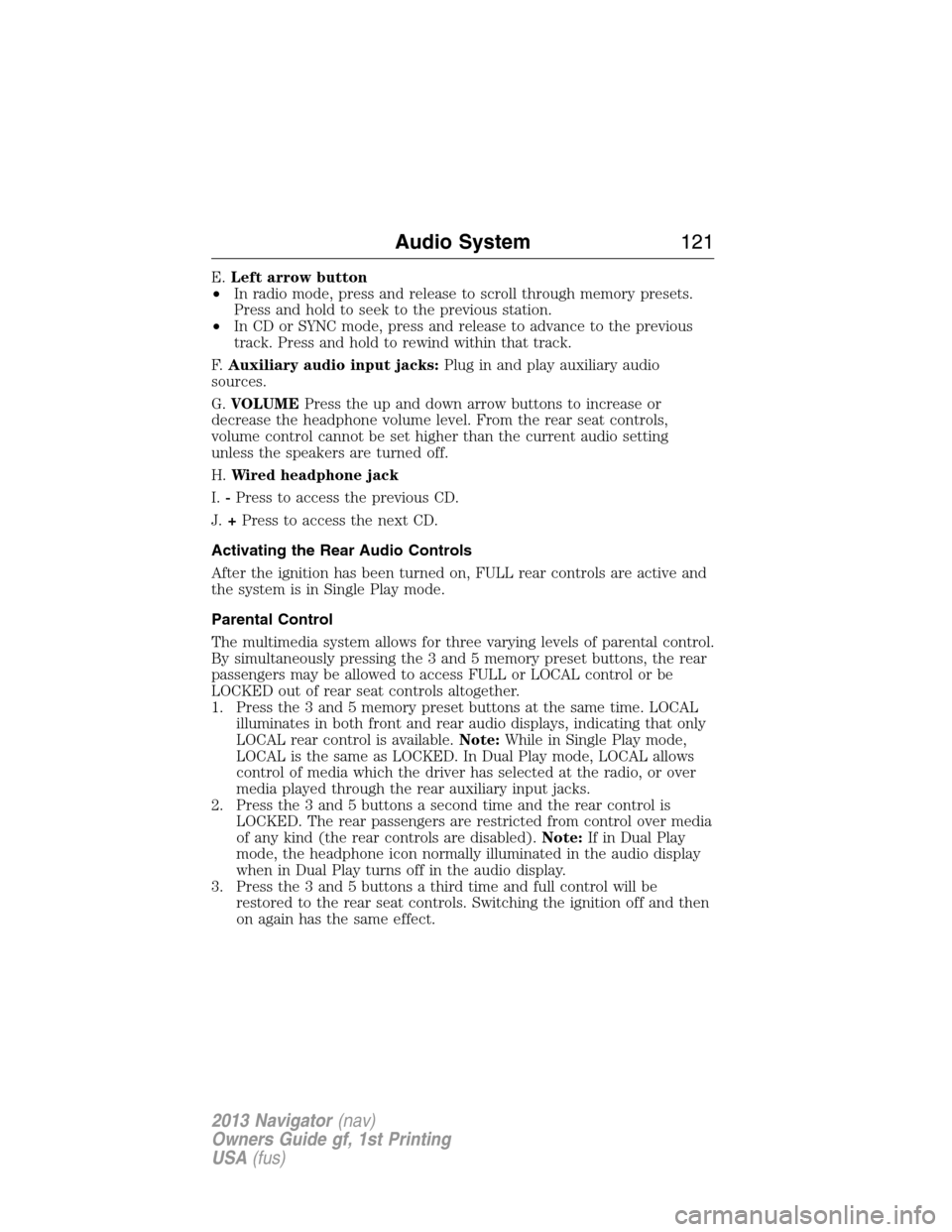

E.Left arrow button
•In radio mode, press and release to scroll through memory presets.
Press and hold to seek to the previous station.
•In CD or SYNC mode, press and release to advance to the previous
track. Press and hold to rewind within that track.
F.Auxiliary audio input jacks:Plug in and play auxiliary audio
sources.
G.VOLUMEPress the up and down arrow buttons to increase or
decrease the headphone volume level. From the rear seat controls,
volume control cannot be set higher than the current audio setting
unless the speakers are turned off.
H.Wired headphone jack
I.-Press to access the previous CD.
J.+Press to access the next CD.
Activating the Rear Audio Controls
After the ignition has been turned on, FULL rear controls are active and
the system is in Single Play mode.
Parental Control
The multimedia system allows for three varying levels of parental control.
By simultaneously pressing the 3 and 5 memory preset buttons, the rear
passengers may be allowed to access FULL or LOCAL control or be
LOCKED out of rear seat controls altogether.
1. Press the 3 and 5 memory preset buttons at the same time. LOCAL
illuminates in both front and rear audio displays, indicating that only
LOCAL rear control is available.Note:While in Single Play mode,
LOCAL is the same as LOCKED. In Dual Play mode, LOCAL allows
control of media which the driver has selected at the radio, or over
media played through the rear auxiliary input jacks.
2. Press the 3 and 5 buttons a second time and the rear control is
LOCKED. The rear passengers are restricted from control over media
of any kind (the rear controls are disabled).Note:If in Dual Play
mode, the headphone icon normally illuminated in the audio display
when in Dual Play turns off in the audio display.
3. Press the 3 and 5 buttons a third time and full control will be
restored to the rear seat controls. Switching the ignition off and then
on again has the same effect.
Audio System121
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)
