2013 LINCOLN MKX snow chains

Vehicle Care 273
Cleaning products.....................................273
Cleaning the exterior...................................273
Waxing.............................................275
Repairing minor paint damage............................275
Cleaning the engine...................................275
Cleaning the windows and wiper blades.....................276
Cleaning the interior...................................276
Cleaning the instrument panel and instrument cluster lens.......277
Cleaning leather seats..................................278
Cleaning the alloy wheels...............................278
Vehicle storage.......................................279
Wheels and Tires 282
Tire care...........................................284
Using snow chains.....................................300
Tire Pressure Monitoring System (TPMS)....................301
Changing a road wheel.................................305
Technical specifications.................................310
Wheel lug nut torque..................................310
Capacities and Specifications 312
Engine specifications...................................312
Part numbers........................................317
Vehicle identification number.............................317
Vehicle certification label................................318
Transmission code designation............................319
Accessories 320
Accessories..........................................320
Table of Contents7
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Driving on Hilly or Sloping Terrain
Note:Avoid driving crosswise or turning on steep slopes or hills. A
danger lies in losing traction, slipping sideways and possibly rolling over.
Whenever driving on a hill, determine beforehand the route you will use.
Do not drive over the crest of a hill without seeing what conditions are
on the other side. Do not drive in reverse over a hill without the aid of
an observer.
Although natural obstacles may make it necessary to travel diagonally up
or down a hill or steep incline, you should always try to drive straight up
or straight down.
When climbing a steep slope or hill, start in a lower gear rather than
downshifting to a lower gear from a higher gear once the ascent has
started. This reduces strain on the engine and the possibility of stalling.
If you do stall out, do not try to turnaround because you might roll over.
It is better to back down to a safe location.
Apply just enough power to the wheels to climb the hill. Too much power
will cause the tires to slip, spin or lose traction, resulting in loss of
vehicle control.
Descend a hill in the same gear you
would use to climb up the hill to
avoid excessive brake application and
brake overheating. Do not descend in
neutral; instead, disengage overdrive
or manually shift to a lower gear.
When descending a steep hill, avoid
sudden hard braking as you could
lose control. The front wheels have
to be turning in order to steer the
vehicle.
Your vehicle has anti-lock brakes, therefore apply the brakes steadily. Do
not “pump” the brakes.
Driving on Snow and Ice
WARNING:If you are driving in slippery conditions that require
tire chains or cables, then it is critical that you drive cautiously.
Keep speeds down, allow for longer stopping distances and avoid
aggressive steering to reduce the chances of a loss of vehicle control
which can lead to serious injury or death. If the rear end of the vehicle
slides while cornering, steer in the direction of the slide until you regain
control of the vehicle.
174All-Wheel Drive
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

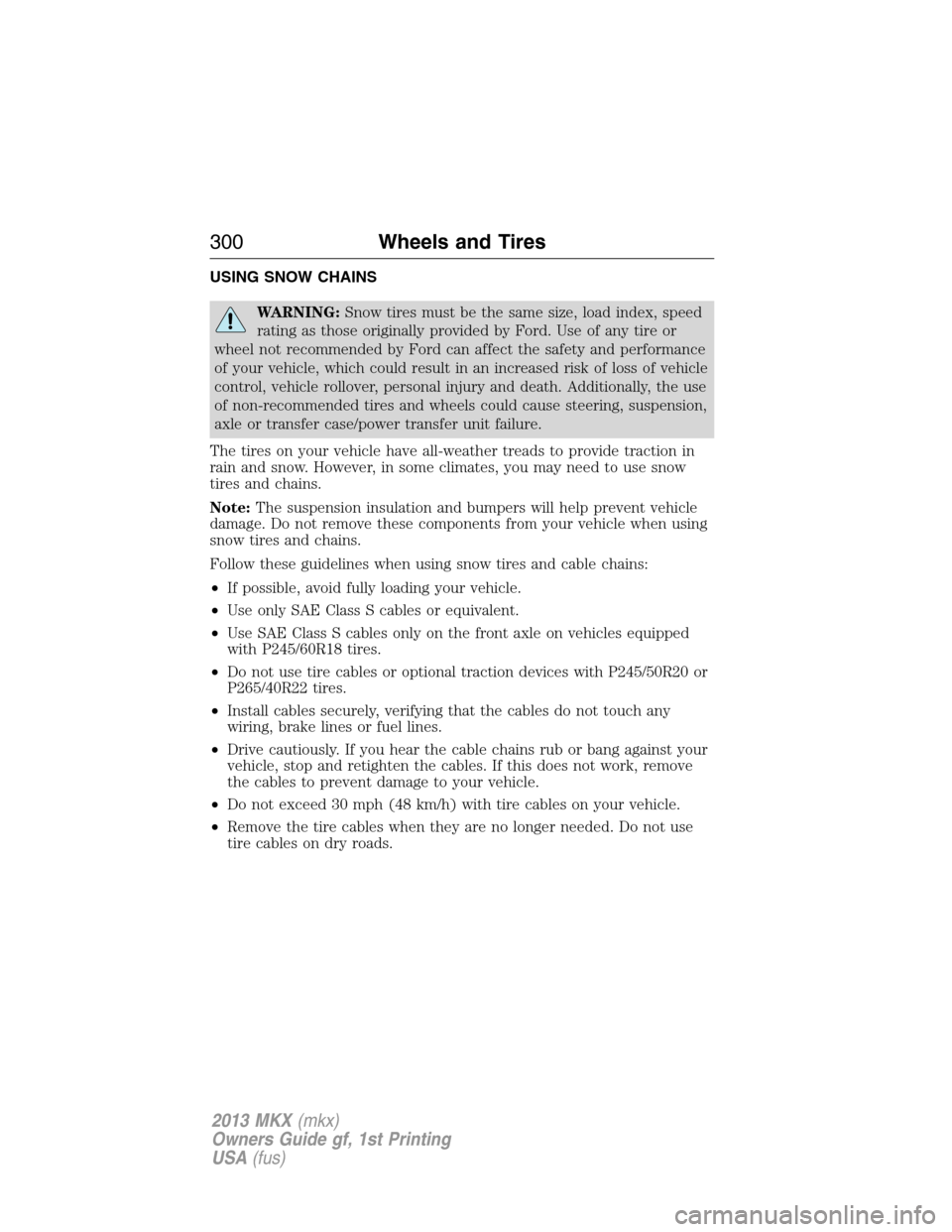

USING SNOW CHAINS
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or
wheel not recommended by Ford can affect the safety and performance
of your vehicle, which could result in an increased risk of loss of vehicle
control, vehicle rollover, personal injury and death. Additionally, the use
of non-recommended tires and wheels could cause steering, suspension,
axle or transfer case/power transfer unit failure.
The tires on your vehicle have all-weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains.
Note:The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when using
snow tires and chains.
Follow these guidelines when using snow tires and cable chains:
•If possible, avoid fully loading your vehicle.
•Use only SAE Class S cables or equivalent.
•Use SAE Class S cables only on the front axle on vehicles equipped
with P245/60R18 tires.
•Do not use tire cables or optional traction devices with P245/50R20 or
P265/40R22 tires.
•Install cables securely, verifying that the cables do not touch any
wiring, brake lines or fuel lines.
•Drive cautiously. If you hear the cable chains rub or bang against your
vehicle, stop and retighten the cables. If this does not work, remove
the cables to prevent damage to your vehicle.
•Do not exceed 30 mph (48 km/h) with tire cables on your vehicle.
•Remove the tire cables when they are no longer needed. Do not use
tire cables on dry roads.
300Wheels and Tires
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

A dissimilar spare tire and wheel assembly is defined as a spare tire or
wheel that is different in brand, size or appearance from the road tires
and wheels and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire and wheel assembly,
do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire and wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire and wheel
306Wheels and Tires
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

T
Temperature control
(see Climate control) ............... 127
Text messaging ......................... 390
Tilt steering wheel ...................... 81
Tires ........................... 284–285, 305
alignment ................................ 298
care .......................................... 284
changing .......................... 305, 307
checking the pressure ............ 294
inflating ................................... 292
label ......................................... 291
replacing .................................. 296
rotating .................................... 299
safety practices ....................... 298
sidewall information ............... 287
snow tires and chains ............ 300
spare tire ................................. 305
terminology ............................. 286
tire grades ............................... 285
treadwear ........................ 285, 294
Towing ....................... 217, 221–222
recreational towing ................. 222
trailer towing .......................... 217
wrecker .................................... 221
Traction control ........................ 178
Traffic preferences ................... 422
Trailer sway control .................. 217
Transmission
brake-shift interlock (BSI) .... 166
fluid, checking and adding
(automatic) ............................. 258fluid, refill capacities .............. 313
lubricant specifications .......... 313
Turn signal .................................. 92
U
USB port ............................ 126, 380
V
Vehicle health report ................ 404
Vehicle Identification Number
(VIN) .......................................... 317
Vehicle loading .......................... 209
Ventilating your vehicle ........... 153
Voice recognition ...................... 353
W
Warning lights (see Lights) ..... 101
Washer fluid .............................. 260
Water, Driving through ............. 225
Wi-Fi .......................................... 411
Windows
power ......................................... 94
rear wiper/washer ..................... 87
Windshield washer fluid and
wipers .......................................... 86
checking and adding fluid ..... 260
replacing wiper blades ........... 264
Wrecker towing ......................... 221
Index453
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
