2013 LINCOLN MKT display

North upalways shows the northern direction to be upward on
the screen.
3D map modeprovides an elevated perspective of the map. This
viewing angle can be adjusted and the map can be rotated 180
degrees by dragging your finger along the shaded bar with arrows
at the bottom of the map.
Re-centering the mapcan be done by pressing this icon
whenever you scroll the map away from your vehicle’s current
location.
Map Icons
Vehicle markshows current location of the vehicle. It stays in
the center of the map display, except when in scroll mode.
Scroll cursorallows you to scroll the map; the icon is fixed in
the center of the screen. The map position closest to the cursor is
in a window on the top center part of the screen.
Address book entry default icon(s)indicate the location on
the map of an address book entry. This is the default symbol
shown after the entry has been stored to the Address Book by
any method other than the map. A different icon can be selected
from the 22 icons available; each icon can be used more than once.
Homeindicates the location on the map currently stored as the
home position. Only one entry from the Address Book can be
saved as Home. This icon cannot be changed.
POI (Point Of Interest) iconscan be displayed on the map
and can be turned on or off. There are about 56 subcategories of
POIs that can be selected to be displayed on the map one at a
time.
Starting pointindicates the starting point of a planned route.
Waypointsindicates the location of a waypoint on the map. The
number inside the circle is different for each waypoint and
represents the position of the waypoint in the route list.
MyLincoln Touch™465
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

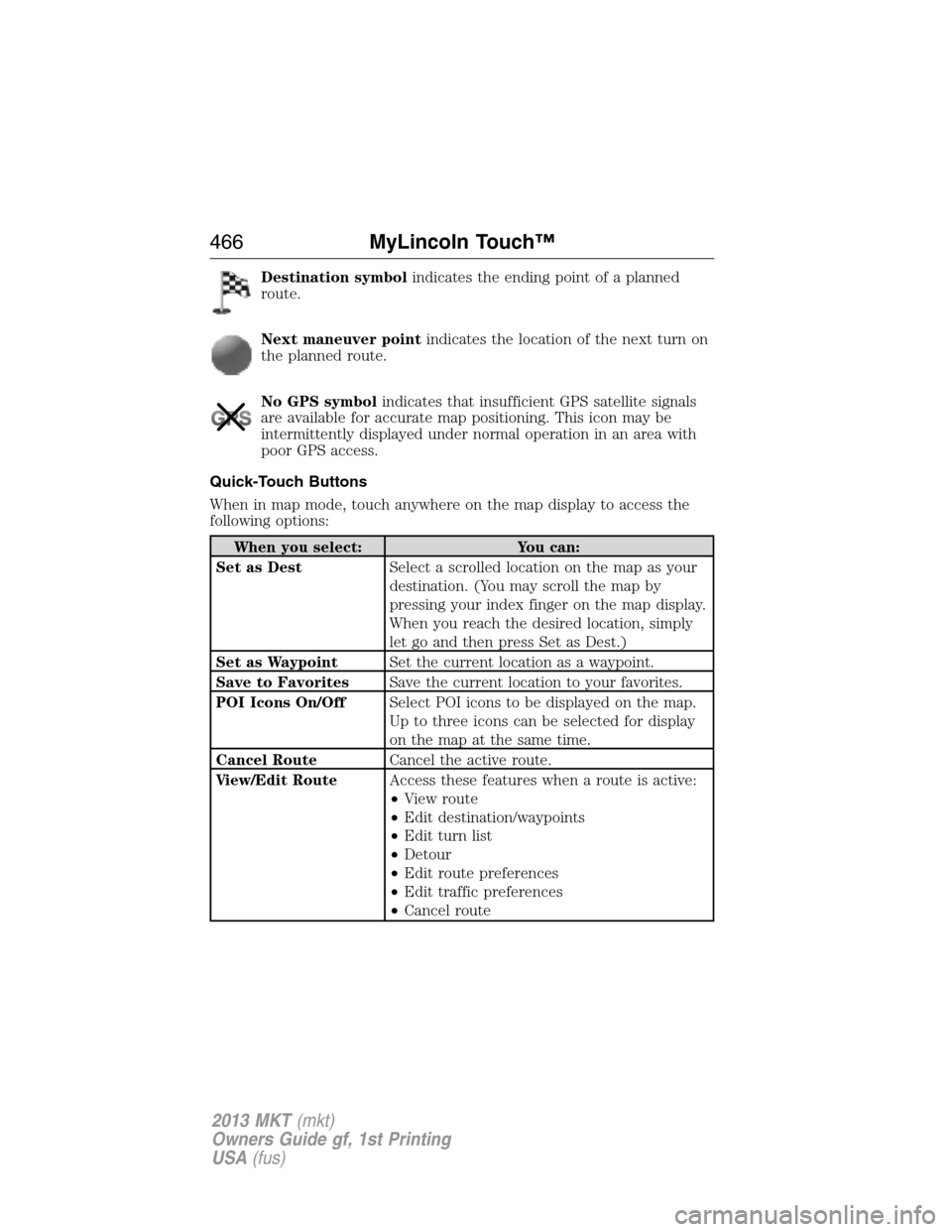

Destination symbolindicates the ending point of a planned
route.
Next maneuver pointindicates the location of the next turn on
the planned route.
No GPS symbolindicates that insufficient GPS satellite signals
are available for accurate map positioning. This icon may be
intermittently displayed under normal operation in an area with
poor GPS access.
Quick-Touch Buttons
When in map mode, touch anywhere on the map display to access the
following options:
When you select: You can:
Set as DestSelect a scrolled location on the map as your
destination. (You may scroll the map by
pressing your index finger on the map display.
When you reach the desired location, simply
let go and then press Set as Dest.)
Set as WaypointSet the current location as a waypoint.
Save to FavoritesSave the current location to your favorites.
POI Icons On/OffSelect POI icons to be displayed on the map.
Up to three icons can be selected for display
on the map at the same time.
Cancel RouteCancel the active route.
View/Edit RouteAccess these features when a route is active:
•View route
•Edit destination/waypoints
•Edit turn list
•Detour
•Edit route preferences
•Edit traffic preferences
•Cancel route
466MyLincoln Touch™
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

“NAVIGATION”
“Destination”*
“Zoom city”
“Zoom country”
“Zoom in minimum”
“Zoom out maximum”
“Zoom province”
“Zoom state”
“Zoom street”
“Zoom to ”
“Help”
*If you have said, “Destination”, you may say any of the commands in
the Destination chart.
If your vehicle is equipped with the SD card navigation feature, you have
the ability to enter in a street address using a new feature called
One-shot destination street address.When you say either “Navigation
destination street address” or “Destination street address”, the system
asks you to say the full address. The system displays an example
on-screen. You can then speak the address naturally, such as “One two
three four Main Street, Anytown”.
MyLincoln Touch™469
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

CD voice commands ................. 421
Cell phone use ............................ 16
Changing a tire ......................... 348
Child safety restraints .......... 29–30
Child safety seats
attaching with tether straps .... 30
automatic locking mode
(retractor) ................................. 39
LATCH ....................................... 29
Child safety seats - booster
seats ............................................. 22
Cleaning the touchscreen ........ 395
Cleaning your vehicle ............... 316
engine compartment .............. 318
instrument panel .................... 320
interior ..................................... 319
plastic parts ............................ 317
washing .................................... 316
waxing ..................................... 318
wheels ...................................... 321
wiper blades ............................ 319
Climate voice commands ......... 457
Clock .................................. 132, 446
Collision Warning System ......... 236
Console ...................................... 171
overhead .................................. 173
rear .......................................... 171
Coolant
checking and adding .............. 294
refill capacities ........................ 359
specifications .......................... 359
Cooler ........................................ 172
Cross Traffic Alert .................... 231
Cruise control ........................... 216
Customer Assistance ................ 263
Ford Extended Service
Plan .................................. 368, 371Getting assistance outside the
U.S. and Canada ..................... 273
Getting roadside assistance ... 263
Getting the service you need.. 268
Ordering additional owner’s
literature ................................. 275
Utilizing the
Mediation/Arbitration
Program ................................... 273
Customizing your home screen.. 394
D
Defrost ....................................... 136
rear window ............................ 140
Dipstick
automatic transmission
fluid .................................. 299–300
engine oil ................................. 293
Display settings ......................... 447
Drivebelt .................................... 358
Driver alert ................................ 225
Driving under special
conditions .................. 193, 195, 197
sand ......................................... 196
snow and ice ........................... 198
through water ................. 197, 260
Dual automatic temperature
control (DATC) ......................... 136
E
Electronic message center ....... 114
Electronic stability control ...... 204
Emergencies, roadside
jump-starting .......................... 265
running out of fuel ................. 181
Emergency brake (see Parking
brake) ........................................ 201
Index489
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

Emission control system .......... 185
End user license agreement .... 470
Engine ................................ 357–358
cleaning ................................... 318
fail-safe cooling ....................... 297
idle speed control ................... 305
lubrication specifications ....... 359
refill capacities ........................ 359
service points .................. 290, 292
Engine block heater ................. 177
Engine oil
checking and adding .............. 293
dipstick .................................... 293
filter, specifications ................ 363
refill capacities ........................ 359
specifications .......................... 359
Event data recording .................. 12
Exhaust fumes .......................... 177
F
Fail safe cooling ........................ 297
Fleet MyKey programming ........ 67
Flexible Fuel Vehicle (FFV) .... 179
Floor mats ................................. 261
Fluid capacities ......................... 359
Four-Wheel Drive vehicles
driving off road ....................... 194
Freezer ...................................... 172
Fuel
cap ........................................... 183
capacity ................................... 359
choosing the right fuel ........... 180
filler funnel ............................. 181
filling your vehicle with fuel .. 183
filter, specifications ........ 304, 363
fuel pump shut-off .................. 265
octane rating ........... 180, 357–358running out of fuel ................. 181
safety information relating to
automotive fuels ..................... 179
Fuel - flex fuel vehicle (FFV)... 179
Fuses .................................. 277–278
G
Gas cap (see Fuel cap) ............ 183
Gauges ....................................... 108
H
Hazard flashers ......................... 264
HD Radio™ ............................... 409
Headlamps
aiming ...................................... 310
bulb specifications .................. 314
flash to pass .............................. 92
high beam ........................... 92, 94
replacing bulbs ....................... 312
Head restraints ......................... 143
Heated steering wheel .............. 455
Heating ...................................... 136
Help ............................................ 454
Homelink wireless control
system ........................................ 163
Home screen ............................. 394
Hood .......................................... 288
How to use voice commands ... 400
I
Ignition ............................... 357–358
Illuminated visor mirror ........... 105
Information displays ................. 114
Infotainment display ................. 398
490Index
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

O
Octane rating ............................ 180
Overdrive ................................... 193
P
Pairing other phones ................ 430
Pairing your phone ................... 429
Pairing your phone for the first
time ............................................ 429
Parental MyKey programming ... 67
Park Assist ................................ 207
Parking brake ............................ 201
Parts (see Motorcraftparts)... 363
Passenger Occupant
Classification Sensor ................... 52
Phone settings .................. 434, 451
Phone voice commands ............ 435
POI categories ........................... 460
Point of Interest (POI) ............. 460
Power distribution box (see
Fuses) ........................................ 278
Power door locks ........................ 73
Power liftgate .............................. 76
Power mirrors ........................... 102
Powerpoint ................................ 168
Power steering .......................... 240
fluid, refill capacity ................ 359
fluid, specifications ................. 359
Power Windows ......................... 100
Privacy information .................. 397
Push button start system ......... 174Q
Quick touch buttons ................. 466
R
Radio .......................................... 132
AM/FM ..................................... 407
Single CD ................................ 132
Radio reception ......................... 130
Radio voice commands ............. 413
Rear heated/cooled seats ......... 149
Rear seat controls
(if equipped) ............................. 134
Rear view camera
display ................................ 211, 448
Rear window defroster ............. 136
Receiving a text message ......... 433
Recommendations for
attaching safety restraints for
children ........................................ 23
Refrigerator ............................... 172
Relays ................................ 277–278
Remote entry system
illuminated entry ................ 75–76
locking/unlocking doors ........... 73
replacing the batteries ............. 62
Reverse sensing system ........... 206
Roadside assistance .................. 263
Route preferences .................... 462
S
Safety Belt Maintenance ............ 47
Safety belts (see Safety
restraints) .............................. 38, 41
Safety defects, reporting .......... 276
492Index
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
