2013 LINCOLN MKS CD player

“BROWSE”
“All Audiobooks”
“Podcast ”
“All Podcasts”
“Video ”*
“All Videos”*
“Video Playlist ”*
“All Video Playlists”*
“TV Show ”*
“All TV Shows”*
“All Movies”*
“Video Podcast *
“All Video Podcasts*
“All Music Videos*
“Folder ”
“All Folders”
“All Songs”
“Help”
*These commands are only available in USB mode and are
device-dependent.
Supported Media Players, Formats and Metadata Information
SYNCis capable of hosting nearly any digital media player, including
iPod, Zune™, “Plays from device” players, and most USB drives.
Supported audio formats include MP3, WMA, WAV and AAC.
It is also able to organize your indexed media from your playing device
by metadata tags. Metadata tags are descriptive software identifiers
embedded in the media files which provide information about the file.
If your indexed media files contain no information embedded in these
metadata tags, SYNCmay classify the empty metadata tags as
Unknown.
In order to playback video from your iPodor iPhone(if compatible),
you must have a special combination USB/RCA composite video cable
(available for purchase from Apple). When the cable is connected to
your iPodor iPhone, plug the other end into both the RCA jacks and
the USB port.
MyLincoln Touch™385
2013 MKS(mks)
Owners Guide gf, 1st Printing
USA(fus)

Bluetooth Audio
Your system allows you to stream audio over your vehicle’s speakers from
your connected, Bluetooth-enabled cellular phone.
To access, press the lower left corner on the touchscreen, then
select the BT tab.
Bluetooth Audio Voice Commands
If you are listening to a Bluetooth Audio device, press the voice
button on the steering wheel controls. When prompted, say any
of the commands in the following chart.
If you are not listening to a Bluetooth Audio device, press the voice
button and, after the tone, say “Bluetooth Audio”, then any of the
commands in the following chart.
Bluetooth audio voice commands
“Next”
“Pause”
“Play”
“Previous”
“Help”
A/V Inputs
Your A/V inputs allow you to connect an
auxiliary audio/video source (game
systems, personal camcorders, etc.) by
connecting RCA cords (not included) to
these input jacks. The jacks are yellow,
red and white and are located either
behind a small access door on the
instrument panel or in your center console.
You can also use the A/V inputs as an auxiliary input jack (AIJ) to play
music from your portable music player over your vehicle’s speakers. Plug
in your 1/8 in. (3.5 mm) RCA adapter into the two left A/V input jacks
(red and white).
Press the lower left corner of the touchscreen, then, select A/V inputs.
To use the auxiliary input jack feature, make sure that your portable
music player is designed to be used with headphones and that it is fully
charged. You also need an audio extension cable with stereo male 1/8 in.
(3.5 mm) connectors at one end and a RCA jack at the other.
386MyLincoln Touch™
2013 MKS(mks)
Owners Guide gf, 1st Printing
USA(fus)

1. Begin with the vehicle parked and the radio and portable device are
turned off.
2. Attach one end of the audio extension cable to the headphone output
of your player and the other end into the adaptor in one of the two
left A/V input jacks (white or red) inside the center console.
3. Press the lower left corner on the touchscreen. Select either a tuned
station from the FM tab or the CD tab (if there is a CD already
loaded into the system.) Adjust the volume to a comfortable listening
level.
4. Turn the portable music player on and adjust the volume to 1/2 the
volume.
5. Press the lower left corner on the touchscreen. Select the A/V in tab.
(You should hear audio from your portable music player although it
may be low.)
6. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between
the controls.
In order to playback video from your iPodor iPhone(if compatible),
you must have a special combination USB/RCA composite video cable
(available for purchase from Apple). When the cable is connected to
your iPodor iPhone, plug the other end into both the RCA jacks and
the USB port.
Note:For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle is
in motion. The audio extension cable must be long enough to allow the
portable music player to be safely stored while the vehicle is in motion.
Troubleshooting
•Do not connect the audio input jack to a line level output. The AIJ
only works correctly with devices that have a headphone output with a
volume control.
•Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio as this causes
distortion and reduces sound quality.
•If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace
or recharge the batteries in the portable music player.
•The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
MyLincoln Touch™387
2013 MKS(mks)
Owners Guide gf, 1st Printing
USA(fus)

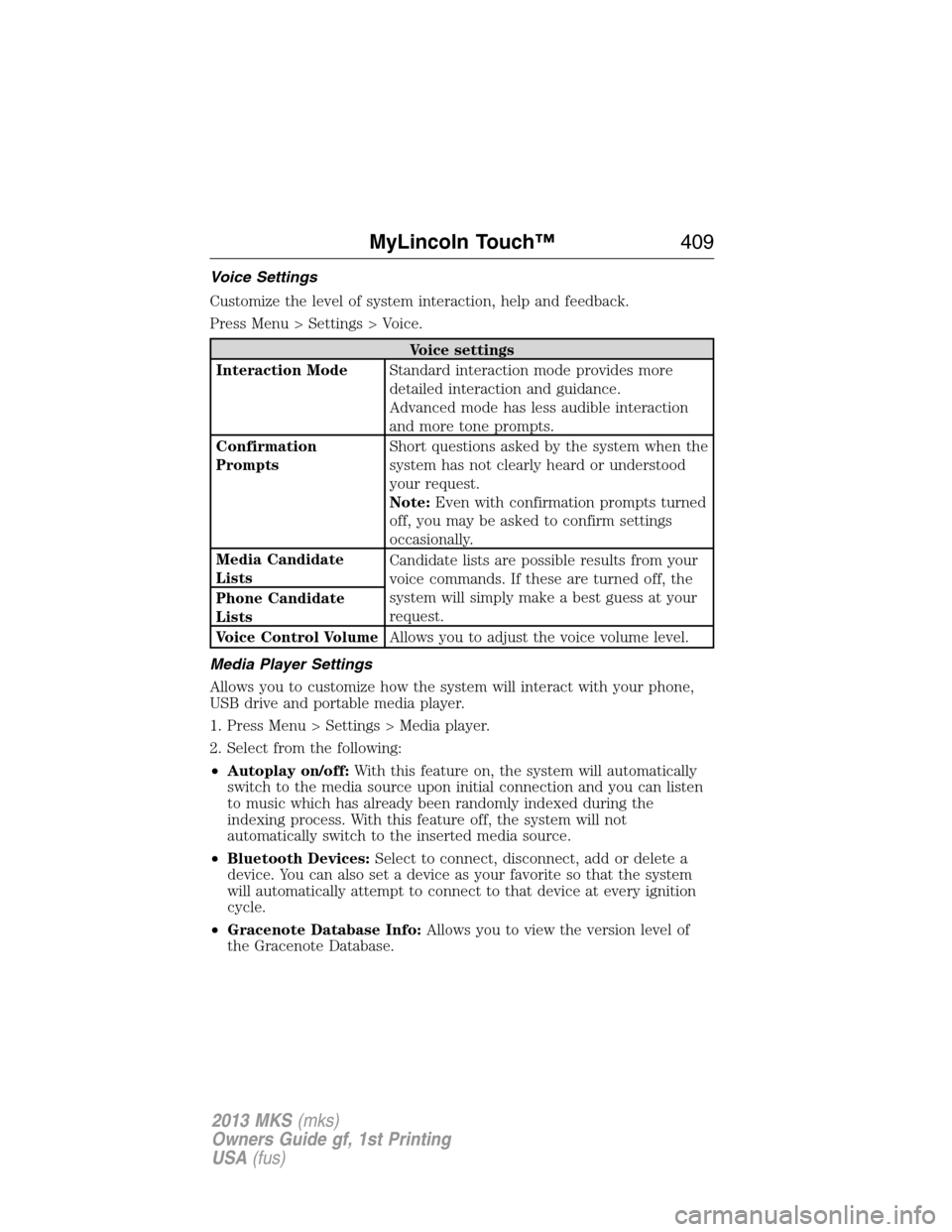

Voice Settings
Customize the level of system interaction, help and feedback.
Press Menu > Settings > Voice.
Voice settings
Interaction ModeStandard interaction mode provides more
detailed interaction and guidance.
Advanced mode has less audible interaction
and more tone prompts.
Confirmation
PromptsShort questions asked by the system when the
system has not clearly heard or understood
your request.
Note:Even with confirmation prompts turned
off, you may be asked to confirm settings
occasionally.
Media Candidate
ListsCandidate lists are possible results from your
voice commands. If these are turned off, the
system will simply make a best guess at your
request. Phone Candidate
Lists
Voice Control VolumeAllows you to adjust the voice volume level.
Media Player Settings
Allows you to customize how the system will interact with your phone,
USB drive and portable media player.
1. Press Menu > Settings > Media player.
2. Select from the following:
•Autoplay on/off:With this feature on, the system will automatically
switch to the media source upon initial connection and you can listen
to music which has already been randomly indexed during the
indexing process. With this feature off, the system will not
automatically switch to the inserted media source.
•Bluetooth Devices:Select to connect, disconnect, add or delete a
device. You can also set a device as your favorite so that the system
will automatically attempt to connect to that device at every ignition
cycle.
•Gracenote Database Info:Allows you to view the version level of
the Gracenote Database.
MyLincoln Touch™409
2013 MKS(mks)
Owners Guide gf, 1st Printing
USA(fus)

911 Assist™ .............................. 402
A
ABS (see Brakes) ..................... 174
Accessing and using your
USB port .................................... 381
Accessing your calendar .......... 402
Accessory delay .......................... 94
Active Park Assist ..................... 182
Adaptive Cruise Control ........... 192
Adding (pairing) a phone ........ 389
Airbag supplemental restraint
system .......................................... 44
and child safety seats .............. 45
description ................................ 44
disposal ...................................... 54
driver airbag .............................. 44
passenger airbag ....................... 44
side airbag ........................... 44, 49
Air cleaner filter ....... 274–275, 321
All Wheel Drive (AWD),
driving off road ......................... 167
Ambient mood/lighting ............. 407
AM/FM ....................................... 364
Anti-lock brake system
(see Brakes) .............................. 174
Anti-theft system .................. 76, 78
arming the system .............. 76, 78
disarming a triggered system .. 78
Audio system
Single CD ................................ 123
Audio system (see Radio) ....... 123
Automatic transmission
driving an automatic
overdrive ................................. 163
fluid, adding ............................ 267fluid, checking ........................ 267
fluid, refill capacities .............. 317
fluid, specification .................. 317
Selectshift (SST) .................... 164
Auxiliary Input Jack ................. 375
Auxiliary powerpoint ................ 146
A/V inputs .......................... 124, 386
B
Battery ....................................... 272
acid, treating emergencies ..... 272
jumping a disabled battery .... 236
maintenance-free .................... 272
replacement, specifications ... 321
servicing .................................. 272
Blind Spot Information
System ....................................... 206
Booster seats ............................... 21
Brakes ........................................ 174
anti-lock ................................... 174
anti-lock brake system (ABS)
warning light ........................... 174
brake warning light ................ 174
fluid, checking and adding .... 271
fluid, refill capacities .............. 317
fluid, specifications ................. 317
lubricant specifications .......... 317
parking .................................... 175
shift interlock .......................... 165
trailer ....................................... 226
C
Capacities for refilling fluids .... 317
CD .............................................. 123
CD player .......................... 121, 377
CD voice commands ................. 378
Cell phone use ............................ 14
Index447
2013 MKS(mks)
Owners Guide gf, 1st Printing
USA(fus)

Occupant Classification
Sensor ........................................ 46
safety belt maintenance ........... 40
seat belt maintenance .............. 40
warning light and chime .......... 37
Safety restraints -
LATCH anchors ........................... 26
Safety seats for children ...... 18, 23
Safety Compliance
Certification Label .................... 322
Satellite Radio ................... 123, 372
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log ............. 335
SD card ...................... 124, 379, 418
Seat belts
(see Safety restraints) ............... 33
Seats
child safety seats ................ 18, 23
climate control ........................ 137
easy access/easyout feature .. 136
front seats ....................... 132, 136
heated ...................................... 139
memory seat ..................... 58, 135
SecuriCode keyless entry
system .......................................... 72
SecuriLock passive anti-theft
system .......................................... 76
Sending new text messages ..... 391
Setting a destination ................ 418
Setting a destination
by voice ..................................... 419
Setting the clock ............... 123, 406
Setting your wallpaper ............. 406
Side air curtain ........................... 51
Side-curtain airbags system ....... 51SIRIUSsatellite radio ............. 372
SIRIUS satellite radio voice
commands ................................. 374
SIRIUS Travel Link ................... 399
SIRIUS Travel Link voice
commands ................................. 400
SOS Post Crash Alert ................. 43
Spark plugs,
specifications ..................... 316, 321
Specification chart,
lubricants ................................... 317
Stability system ......................... 178
Starting your vehicle ................ 150
jump starting .......................... 236
push button start system ....... 149
Steering wheel ............................ 79
controls ...................................... 80
tilting ......................................... 79
Sunshade ..................................... 98
Supplemental Restraint System
(SRS) (see airbags) .................... 44
Supported media file types ...... 385
Supported player, media
formats and metadata
information ................................ 385
SYNCServices ......................... 395
System settings ......................... 408
T
Temperature control
(see Climate control) ....... 125, 415
Text messaging ......................... 391
Tilt steering wheel ...................... 79
Tires ................................... 289, 309
alignment ................................ 303
452Index
2013 MKS(mks)
Owners Guide gf, 1st Printing
USA(fus)
