2013 Lexus IS300h display

1142. Instrument cluster
IS300h_EE(OM53B95E)
Hybrid System Indicator
Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving range is being exceeded (during full power
driving etc.)
Hybrid System Indicator is displayed when the driving mode is other than sport
mode with the tachometer setting other than “Tachometer (Always)”.
By keeping the indicator needle (except F SPORT models) or bar display (F
SPORT models) within the Eco area, more Eco-friendly driving can be
achieved.
Charge area indicates regeneration* status. Regenerated energy will be used to
charge the hybrid battery (traction battery).
*: When used in this manual, regeneration refers to the conversion of energy cre-
ated by the movement of the vehicle into electrical energy.
Except F SPORT modelsF SPORT models
1
2
3
4

1152. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53B95E)
Tachometer
Hybrid System Indicator switches to the tachometer when driving mode is in
sport mode.
The settings of the tachometer display can be changed on the multi-information
display. (P. 1 1 9 )
Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when
vehicle operation and driving conditions are the same.
Outside temperature display
In the following situations, the correct outside temperature may not be displayed,
or the display may take longer than normal to change.
When stopped, or driving at low speeds (less than 20 km/h [12 mph])
When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
Pop-up display
In some situations, such as when a switch operation is performed, a pop-up dis-
play, such as the operating methods of the headlight switch, will be temporarily
displayed on the multi-information display or the odometer/trip meter screen (F
SPORT models only).
The pop-up display function can be set on/off. (P. 119)
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is charac-
teristic of liquid crystal displays, and there is no problem continuing to use the
display.
Customization
The meter display can be customized on the multi-information display. (P.
116)
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the engine coolant temperature gauge is in
the red zone (H). In this case, immediately stop the vehicle in a safe place, and
check the engine after it has cooled completely. (P. 555)

1162. Instrument cluster
IS300h_EE(OM53B95E)
Drive information
Select to display various drive data. (P. 1 1 7 )
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter using
the meter control switches.
Dynamic radar cruise control operation guide (if equipped)
Select to display operation procedures of the dynamic radar cruise con-
trol. (P. 249)
The tab will change to when the vehicle is in constant
speed control mode. (P. 254)
If activated, the operational status of the LDA (Lane Departure Alert)
system will also be displayed. (P. 263)
Warning message display
Select to display warning messages and measures to be taken if a mal-
function is detected. (P. 513)
Settings display
Select to change the meter display settings. (P. 1 1 8 )
Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data.

1172. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53B95E)
Operating the meter control switches
The multi-information display is
operated using the meter control
switches.
Select an item/change pages
Enter/Set
Except F SPORT models
Press: Displays the screen reg-
istered to
When no screen has been registered, the drive information screen will be
displayed.
Press and hold: Registers the currently displayed screen to
When the confirmation screen is displayed, select yes to register the screen.
If the selected screen cannot be registered, a registration failure message
will be shown.
F SPORT models
Move the main meter
Return to the previous screen
Current fuel consumption*
Displays the current rate of fuel consumption
Average fuel economy (after reset/after start/after refuel)*
Displays the average fuel economy since the function was reset, the
hybrid system was started, and the vehicle was refueled, respectively
Average vehicle speed (after reset/after start)*
Displays the average vehicle speed since the function was reset and the
hybrid system was started, respectively
Elapsed time (after reset/after start)*
Displays the elapsed time since the function was reset and the hybrid
system was started, respectively
1
2
3
Drive information
3
4

1182. Instrument cluster
IS300h_EE(OM53B95E)
Distance (driving range/after start)*
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the hybrid sys-
tem was started respectively.
• This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
Energy monitor
P. 1 2 2
*: Displayed when the item is set in “Drive Info 1” or “Drive Info 2”. Use these
values as a reference.
Language
Select to change the language on the display.
Units
Select to change the unit of measure for fuel consumption.
Maintenance system
Select to reset the maintenance data after the required maintenance is
performed. (P. 442)
EV indicator
Select to set the EV indicator on/off.
 switch settings (except F SPORT models)
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut, which can be displayed by
pressing . (P. 1 1 7 )
Drive information 1/Drive information 2
Select to select up to 2 items that will be displayed on the “Drive Info
1” screen and “Drive Info 2” screen respectively. (P. 117)
Settings display

1192. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53B95E)
Pop-up display
Select to set the following pop-up displays, which may appear in some
situations, on/off.
• Route guidance display of the navigation system-linked system
(if equipped)
• Incoming call display of the hands-free phone system (if equipped)
• Windshield wiper switch operation display (if equipped)
• Headlight switch operation display (if equipped)
• Dynamic radar cruise control operation display (if equipped)
• Instrument panel brightness adjustment display
• Main meter switch operation display (F SPORT models)
Accent color (except F SPORT models)
Select to change the accent colors on the screen, such as the cursor
color.
Tachometer settings
Select to set the display of the tachometer or Hybrid System Indicator
to automatically change according to the driving mode or static.
Needle (F SPORT models)
Select to change the needle color for the tachometer.

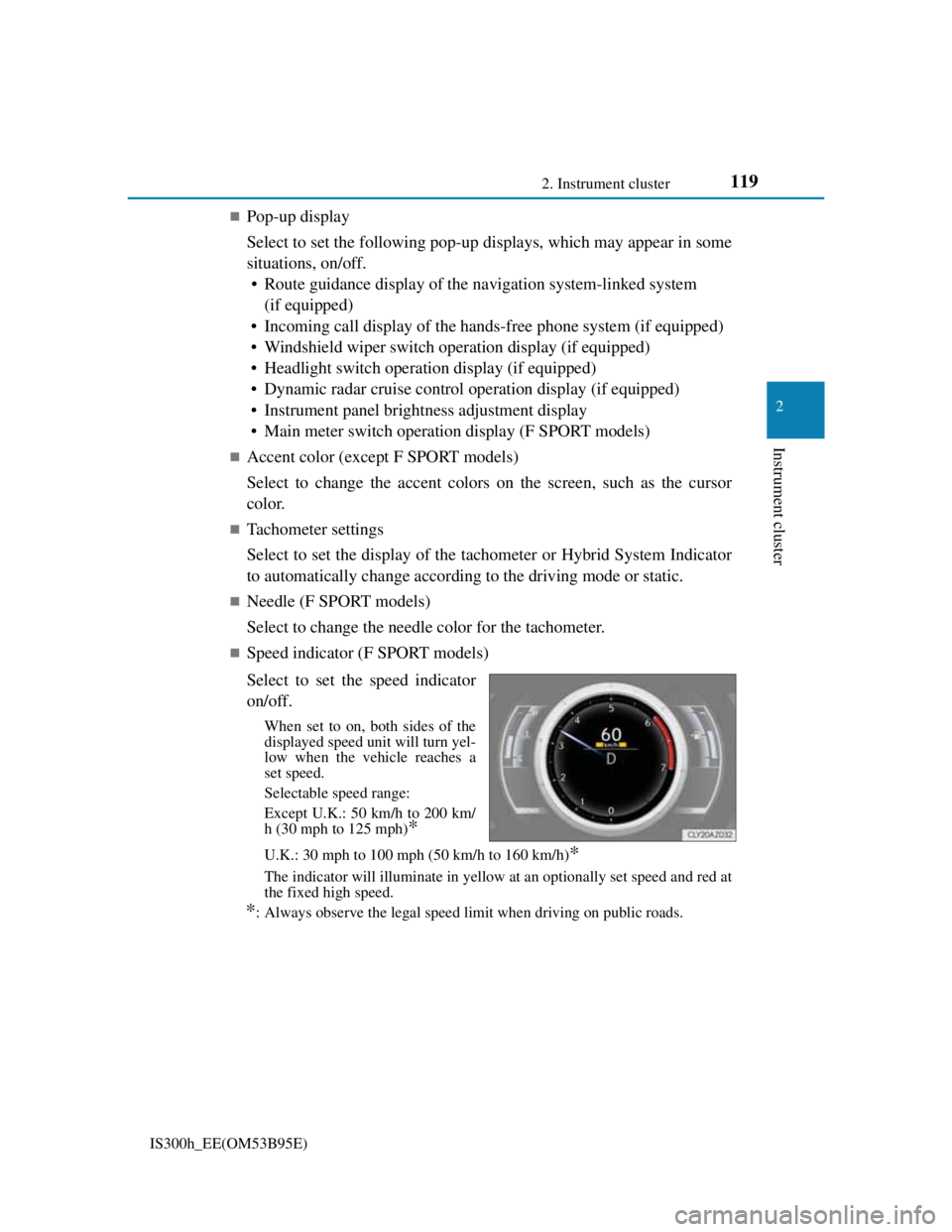

Speed indicator (F SPORT models)
Select to set the speed indicator
on/off.
When set to on, both sides of the
displayed speed unit will turn yel-
low when the vehicle reaches a
set speed.
Selectable speed range:
Except U.K.: 50 km/h to 200 km/
h (30 mph to 125 mph)
*
U.K.: 30 mph to 100 mph (50 km/h to 160 km/h)*
The indicator will illuminate in yellow at an optionally set speed and red at
the fixed high speed.
*: Always observe the legal speed limit when driving on public roads.

1202. Instrument cluster
IS300h_EE(OM53B95E)
Rev indicator (F SPORT models)
Select to set the rev indicator on/
off.
When set to on, the tachometer
will show a ring-shaped indicator
in red when the engine reaches a
set speed.
Selectable engine speed range:
2000 r/min to 6000 r/min
Rev peak (F SPORT models)
Select to set the rev peak on/off.
When set to on and the engine
speed reaches or exceeds 4000 r/
min, an afterimage of the tachom-
eter will be displayed at the high-
est engine speed for
approximately 0.5 seconds.
Initialization
Select to reset the meter display settings. (P. 576)
Suspension of the settings display
In the following situations, the settings display using the meter control switches
will be suspended.
When a warning message appears on the multi-information display
When the vehicle begins to move
Liquid crystal display
P. 1 1 5

1212. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53B95E)
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear num-
ber appearing on the display. This lag could cause the driver to downshift
again, causing rapid and excessive engine braking and possibly an accident
resulting in death or injury.
Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating
while setting up the display features.
