2013 LEXUS IS250C trunk

540
5-2. Steps to take in an emergency
If the retractable hardtop does not close
Unlock the trunk. (P. 5 1 )
Open the trunk fully.
If the retractable hardtop does not clos e when the switch is pressed, check
that all operating conditions are met. ( P. 9 1 )
If the retractable hardtop will not cl ose even though all operating condi-
tions have been met, there may be a malfunction. Immediately have the
vehicle inspected by your Lexus dealer.
As a temporary measure, the following procedure can be performed to
manually close the retractable hardtop.
■ Notes for manually closing the retractable hardtop
●This procedure requires 2 people.
● There is some risk of damage to the vehicle during the procedure,
such as when applying consi derable force or removing and
installing various parts. If you are unsure of how to perform this
procedure properly, it is recommended that you contact your
Lexus dealer.
● Protect your hands with gloves etc. when placing them in narrow
spaces.
● Before starting the procedure, turn the “ENGINE START STOP”
switch off.
STEP1
STEP2

5
When trouble arises
541
5-2. Steps to take in an emergency
Pulling the yellow rings attached to
the left and right sides of the trunk,
raise the front end of the trunk lid.
Holding the parts in the same
places as those shown in the illus-
trations, lift the trunk lid and move
it as far as possible toward the rear
of the vehicle.
Performing this procedure by hold-
ing parts other than those indi-
cated may result in damage to the
vehicle or serious injury.
STEP3
STEP4

542
5-2. Steps to take in an emergency

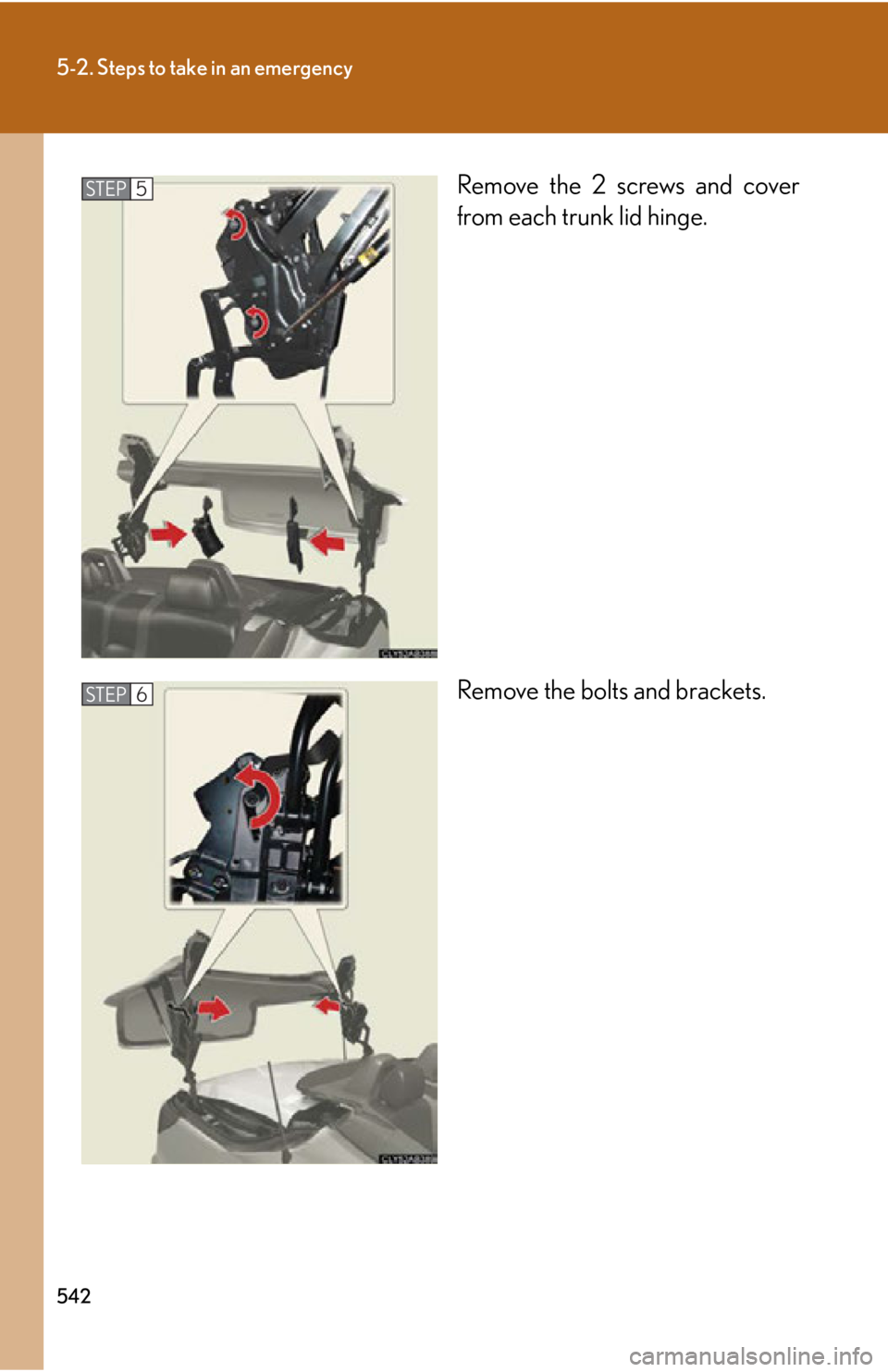

Remove the 2 screws and cover
from each trunk lid hinge.
Remove the bolts and brackets.STEP5
STEP6

5
When trouble arises
543
5-2. Steps to take in an emergency
Detach the connector on each
trunk lid hinge.
Remove the bolts and connector
brackets.
Remove the 2 bolts and side pack-
age tray from each trunk lid hinge.
Support each side package tray by
hand to prevent it from falling
down.
STEP7
STEP8
STEP9

548
5-2. Steps to take in an emergency
Holding the parts in the same
places as those shown in the illus-
trations, push the trunk lid down
toward the front of the vehicle until
it locks.
Performing this procedure by hold-
ing parts other than those indi-
cated may result in damage to the
vehicle or serious injury.
Close the trunk lid.
STEP23
STEP24

5
When trouble arises
549
5-2. Steps to take in an emergency
■Parts removed during the manual closing procedure
Keep any parts removed during the procedure inside the vehicle and take all
removed parts and the vehicle to your Lexus dealer.
CAUTION
■When manually closing the retractable hardtop
Observe the following precautions:
●Stop the vehicle on a flat surface in a safe place.
●Set the parking brake and shift the shift lever to P.
●Ensure that there are no occupants inside the vehicle.
●Do not perform this procedure while there are strong winds blowing.
●Turn the “ENGINE START STOP” switch off.
●Be careful not to catch any part of your body or clothing in the moving parts.
●Some parts of this procedure may result in an injury if performed with bare hands.
Protect your hands with gloves or a piece of cloth when performing the proce-
dure.
NOTICE
■After the retractable hardtop has been closed manually
●Drive as slowly as possible. The trunk lid may not be closed securely, causing it to
open due to wind pressure while driving.
●After the procedure is performed, take the vehicle to your Lexus dealer as soon
as possible.

568
6-1. Specifications
Light bulbs
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
HeadlightsHigh beam
Low/high beam (discharge bulbs)
Low beam (halogen bulbs)
9005
D4SH1160
35
55DA B
Front turn signal lightsWY21W21C
Parking lights (vehicles with
halogen headlights)W5W5E
Front fog lightsH1155B
Rear turn signal lightsWY21W21C
Back-up lights92116E
Outer foot lights5E
Interior
Vanity lights1.5F
Trunk light5F
Interior light5E
Door courtesy lights5E

587
6-2. Customization
6
Vehicle specifications
Wireless
remote con-
trol
(
P. 4 4 )
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer) OnOff
Door lock buzzerOnOff
Tr u n k u n l o c k i n g f u n c t i o nOnOff
Trunk unlocking operationPush and holdPush twice
One short push
Panic functionOnOff
Door lock
(
P. 4 7 )
Unlocking using a key
Driver's door
unlocked in one
step, both side
doors unlocked
in two steps
Both side doors
unlocked in one
step
Speed-detecting auto-
matic door lock functionOffOn
Opening driver's door
unlocks both side doors OffOn
Shifting gears to P
unlocks both side doorsOnOff
Shifting gears to position
other than P locks both
side doors
OnOff
ItemFunctionDefault settingCustomizedsetting
