2013 LEXUS IS250C clock

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings■ Engine compartment (type A fuse box)
FuseAmpereCircuit
1TURN-HAZ15 AEmergency flashers, turn signals
2IG2 MAIN20 AIG2, IGN, GAUGE
3RAD NO.230 AAudio
4D/C CUT20 ADOME, MPX-B
5RAD NO.130 AAudio
6MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, power windows, power seats,
electric tilt and telescopic steering
column, meter, smart access system
with push-button start, outside rear
view mirrors, air conditioning system,
retractable hardtop, clock
7DOME10 AInterior lights, mete r, outer foot lights
8CDS10 APo w e r s o u r c e

460
4-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO.110 ADisplay
5FUEL OPN10 AFuel filler door opener
6TV NO.27. 5 A
7TA I L10 ATail lights, license plate lights, parking
lights, side marker lights
8PA N E L7. 5 A
Air conditioning system, display,
clock, cigarette lighter, power steer-
ing, headlight cleaner, retractable
hardtop, ECT, ETCS, seat heaters and
ventilators, trunk opener, outside rear
view mirrors, shift lever light, traction
control, audio, instrument panel light
control
9RR FOG7. 5 A

462
4-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 A
Stop lights, multipor t fuel injection sys-
tem/sequential multip ort fuel injection
system, VDIM, shift lock system
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO.310 AAudio
7GAUGE7. 5 AMeter
8IGN10 A
SRS airbag system, steering lock sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, stop lights, smart access system
with push-button start, occupant
detection system
9ACC7. 5 A
Audio, clock, air conditioning system,
navigation system, outside rear view
mirrors, smart access system with
push-button start, glove box light,
console box light

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12FR DOOR RH20 APower windows, outside rear view
mirrors
13AM27. 5 AStarting system
14RH-IG7. 5 A
Seat belt pretensioner, intuitive park-
ing assist, automatic transmission, seat
heater and ventilator
15FR S/HTR RH15 ASeat heaters and ventilators, air condi-
tioning system
16ECU-IG RH10 A
Power seats, headlights, front fog
lights, parking lights, license plate
lights, front side marker lights, wind-
shield washer, outside rear view mir-
rors, VDIM, air conditioning system,
pre-collision seat belt, electric tilt and
telescopic steering, power windows,
navigation system, vehicle stability
control, retractable hardtop, clock
FuseAmpereCircuit

470
4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight high beams and daytime r unning lights (vehicles with halo-
gen headlights)
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

472
4-3. Do-it-yourself maintenance
■Headlight high beams (vehicles with discharge headlights)
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
STEP1
STEP2
STEP3

474
4-3. Do-it-yourself maintenance

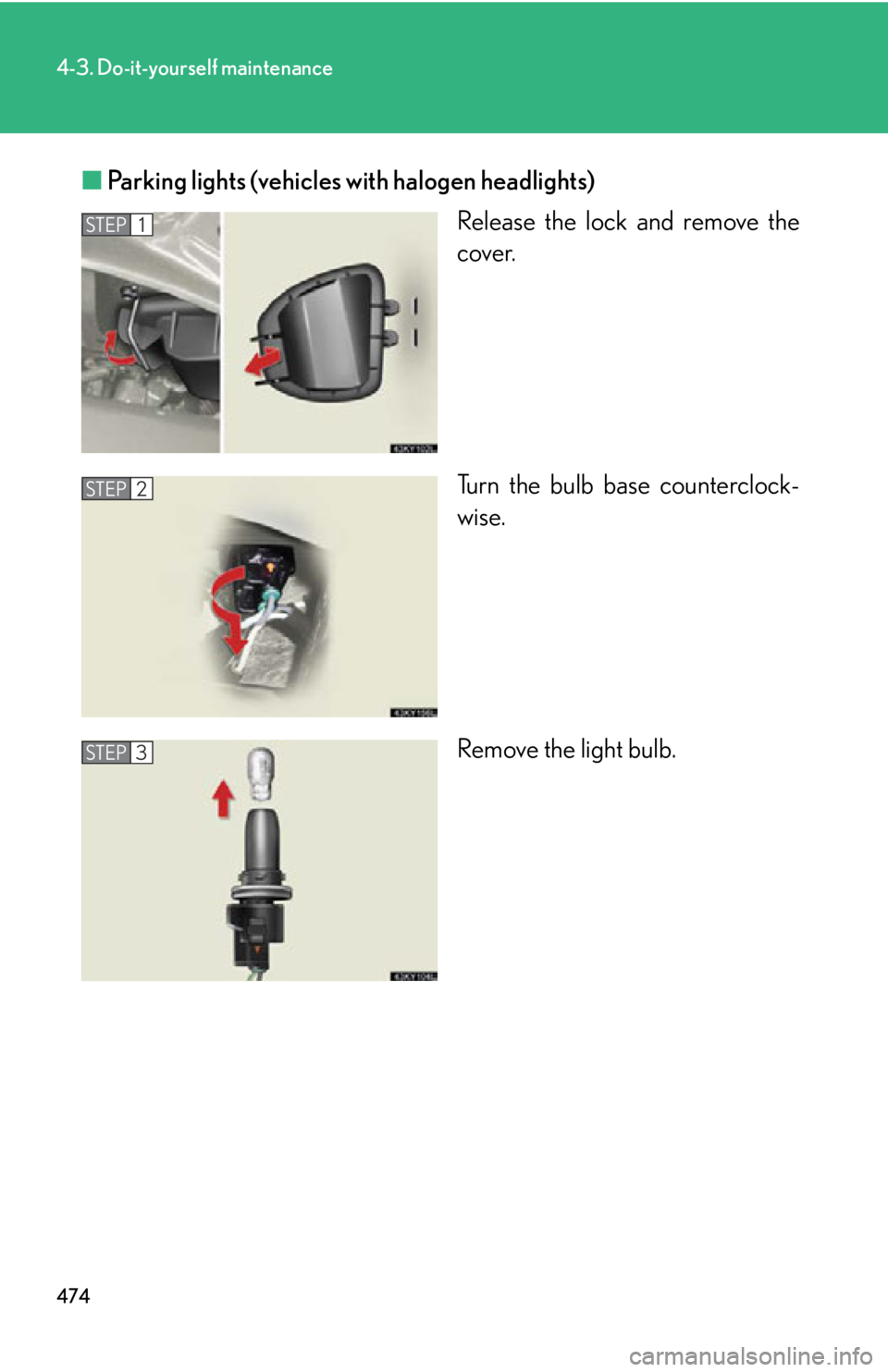

■Parking lights (vehicles with halogen headlights)
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3

475
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Back-up light
Open the trunk lid and remove the
trunk panel cover clips.
Partly remove the trunk panel
cover and turn bulb bases coun-
terclockwise.
Remove the light bulb.
STEP1
STEP2
STEP3
