2013 Lexus IS250 navigation system

220
3-2. Using the audio system
Audio system type
With navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system (type A)
CD player with changer and AM/FM radio
Without navigation system (type B)
CD player with changer and AM/FM radio

267
3-2. Using the audio system
3
Interior features
Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding down until you hear a
beep.
Some audio features can be controlled using the switches on the steering
wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the audio
system or navigation system.
Turns the power on, selects
an audio source
Increases/decreases volume
Radio mode: Selects a radiostation
CD mode: Selects a track, file (MP3 and
WMA) and disc
Bluetooth
® audio mode:
Selects a track and
album
iPod mode: Selects a song
USB memory mode: Selects a file and folder

270
3-3. Using the Bluetooth® audio system
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable pl ayer) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without ca bles. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles with a navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the Bluetooth® audio systemP. 2 7 3
Operating a Bluetooth® enabled portable playerP. 2 7 8
Setting up a Bluetooth® enabled portable playerP. 2 8 1
Bluetooth® audio system setupP. 2 8 7

288

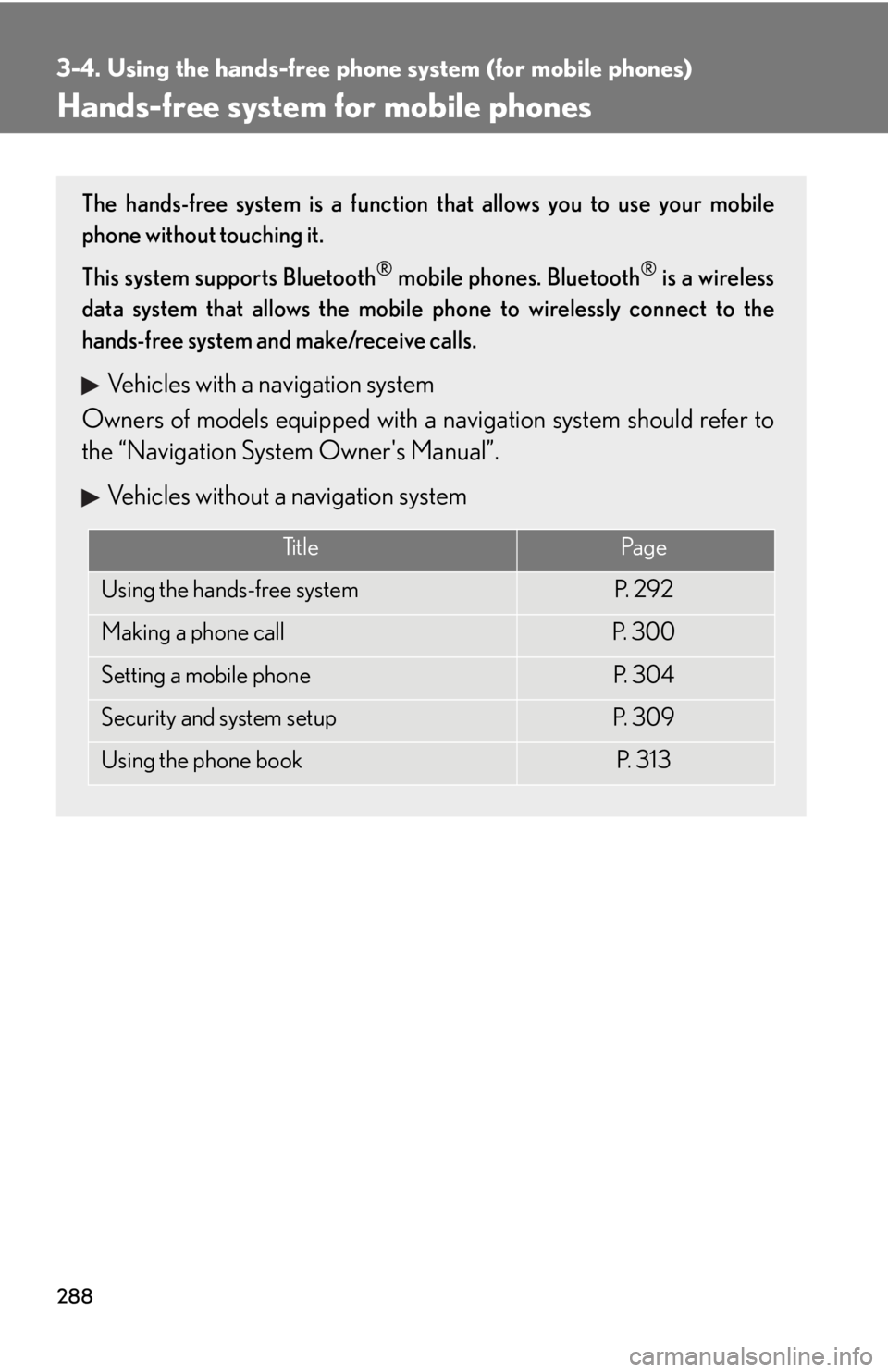

3-4. Using the hands-free phone system (for mobile phones)
Hands-free system for mobile phones
The hands-free system is a function that allows you to use your mobile
phone without touching it.
This system supports Bluetooth
® mobile phones. Bluetooth® is a wireless
data system that allows the mobile phone to wirelessly connect to the
hands-free system and make/receive calls.
Vehicles with a navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the hands-free systemP. 2 9 2
Making a phone callP. 3 0 0
Setting a mobile phoneP. 3 0 4
Security and system setupP. 3 0 9
Using the phone bookP. 3 1 3

440
4-3. Do-it-yourself maintenance
9ACC7. 5 A
Clock, air conditioning system, audio,
navigation system, outside rear view
mirrors, Lexus parking assist monitor,
glove box light, console box light, mul-
tiplex communication system, display,
smart access system with push-but-
ton start
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12RR DOOR RH20 APo w e r w i n d o w s
13FR DOOR RH20 A
Power windows, outside rear view
mirrors, multiplex communication sys-
tem
14AM27. 5 AStarting system
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heater
and ventilator, windshield wiper de-
icer
16FR S/HTR RH15 ASeat heaters and ventilators
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, AWD system, out-
side rear view mirrors, VDIM, air con-
ditioning system, electric tilt and
telescopic steering, power windows,
navigation system, multiplex commu-
nication system
FuseAmpereCircuit

490
5-2. Steps to take in an emergency
CAUTION
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS & brake assist
●VSC
●TRAC
●EPS
●VDIM
●Navigation system (if equipped)
●Intuitive parking assist (if equipped)
●Cruise control
Also, not only can the following system not be utilized fully, it may actually negatively
effect the drive-train components:
●AWD system (if equipped)

Index
565
Abbreviation list .................... 566
Alphabetical index ................. 568
What to do if... ....................... 582
For vehicles with a navigation system, refer to the “Naviga-
tion System Owner’s Manual ” for information regarding
the equipment listed below.
• Navigation system
• Audio/video system
• Air conditioning
• Rear window and outside rear view mirror defogging
• Climate control
• Rear view monitor system
• Intuitive parking assist

569
Alphabetical index
Back-up lightsWattage ................................................. 525
Battery Checking ............................................... 402
If the vehicle has a discharged battery................................................. 500
Preparing and checking before winter ...................................... 201
Bluetooth
® audio* ...............................270
Bluetooth® phone*............................. 288
Bottle holders ........................................ 329
Brake Fluid ..........................................................400
Parking brake ..........................................151
Brake assist ................................................ 191 Care
Exterior.................................................... 372
Interior ..................................................... 376
Seat belts ................................................ 377
Cargo capacity ........................................197
Cargo hooks.......................................... 350
CD changer* ........................................... 231
CD player* ............................................... 231
Chains ........................................................ 201
Child-protectors ...................................... 49
Child restraint system Booster seats, definition .................... 115
Booster seats, installation ................122
Convertible seats, definition ............ 115
Convertible seats, installation ........ 122
Front passenger occupant classification system ......................... 110
Infant seats, definition .......................... 115
Infant seats, installation ...................... 122
Installing CRS with LATCH anchors ................................................. 120
Installing CRS with seat belts ......... 122
Installing CRS with top straps....... 125
B
*: For vehicles with a navigation system, refe r to the “Navigation System Owner’s Manual”.
C
