2013 Lexus IS250 maintenance

478
5-2. Steps to take in an emergency
Indicates that engine oil
level is low.Check the level of engine
oil, and add if necessary.
(U.S.A. only)
Indicates that all mainte-
nance according to the
driven distance on the
maintenance schedule*
should be performed
soon.
If necessary, perform
maintenance.
Comes on approximately
4500 miles (7200 km)
after the maintenance
data has been reset.
(U.S.A. only)
Indicates that all mainte-
nance is required to cor-
respond to the driven
distance on the mainte-
nance schedule*.
Perform the necessary
maintenance. Please reset
the maintenance data
after the maintenance is
performed (P. 3 8 0 )
Comes on approximately
5000 miles (8000 km)
after the maintenance
data has been reset.
(The indicator will not
work properly unless the
maintenance data has
been reset.)
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises
479
5-2. Steps to take in an emergency
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
(If equipped)
Indicates that intuitive
parking assist is dirty or
covered with ice.
Clean the sensor.
Wa r n i n g m e s s a g eDetailsCorrection procedure

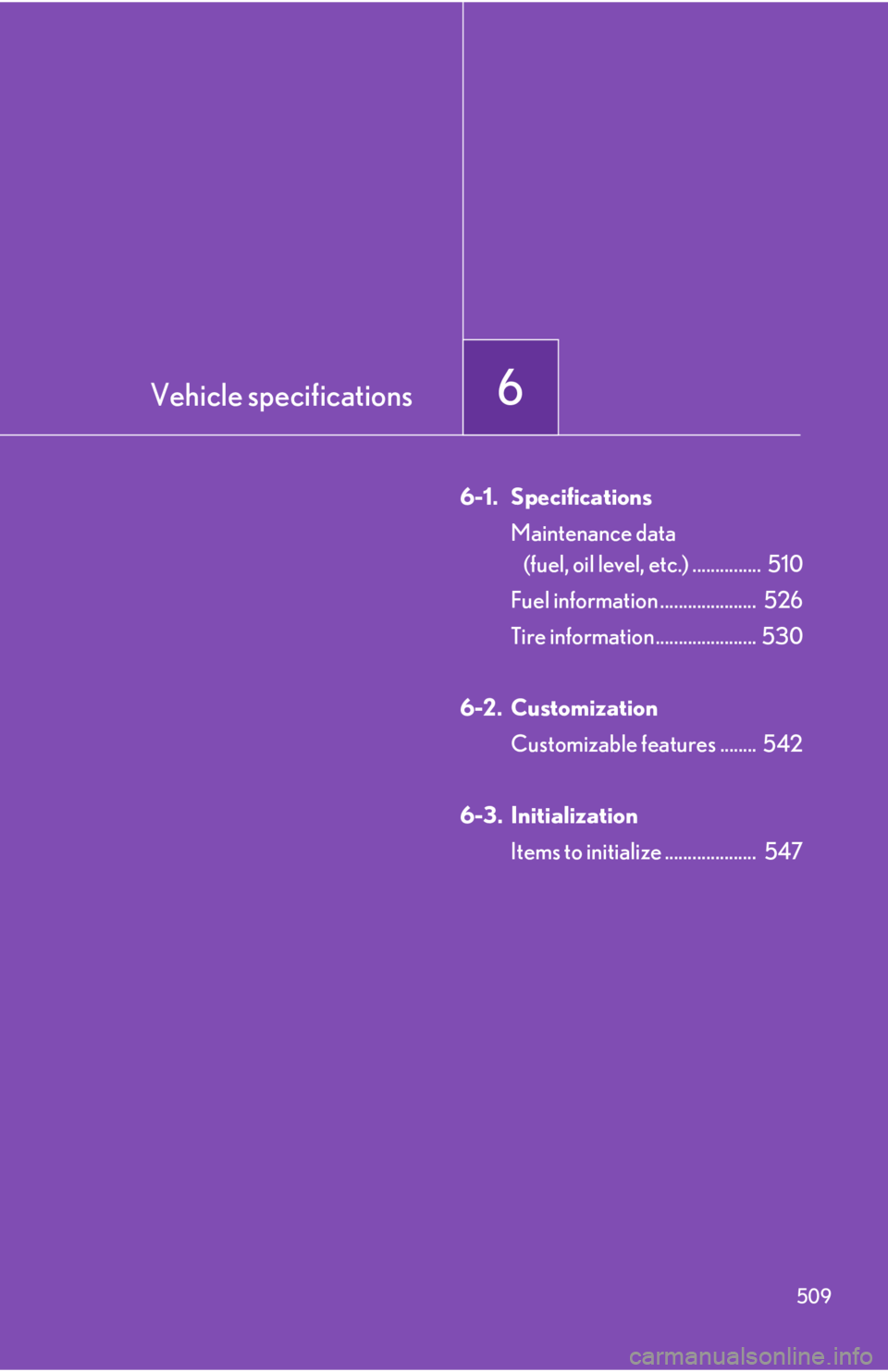

Vehicle specifications6
509
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ............... 510
Fuel information ..................... 526
Tire information...................... 530
6-2. Customization Customizable features ........ 542
6-3. Initialization Items to initialize .................... 547

510
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicle
*2: Vehicle with 18-inch tires
*3: Vehicle with tires other than the above on rear wheels
Overall length180.3 in. (4580 mm)
Overall width70.9 in. (1800 mm)
Overall height *1
2WD
models56.1 in. (1425 mm)
AW D
models56.7 in. (1440 mm)
Wheelbase107.4 in. (2730 mm)
Tr e a d
Front60.4 in. (1535 mm)
Rear60.0 in. (1525 mm)*2
60.4 in. (1535 mm)*3
Vehicle capacity weight
(Occupants + luggage)825 lb. (375 kg)

547
6
Vehicle specifications
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Maintenance data
(U.S.A. only)After the maintenance is performedP. 3 8 0
Tire pressure warning
system
• When rotating the tires with differing front and rear tire inflation pressures.
• When changing the tire inflation pressure by changing traveling
speed.
• When changing the tire size.
P. 4 0 7
The following items must be initialized for normal system operation in cases
such as after the battery is reconnected, or maintenance is performed on
the vehicle.

566
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
2WDTwo Wheel Drive
ABSAnti-lock Brake System
AI-SHIFTArtificial Intelligence Shift
ALRAutomatic Locking Retractor
AW DAll Wheel Drive
CRSChild Restraint System
DISPDisplay
ECTElectronic Controlled Transmission
ECUElectronic Control Unit
EDREvent Data Recorder
ELREmergency Locking Retractor
EPSElectric Power Steering
GAWRGross Axle Weight Rating
I/MEmission inspection and maintenance
LATCHLower Anchors and Tethers for Children
LEDLight Emitting Diode
MMTMethylcyclopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
SRSSupplemental Restraint System
TINTire Identification Number
TPMSTire Pressure Warning System
TRACTraction Control
VDIMVehicle Dynamics Integrated Management

571
Alphabetical index
Daytime running light system............ 169
Defogger*Rear window.......................................... 218
Side mirror .............................................. 218
Dimension .................................................510
Dinghy towing ....................................... 206
Display Satellite switch mode....................... 333
Trip information .................................... 163
Warning message .............................473
Do-it-yourself maintenance............. 385
Door courtesy lights Door courtesy lights .......................... 319
Wattage ................................................. 525
Door pockets ......................................... 329
Doors Door lock ............................... 33, 45, 48
Door windows ......................................... 81
Side mirrors............................................. 78
Driver's seat belt reminder light .... 465
Driving Correct posture .....................................97
Procedures .............................................130
Driving position memory ..................... 59 Electric power steering .........................191
Electronic key
If the electronic key does not operate properly ........................... 496
Emergency, in case of If a warning message is displayed............................................. 473
If the electronic key does not operate properly ........................... 496
If the engine will not start................ 492
If the shift lever cannot be shifted from P ...................................494
If the vehicle has a discharged battery ................................................. 500
If the warning buzzer sounds ......463
If the warning light turns on...........463
If you have a flat tire ........................ 483
If you lose your keys ........................ 495
If you think something is wrong .................................................... 461
If your vehicle becomes stuck .... 507
If your vehicle has to be stopped in an emergency ............................ 508
If your vehicle needs to be towed................................................... 455
If your vehicle overheats ............... 504D
*: For vehicles with a navigation system, refe r to the “Navigation System Owner’s Manual”.
E

575
Alphabetical index
Light bulbsReplacing............................................... 444
Wattage ................................................. 525
Lights Door courtesy lights .......................... 319
Emergency flasher switch ............. 454
Fog light switch....................................... 171
Hazard light switch........................... 454
Headlights switch ................................ 167
Interior light switch.............................. 321
Outer foot lights................................... 319
Overhead courtesy light ................. 319
Personal light switch .......................... 321
Replacing light bulbs ....................... 444
Scuff lights ............................................... 319
Shift lever light ....................................... 319
Turn signal lever.................................. 150
Vanity lights ............................................ 331
Wattage ................................................. 525
Load capacity ........................................ 200 Maintenance
Do-it-yourself maintenance......... 385
General maintenance ...................... 381
Maintenance data ............................... 510
Maintenance requirements .......... 379
Meter Instrument panel light control ....... 154
Meters....................................................... 153
Micro dust and pollen filter* ............. 214
Mirrors Inside rear view mirror ....................... 76
Side mirror heater .............................. 218
Side mirrors ............................................. 78
Vanity mirrors ....................................... 331
Moon roof ................................................... 84
MP3 disc* ................................................238
Multi-information display ................... 162L
*: For vehicles with a navigation system, refe r to the “Navigation System Owner’s Manual”.
M
