2013 Lexus GX460 key

502
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)
■Automatic volume adjustment
When vehicle speed reaches 50 mph (80 km/h) or more, the volume automati-
cally increases. The volume returns to the previous volume setting when vehicle
speed drops to 43 mph (70 km/h) or less.
■When using a voice command
For numbers, say a combination of single digits from zero to nine, # (pound),
∗ (star), and + (plus).
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with the “TUNE/SEL” knob
●Registering a cellular phone to the system
■Changing the passkey
→ P. 5 1 1
GX460_OM_OM60J63U_(U).book Page 502 Thursday, March 29, 2012 9:10 AM

508
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)
Setting a cellular phone
Registering a cellular phone in the hands-free phone system allows the sys-
tem to function. The following functions can be used for registered cellular
phones:
■Functions and operation procedures
To enter the menu for each function, follow the steps below using a
voice command or the “TUNE/SEL” knob:
●Registering a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Pair Phone”
● Selecting a cellular phone to be used
1. “Setup” → 2. “Phone Setup” → 3. “Connect Phone (Connect)”
● Changing the registered name of a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Change Name”
● Listing the registered cellular phones
1. “Setup” → 2. “Phone Setup” → 3. “List Phones”
● Changing the passkey
1. “Setup” → 2. “Phone Setup” → 3. “Set Passkey”
● Deleting a registered cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Delete Phone”
GX460_OM_OM60J63U_(U).book Page 508 Thursday, March 29, 2012 9:10 AM

511
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_OM_OM60J63U_(U)
Listing the registered cellular phones
Select “List Phones” using a voice command or the “TUNE/SEL” knob.
The list of registered cellular phones will be read aloud.
When listing is complete, the system returns to “Phone Setup”.
Pressing the talk switch while the name of a cellular phone is being read
aloud selects the cellular phone, and the following functions will become
available:
● Selecting a cellular phone: “Connect Phone (Connect)”
● Changing a registered name: “Change Name”
● Deleting a cellular phone: “Delete Phone”
Changing the passkey
Select “Set Passkey” using a voice command or the “TUNE/SEL”
knob.
Pattern A Press the talk switch, say a 4 to 8-digit number, and select “Con-
firm” using a voice command or the “TUNE/SEL” knob.
Pattern B Select a 4 to 8-digit number using the “TUNE/SEL” knob.
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press the “TUNE/SEL” knob again.
If the number to be registered has 8 digits, pressing of the knob is not
necessary.
STEP1
STEP2
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 511 Thursday, March 29, 2012 9:10 AM

516
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the cellular phones
• Passkey for the Bluetooth
® audio players
• Guidance volume
• Receiver volume
•Ring tone volume
●Once the initialization has been completed, the data cannot be restored to its
original state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book
GX460_OM_OM60J63U_(U).book Page 516 Thursday, March 29, 2012 9:10 AM

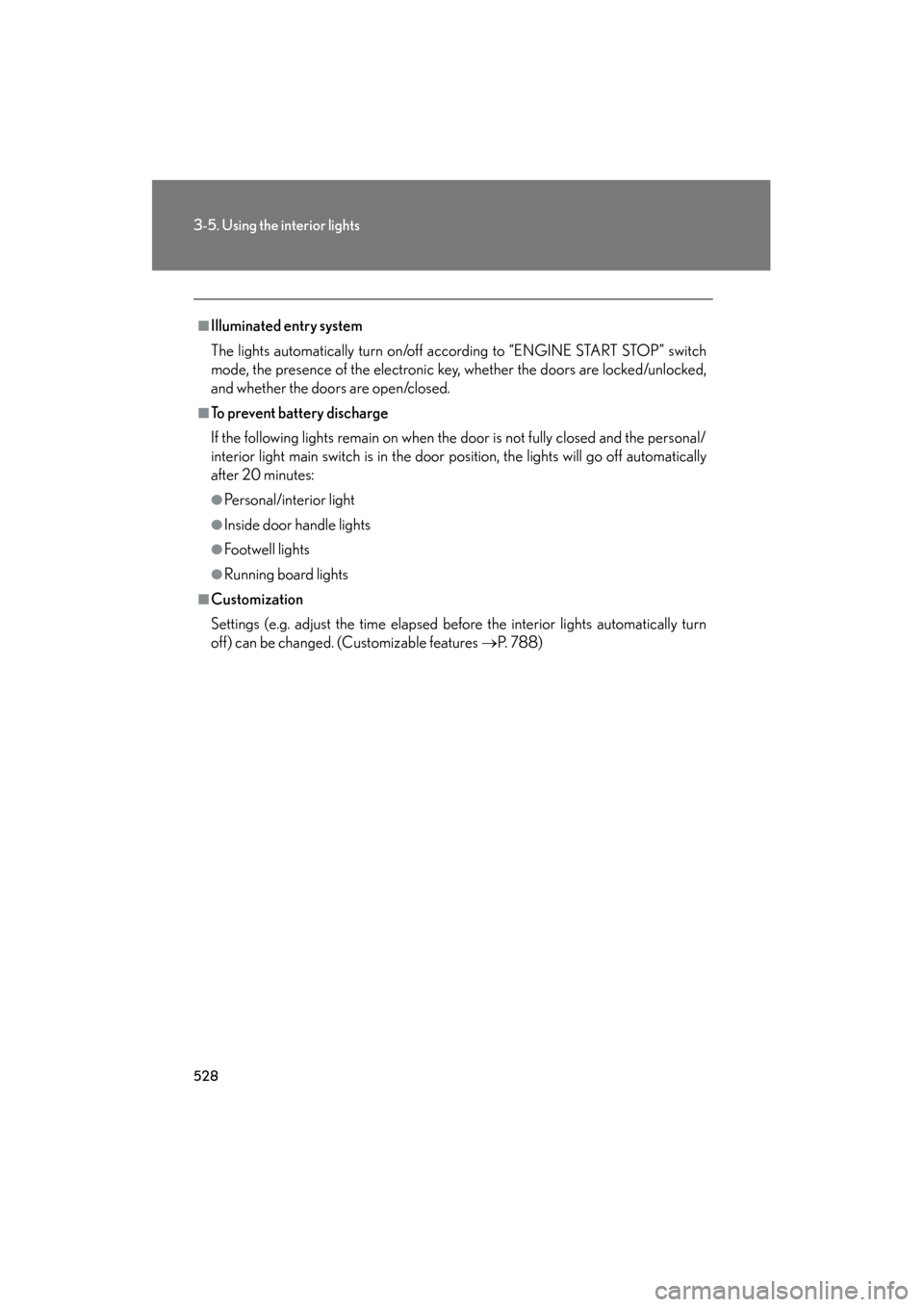

528
3-5. Using the interior lights
GX460_OM_OM60J63U_(U)
■Illuminated entry system
The lights automatically turn on/off according to “ENGINE START STOP” switch
mode, the presence of the electronic key, whether the doors are locked/unlocked,
and whether the doors are open/closed.
■To prevent battery discharge
If the following lights remain on when the door is not fully closed and the personal/
interior light main switch is in the door position, the lights will go off automatically
after 20 minutes:
●Personal/interior light
●Inside door handle lights
●Footwell lights
●Running board lights
■Customization
Settings (e.g. adjust the time elapsed before the interior lights automatically turn
off) can be changed. (Customizable features →P. 788)
GX460_OM_OM60J63U_(U).book Page 528 Thursday, March 29, 2012 9:10 AM

531
3-6. Using the storage features
3
Interior features
GX460_OM_OM60J63U_(U)
Glove boxThe glove box can be opened by pulling the lever and can be locked and
unlocked by using the mechanical key. Lock
Unlock
Open
■Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
■Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open glove box or the
items stored inside.
Glove box
GX460_OM_OM60J63U_(U).book Page 531 Thursday, March 29, 2012 9:10 AM

Maintenance and care4
595
GX460_OM_OM60J63U_(U)
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 596
Cleaning and protecting the vehicle interior ............... 601 4-2. Maintenance
Maintenance requirements........................ 604
General maintenance .......... 607
Emission inspection and maintenance (I/M)
programs .................................. 611
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ............................. 612
Hood ............................................ 617
Engine compartment ............ 618
Tires............................................ 636
Tire inflation pressure........... 643
Wheels ....................................... 647
Air conditioning filter ........... 650
Electronic key battery.......... 652
Checking and replacing fuses ........................................ 655
Headlight aim (vehicles with low beam
halogen bulbs)...................... 668
Light bulbs................................. 670
GX460_OM_OM60J63U_(U).book Page 595 Thursday, March 29, 2012 9:10 AM

632
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the battery.
■After recharging/reconnecting the battery
●Unlocking the doors using the smart key system may not be possible immedi-
ately after reconnecting the battery. If this happens, use the wireless remote
control or the mechanical key to lock/unlock the doors.
●Start the engine with the “ENGINE START STOP” switch in ACCESSORY
mode. The engine may not start with the “ENGINE START STOP” switch
turned OFF. However, the engine will operate normally from the second
attempt.
●The “ENGINE START STOP” switch mode is recorded by the vehicle. If the bat-
tery is reconnected, the vehicle will return the “ENGINE START STOP” switch
mode to the status it was in before the battery was disconnected. Make sure to
turn off the engine before disconnect the battery. Take extra care when con-
necting the battery if the “ENGINE START STOP” switch mode prior to dis-
charge is unknown.
If the system will not start even after multiple attempts, contact your Lexus dealer.
GX460_OM_OM60J63U_(U).book Page 632 Thursday, March 29, 2012 9:10 AM
