2013 Lexus GX460 tow

79
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_OM_OM60J63U_(U)
■Enlarging the luggage compartment (vehicles with third seats)
The third seat can be used for sitting when it is in the position shown in of
the folding down the third seats. (→P. 76 )
This can be convenient for enlarging the luggage compartment, for instance when
the luggage is against the back of the seatback.
■If the warning buzzer sounds continuously (vehicles with third seats)
If there is an abnormality in the system, the warning buzzer will sound continuously
while the “ENGINE START STOP” switch is in IGNITION ON mode. In this case,
take the following operations:
Press and hold .
Press and hold to stow the seat.
For each step, wait until the seat movement stops automatically and the two beeps
sound twice before removing your hand from the switch.
If the warning buzzer does not stop even after performing the above procedure
correctly, perform the following operations:
Press and hold on the rear door side.
While holding , press forward on 5 times within 10 seconds
and keep holding until 3 beeps sound. The beep will then sound
continuously again.
Repeat and .
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5STEP1STEP2
GX460_OM_OM60J63U_(U).book Page 79 Thursday, March 29, 2012 9:10 AM

81
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_OM_OM60J63U_(U)
CAUTION
■When stowing the third seats
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Check that there is no luggage and that there are no other people around the
seat before stowing operation.
●Do not insert hands or feet into the moving parts of the seat.
●Do not allow children to operate the seat.
■After returning the seatbacks to the upright position
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Make sure the seatback is securely locked by pushing it forward and rearward on
the top.
●Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■When returning the third seat (vehicles with a luggage cover)
If the luggage cover is installed in the luggage compartment, make sure you remove
it before returning the third seat. (→P. 568) The luggage cover may be damaged
by the seat.
GX460_OM_OM60J63U_(U).book Page 81 Thursday, March 29, 2012 9:10 AM

87
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_OM_OM60J63U_(U)
■Adjusting the height of the head restraints
■Using the second center seat head restraint
■Using the third seats
Always lift the head restraints up until they lock when using.
■Removing the head restraints (front and second seats)Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Always raise the head restraint one level from
the stowed position when using.
Pull the head restraint up while pressing the
lock release button.
GX460_OM_OM60J63U_(U).book Page 87 Thursday, March 29, 2012 9:10 AM

97
1
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Before driving
GX460_OM_OM60J63U_(U)
Steering wheel
Auto tilt away
When the “ENGINE START
STOP” switch is turned off, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Tu r n i n g t h e “ E N G I N E S T A R T
STOP” switch to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position.
Operating the switch moves the steering wheel in the following direc-
tions: Up
Down
Away from the driver
Toward the driver
GX460_OM_OM60J63U_(U).book Page 97 Thursday, March 29, 2012 9:10 AM

135
1-7. Safety information
1
Before driving
GX460_OM_OM60J63U_(U)
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag. The National
Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of inflation,
placing yourself 10 in. (250 mm) from your driver airbag provides you with a
clear margin of safety. This distance is measured from the center of the steering
wheel to your breastbone. If you sit less than 10 in. (250 mm) away now, you can
change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedalscomfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while still main-
taining control of the foot pedals, steering wheel, and your view of the instrument
panel controls.
GX460_OM_OM60J63U_(U).book Page 135 Thursday, March 29, 2012 9:10 AM

138
1-7. Safety information
GX460_OM_OM60J63U_(U)
CAUTION
■SRS airbag precautions
●Do not allow anyone to kneel on the pas-
senger seat toward the door or put their
head or hands outside the vehicle.
●Do not attach anything to or lean anything
against areas such as the dashboard, steer-
ing wheel pad and lower portion of the
instrument panel.
These items can become projectiles when
the SRS driver, front passenger and knee
airbags deploy.
●Do not attach anything to areas such as the
door, windshield glass, side door glass,
front, center or rear pillars, roof side rail
and assist grip.
●Do not hang coat hangers or other hard
objects on the coat hooks. All of these
items could become projectiles and may
cause death or serious injury, should the
SRS curtain shield airbag deploy.
GX460_OM_OM60J63U_(U).book Page 138 Thursday, March 29, 2012 9:10 AM

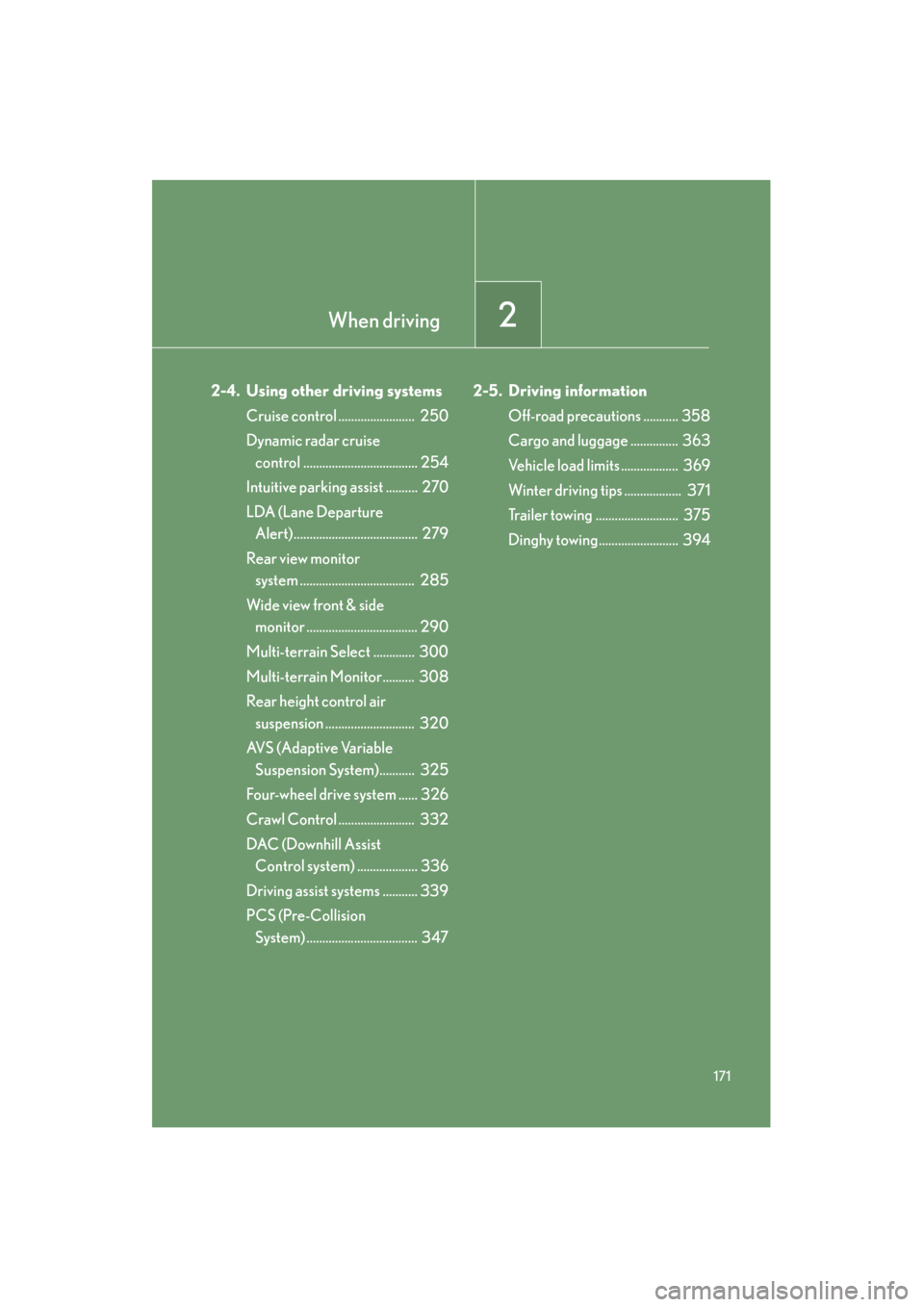

When driving2
171
GX460_OM_OM60J63U_(U)
2-4. Using other driving systemsCruise control ........................ 250
Dynamic radar cruise control .................................... 254
Intuitive parking assist .......... 270
LDA (Lane Departure Alert)....................................... 279
Rear view monitor system .................................... 285
Wide view front & side monitor ................................... 290
Multi-terrain Select ............. 300
Multi-terrain Monitor.......... 308
Rear height control air suspension ............................ 320
AVS (Adaptive Variable Suspension System)........... 325
Four-wheel drive system ...... 326
Crawl Control ........................ 332
DAC (Downhill Assist Control system) ................... 336
Driving assist systems ........... 339
PCS (Pre-Collision System) ................................... 347 2-5. Driving information
Off-road precautions ........... 358
Cargo and luggage ............... 363
Vehicle load limits .................. 369
Winter driving tips .................. 371
Trailer towing .......................... 375
Dinghy towing......................... 394
GX460_OM_OM60J63U_(U).book Page 171 Thursday, March 29, 2012 9:10 AM

173
2-1. Driving procedures
2
When driving
GX460_OM_OM60J63U_(U)
Starting off on a steep uphillMake sure that the parking brake is set and shift the shift lever to
D.
Gently depress the accelerator pedal.
Release the parking brake.
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the windows
may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be especially
slippery.
●Refrain from high speeds when driving on an expressway in the rain, because
there may be a layer of water between the tires and the road surface, preventing
the steering and brakes from operating properly.
■Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is recom-
mended:
●For the first 200 miles (300 km):
Avoid sudden stops.
●For the first 500 miles (800 km):
Do not tow a trailer.
●For the first 600 miles (1000 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
STEP1
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 173 Thursday, March 29, 2012 9:10 AM
