4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)■

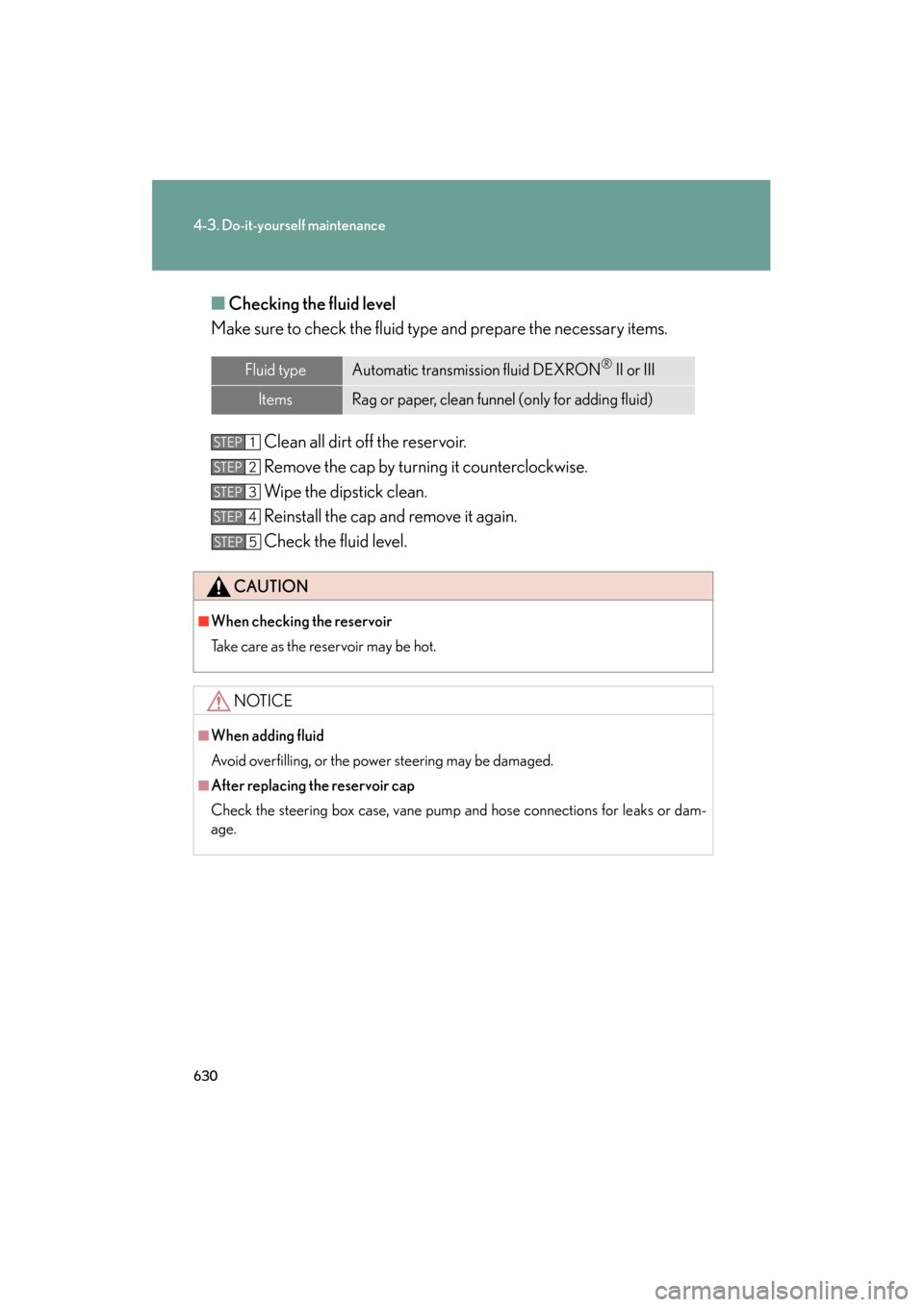

Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall the cap and remove it again.
Check the fluid level.
Fluid typeAutomatic transmission fluid DEXRON® II or III
ItemsRag or paper, clean funnel (only for adding fluid)
CAUTION
■When checking the reservoir
Take care as the reservoir may be hot.
NOTICE
■When adding fluid
Avoid overfilling, or the power steering may be damaged.
■After replacing the reservoir cap
Check the steering box case, vane pump and hose connections for leaks or dam-
age.
STEP1
STEP2
STEP3
STEP4
STEP5
GX460_OM_OM60J63U_(U).book Page 630 Thursday, March 29, 2012 9:10 AM

671
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
Replacing light bulbs■ Headlight low beams (vehicles with halogen bulbs)
Turn the cover counterclockwise
and remove it.
■Rear bulb locations
Rear turn signal light
Back-up light
Rear side marker light
STEP1
GX460_OM_OM60J63U_(U).book Page 671 Thursday, March 29, 2012 9:10 AM

672
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)Turn the bulb base counterclock-
wise.
Unplug the connector while push-
ing the lock release.
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 672 Thursday, March 29, 2012 9:10 AM

673
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)■
Headlight high beams and daytime running lights
Turn the bulb base counterclock-
wise.
Unplug the connector while push-
ing the lock release.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 673 Thursday, March 29, 2012 9:10 AM

674
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)■
Fog lights
Remove the fender liner bolt
and partly remove the fender
liner.
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 674 Thursday, March 29, 2012 9:10 AM

675
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)■
Parking/front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 675 Thursday, March 29, 2012 9:10 AM

676
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)■
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 676 Thursday, March 29, 2012 9:10 AM

678
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)Unplug the connector while push-
ing the lock release.
Turn the bulb bases counterclock-
wise.
Rear turn signal light
Rear side marker light
Remove the light bulb. Rear turn signal light
Rear side marker light
STEP2
STEP3
STEP4
