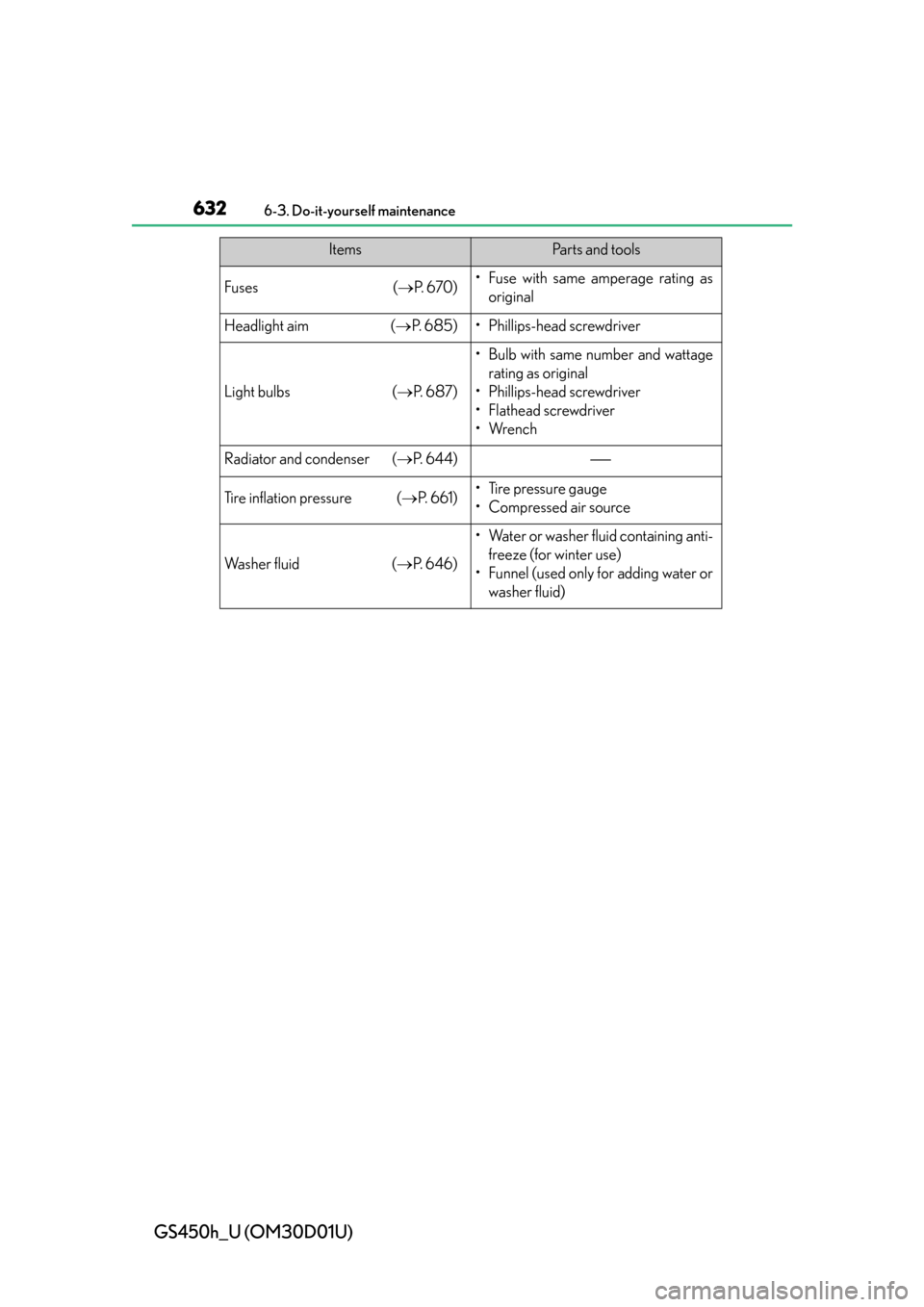

6-3. Do-it-yourself maintenance
Fuses( P. 6 7 0 )• Fuse with same amperage rating as
original
Headlight aim ( P. 6 8 5 )• Phillips-head screwdriver
Light bulbs ( P. 6 8 7 )
• Bulb with same number and wattage
rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser ( P. 644)
Tire inflation pressure ( P. 6 6 1 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 646)
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or washer fluid)
ItemsPa r t s a n d t o o l s

GS450h_U (OM30D01U)
6776-3. Do-it-yourself maintenance
6
Maintenance and care
*: Low beam and high beam are the same bulb. (vehicles with discharge headlights)
52ABS NO.130ECB
53ECU-B NO.27. 5No circuit
54DEICER25Windshield wiper de-icer
55ABS MAIN 310Brake system
56FILTER10Condenser
57A/C W/P7. 5Air conditioning system
58SPARE10Spare fuse
59SPARE30Spare fuse
60SPARE20Spare fuse
FuseAmpereCircuit

687
GS450h_U (OM30D01U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 7 9 1 )
 P. 6 3 8
■Front
Vehicles with discharge headlights
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replace-
ment seems difficult to perform, contact your Lexus dealer.
For more information about replacin g other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replacement
Removing the engine compartment covers
Bulb locations
Front turn signal light
Fog light (if equipped)1
2

GS450h_U (OM30D01U)
6916-3. Do-it-yourself maintenance
6
Maintenance and care
■Front turn signal lights (vehicles with discharge headlights)For the left side only: To allow
enough working space, turn
the steering wheel all the way
to the right, then remove the
bolts and take off the cover.
Turn the bulb base counterclockwise.
1
2
Right sideLeft side

GS450h_U (OM30D01U)
6936-3. Do-it-yourself maintenance
6
Maintenance and care
■Front turn signal lights (vehicles with LED headlights)For the left side only: Remove
the bolt and move the washer
fluid filler opening.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3
