7607-2. Steps to take in an emergency
GS450h_U (OM30D01U)
CAUTION
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting opera-
tions that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
• ABS & Brake assist
•VSC
•TRAC
•Cruise control
• Dynamic radar cruise control (if equipped)
•PCS (if equipped)
•EPS • AFS (if equipped)
•AVS
• LKA (Lane-Keeping Assist)
(if equipped)
• Rear view monitor system
•Intuitive parking as sist (if equipped)
• Navigation system (if equipped)

7717-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that le vel for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
Open and close any of th e doors of your vehicle with the power switch
off.
Maintain the engine speed of the se cond vehicle and start the hybrid
system of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator co mes on. If the indicator does not
come on, contact your Lexus dealer.
Once the hybrid system has started, remove the jumper cables in the
exact reverse order from wh ich they were connected.
Once the hybrid system starts, have the vehicle inspected at your Lexus
dealer as soon as possible.
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical compon ents when the vehicle is running at a
low speed for an extended period, such as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of certain elec-
trical appliances. If the vehicle is left for a long time, the 12-volt battery may dis-
charge, and the hybrid system may be unable to start. (The 12-volt battery recharges
automatically while the hybrid system is operating.)
3
4
5
6
7

774
GS450h_U (OM30D01U)
7-2. Steps to take in an emergency
If your vehicle overheats
●The needle of the engine coolant temperature gauge enters the red
zone:
The engine may be overheating.
●“Hybrid System Overheat” is shown on the multi-information display:
The power control unit may be overheating.
■If the needle of the engine coolant temperature gauge enters the red
zone
Stop the vehicle in a safe place an d turn off the air conditioning sys-
tem.
Check to see if steam is coming out from the engine area.
If you see steam:
Stop the hybrid system. Carefull y lift the hood after the steam sub-
sides and then restart the hybrid system.
If you do not see steam:
Leave the hybrid system operating and carefully lift the hood.
Check to see if the cooling fans are operating.
If the fans are operating:
Wait until the engine coolant temperature ga uge begins to fall and
then stop the hybrid system.
If the fans are not operating:
Stop the hybrid system immediately and call your Lexus dealer.
The following may indicate that your vehicle is overheating:
Correction procedures
1
2
3

7757-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

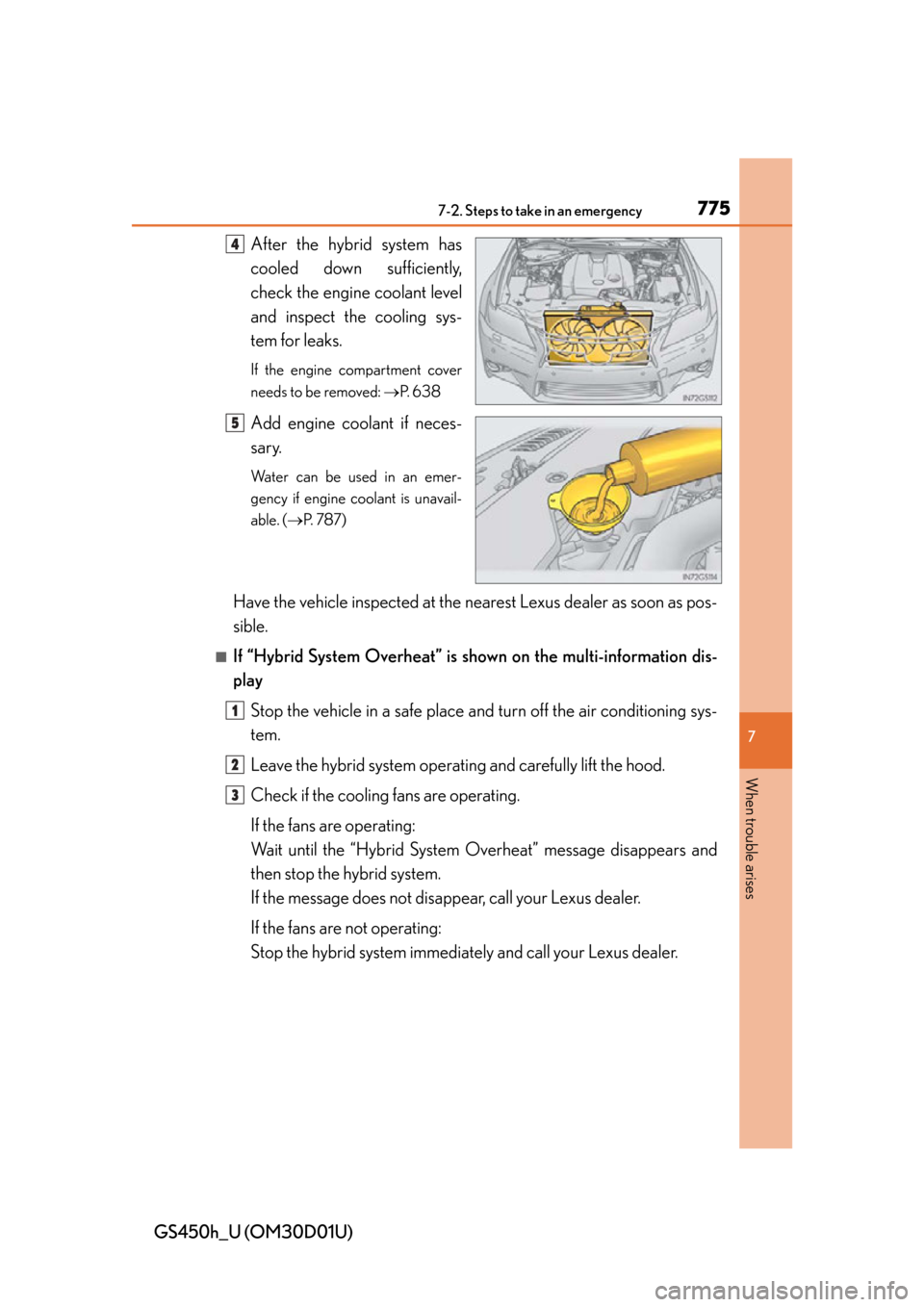

After the hybrid system has
cooled down sufficiently,
check the engine coolant level
and inspect the cooling sys-
tem for leaks.
If the engine compartment cover
needs to be removed: P. 6 3 8
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is unavail-
able. ( P. 7 8 7 )
Have the vehicle inspected at the nearest Lexus dealer as soon as pos-
sible.
■If “Hybrid System Overheat” is shown on the multi-information dis-
play
Stop the vehicle in a safe place an d turn off the air conditioning sys-
tem.
Leave the hybrid system operating and carefully lift the hood.
Check if the cooling fans are operating.
If the fans are operating:
Wait until the “Hybrid System Overheat” message disappears and
then stop the hybrid system.
If the message does not disapp ear, call your Lexus dealer.
If the fans are not operating:
Stop the hybrid system immediately and call your Lexus dealer.
4
5
1
2
3

7767-2. Steps to take in an emergency
GS450h_U (OM30D01U)After the hybrid system has
cooled down, check the power
control unit coolant level and
inspect the cooling system for
leaks.
If the engine compartment cover
needs to be removed:
P. 6 3 8
Add power control unit cool-
ant if necessary.
Water can be used in an emer-
gency if power control unit coolant
is unavailable. ( P. 7 8 7 )
Have the vehicle inspected at the nearest Lexus dealer as soon as pos-
sible.
■Overheating
If you observe the following, your vehicle may be overheating:
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●“Hybrid System Overheat” is shown on the multi-information display.
●Steam comes out from under the hood.
4
5

7777-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing away from the fans , etc. while the hybrid system is oper-
ating.
●For vehicles with a hybrid system, there are times when the gasoline engine auto-
matically starts to run or the cooling fans suddenly start to operate. Do not touch
or approach the rotating parts of the belt or fans. Doing so may lead to fingers,
clothes or tools getting caught, resulting in injury.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid syst em has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too quickly can cause da mage to the hybrid
system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use commercially available coolant additives.
●Do not loosen the radiator cap or the cool-
ant reservoir caps while the hybrid system
and radiator are hot.
High temperature steam or coolant could
spray out.

GS450h_U (OM30D01U)
7838-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary ident ification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top le ft of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification

784
GS450h_U (OM30D01U)
8-1. Specifications
Engine
Model3.5 L 6-cylinder (2GR-FXE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Va l v e c l e a r a n c e
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output147 kW
Maximum torque275 N•m (28.0 kgf•m, 202.8 ft•lbf)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity40 modules
Overall voltage288 V
