2013 Lexus GS450h sensor

GS450h_U (OM30D01U)
3154-5. Using the driving support systems
4
Driving
NOTICE
■The near-infrared camera
●Make sure the front windshield is kept clean.
●System performance may deteriorate if rain water, condensation or ice adheres
to the camera. If you notice the inner lens of the camera is dirty, the garnish will
have to be replaced. Consult your Lexus dealer.
●Do not subject the camera to strong impacts, or disassemble the camera.
●As the alignment of the camera has been very finely adjusted, do not change or
remove the mounting.
●If the front windshield fogs up, defog the windshield using the front defroster.
●Do not dirty or scratch the camera lens.
●Night view may not function properly if an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to the windshield.
Follow these precautions to avoid damage to
or incorrect operation of the Lexus night
view.

376
GS450h_U (OM30D01U)
5-2. Using the air conditioning system and defogger
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the
ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow immedi-
ately after is pressed.
■Humidity sensor
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high. Selecting
on will dehumidify the air from the outlets and defog the windshield effec-
tively.
●If you turn off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
●When driving on dusty roads such as tunn els or in heavy traffic, set the outside/
recirculated air mode button to the recirculated air mode. This is effective in pre-
venting outside air from entering the vehicl e interior. During cooling operation, set-
ting the recirculated air mode will also cool the vehicle interior effectively.
●Outside/recirculated air mode may automatically switch depending on the tem-
perature setting or the inside temperature.
A sensor, which detects humidity inside the
vehicle and the temperature of the wind-
shield, is provided to detect fog on the front
windscreen. Due to the sensor, when auto-
matic mode is set the air conditioning may
make the following controls:
●Changing the amount of air flow
●Changing the amount of air introduced from
outside when in outside air mode with the air
vents in the position
●Changing the settings of the air vents to
when the is set

378
GS450h_U (OM30D01U)
5-2. Using the air conditioning system and defogger
■Air conditioning odors
●During use, various odors from inside an d outside the vehicle may enter into and
accumulate in the air condit ioning system. This may then cause odor to be emitted
from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditio ning system be set to outside air mode
prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immedi-
ately after the air conditioning system is started in automatic mode.
■Air conditioning filter
 P. 6 6 6
■Customization
Settings (e.g. exhaust gas sensor sensitivity) can be changed.
(Customizable features P. 8 0 7 )
CAUTION
■To prevent the windshield from fogging up
Do not use
during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outs ide air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the hybrid
system is off.
■Humidity sensor
Follow these points to avoid damaging the sensor:
●Do not disassemble the sensor
●Do not spray the glass cleaner on the sensor or subject it to strong impacts
●Do not stick anything on the sensor

618
GS450h_U (OM30D01U)
6-1. Maintenance and care
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause
the electrical components etc. to catch fire.
■When cleaning the windshield
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Precautions regarding the exhaust pipes
Exhaust gases cause the exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have cooled
sufficiently, as touching hot exhaust pipes can cause burns.
Set the wipers to the intermittent windshield
wipers. (P. 2 2 1 )
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught
or other serious inju ries and cause damage
to the wiper blades.

622
GS450h_U (OM30D01U)
6-1. Maintenance and care
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkalineor acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surf ace may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio syst em may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windsh ield (vehicles with LKA [Lane-Keeping
Assist])
Be careful not to touch the camera sensor ( P. 2 5 1 ) .
If the camera is accidentally scratched or hit, LKA may not operate properly or
may cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

674
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
■Engine compartment
Fuse layout and amperage ratings
FuseAmpereCircuit
1IGN10Starting system
2INJ10Multiport fuel injection system/sequential
multiport fuel injection system
3EFI NO.210Air intake system, exhaust system
4IG2 MAIN20IGN, GAUGE, INJ, AIR BAG, IG2 NO.1,
LH-IG2
5EFI MAIN25Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.2
6A/F15Air flow sensor
7EDU20Multiport fuel injection system/sequential
multiport fuel injection system
8F/ P M P25Multiport fuel injection system/sequential
multiport fuel injection system
9H-LP RH-LO20Right-hand headlight (low beam)*
10H-LP LH-LO20Left-hand headlight (low beam)*

GS450h_U (OM30D01U)
6756-3. Do-it-yourself maintenance
6
Maintenance and care
11ABS MAIN 210Brake system
12ABS MAIN 110Brake system
13IGCT NO.130IGCT NO.2, IGCT NO.3, IGCT NO.4,
IGCT NO.5
14ECU-B7. 5Smart access system with push-button start
15INV W/P10Hybrid system
16ETCS10Multiport fuel injection system/sequential
multiport fuel injection system
17EPS-B10Electric power steering system
18D/C CUT30DOME, MPX-B
19HORN10Horn
20ODS5Occupant classification system
21TV7. 5Remote Touch screen
22P/ I - B N O. 280IG2 MAIN, EFI MAIN, EDU, F/PMP, A/F
23ABS NO.230ECB
24P/ I - B N O.150H-LP HI RH, H-LP HI LH, DRL
25H-LP LO30H-LP LO RH, H-LP LO LH
26LH J/B-B40Left-hand junction block
27RH J/B-B40Right-hand junction block
28VGRS40No circuit
29OIL PMP60Oil pump
30IGCT NO.57. 5Power management system, shift position
sensor
31WIP-S7. 5Windshield wipers, driver support system
32WA S H - S5Windshield washer, driver support system
33COMB SW5Windshield wipers
FuseAmpereCircuit

676
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance

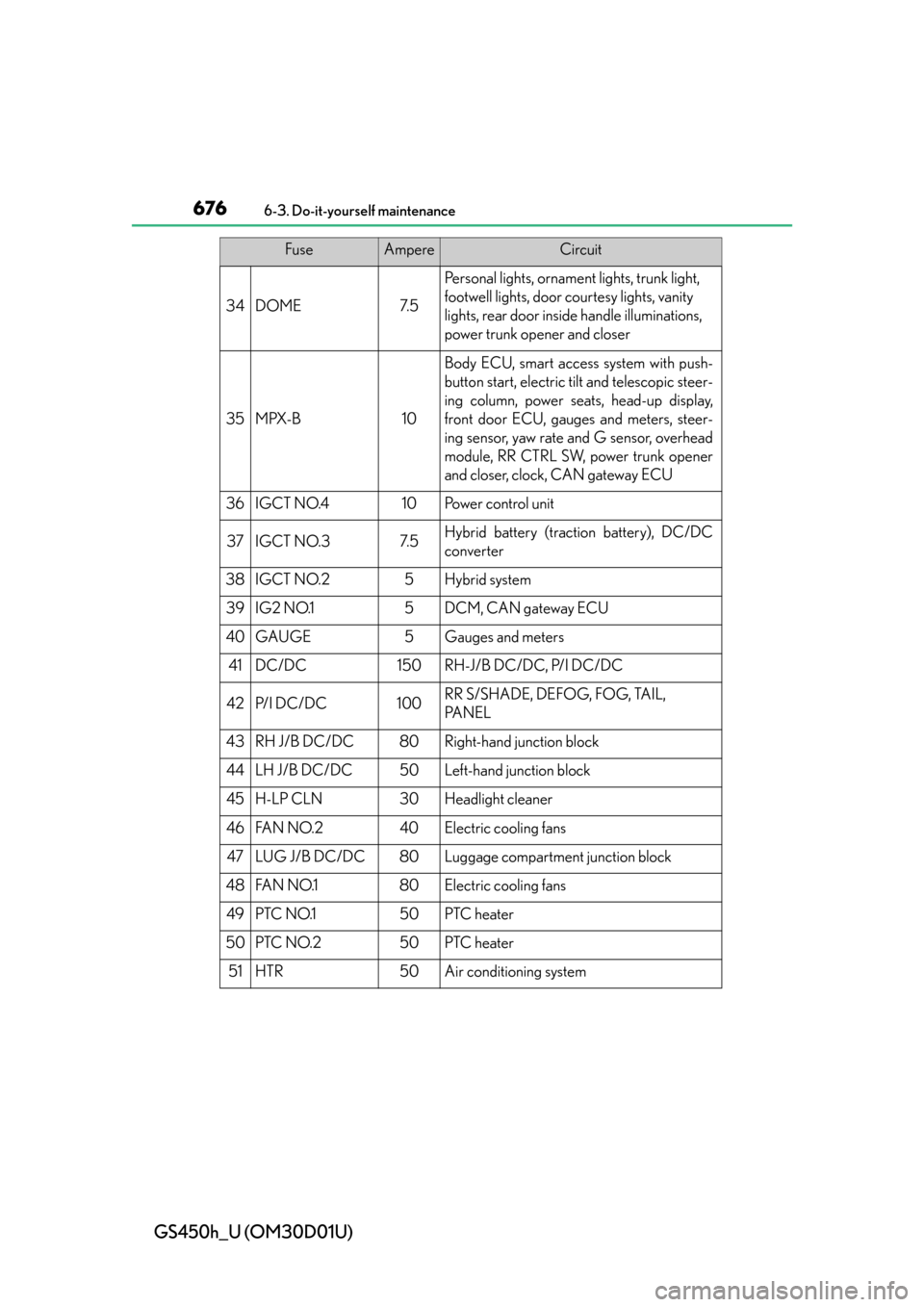

34DOME7. 5
Personal lights, ornament lights, trunk light,
footwell lights, door courtesy lights, vanity
lights, rear door inside handle illuminations,
power trunk opener and closer
35MPX-B10
Body ECU, smart access system with push-
button start, electric tilt and telescopic steer-
ing column, power seats, head-up display,
front door ECU, gauges and meters, steer-
ing sensor, yaw rate and G sensor, overhead
module, RR CTRL SW, power trunk opener
and closer, clock, CAN gateway ECU
36IGCT NO.410Po w e r c o n t r o l u n i t
37IGCT NO.37. 5Hybrid battery (traction battery), DC/DC
converter
38IGCT NO.25Hybrid system
39IG2 NO.15DCM, CAN gateway ECU
40GAUGE5Gauges and meters
41DC/DC150RH-J/B DC/DC, P/I DC/DC
42P/ I D C / D C100RR S/SHADE, DEFOG, FOG, TAIL,
PA N E L
43RH J/B DC/DC80Right-hand junction block
44LH J/B DC/DC50Left-hand junction block
45H-LP CLN30Headlight cleaner
46FAN NO.240Electric cooling fans
47LUG J/B DC/DC80Luggage compartment junction block
48FAN NO.180Electric cooling fans
49PTC NO.150PTC heater
50PTC NO.250PTC heater
51HTR50Air conditioning system
FuseAmpereCircuit
