2013 Lexus GS350 light

6927-2. Steps to take in an emergency
GS350_U (OM30C34U)
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors,
side impact sensors (front door), side impact sensors (front), side impact sensors
(rear), driver’s seat position sensor, driver’s seat belt buckle switch, front passenger
occupant classification system, “AIR BAG ON” indicator light, “AIR BAG OFF” indi-
cator light, front passenger’s seat belt buckle switch, seat belt pretensioner assem-
blies, inflators, interconnectin g wiring and power sources. ( P. 38)
■Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passen ger seat, the front passenger detection sen-
sor may cause the warning light to flash and the warning buzzer to sound even if a
passenger is not sitting in the seat.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■Changing the engine oil (U.S.A. only)
Make sure to reset th e oil change system. ( P. 6 0 2 )
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.

6937-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even though
the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
 P. 6 3 5
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when
the engine switch is turned to IGNITION ON mode, have it checked by your Lexus
dealer.
■Warning buzzer
In some cases, the buzzer may not be he ard because of noisy place or an audio
sound.

6947-2. Steps to take in an emergency
GS350_U (OM30C34U)
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The
vehicle will become extremely unstable during braking, and the ABS system may
fail, which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change
it with the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

6957-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure re commended by the vehicle manufacturer on
the vehicle placard or tire inflation pressu re label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [t ire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure wa rning system) that illuminates a low tire
pressure telltale (tire pressure warning light ) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not re ached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when th e system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists . When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.

697
GS350_U (OM30C34U)
7
When trouble arises
7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes
on or flashes in order to indicate that a
message is currently being displayed
on the multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions have
been performed, contact your Lexus dealer.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
If a warning is shown on the multi- information display, stay calm and
perform the following actions:
1
2
Stop the vehicle immediately. Cont inuing to drive the vehicle may
be dangerous.
Wa r n i n g m e s s a g eDetails
Indicates the following: • The brake fluid level is low; or,
• The brake booster system is malfunctioning. A buzzer also sounds.
(U.S.A.)
(Canada)

6987-2. Steps to take in an emergency
GS350_U (OM30C34U)A buzzer sounds and a warning messa
ge is shown on the multi-informa-
tion display. The following warning in dicates the possibility of damage to
the vehicle that may lead to an acci dent. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Stop the vehicl e immediately.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil
pressure is too low.

7007-2. Steps to take in an emergency
GS350_U (OM30C34U)
Indicates a malfunction in the intuitive parking assistThe malfunctioning assist-sensor is flashing.
Indicates a malfunction in the dynamic radar cruise
control system (if equipped) or the cruise control sys-
tem Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
Indicates a malfunction in the LKA (Lane-Keeping
Assist)
Indicates a malfunction in the automatic headlight lev-
eling system
Wa r n i n g m e s s a g eDetails
(If equipped)
(If equipped)
(If equipped)

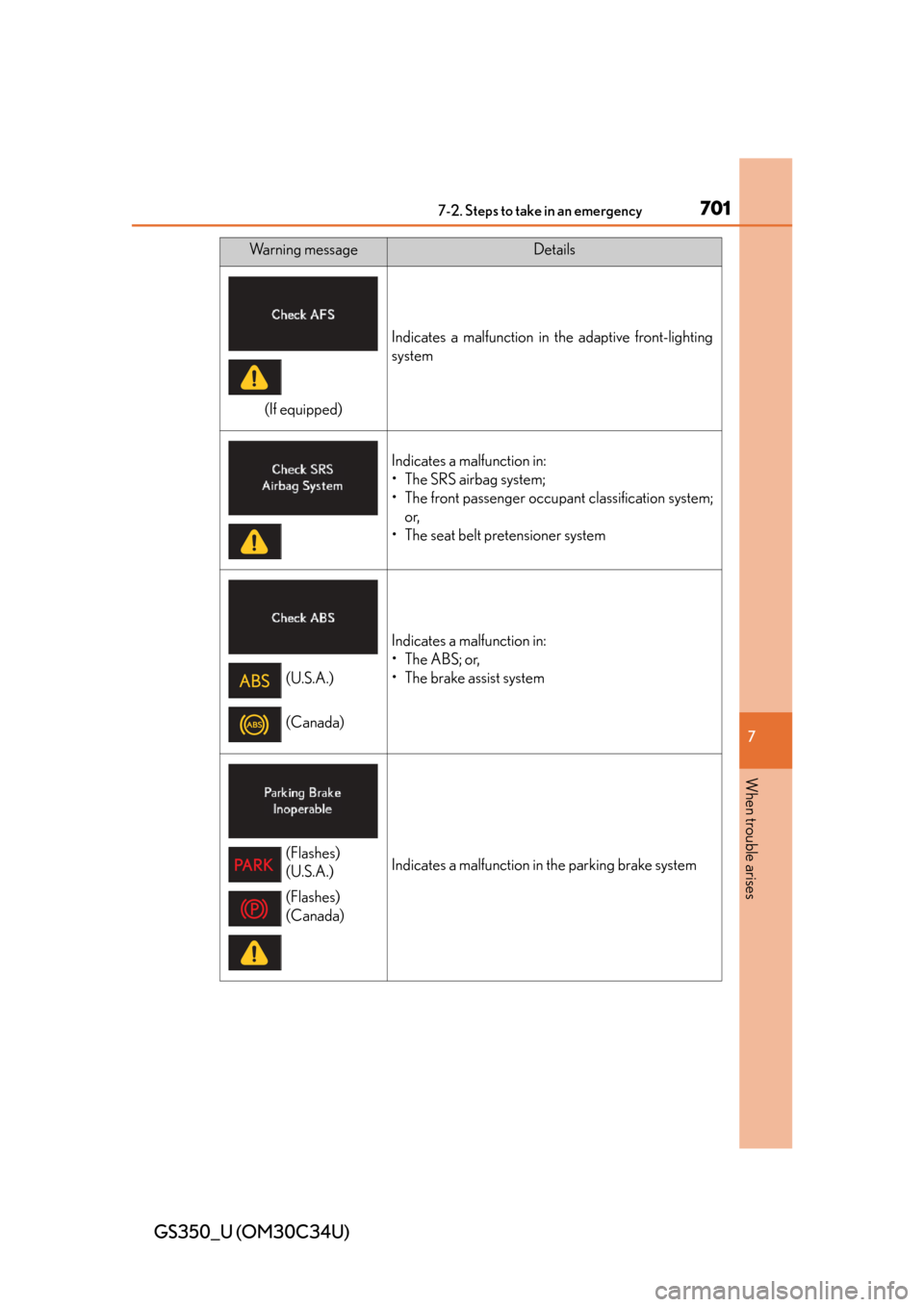

7017-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises
Indicates a malfunction in the adaptive front-lighting
system
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system;or,
• The seat belt pretensioner system
Indicates a malfunction in:
•The ABS; or,
• The brake assist system
Indicates a malfunction in the parking brake system
Wa r n i n g m e s s a g eDetails
(If equipped)
(U.S.A.)
(Canada)
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
