GS350_U (OM30C34U)

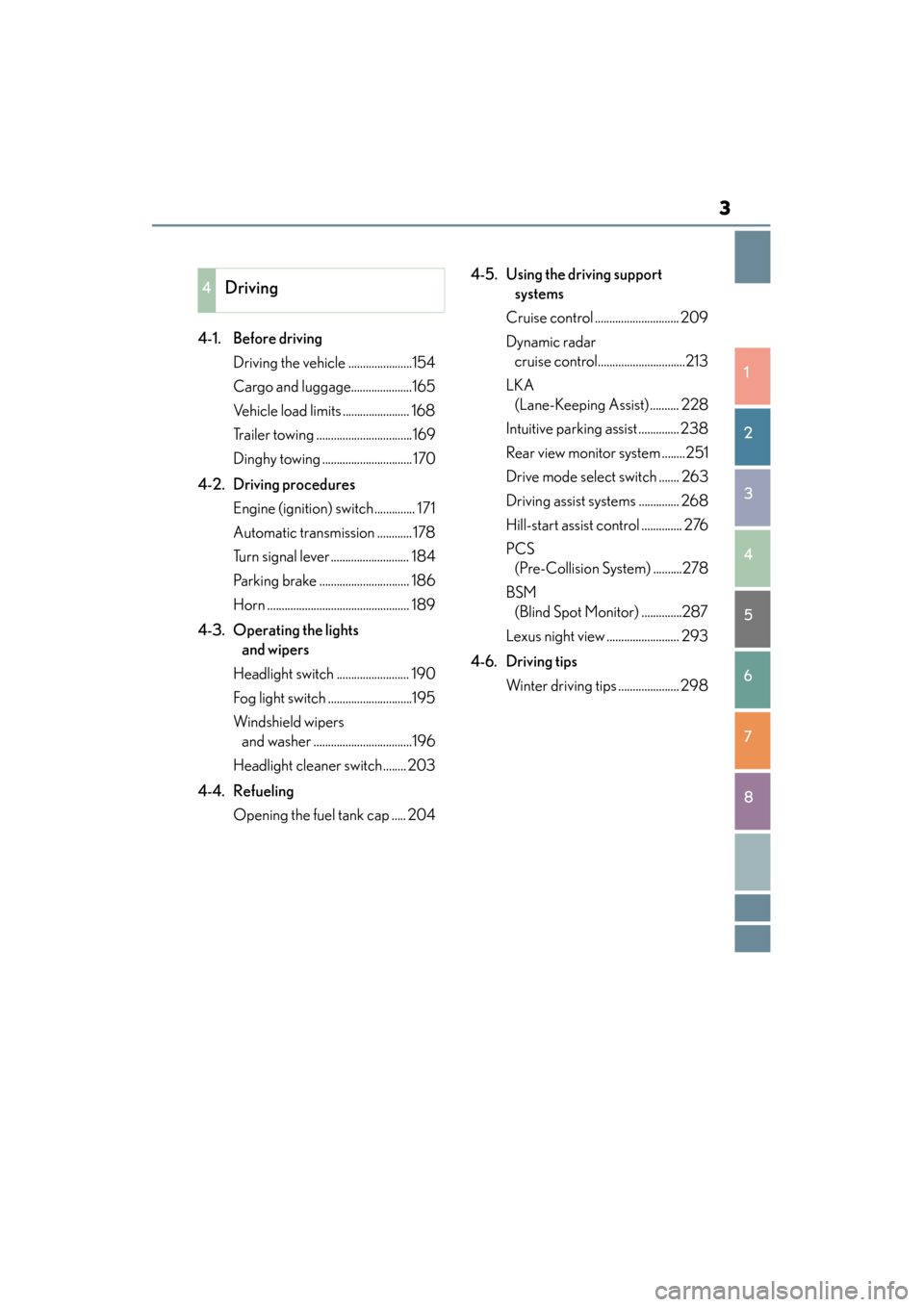

4-1. Before drivingDriving the vehicle ......................154
Cargo and luggage.....................165
Vehicle load limits ....................... 168
Trailer towing .................................169
Dinghy towing ............................... 170
4-2. Driving procedures Engine (ignition) switch .............. 171
Automatic transmission ............ 178
Turn signal lever ........................... 184
Parking brake ............................... 186
Horn ................................................. 189
4-3. Operating the lights and wipers
Headlight switch ......................... 190
Fog light switch .............................195
Windshield wipers and washer ..................................196
Headlight cleaner switch ........ 203
4-4. Refueling Opening the fuel tank cap ..... 204 4-5. Using the driving support
systems
Cruise control ............................. 209
Dynamic radar cruise control..............................213
LKA (Lane-Keeping Assist) .......... 228
Intuitive parking assist .............. 238
Rear view monitor system ........251
Drive mode select switch ....... 263
Driving assist systems .............. 268
Hill-start assist control .............. 276
PCS (Pre-Collision System) ..........278
BSM (Blind Spot Monitor) ..............287
Lexus night view ......................... 293
4-6. Driving tips Winter driving tips ..................... 298
4Driving

15Pictorial index
GS350_U (OM30C34U)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
To prevent freezing (windshield wiper de-icer)
* . . . . . . . . . . . . . . . . . . . . P. 366
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 204
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 754
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 629
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 759
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . P. 629
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 722
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 612
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6 1 2
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 616
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 5 4
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 747
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 704
Headlights/parking lights/daytime running lights . . . . . . . . . . . . . . . . . . P. 190
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 195
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
Stop lights
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 663, Watts: P. 761)
*: If equipped
8
9
10
11
12
13
14
15

153
GS350_U (OM30C34U)
Driving4
4-1. Before driving Driving the vehicle ...................... 154
Cargo and luggage .................... 165
Vehicle load limits ....................... 168
Trailer towing ................................. 169
Dinghy towing............................... 170
4-2. Driving procedures Engine (ignition) switch .............. 171
Automatic transmission ............ 178
Turn signal lever ........................... 184
Parking brake ................................ 186
Horn.................................................. 189 4-3. Operating the lights
and wipers
Headlight switch.......................... 190
Fog light switch ............................ 195
Windshield wipers and washer.................................. 196
Headlight cleaner switch ........ 203
4-4. Refueling Opening the fuel tank cap ..... 204
4-5. Using the driving support systems
Cruise control .............................209
Dynamic radar cruise control ............................. 213
LKA (Lane-Keeping Assist) .......... 228
Intuitive parking assist ..............238
Rear view monitor system ....... 251
Drive mode select switch ....... 263
Driving assist systems............... 268
Hill-start assist control .............. 276
PCS (Pre-Collision System).......... 278
BSM (Blind Spot Monitor).............. 287
Lexus night view ......................... 293
4-6. Driving tips Winter driving tips .....................298

196
GS350_U (OM30C34U)
4-3. Operating the lights and wipers
Windshield wipers and washer
Operate the lever as follows to operate the wipers. The lever will return to
its original position after operation.
XIntermittent windshield wipers with interval adjuster
(U.S.A.) or (Canada)
Up 2 levels
Up 1 level

(U.S.A.) or (Canada)
Down 1 level

(U.S.A.) or (Canada)
Down 2 levels
Operating the wiper lever
1
2
3
4
or or or
OffTe m p o r a r y operationTe m p o r a r y operationIntermittent operationHigh speedoperation
Intermittent operationOffOffLow speedoperationHigh speed operation
Low speed operationOffIntermittent operationHigh speedoperationHigh speedoperation
High speed operationOffLow speedoperationNo changeNo change
Status
before
operation
Operation

198
GS350_U (OM30C34U)
4-3. Operating the lights and wipers
XRain-sensing windshield wipers
(U.S.A.) or (Canada)
Up 2 levels
Up 1 level

(U.S.A.) or (Canada)
Down 1 level

(U.S.A.) or (Canada)
Down 2 levels
AUTO mode on/off switch
With AUTO mode selected, the wip-
ers will operate automatically when
the sensor detects falling rain. The sys-
tem automatically adjusts wiper timing
in accordance with rain volume and
vehicle speed.
AUTO mode indicator will turn on
when AUTO mode is selected.
*: After temporary operation, the mode will return to AUTO mode.
AUTO mode
indicator
1
2
3
4
5
or or
or
OffTe m p o r a r y operationTe m p o r a r y operationLow speed operationHigh speed operation
Low speed operationOffOffHigh speed operationHigh speedoperation
High speed operationOffLow speedoperationNo changeNo change
AUTO modeIntermittent operation
Off
Te m p o r a r yoperation*Low speed operationHigh speed operation
ContinuouslyNo change
Operation
Status
before
operation

200
GS350_U (OM30C34U)
4-3. Operating the lights and wipers
The wipers can be used as intermittent windshield wipers, which operate
regardless of vehicle speed or amount of raindrops.
Press and hold until the AUTO
mode indicator stops flashing.
If is pressed and held until the
AUTO mode indicator stops flashing
again, it will return to its previous state.
The wiper can be switched when the
vehicle is stopped and the wiper is off.
■The windshield wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one more time
after a short delay to prevent dripping.
However, the last sweep will not happen if the vehicle is traveling above 106 mph
(170 km/h).
■Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not in AUTO mode.
●Intermittent wiper interval
●Wiper operation when the washer is being used (delay until drip prevention wiper
sweep occurs)
With low speed windshield wiper operation selected, wiper operation will be
switched from low speed to intermittent wiper operation only when the vehicle is sta-
tionary.
Switching between the intermittent windshield wipers and rain-
sensing windshield wipers (vehicles with rain-sensing windshield
wipers)

GS350_U (OM30C34U)
2014-3. Operating the lights and wipers
4
Driving
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper is turned to AUTO mode while the engine switch is in IGNITION ON
mode, the wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 185°F (85°C) or higher, or -22°F
(-30°C) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than AUTO mode.
■When the windshield wipers are in temporary operation
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm.
The fluid may freeze on the windshield and cause low visibility. This may lead to an
accident, resulting in death or serious injury.

202
GS350_U (OM30C34U)
4-3. Operating the lights and wipers
M
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
■When a nozzle becomes blocked
In this case, contact your Lexus dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■When standing the windshield wipers up
Raise the wipers in line with the windshield. (→P. 3 0 1 )
Failure to do so may result in damage to the wipers and/or the hood.
