2013 Lexus GS350 key

118
GS350_U (OM30C34U)
3-2. Opening, closing and locking the doors and trunk
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set. Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch
to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2

GS350_U (OM30C34U)
1193-2. Opening, closing and locking the doors and trunk
3
Operation of each component
The following functions can be set or canceled:
For instructions on customizing, refer to P. 777.
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 74 0 )
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: → P. 777)
Automatic door locking and unlocking systems
FunctionOperation
“Auto Lock by Speed”
All doors are automatically locked
when vehicle speed is approximately
12 mph (20 km/h) or higher.
“A u t o L o c k b y S h i f t f r o m P ”
All doors are automatically locked
when shifting the shift lever to position
other than P.
“Auto Unlock by Shift to P”All doors are automatically unlocked
when shifting the shift lever to P.
“Auto Unlock by Driver Door”All doors are automatically unlocked
when driver’s door is opened.

GS350_U (OM30C34U)
1233-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slightly open, the trunk easy closer will automati-
cally close it to the fully closed position.
■Function to prevent the trunk being locked with the electronic key inside
●When all doors are being locked, closing the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened pressing the trunk release button on the
trunk lid.
●Even when the spare electronic key is put in the trunk with all the doors locked, the
key confinement prevention function can be activated so the trunk can be opened.
In order to prevent theft, take all electronic keys with you when leaving the vehicle.
●Even when the electronic key is put in the trunk with all the doors are locked, the
key may not be detected depending on the places and the surrounding radio wave
conditions. In this case, the key confinement prevention function cannot be acti-
vated, causing the doors to lock when the trunk is closed. Make sure to check
where the key is before closing the trunk.
●The key confinement prevention function cannot be activated if any one of the
doors is unlocked. In this case, open the trunk using the trunk opener.
■Overload protection function (vehicles with power trunk opener and closer)
The trunk lid will not operate when excessive load is present on the top of the trunk
lid.
■Fall-down protection function (vehicles with power trunk opener and closer)
While the trunk lid is opening automatically, applying excessive force to it will stop
the opening operation to prevent the trunk lid from rapidly falling down.
■Jam protection function (vehicles with power trunk opener and closer)
While the trunk lid is closing automatically, the trunk lid will stop closing and open if
something gets caught.

124
GS350_U (OM30C34U)
3-2. Opening, closing and locking the doors and trunk
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 74 1 )
■When leaving a key to the vehi cle with a parking attendant
→ P. 9 9
The trunk lid can be opened by pulling the
glow-in-the-dark lever located on the inside
of the trunk lid to the side.
The lever will continue to glow for some time
after the trunk lid is closed.
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may
open unexpectedly while driving and hit near-by objects or luggage in the trunk
may be thrown out, causing an accident.
●Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could overheat or suffocate.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to open unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.
■Important points while driving
Never let anyone sit in the trunk. In the event of sudden braking or a collision, they
are susceptible to death or serious injury.

132
GS350_U (OM30C34U)
3-3. Adjusting the seats
A desired driving position can be recalled linked with the unlocking of the
door.
■Setting procedure
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carrying only the key to which you wa nt to link the driving position, shift
the shift lever to P and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be linked
properly.
Turn the engine switch to IGNITION ON mode and recall the posi-
tion which you want to link.
While pressing the button to
recall the position, press the
driver’s door lock switch
(either lock or unlock) until the
signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
Linking driving position memory with door unlock operation
(driver’s side only)
1
2

GS350_U (OM30C34U)
1333-3. Adjusting the seats
3
Operation of each component
■Cancelation procedure
Carry only the key for which you want to cancel the linked door unlock
operation.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, press the driver’s door lock switch
(either lock or unlock) until the signal beeps.
The auto away/return function
enables easy access by activating
when the driver or front passenger
attempts to enter or exit the vehicle.
■Auto away function when exiting the vehicle (driver’s/front passen-
ger’s seat)
XDriver’s seat
When all of the following actions have been performed, the steering
wheel will move up and back to the point farthest away from the driver
and the seat will move backward: • The shift lever has been shifted to P.
• The engine switch has been turned off.
• The driver seat belt has been unfastened.
XFront passenger’s seat (if equipped)
If the lumbar support, side support (if equipped), etc. of the front pas-
senger’s seat has been adjusted, the seat will return to its original state if
the front passenger’s door is opened while the vehicle is stopped to
allow easy exit from the vehicle.
Power easy access system
1
2

GS350_U (OM30C34U)

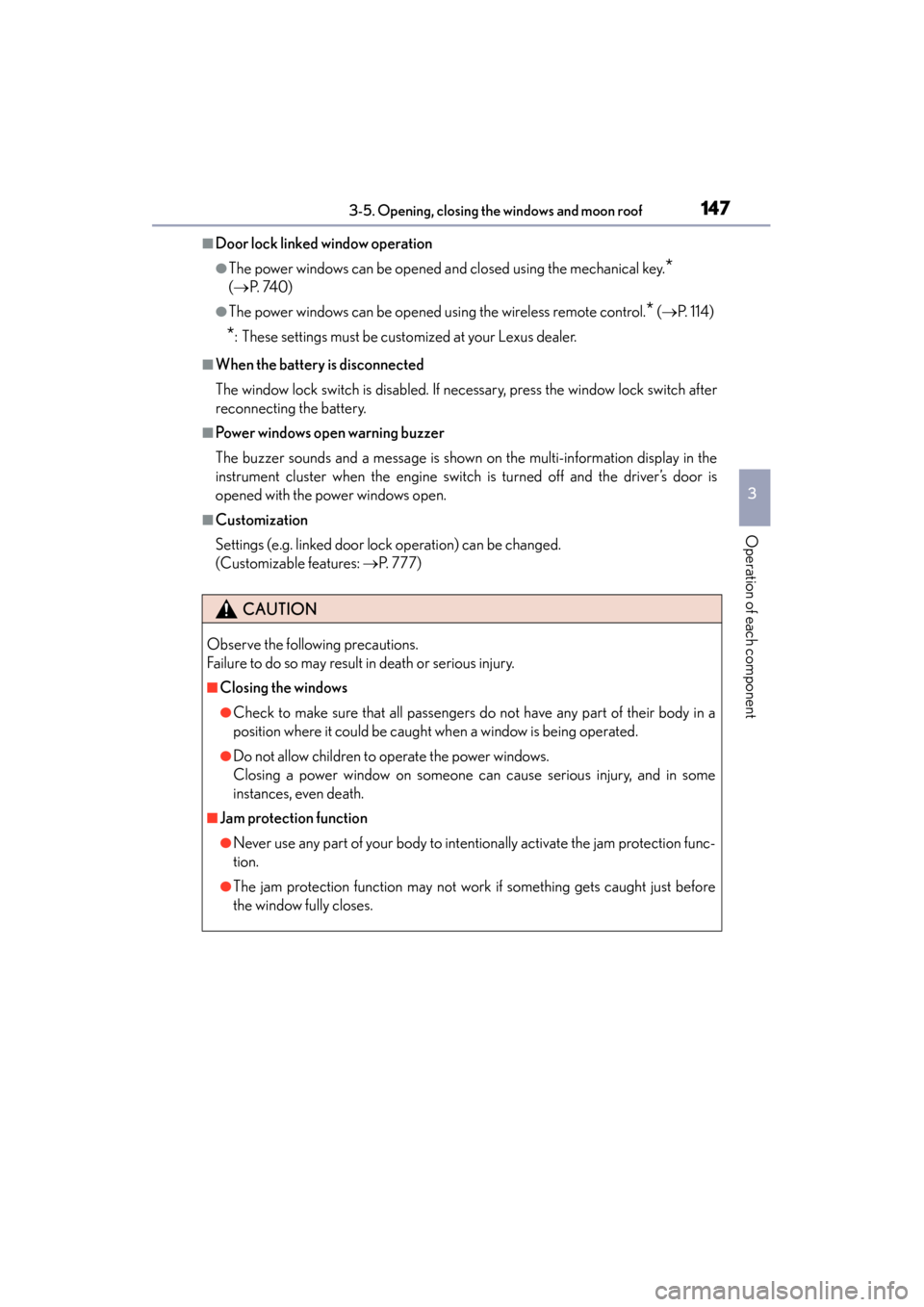

1473-5. Opening, closing the windows and moon roof
3
Operation of each component
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.*
(→ P. 74 0 )
●The power windows can be opened using the wireless remote control.* (→ P. 114)
*: These settings must be customized at your Lexus dealer.
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the engine switch is turned off and the driver’s door is
opened with the power windows open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 777)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in some
instances, even death.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes.

GS350_U (OM30C34U)
1493-5. Opening, closing the windows and moon roof
3
Operation of each component
■The moon roof can be operated when
The engine switch is in IGNITION ON mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the engine
switch is turned to ACCESSORY mode or turned off. It cannot, however, be oper-
ated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the mechanical key.* (→ P. 74 0 )
●The moon roof can be opened using the wireless remote control.* (→ P. 1 1 4 )
*: These settings must be customized at your Lexus dealer.
