3414-5. Using the driving support system
4
Driving
GS450h_300h_OM_OM30D53E_(EE)
Lane departure warning function
When the vehicle speed is approximately 48 km/h (30 mph) or
more
When the lane width is more than approximately 3.0 m (9.8
ft.)
When driving on a straight road or through a curve with a
radius of more than approximately 120 m (394 ft.)
Lane keeping assist function
When the vehicle speed is between approximately 72 and 180 km/
h (45 and 112 mph)
When the vehicle-to-vehicle distance mode of the radar cruise
control is on, and the set vehicle speed is approximately 72
km/h (45 mph) or more (the function will not operate when the
radar cruise control is in set speed mode)
When the lane width is between approximately 3.0 and 4.0 m
(9.8 and 13.1 ft.)
When driving on a straight road or through a curve with a
radius of more than approximately 200 m (656 ft.)
Operating conditions for each function

3664-5. Using the driving support system
GS450h_300h_OM_OM30D53E_(EE)
Screen description
Vehicle width extension guide line
The line indicates a guide path when the vehicle is being backed
straight up.
The displayed width is wider than the actual vehicle width.
The line aligns with the estimated course lines when the steering wheel
is straight.
Estimated course lines
The lines show an estimated course when the steering wheel is turned.
Distance guide line
The line moves, together with the estimated course lines, in sync with
the steering wheel. The line shows points approximately 0.5 m (1.5 ft.)
(red) and approximately 1 m (3 ft.) (yellow) from the center of the edge
of the bumper.
Distance guide line
The line shows distance behind the vehicle, a point approximately 0.5
m (1.5 ft.) (blue) from the edge of the bumper.
Perpendicular parking (estimated course line display mode)
1
2
3
4

3674-5. Using the driving support system
4
Driving
GS450h_300h_OM_OM30D53E_(EE)
Parking operation
When parking in a space which is in the reverse direction to the
space described in the procedure below, the steering directions
will be reversed.
Shift the shift lever to the R position.
Turn the steering wheel so
that the estimated course
lines are within the parking
space, and back up slowly.
Parking space
Estimated course lines
When the rear position of
the vehicle has entered the
parking space, turn the
steering wheel so that the
vehicle width extension
guide lines are within the
left and right dividing lines
of the parking space.
Vehicle width extension
guide line
1
2
1
2
3
3

3684-5. Using the driving support system
GS450h_300h_OM_OM30D53E_(EE)
Once the vehicle width extension guide lines and the parking
space lines are parallel, straighten the steering wheel and back
up slowly until the vehicle has completely entered the parking
space.
Stop the vehicle in an appropriate place, and finish parking.
Screen description
Vehicle width extension guide lines
These lines indicate a guide path when the vehicle is being
backed straight up. The displayed width is wider than the
actual vehicle width.
Parking assist guide lines
These lines indicate the path of the smallest turn possible
behind the vehicle.
These lines also indicate the approximate position of the steer-
ing wheel when parking.
Distance guide line
This line (red) indicates points approximately 0.5 m (1.5 ft.)
behind the rear bumper of your vehicle.

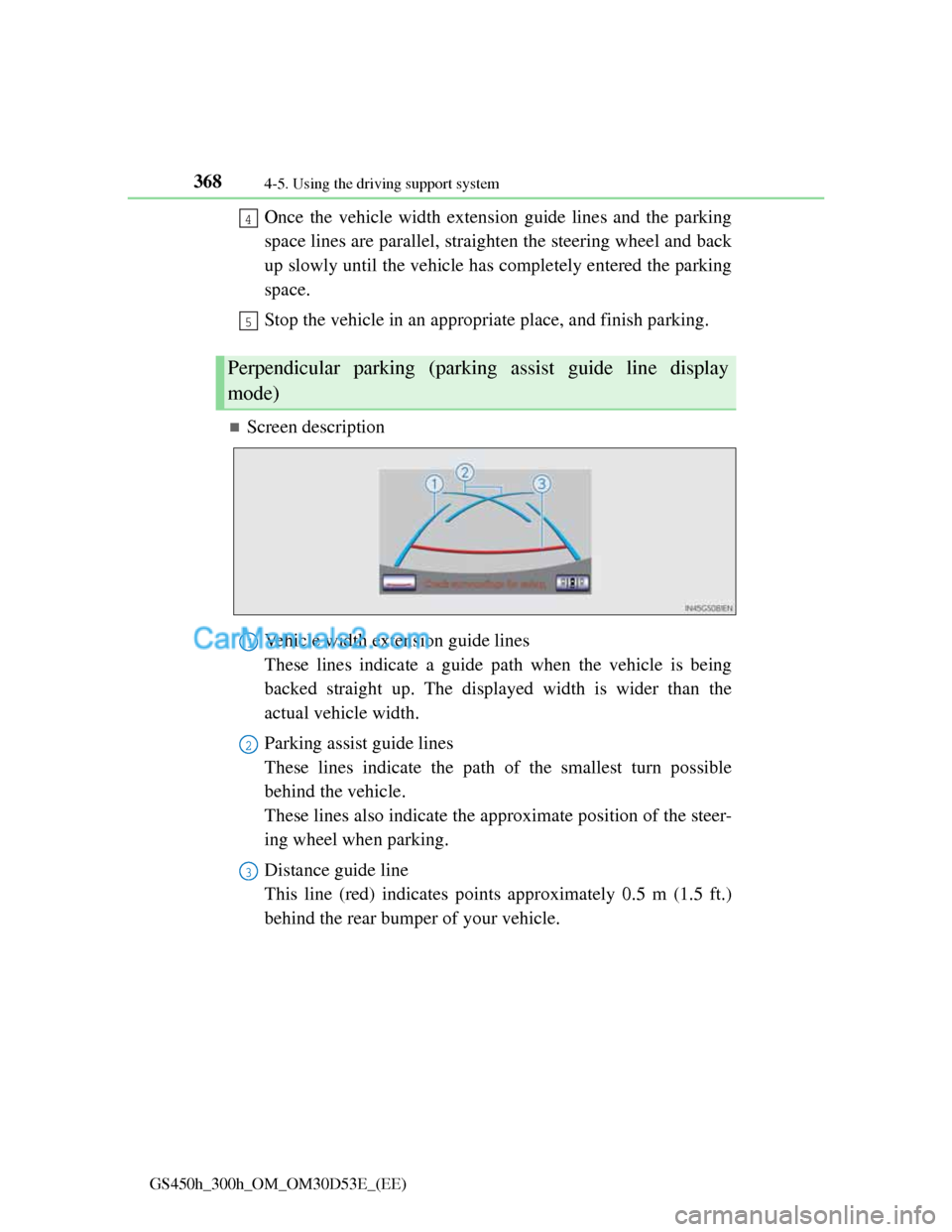

Perpendicular parking (parking assist guide line display
mode)
4
5
1
2
3

3814-5. Using the driving support system
4
Driving
GS450h_300h_OM_OM30D53E_(EE)
Differences between the screen and the actual road
The distance guide lines and the vehicle width extension guide
lines may not actually be parallel with the dividing lines of the
parking space, even when they appear to be so. Be sure to check
visually.
The distances between the vehicle width extension guide lines
and the left and right dividing lines of the parking space may not
be equal, even when they appear to be so. Be sure to check visu-
ally.
The distance guide lines give a distance guide for flat road sur-
faces. In any of the following situations, there is a margin of
error between the guide lines on the screen and the actual dis-
tance/course on the road.

3894-5. Using the driving support system
4
Driving
GS450h_300h_OM_OM30D53E_(EE)
CAUTION
In low temperatures, the screen may darken or the image may become
faint. The image could distort when the vehicle is moving, or you may
become unable to see the image on the screen. Be sure to check direct
visually and with mirror all around the vehicle before proceeding.
If the tire sizes are changed, the position of the guide lines displayed on
the screen may change.
The camera uses a special lens. The distances between objects and pedes-
trians that appear in the image displayed on the screen will differ from the
actual distances. (P. 381)
When using the perpendicular parking assist screen
Estimated course line display mode: If the steering wheel is straight and the
vehicle width extension guide lines and the estimated course lines are not in
alignment, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
When using the parallel parking assist screen
Do not use the system if the display is incorrect due to an uneven (curvy/
hilly) road or a non-straight road.
Make sure to operate the steering wheel only when the vehicle is stopped.
Be sure to check that there are no obstacles inside the blue outline.
If there are any obstacles inside the blue outline, do not use the parallel
parking assist.
When positioning the blue outline over the parking space, be sure to posi-
tion it so that the extended blue line may not cross the tire of the vehicle
parked in front of the empty space.

7746-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)
Wheels
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width
and inset
*.
Replacement wheels are available at any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “off-
set”.
Lexus does not recommend using the following:
Wheels of different sizes or types
Used wheels
Bent wheels that have been straightened
Steel wheels (except for vehicles with a steel spare wheel)
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or cause
a loss of handling control.
Wheel selection

9268-1. Specifications
GS450h_300h_OM_OM30D53E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
*3: AWL10L-BEXEHW and AWL10R-BEXEHW models
*4: AWL10L-BEXQHW and AWL10R-BEXQHW models
*5: GWL10L-BEXEBW and GWL10R-BEXEBW models
*6: GWL10L-BEXQBW and GWL10R-BEXQBW models
*7: Vehicles with towing package
*8:GS300h
*9:GS450h
Dimensions and weights
Overall length 4850 mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height*11455 mm (57.3 in.)
Wheelbase 2850 mm (112.2 in.)
Tread*1
Front 1575 mm (62.0 in.)
Rear1590 mm (62.6 in.)
1560 mm (61.4 in.)*2
Gross vehicle mass2235 kg (4927 lb.)
*3
2265 kg (4993 lb.)*4
2305 kg (5082 lb.)*5
2335 kg (5148 lb.)*6
Maximum
permissible axle
capacityFront 1120 kg (2469 lb.)
Rear 1270 kg (2800 lb.)
Drawbar load*780 kg (176 lb.)
To w i n g c a p a c -
ity
*7
With brake500 kg (1102 lb.)*8
1500 kg (3307 lb.)*9
Without brake0 kg (0 lb.)*8
750 kg (1653 lb.)*9
