7065-7. Other interior features
GS450h_300h_OM_OM30D53E_(EE)
Seat heater switches
Level indicator lights
The seat heater temperature level
is displayed.
Modes and indicators
The mode changes each time the switch is pressed as follows:
*: The mode changes automatically depending on the amount of time that
has elapsed. The amount of time until the mode changes varies depending
on the interior temperature when the seat heater was operated and other
factors.
Seat heaters (without seat ventilators) (if equipped)
1
2
ModeLevel indicator lightsAutomatic operation*
OffOff
Hi3Hi  Mid  Lo
Mid2Mid  Lo
Lo1Lo

7075-7. Other interior features
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)
Seat ventilator switches
Level indicator lights
The seat ventilator fan speed level
is displayed.
Modes and indicators
The mode changes each time the switch is pressed as follows:
Seat ventilators (without seat heaters) (if equipped)
1
2
ModeLevel indicator lights
OffOff
Hi3
Mid2
Lo1

7326-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)
Light bulbs (P. 803)
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator and condenser (P. 747)
Tire inflation pressure (P. 772)• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d (P. 748)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding
water or washer fluid)
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
When working on the engine compartment
Make sure that the “POWER ON” on the multi-information display and
the “READY” indicator are both off.
Keep hands, clothing and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc. right after driving as they may be hot. Oil and other fluids
may also be hot.
Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes
are flammable.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately. If you still experience dis-
comfort, consult a doctor.
ItemsParts and tools

7486-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)
If any washer does not work or
the warning message appears on
the multi-information display,
the washer tank may be empty.
Add washer fluid.
Washer fluid
CAUTION
When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as
washer fluid contains alcohol and may catch fire if spilled on the engine
etc.
NOTICE
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid
bottle.

7566-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)
Your vehicle is equipped with a tire pressure warning system that
uses tire pressure warning valves and transmitters to detect low tire
inflation pressure before serious problems arise.
Vehicles without the tire inflation pressure display function
If the tire pressure drops below a predetermined level, the driver is
warned by a warning light. (P. 834)
Vehicles with the tire inflation pressure display function
If the tire pressure drops below a predetermined level, the driver
is warned by a screen display and a warning light. (P. 859)
The tire pressure detected by the tire pressure warning system
can be displayed on the multi-information display. (P. 117)
Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are
installed, new ID codes must be registered in the tire pressure
warning computer and the tire pressure warning system must be
initialized. Have tire pressure warning valve and transmitter ID
codes registered by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional. (P. 758)
Tire pressure warning system (if equipped)

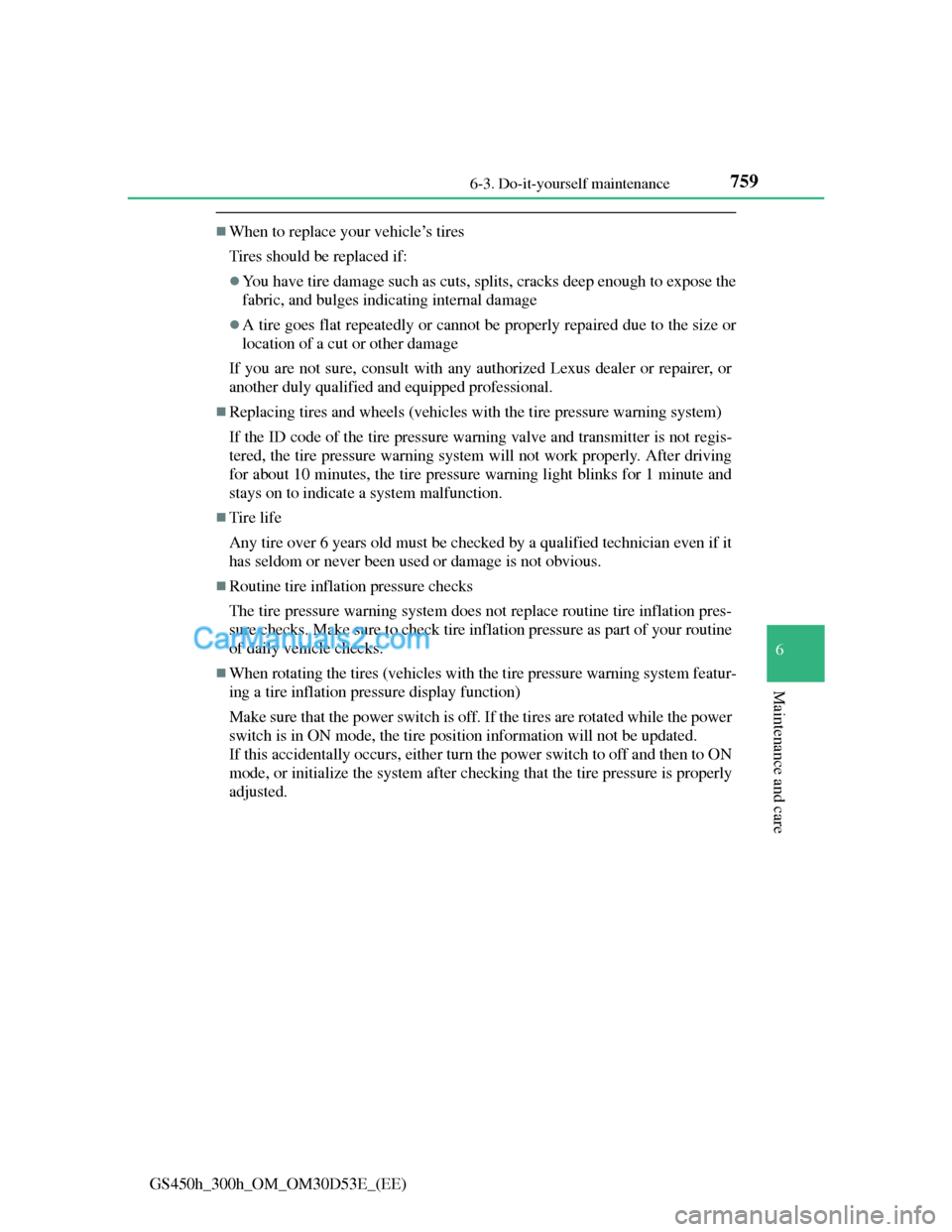

759 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30D53E_(EE)
When to replace your vehicle’s tires
Tires should be replaced if:
You have tire damage such as cuts, splits, cracks deep enough to expose the
fabric, and bulges indicating internal damage
A tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage
If you are not sure, consult with any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Replacing tires and wheels (vehicles with the tire pressure warning system)
If the ID code of the tire pressure warning valve and transmitter is not regis-
tered, the tire pressure warning system will not work properly. After driving
for about 10 minutes, the tire pressure warning light blinks for 1 minute and
stays on to indicate a system malfunction.
Tire life
Any tire over 6 years old must be checked by a qualified technician even if it
has seldom or never been used or damage is not obvious.
Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pres-
sure checks. Make sure to check tire inflation pressure as part of your routine
of daily vehicle checks.
When rotating the tires (vehicles with the tire pressure warning system featur-
ing a tire inflation pressure display function)
Make sure that the power switch is off. If the tires are rotated while the power
switch is in ON mode, the tire position information will not be updated.
If this accidentally occurs, either turn the power switch to off and then to ON
mode, or initialize the system after checking that the tire pressure is properly
adjusted.

7606-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)
Low profile tires (except 225/50R17 tires)
Generally, low profile tires will wear more rapidly and tire grip performance
will be reduced on snowy and/or icy roads when compared to standard tires.
Be sure to use snow tires or tire chains on snowy and/or icy roads and drive
carefully at a speed appropriate for road and weather conditions. (P. 436)
If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
Situations in which the tire pressure warning system may not operate properly
(vehicles with the tire pressure warning system)
In the following cases, the tire pressure warning system may not operate
properly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equip-
ment) tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• Lock nuts are equipped.
• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the
wheels or wheel housings.
• If the tire inflation pressure is extremely higher than the specified level.
Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large
display, airport or other facility that generates strong radio waves or elec-
trical noise
• When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
Vehicles with the tire inflation pressure display function: If tire position
information is not correctly displayed due to the radio wave conditions, the
display may be corrected by driving and changing the radio wave condi-
tions.
When the vehicle is parked, the time taken for the warning to start or go off
could be extended.
When tire inflation pressure declines rapidly for example when a tire has
burst, the warning may not function.

769 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30D53E_(EE)
CAUTION
Caution regarding interference with electronic devices (vehicles with the
tire pressure warning system featuring a tire inflation pressure display func-
tion)
Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such med-
ical devices.
People with implantable cardiac pace-
makers, cardiac resynchronization ther-
apy-pacemakers or implantable
cardioverter defibrillators should not
come within 450 mm (17.7 in.) of the
tire pressure warning system initiators.
The radio waves may affect the opera-
tion of such devices
