961-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the power switch off, have all the passengers exit the vehicle
and ensure that all the doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of the
vehicle.
Setting the double locking system
Canceling the double locking system
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.

97
1 1-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)
For safety and security
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
A locked door is unlocked or opened in any way other than using
the entry function or wireless remote control. (The door will lock
again automatically.)
A trunk is opened in any way other than using the entry function,
wireless remote control or mechanical key.
The hood is opened.
The tilt sensor detects a change of vehicle inclination. (if
equipped)
Close the doors, trunk and hood,
and lock all the doors using the
entry function or wireless remote
control. The system will be set
automatically after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
: If equipped
The alarm
Setting the alarm system

1001-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)
The intrusion sensor detects intruders or movement in the vehi-
cle.
The tilt sensor detects changes in vehicle inclination, such as
when the vehicle is towed away. (if equipped)
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically
when the alarm is set. (P. 97)
Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to stop the intrusion sensor and tilt sensor before set-
ting the alarm, as they will respond to movement inside the vehi-
cle.
Turn the power switch off.
Press the intrusion sensor
and tilt sensor cancel
switch.
A message will be shown on the
multi-information display in the
instrument cluster.
Press the switch again to re-
enable the intrusion sensor and
tilt sensor.
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
Intrusion sensor and tilt sensor
1
2

1011-3. Theft deterrent system
1
GS450h_300h_OM_OM30D53E_(EE)
For safety and security
Canceling and automatic re-enabling of the intrusion sensor and tilt sensor
The alarm will still be set even when the intrusion sensor and tilt sensor are
canceled.
After the intrusion sensor and tilt sensor are canceled, pressing the power
switch or unlocking the doors using the entry function, wireless remote con-
trol or mechanical key will re-enable the intrusion sensor and tilt sensor.
The intrusion sensor and tilt sensor will automatically be re-enabled when
the alarm system is deactivated.
Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
Places with extreme vibrations or noises, or situations in which the vehicle
is subject to repeated impacts or vibrations:
• When parked in a parking garage
• When the vehicle is transported by a ferry, trailer, train, etc.
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
A window or the moon roof is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
• The movement of people outside the
vehicle
Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

1021-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)
Tilt sensor detection considerations (if equipped)
The sensor may trigger the alarm in the following situations:
The vehicle is transported by a ferry, trailer, train, etc.
The vehicle is parked in a parking garage.
The vehicle is inside a car wash that moves the vehicle.
Any of the tires loses air pressure.
The vehicle is jacked up.
An earthquake occurs or the road caves in.
NOTICE
To ensure the intrusion sensor function correctly
Installing accessories other than genuine Lexus parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the detec-
tion performance.
To ensure that the sensors operate prop-
erly, do not touch or cover them.
Do not spray air fresheners or other
products directly into the sensor holes.

1072. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)“READY” indicator
(P. 246)EV indicator (P. 8 2 )
Cruise control “SET”
indicator (P. 298)Cruise control indicator
(P. 298)
(if
equipped)
LKA (Lane-Keeping
Assist) indicator
(P. 337)
(if
equipped)
Radar cruise control
indicator (P. 302)
(if
equipped)
Lexus parking assist-
sensor indicator (P.
346)Parking brake indicator
(P. 266)
*1
(if
equipped)
“AFS OFF” indicator
(P. 274)
*1
Brake hold standby indi-
cator (P. 269)
*1, 2Slip indicator
(P. 396)*1Brake hold operated
indicator (P. 269)
*1
VSC OFF indicator
(P. 397)
*4
(if
equipped)
BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators (P.
414)
*1, 3
(if
equipped)
“PCS” warning light
(P. 404)
*1
“PASSENGER AIR BAG” indica-
tor (P. 5 6 )

1122. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
The meters and display illuminate when
The power switch is in ON mode.
Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can
be adjusted individually. However, when the surroundings are bright (day-
time, etc.), turning on the tail lights will not change the instrument panel
brightness.
Limitation of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based
on the light sensor detecting how bright the surroundings are. However, if the
instrument panel brightness has been manually set to either the brightest or
darkest setting, the automatic adjustment will not be performed.
Hybrid System Indicator
Hybrid System Indicator is displayed when the driving mode is other than
the sport mode.
By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
Charge area indicates regeneration* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven
in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4

1142. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)

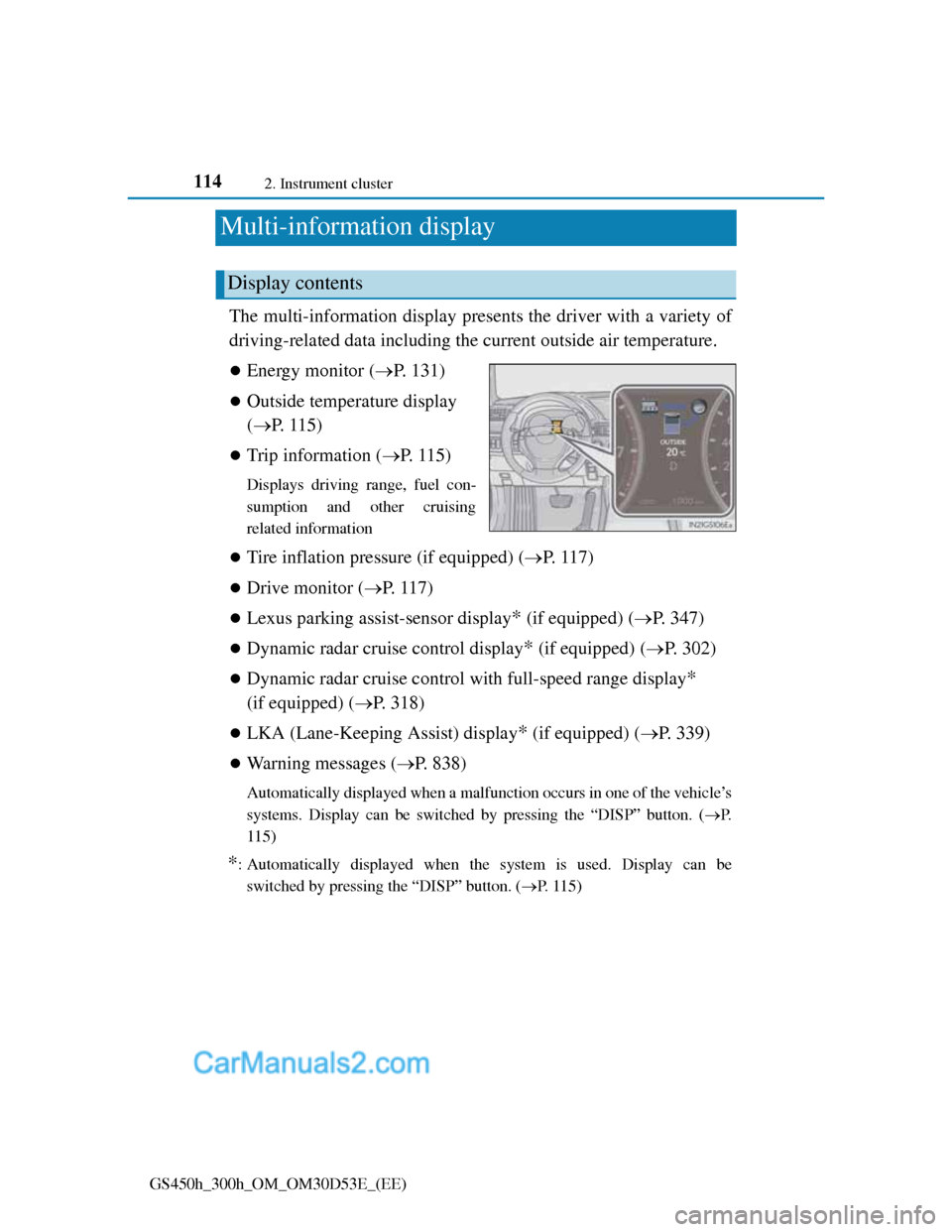

Multi-information display
The multi-information display presents the driver with a variety of
driving-related data including the current outside air temperature.
Energy monitor (P. 131)
Outside temperature display
(P. 115)
Trip information (P. 115)
Displays driving range, fuel con-
sumption and other cruising
related information

Tire inflation pressure (if equipped) (P. 117)
Drive monitor (P. 117)
Lexus parking assist-sensor display* (if equipped) (P. 347)
Dynamic radar cruise control display* (if equipped) (P. 302)
Dynamic radar cruise control with full-speed range display*
(if equipped) (P. 318)
LKA (Lane-Keeping Assist) display* (if equipped) (P. 339)
Warning messages (P. 838)
Automatically displayed when a malfunction occurs in one of the vehicle’s
systems. Display can be switched by pressing the “DISP” button. (P.
115)
*: Automatically displayed when the system is used. Display can be
switched by pressing the “DISP” button. (P. 115)
Display contents
