2013 Lexus ES300h set clock

5
1
8 7
6
5
4
3
2
ES350 300h_OM_OM33A01U_(U)
9
5-4. Using the audio systemAudio system (without a navigation system or
the Lexus Display
Audio system) .......................... 493
Using the radio ........................... 496
Using the CD player ................505
Playing MP3 and WMA discs .................................514
Operating an iPod..................... 522
Operating a USB memory .... 532
Bluetooth
® audio system .........541
Using the Bluetooth
®
audio system ............................. 545
Operating a Bluetooth
®
enabled portable player....... 550
Setting up a Bluetooth
®
enabled portable player....... 554
Bluetooth
® audio
system setup ...............................561
Optimal use of the audio system ............................. 562
Using the AUX port ................. 564
Using the steering wheel audio switches.......................... 565
Hands-free system (for cellular phone) ................568
Using the hands-free system (for cellular phones) ...............573
Making a phone call .................. 581
Setting a cellular phone ..........585
Security and system setup...... 590
Using the phone book ............. 595 5-5. Using the interior lights
Interior lights list ......................... 603• Interior light............................ 604
• Personal lights ....................... 604
5-6. Using the storage features List of storage features ............ 606• Glove box ...............................608
• Console box .......................... 609
• Cup holders .............................610
• Auxiliary box............................. 611
Trunk features ................................ 612
5-7. Other interior features Sun visors and vanity mirrors ..................... 614
Clock ................................................615
Power outlets ................................. 616
Heated steering wheel ..............618
Seat heaters/ seat ventilators ......................... 620
Armrest...........................................622
Rear sunshade/ rear door sunshades.............. 623
Trunk storage extension ...........626
Coat hooks .................................... 627
Assist grips ................................... 628
Garage door opener ............... 629
Compass ....................................... 636
Safety Connect.............................641

333
ES350 300h_OM_OM33A01U_(U)
5Interior features
5-4. Using the audio systemAudio system (without a navigation system or
the Lexus Display
Audio system) ........................... 493
Using the radio ............................ 496
Using the CD player ................ 505
Playing MP3 and WMA discs................................. 514
Operating an iPod ..................... 522
Operating a USB memory.....532
Bluetooth
® audio system ........ 541
Using the Bluetooth
®
audio system..............................545
Operating a Bluetooth
®
enabled portable player ...... 550
Setting up a Bluetooth
®
enabled portable player .......554
Bluetooth
® audio
system setup ............................... 561
Optimal use of the audio system.............................. 562
Using the AUX port..................564
Using the steering wheel audio switches ..........................565
Hands-free system (for cellular phone) ................ 568
Using the hands-free system (for cellular phones) ............... 573
Making a phone call ...................581
Setting a cellular phone .......... 585
Security and system setup ..... 590
Using the phone book..............595 5-5. Using the interior lights
Interior lights list ......................... 603• Interior light ............................604
• Personal lights .......................604
5-6. Using the storage features List of storage features ............606• Glove box .............................. 608
• Console box...........................609
• Cup holders ............................ 610
• Auxiliary box ............................. 611
Trunk features ................................612
5-7. Other interior features Sun visors and vanity mirrors .....................614
Clock.................................................615
Power outlets .................................616
Heated steering wheel ............. 618
Seat heaters/ seat ventilators ......................... 620
Armrest .......................................... 622
Rear sunshade/ rear door sunshades .............. 623
Trunk storage extension .......... 626
Coat hooks ....................................627
Assist grips.................................... 628
Garage door opener................ 629
Compass ....................................... 636
Safety Connect .............................641

ES350 300h_OM_OM33A01U_(U)
5635-4. Using the audio system
5
Interior features
■Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Turning clockwise turns on the ASL, and turning coun-
terclockwise turns off the ASL.
ASL automatically adjusts the volume and tone quality according to the noise
level as you drive your vehicle.
Mode
displayedSound quality modeLevelTurn counter-clockwiseTu r n c l o c k w i s e
“BAS”Bass*-5 to 5
LowHigh“MID”Mid-range*-5 to 5
“TRE”Tr e b l e*-5 to 5
“FAD”
Front/rear vol- ume
balance
F7 to R7Shifts to rearShifts to front
“BAL”
Left/right volume
balance
L7 to R7Shifts to leftShifts to right
Turning the Automatic Sound Levelizer (ASL) on/off

592
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system
Select “Phonebook Lock (Phbk Lock)” or “Phonebook Unlock (Phbk
Unlock)” using a voice command or .
Input the PIN by either of the following methods and select “Confirm”
using a voice command or :
a. Press the talk switch and say the registered PIN.
b. Input a new PIN using .
Select “Guidance Vol” using .
Change the voice guidance volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
Locking or unlocking the phone book
Setting voice guidance volume
1
2
1
2

728
ES350 300h_OM_OM33A01U_(U)
6-3. Do-it-yourself maintenance
■Fog lightsRemove the bolt and partly
remove the under cover, and
unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert. Turn
it clockwise to set.
1
2
3

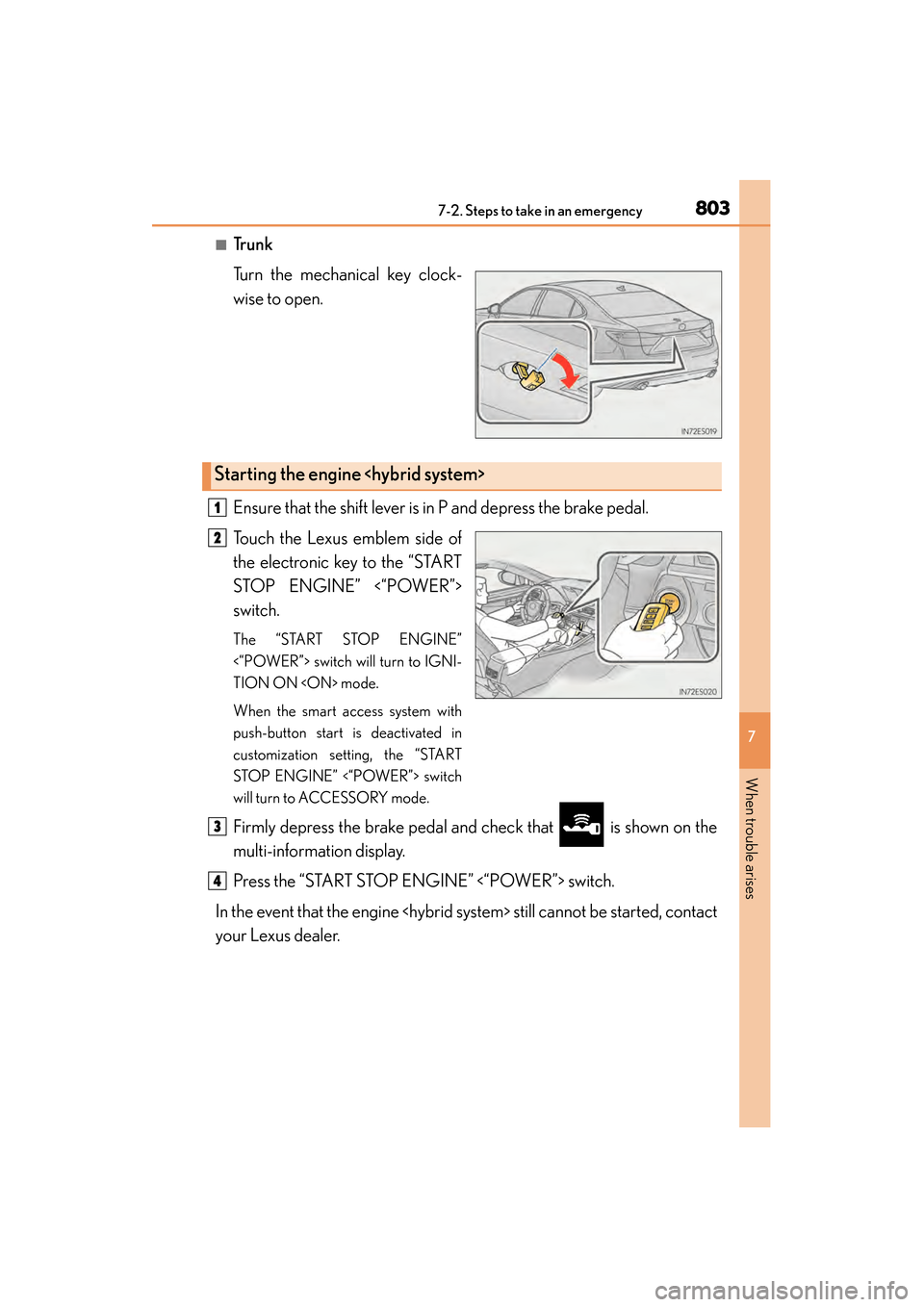

8037-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
■Tr u n k
Turn the mechanical key clock-
wise to open.
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of
the electronic key to the “START
STOP ENGINE” <“POWER”>
switch.
The “START STOP ENGINE”
<“POWER”> switch will turn to IGNI-
TION ON mode.
When the smart access system with
push-button start is deactivated in
customization setting, the “START
STOP ENGINE” <“POWER”> switch
will turn to ACCESSORY mode.
Firmly depress the brake pedal and check that is shown on the
multi-information display.
Press the “START STOP ENGINE” <“POWER”> switch.
In the event that the engine still cannot be started, contact
your Lexus dealer.
Starting the engine
1
2
3
4
