3445-1. Lexus Display Audio system
ES350 300h_OM_OM33A01U_(U)
This screen is used for various vehicle settings.Display the “Setup” screen. ( →P. 3 4 1 )
Select “Vehicle” on the “Setup” screen.
Vehicle customization settings
(→ P. 3 4 4 )
LEXUS park assist settings
∗
(→ P. 2 7 9 )
■Vehicle customization settings
Various setting can be changed.
Select “Vehicle Customization” on the “Vehicle Settings” screen.
Refer to the list of settings that
can be changed for details.
(→ P. 853)
When you complete settings, select “Save”.
Ve h i c l e s e t t i n g s
1
2
∗: If equipped
1
2
1
2

ES350 300h_OM_OM33A01U_(U)
3455-1. Lexus Display Audio system
5
Interior features
This screen is used for various audio settings.Display the “Setup” screen. ( →P. 3 4 1 )
Select “Audio” on the “Setup” screen.
HD Radio™ technology set-
tings ( →P. 385)
iPod setting ( →P. 345)
When you complete settings, select “Save”.
■iPod setting
This screen is used for iPod setting. Select “iPod Settings” on the “Audio Settings” screen. ( →P. 345)
Select “Display Cover Art”.
“On” or “Off” can be selected to
display/iPod cover art in the
screen.
Audio settings
1
2
1
2
3
1
2

3465-1. Lexus Display Audio system
ES350 300h_OM_OM33A01U_(U)
This screen is used for guidance for Bluetooth® hands-free systems set-
ting.
Display the “Setup” screen. ( →P. 3 4 1 )
Select “Voice” on the “Setup” screen.
Voice guidance volume setting
Voice recognition prompts on/
off
Restore default settings
When you complete settings, select “OK”.
Vo i c e s e t t i n g s
1
2
1
2
3
3

347
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
5
Interior features
Automatic air conditioning system (with the Lexus
Display Audio system)
XVehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
XVehicles without a navigation system or the Lexus Display Audio sys-
tem
→P. 359
Air outlets and fan speed are automat ically adjusted according to the
temperature setting.
To display the air conditioning operation screen, press the “MENU”
button on the Lexus Display Audio co ntroller and then select “Cli-
mate”.

348
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
Control panel
Air conditioning operation
screen
Outside temperature display
Automatic mode button
“OFF” button
Fan speed control button
Air outlet selector button
Windshield defogger button
DUAL mode buttonPassenger’s side temperature
control buttons
Passenger’s side temperature
display
Outside/recirculated air mode
button
Driver’s side temperature dis-
play
Driver’s side temperature con-
trol buttons1
2
3
4
5
6
7
8
9
10
11
12
13

359
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
5
Interior features
Automatic air conditioning system (without a navi-
gation system or the Lexus Display Audio system)
XVehicles with a navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner’s Manual”.
XVehicles with the Lexus Display Audio system
→ P. 3 4 7
Air outlets and fan speed are automat ically adjusted according to the
temperature setting.

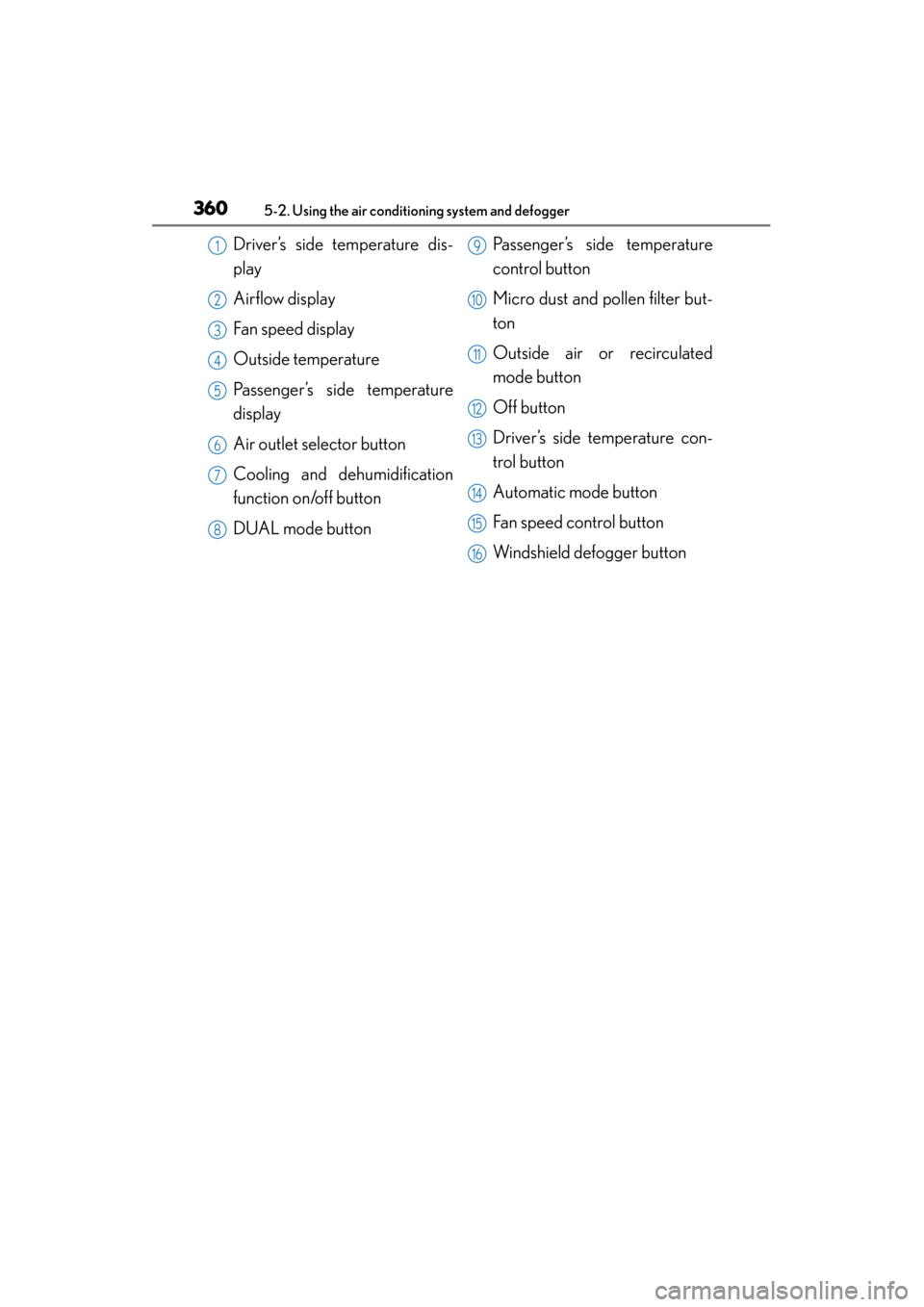

360
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
Driver’s side temperature dis-
play
Airflow display
Fan speed display
Outside temperature
Passenger’s side temperature
display
Air outlet selector button
Cooling and dehumidification
function on/off button
DUAL mode button Passenger’s side temperature
control button
Micro dust and pollen filter but-
ton
Outside air or recirculated
mode button
Off button
Driver’s side temperature con-
trol button
Automatic mode button
Fan speed control button
Windshield defogger button1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

372
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
Rear window and outside rear view mirror
defoggers
XVehicles with a navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner’s Manual”.
XVehicles with the Lexus Display Audio system
On/off
The defoggers will automatically turn
off after 15 to 60 minutes. The opera-
tion time changes according to the
ambient temperature and vehicle
speed.
XVehicles without a navigation system or the Lexus Display Audio sys-
tem
On/off
The defoggers will automatically turn
off after 15 to 60 minutes. The opera-
tion time changes according to the
ambient temperature and vehicle
speed.
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from th e outside rear view mirrors.
