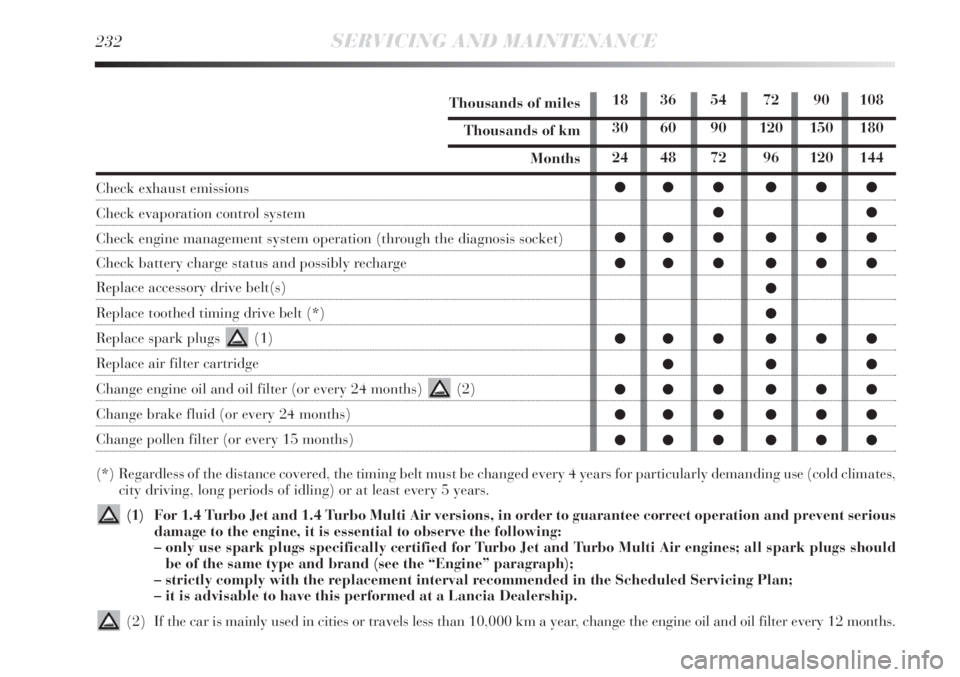

232SERVICING AND MAINTENANCE
Thousands of miles
Thousands of km
Months
Check exhaust emissions
Check evaporation control system
Check engine management system operation (through the diagnosis socket)
Check battery charge status and possibly recharge
Replace accessory drive belt(s)
Replace toothed timing drive belt (*)
Replace spark plugs (1)
Replace air filter cartridge
Change engine oil and oil filter (or every 24 months) (2)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt must be changed every 4 years for particularly demanding use (cold climates,
city driving, long periods of idling) or at least every 5 years.
(1) For 1.4 Turbo Jet and 1.4 Turbo Multi Air versions, in order to guarantee correct operation and prevent serious
damage to the engine, it is essential to observe the following:
– only use spark plugs specifically certified for Turbo Jet and Turbo Multi Air engines; all spark plugs should
be of the same type and brand (see the “Engine” paragraph);
– strictly comply with the replacement interval recommended in the Scheduled Servicing Plan;
– it is advisable to have this performed at a Lancia Dealership.
(2) If the car is mainly used in cities or travels less than 10,000 km a year, change the engine oil and oil filter every 12 months.
18 36 54 72 90 108
30 60 90 120 150 180
24 48 72 96 120 144
●●● ●●●
●●
●●● ●●●
●●● ●●●
●
●
●●● ●●●
●●●
●●● ●●●
●●● ●●●
●●● ●●●
290LIST OF CONTENTS
Roof rack/ski rack ..............102
Rubber tubes ......................250
Safety .................................155
Safe lock (device) ................ 45
SBR system .........................157
Seat belts ............................156
Seats ................................... 50
– cleaning ..........................256
– front with electric
lumbar adjustment ......... 51
– front with manual
adjustment ..................... 50
– with electric heating ....... 51
Servicing and care ...............229
– heavy-duty use
of the car ........................235– regular checks ................235
– scheduled servicing .........230
– Scheduled Servicing
Plan ...............................231
Side lights ........................... 67
Snow chains ........................187
Spark plugs .........................261
SPORT function ..................105
Start&Stop (system) ...........121
Starting the engine ..... 178-190
Starting up and driving .......177
Steering ..............................265
Steering wheel ..................... 54
Steering wheel lock ............. 49
Sun visors ........................... 79
Sunroof ............................... 84 Reactive Suspension
System ..............................107
Rear fog lamps .................... 77
Rear fog light ...................... 77
– bulb replacement ............213
Rear window washer ........... 69
Rear window wiper
– blades .............................251
– control ............................ 68
– nozzles ...........................252
Refuelling ...........................152
Remote control (key) .......... 43
Reversing light
(bulb replacement) ............213
Rim Protector (tyres) ..........268
Roof lights .......................... 73
