2013 JEEP GRAND CHEROKEE navigation system

▫Adaptive Cruise Control (ACC) Menu .......238
▫ Display Warnings And Maintenance ........240
▫ Precautions While Driving With ACC .......243
▫ General Information ...................247
▫ Normal (Fixed Speed) Cruise Control Mode . . .248
▫ Forward Collision Warning — If Equipped. . . .250
 PARKSENSE REAR PARK ASSIST — IF
EQUIPPED .......................... .254
▫ ParkSense Sensors....................255
▫ ParkSense Warning Display .............256
▫ ParkSense Display....................257
▫ Enabling And Disabling ParkSense ........260
▫ Service The ParkSense Rear Park Assist
System ............................ .261▫
Cleaning The ParkSense System..........261
▫ ParkSense System Usage Precautions .......262
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED .......................... .264
▫ Turning ParkView On Or Off — With
Navigation/Multimedia Radio ............266
▫ Turning ParkView On Or Off — Without
Navigation/Multimedia Radio ............266
 OVERHEAD CONSOLE ..................267
▫ Front Map/Reading Lights ..............267
▫ Courtesy Lights ...................... .268
▫ Sunglasses

Bin Door ...................269
 GARAGE DOOR OPENER — IF EQUIPPED . . .269
▫ Before You Begin Programming HomeLink . . .271
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121

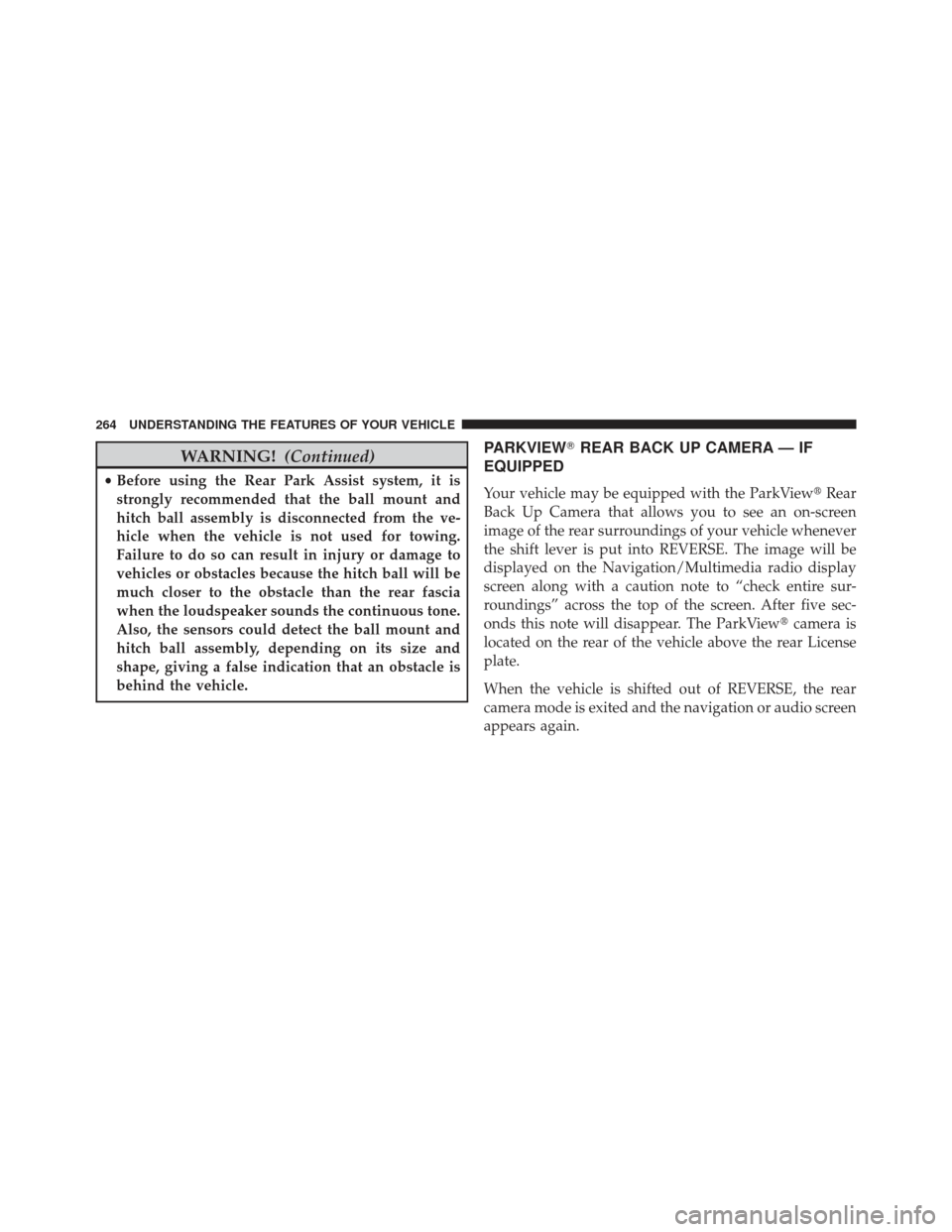

WARNING!(Continued)
•Before using the Rear Park Assist system, it is
strongly recommended that the ball mount and
hitch ball assembly is disconnected from the ve-
hicle when the vehicle is not used for towing.
Failure to do so can result in injury or damage to
vehicles or obstacles because the hitch ball will be
much closer to the obstacle than the rear fascia
when the loudspeaker sounds the continuous tone.
Also, the sensors could detect the ball mount and
hitch ball assembly, depending on its size and
shape, giving a false indication that an obstacle is
behind the vehicle.
PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED
Your vehicle may be equipped with the ParkView Rear
Back Up Camera that allows you to see an on-screen
image of the rear surroundings of your vehicle whenever
the shift lever is put into REVERSE. The image will be
displayed on the Navigation/Multimedia radio display
screen along with a caution note to “check entire sur-
roundings” across the top of the screen. After five sec-
onds this note will disappear. The ParkView camera is
located on the rear of the vehicle above the rear License
plate.
When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the navigation or audio screen
appears again.
264 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

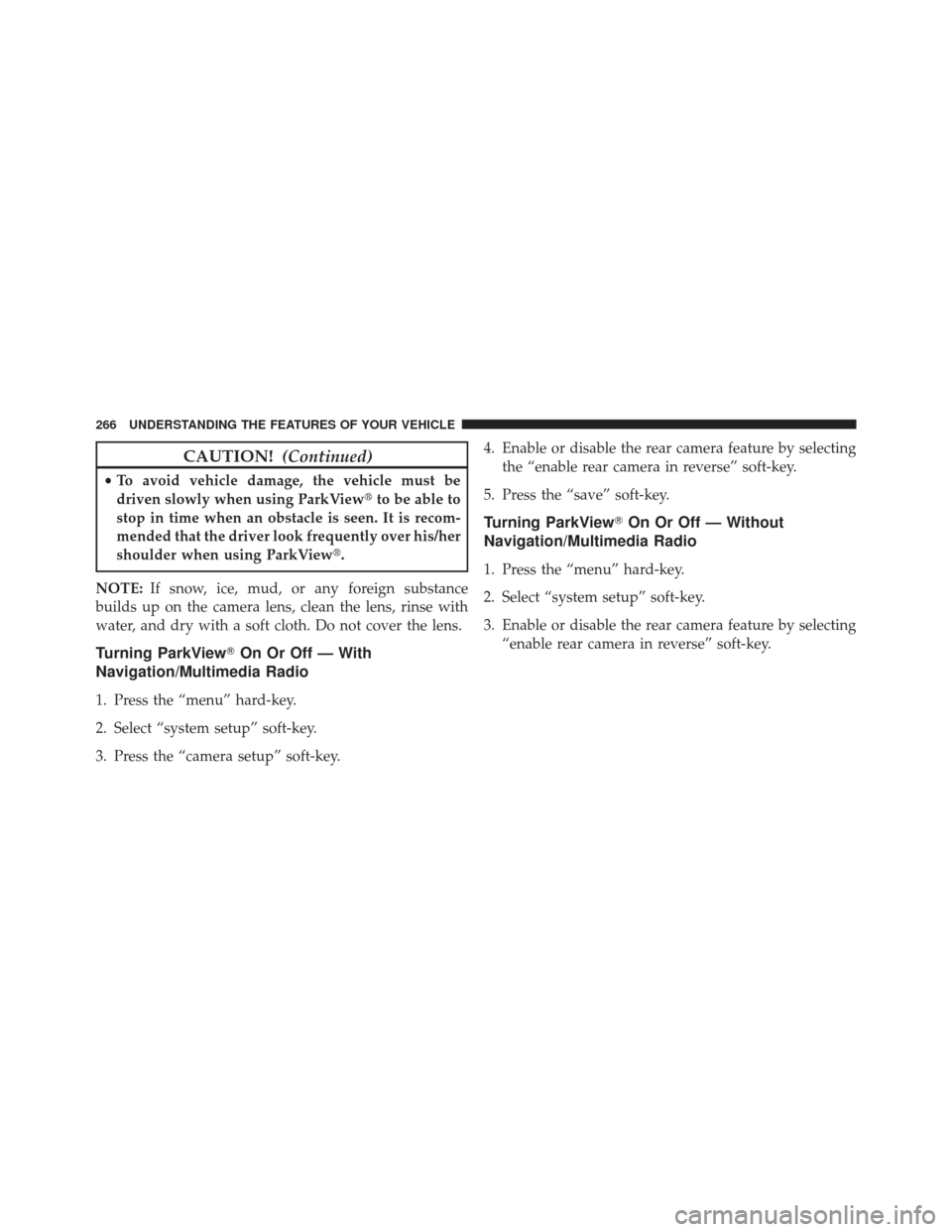

CAUTION!(Continued)
•To avoid vehicle damage, the vehicle must be
driven slowly when using ParkView to be able to
stop in time when an obstacle is seen. It is recom-
mended that the driver look frequently over his/her
shoulder when using ParkView.
NOTE: If snow, ice, mud, or any foreign substance
builds up on the camera lens, clean the lens, rinse with
water, and dry with a soft cloth. Do not cover the lens.
Turning ParkView On Or Off — With
Navigation/Multimedia Radio
1. Press the “menu” hard-key.
2. Select “system setup” soft-key.
3. Press the “camera setup” soft-key. 4. Enable or disable the rear camera feature by selecting
the “enable rear camera in reverse” soft-key.
5. Press the “save” soft-key.
Turning ParkView On Or Off — Without
Navigation/Multimedia Radio
1. Press the “menu” hard-key.
2. Select “system setup” soft-key.
3. Enable or disable the rear camera feature by selecting “enable rear camera in reverse” soft-key.
266 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Elapsed Time
Shows the total elapsed time of travel since the last reset
when the ignition switch is in the ACC position. Elapsed
time will increment when the ignition switch is in the ON
or START position.
To Reset The Display
Press and release the UP or DOWN button until “Vehicle
Info” displays in the EVIC and press the SELECT button.
Press the UP and DOWN button to scroll through the
available information displays, then press SELECT to
display any one of the following choices.
Units
Press and release the UP or DOWN button until “Units”
displays highlighted in the EVIC and press the SELECT
button. The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
units of measure. To make your selection, scroll up ordown until the preferred setting is highlighted, then
press and release the SELECT button until a check-mark
appears next to the setting, showing that the setting has
been selected.
Performance Features
WARNING!
Measurement of vehicle statistics with the performance
pages is intended for off-highway or off-road use only
and should not be done on any public roadways. It is
recommended that these features be used in a con-
trolled environment and within the limits of the law.
The capabilities of the vehicle as measured by the
performance pages must never be exploited in a reck-
less or dangerous manner which can jeopardize the
users safety or the safety of others. Only a safe, atten-
tive, and skillful driver can prevent accidents.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 345

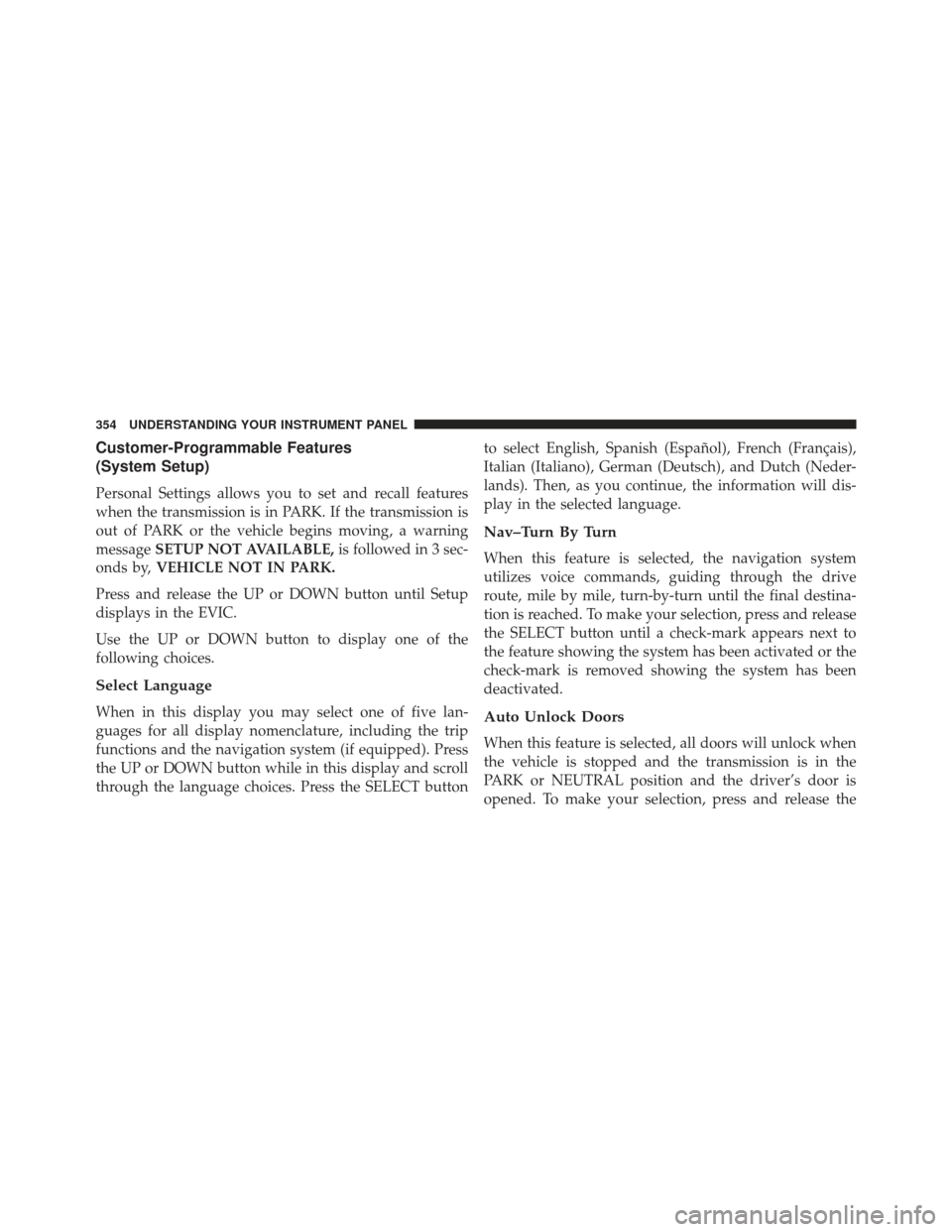

Customer-Programmable Features
(System Setup)
Personal Settings allows you to set and recall features
when the transmission is in PARK. If the transmission is
out of PARK or the vehicle begins moving, a warning
messageSETUP NOT AVAILABLE, is followed in 3 sec-
onds by, VEHICLE NOT IN PARK.
Press and release the UP or DOWN button until Setup
displays in the EVIC.
Use the UP or DOWN button to display one of the
following choices.
Select Language
When in this display you may select one of five lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the UP or DOWN button while in this display and scroll
through the language choices. Press the SELECT button to select English, Spanish (Español), French (Français),
Italian (Italiano), German (Deutsch), and Dutch (Neder-
lands). Then, as you continue, the information will dis-
play in the selected language.
Nav–Turn By Turn
When this feature is selected, the navigation system
utilizes voice commands, guiding through the drive
route, mile by mile, turn-by-turn until the final destina-
tion is reached. To make your selection, press and release
the SELECT button until a check-mark appears next to
the feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated.
Auto Unlock Doors
When this feature is selected, all doors will unlock when
the vehicle is stopped and the transmission is in the
PARK or NEUTRAL position and the driver’s door is
opened. To make your selection, press and release the
354 UNDERSTANDING YOUR INSTRUMENT PANEL
