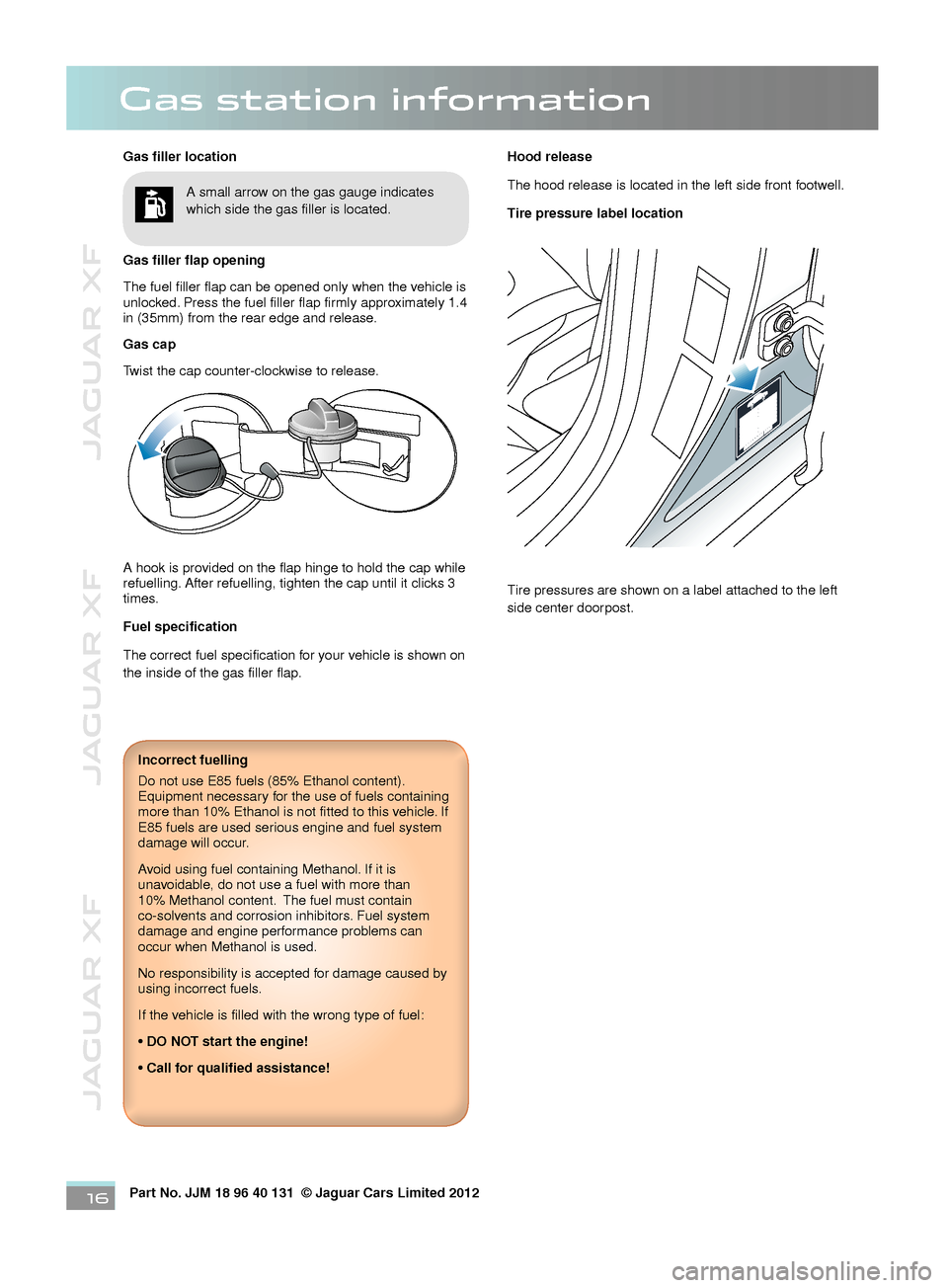

Gas station information
Gas filler location
Gas filler flap opening
The fuel filler flap can be opened only when the vehicle is
unlocked. Press the fuel filler flap firmly approximately 1.4
in (35mm) from the rear edge and release.
Gas cap
Twist the cap counter-clockwise to release.
A hook is provided on the flap hinge to hold the cap while
refuelling. After refuelling, tighten the cap until it clicks 3
times.
Fuel specification
The correct fuel specification for your vehicle is shown on
the inside of the gas filler flap.
A small arrow on the gas gauge indicates
which side the gas filler is located.
Incorrect fuelling
Do not use E85 fuels (85% Ethanol content).
Equipment necessary for the use of fuels containing
more than 10% Ethanol is not fitted to this vehicle. If
E85 fuels are used serious engine and fuel system
damage will occur.
Avoid using fuel containing Methanol. If it is
unavoidable, do not use a fuel with more than
10% Methanol content. The fuel must contain
co-solvents and corrosion inhibitors. Fuel system
damage and engine performance problems can
occur when Methanol is used.
No responsibility is accepted for damage caused by
using incorrect fuels.
If the vehicle is filled with the wrong type of fuel:
• DO NOT start the engine!
• Call for qualified assistance!Hood release
The hood release is located in the left side front footwell.
Tire pressure label location
Tire pressures are shown on a label attached to the left
side center doorpost.
