2013 INFINITI QX odometer

INFINITI CUSTOMER CARE PROGRAM
INFINITI CARES ...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your
INFINITI retailer are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service
needs.
However, if there is something that your
INFINITI retailer cannot assist you with or
you would like to provide INFINITI directly
with comments or questions, please con-
tact our (INFINITI’s) Consumer Affairs De-
partment using our toll-free number:For U.S. customers1-800-662-6200
For Canadian customers 1-800-361-4792
The Consumer Affairs Department will ask
for the following information:
. Your name, address, and telephone
number
. Vehicle identification number (on dash
panel)
. Date of purchase
. Current odometer reading
. Your INFINITI retailer’s name
. Your comments or questions
OR You can write to INFINITI with the informa-
tion on the left at:
For U.S. customersINFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers
INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada.
com If you prefer, visit us at:
www.InfinitiUSA.com (for U.S. customers)
or
www.Infiniti.ca (for Canadian customers)
We appreciate your interest in INFINITI and
thank you for buying a quality INFINITI
vehicle.

**: Refer to the separate Navigation
System Owner’s Manual.
SIC4450
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-11)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8)
5. Voltmeter (P.2-10) 6. Dot matrix liquid crystal display/
Odometer/twin trip odometer
(P.2-22)
7. Engine oil pressure gauge (P.2-9)
8. Fuel gauge (P.2-9)
Illustrated table of contents0-11
METERS AND GAUGES

2 Instruments and controls
Cockpit ................................................................ 2-3
Instrument panel ................................................. 2-5
Meters and gauges .............................................. 2-6Speedometer and odometer ............................ 2-7
Tachometer...................................................... 2-8
Engine coolant temperature gauge .................. 2-8
Fuel gauge ...................................................... 2-9
Engine oil pressure gauge ............................... 2-9
Voltmeter ...................................................... 2-10
Meter/ring illumination and needle sweep .... 2-10
Warning/indicator lights and
audible reminders ............................................. 2-11 Checking bulbs.............................................. 2-12
Warning lights ............................................... 2-12
Indicator lights .............................................. 2-18
Audible reminders ......................................... 2-21
Dot matrix liquid crystal display ........................ 2-22 Operational indicators ................................... 2-24
Maintenance indicators ................................. 2-27
Trip computer ................................................ 2-28
Security systems ............................................... 2-31 Vehicle Security System ................................ 2-31
INFINITI Vehicle Immobilizer System .............. 2-32 Windshield wiper and washer switch................. 2-34
Washer operation ........................................ 2-35
Rain-sensing auto wiper system................... 2-35
Rear window wiper and washer switch .............. 2-36
Rear window and outside mirror
defroster switch ................................................ 2-37 Rear window and outside mirror defroster ... 2-37
Headlight and turn signal switch ....................... 2-38 Xenon headlights......................................... 2-38
Headlight switch .......................................... 2-38
Headlight washer (if so equipped) ............... 2-42
Instrument brightness control ...................... 2-43
Turn signal switch........................................ 2-43
Fog light switch ........................................... 2-44
Heated steering wheel ...................................... 2-44
Horn ................................................................. 2-45
Heated seats (if so equipped) ........................... 2-45 Front............................................................ 2-46
Rear............................................................. 2-46
Climate controlled seats (if so equipped) .......... 2-47
Warning systems switch (if so equipped) .......... 2-48
SNOW mode switch........................................... 2-49
Tow mode switch .............................................. 2-49>

2-6Instruments and controls
SIC4450
1. Tachometer*
2. Warning/Indicator lights
3. Speedometer*
4. Engine coolant temperature gauge*
5. Voltmeter*
6. Dot matrix liquid crystal display/Odometer/twin trip odometer
7. Engine oil pressure gauge*
8. Fuel gauge* *: The needle indicators may move slightly
after the ignition switch is pushed to the
OFF position. This is not a malfunction.
CAUTION
.
For cleaning, use a soft cloth, dampened
with water. Never use a rough cloth,
alcohol, benzine, thinner or any kind of
solvent or paper towel with a chemical
cleaning agent. They will scratch or
cause discoloration to the lens.
. Do not spray any liquid such as water on
the meter lens. Spraying liquid may
cause the system to malfunction.
METERS AND GAUGES

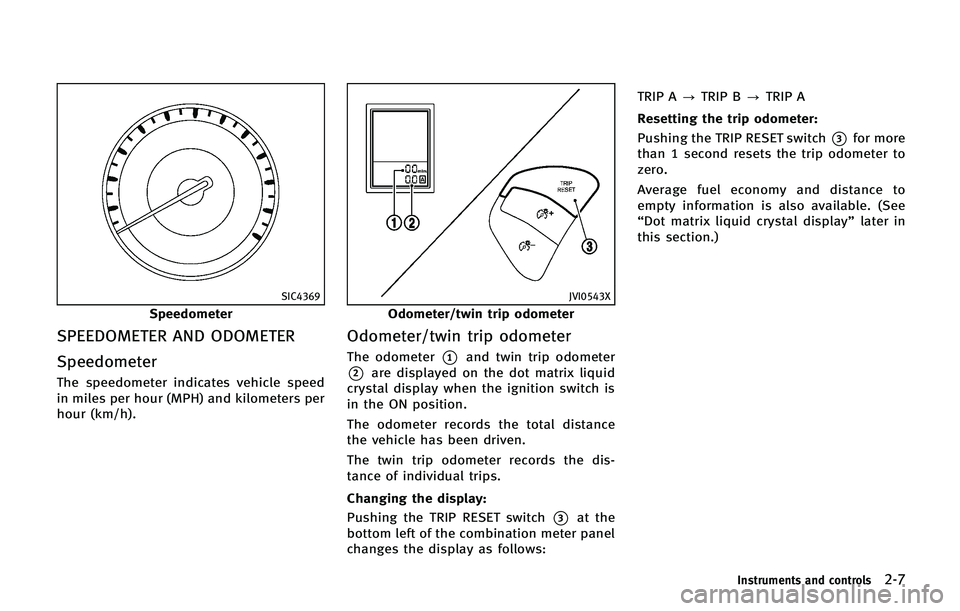

SIC4369
Speedometer
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed
in miles per hour (MPH) and kilometers per
hour (km/h).
JVI0543X
Odometer/twin trip odometer
Odometer/twin trip odometer
The odometer*1and twin trip odometer
*2are displayed on the dot matrix liquid
crystal display when the ignition switch is
in the ON position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips.
Changing the display:
Pushing the TRIP RESET switch
*3at the
bottom left of the combination meter panel
changes the display as follows: TRIP A
?TRIP B ?TRIP A
Resetting the trip odometer:
Pushing the TRIP RESET switch
*3for more
than 1 second resets the trip odometer to
zero.
Average fuel economy and distance to
empty information is also available. (See
“Dot matrix liquid crystal display” later in
this section.)
Instruments and controls2-7

2-22Instruments and controls
Parking brake reminder chime
The chime will sound if the vehicle is driven
at more than 4 MPH (7 km/h) with the
parking brake applied. Stop the vehicle
and release the parking brake.
Brake pad wear warning
The disc brake pads have audible wear
warnings. When a brake pad requires
replacement, it will make a high pitched
scraping sound when the vehicle is in
motion. This scraping sound will first occur
only when the brake pedal is depressed.
After more wear of the brake pad, the
sound will always be heard even if the
brake pedal is not depressed. Have the
brakes checked as soon as possible if the
warning sound is heard.
SIC4379
The dot matrix liquid crystal display
appears in the vehicle information display
*1located between the speedometer and
odometer, and shows the indicators for the
driving systems, Intelligent Key operation
and various warnings and information.
For detailed information about each sys-
tem, see the following sections:
. Automatic Transmission (AT)
—“ Warning/indicator lights and audi-
ble reminders” earlier in this sec-
tion.
—“ Driving the vehicle” in the“5.
Starting and driving” section..
Four-Wheel Drive (4WD) system
—“ INFINITI all-mode 4WD
®”in the “5.
Starting and driving” section.
. Back-up Collision Intervention (BCI)
system
—“ Blind Spot Warning/Blind Spot
Intervention
TM/Back-up Collision In-
tervention systems” in the“5. Start-
ing and driving” section.
. Cruise control system
—“ Cruise control” in the“5. Starting
and driving” section.
. Intelligent Cruise Control (ICC) system
—“ Intelligent Cruise Control (ICC) sys-
tem” in the “5. Starting and driving”
section.
. Distance Control Assist (DCA) system
—“ Distance Control Assist (DCA) sys-
tem” in the “5. Starting and driving”
section.
. Intelligent Key system
—“ Intelligent Key system” in the“3.
Pre-driving checks and adjust-
ments” section.
—“ Push-button ignition switch” in the
“5. Starting and driving” section.
DOT MATRIX LIQUID CRYSTAL DISPLAY

Current fuel consumption?Average fuel
consumption and speed ?Elapsed time
and trip odometer ?Distance to empty
(dte) ?Outside air temperature (ICY) ?
Setting ?Warning check
1. Current and average fuel con-
sumption
The current and average fuel consumption
mode shows the current and average fuel
consumption.
2. Average fuel consumption (MPG
or l (liter)/100 km) and speed (MPH
or km/h)
Fuel consumption:
The average fuel consumption mode shows
the average fuel consumption since the
last reset. Resetting is done by pushing the
switch*Bfor longer than 1 second.
(The average speed is also reset at the
same time.)
The display is updated every 30 seconds.
At about the first 1/3 mile (500 m) after a
reset, the display shows “——”.
Speed:
The average speed mode shows the
average vehicle speed since the last reset. Resetting is done by pushing the
switch*Bfor longer than 1 second. (The
average fuel consumption is also reset at
the same time.)
The display is updated every 30 seconds.
The first 30 seconds after a reset, the
display shows “——”.
3. Elapsed time and trip odometer
(MILES or km)
Elapsed time:
The elapsed time mode shows the time
since the last reset. The displayed time can
be reset by pushing the
switch*Bfor
longer than 1 second. (The trip odometer is
also reset at the same time.)
Trip odometer:
The trip odometer mode shows the total
distance the vehicle has been driven since
the last reset. Resetting is done by pushing
the
switch*Bfor longer than 1
second. (The elapsed time is also reset at
the same time.)
4. Distance to empty (dte —MILES
or km)
The distance to empty (dte) mode provides
you with an estimation of the distance that can be driven before refueling. The dte is
constantly being calculated, based on the
amount of fuel in the fuel tank and the
actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning
is displayed on the screen.
When the fuel level drops even lower, the
dte display will change to
“——”.
. If the amount of fuel added is small, the
display just before the ignition switch
is pushed to the OFF position may
continue to be displayed.
. When driving uphill or rounding curves,
the fuel in the tank shifts, which may
momentarily change the display.
5. Outside air temperature (ICY —8F
or 8C)
The outside air temperature is displayed in
8For 8C in the range of −22 to 1318F(−30
to 558C).
The outside air temperature mode includes
a low temperature warning feature. If the
outside air temperature is below 378 F
(38C), the warning is displayed on the
screen.
Instruments and controls2-29

Remote engine start operation indicator ...... 2-24
Starting the engine ...................................... 5-14
Entry/exit function, Automatic drive positioner ... 3-33
Event Data Recorders (EDR) ............................... 9-33
Exhaust gas (carbon monoxide) .......................... 5-3
Extended storage fuse warning ......................... 2-25
Extended storage switch ................................... 8-25
F
F.M.V.S.S./C.M.V.S.S. certification label ............. 9-12
Filter Air cleaner housing filter .............................. 8-19
Changing engine oil and filter ...................... 8-10
Flashers (See hazard warning flasher switch) ...... 6-2
Flat tire ............................................................... 6-3
Flat towing ........................................................ 9-29
Flexible seating ................................................. 1-18
Floor mat cleaning .............................................. 7-5
Fluid Automatic transmission fluid (ATF) ............... 8-12
Brake fluid ......................................... 8-13, 8-14
Capacities and
recommended fuel/lubricants ........................ 9-2
Engine coolant ............................................... 8-8
Engine oil .................................................... 8-10
Power steering fluid ..................................... 8-13
Window washer fluid ................................... 8-15
FM-AM-SAT radio with Compact Disc
(CD) player ........................................................ 4-60
Fog light switch ................................................ 2-44
Forward Collision Warning (FCW) system ........... 5-90 Front auxiliary input jacks ................................. 4-78
Front passenger air bag and status light ........... 1-63
Front power seat adjustment ............................... 1-4
Front seat
Front seat adjustment .......................... 1-4, 1-18
Front-seat active head restraint ......................... 1-16
Fuel
Capacities and
recommended fuel/lubricants ........................ 9-2
Fuel economy............................................. 5-100
Fuel economy information (display) ................ 4-9
Fuel information ............................................. 9-4
Fuel octane rating .......................................... 9-4
Fuel-filler cap ............................................... 3-25
Fuel-filler door ............................................. 3-25
Gauge ............................................................ 2-9
LOOSE FUEL CAP warning ............................. 3-27
Fuel efficient driving tips ................................... 5-98
Fuses ................................................................ 8-23
Fusible links ..................................................... 8-24
G
Garage door opener HomeLink®Universal Transceiver ................. 2-68
Gas cap ............................................................ 3-25
Gauge ................................................................. 2-6 Engine coolant temperature gauge ................. 2-8
Engine oil pressure gauge .............................. 2-9
Fuel gauge ..................................................... 2-9
Odometer....................................................... 2-7
Speedometer ................................................. 2-7 Tachometer .................................................... 2-8
Trip computer .............................................. 2-28
General maintenance .......................................... 8-2
Glove box ......................................................... 2-57
H
Hands-Free Phone System, Bluetooth®............. 4-98
Hazard warning flasher switch ............................ 6-2
Head restraints ................................................. 1-10
Headlight washer .............................................. 2-42
Headlights Aiming control ............................................. 2-41
Aiming control (See adaptive front lighting
system (AFS)) ............................................... 2-41
Bulb replacement ......................................... 8-29
Headlight switch .......................................... 2-38
Xenon headlights ......................................... 2-38
Heated seats .................................................... 2-45
Heated steering wheel ...................................... 2-44
Heater Automatic climate control .................. 4-39, 4-41
Engine block heater ................................... 5-118
Hill start assist system ................................... 5-107
HomeLink
®Universal Transceiver ...................... 2-68
Hood release .................................................... 3-20
Hook Coat hooks .................................................. 2-59
Luggage hook .............................................. 2-59
Horn ................................................................. 2-45
10-3
