2013 INFINITI G SEDAN keyless

Black plate (9,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-8717B1C7-6F7F-40EB-8277-9FF3CC88B2F6
SSI0643
SEDANGUID-79DD3727-9840-4EBC-90BA-C1063732CCE61. Hood (P.3-17)
2. Headlight and turn signal—Operation (P.2-34)
— Bulb replacement (P.8-28)
3. Windshield wiper and washer —
Operation (P.2-31)
— Maintenance (P.8-22)
4. Moonroof (if so equipped) (P.2-54)
5. Power windows (P.2-51)
6. Recovery hook (P.6-15)
7. Fog light (P.2-39) 8. Tires
—Wheel and tires (P.8-33, P.9-9)
— Flat tire (P.6-3)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
9. Outside mirrors (P.3-29)
10. Doors —Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
Illustrated table of contents0-3
EXTERIOR FRONT
Condition:

Black plate (10,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
0-4Illustrated table of contents
SSI0806
COUPEGUID-AC0B3EEA-9252-4992-8E97-317D9777AC161. Hood (P.3-17)
2. Headlight and turn signal—Operation (P.2-34)
— Bulb replacement (P.8-28)
3. Windshield wiper and washer —
Operation (P.2-31)
— Maintenance (P.8-22)
4. Moonroof (if so equipped) (P.2-54)
5. Power windows (P.2-51)
6. Recovery hook (P.6-15)
7. Fog light (P.2-39) 8. Tires
—Wheel and tires (P.8-33, P.9-9)
— Flat tire (P.6-3)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
9. Outside mirrors (P.3-29)
10. Doors —Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
Condition:

Black plate (11,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-F8364FC5-18EF-423D-AF68-9A1FF66F1421
JVC0207X
SEDANGUID-45DE1062-D8E4-4EF5-87B4-9A80F09536041. High-mounted stop light (Bulb repla-cement) (P.8-28)
2. Rear window defroster (P.2-34)
3. Rear combination light (Bulb replace- ment) (P.8-28) 4. Satellite antenna (P.4-43)
5. Fuel-filler door
—Operation (P.3-22)
— Fuel recommendation (P.9-4)
6. Rear view camera (if so equipped) (P.4-23) 7. Sonar system (if so equipped) (P.5-51)
8. Trunk
—Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
— Trunk lid (P.3-18)
9. Child safety rear door locks (P.3-6)
Illustrated table of contents0-5
EXTERIOR REAR
Condition:

Black plate (12,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
0-6Illustrated table of contents
SSI0685
COUPEGUID-D7686CCA-4082-4CD6-B2BB-FF3FE9F1882F1. High-mounted stop light (model witha rear spoiler) (Bulb replacement)
(P.8-28) 2. High-mounted stop light (model with-
out a rear spoiler) (Bulb replacement)
(P.8-28)
3. Rear window defroster (P.2-34)
4. Satellite antenna (P.4-43)
5. Rear view camera (if so equipped) (P.4-23) 6. Trunk
—Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
— Trunk lid (P.3-18)
7. Sonar system (if so equipped) (P.5-51)
8. Rear combination light (Bulb replace- ment) (P.8-28)
9. Fuel-filler door —Operation (P.3-22)
— Fuel recommendation (P.9-4)
Condition:

Black plate (143,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]

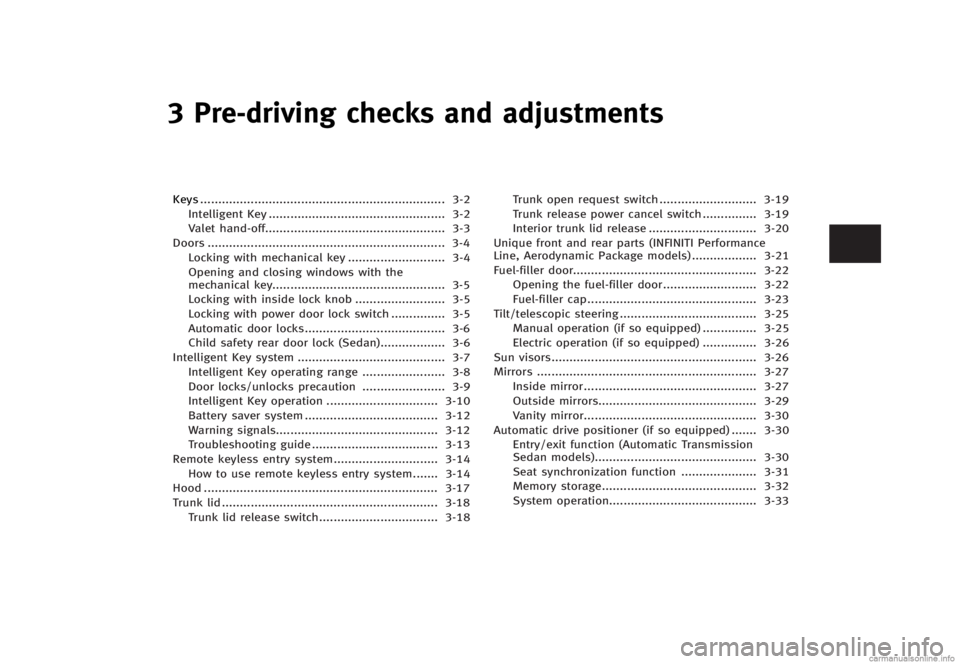

3 Pre-driving checks and adjustments
Keys...
.................................................................... 3-2
Intelligent Key ...
................................................. 3-2
Valet hand-off ...
.................................................. 3-3
Doors ...
.................................................................. 3-4
Locking with mechanical key ...
........................... 3-4
Opening and closing windows with the
mechanical key ...
................................................ 3-5
Locking with inside lock knob ...
......................... 3-5
Locking with power door lock switch ...
............... 3-5
Automatic door locks ...
....................................... 3-6
Child safety rear door lock (Sedan) ...
.................. 3-6
Intelligent Key system ...
......................................... 3-7
Intelligent Key operating range ...
....................... 3-8
Door locks/unlocks precaution ...
....................... 3-9
Intelligent Key operation ...
............................... 3-10
Battery saver system ...
..................................... 3-12
Warning signals ...
............................................. 3-12
Troubleshooting guide ...
................................... 3-13
Remote keyless entry system ...
............................. 3-14
How to use remote keyless entry system ...
....... 3-14
Hood ...
................................................................. 3-17
Trunk lid ...
............................................................ 3-18
Trunk lid release switch ...
................................. 3-18 Trunk open request switch
...
........................... 3-19
Trunk release power cancel switch ...
............... 3-19
Interior trunk lid release ...
.............................. 3-20
Unique front and rear parts (INFINITI Performance
Line, Aerodynamic Package models) ...
.................. 3-21
Fuel-filler door ...
................................................... 3-22
Opening the fuel-filler door ...
.......................... 3-22
Fuel-filler cap ...
............................................... 3-23
Tilt/telescopic steering ...
...................................... 3-25
Manual operation (if so equipped) ...
............... 3-25
Electric operation (if so equipped) ...
............... 3-26
Sun visors ...
......................................................... 3-26
Mirrors ...
............................................................. 3-27
Inside mirror ...
................................................ 3-27
Outside mirrors ...
............................................ 3-29
Vanity mirror ...
................................................ 3-30
Automatic drive positioner (if so equipped) ...
....... 3-30
Entry/exit function (Automatic Transmission
Sedan models) ...
............................................. 3-30
Seat synchronization function ...
..................... 3-31
Memory storage ...
........................................... 3-32
System operation ...
......................................... 3-33
Condition:

Black plate (147,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
.You can switch the lock system to the
mode that allows you to open all the
doors when the key is turned once.
(See “How to use SETTING button” (P.4-
14).)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
GUID-BDF25113-B0DB-4A09-B3CD-8E91F3E90385The driver’s door key operation also allows
you to open and close the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-51)).
To open the window, turn the driver’s door
key cylinder to the rear of the vehicle for
longer than 1 second. The door is unlocked
and the window keeps opening while
turning the key.
This function can also be performed by
pushing and holding the door UNLOCK
button of the Intelligent Key. (See “Remote
keyless entry system” (P.3-14).)
To close the window, turn the driver’s door
key cylinder to the front of the vehicle for
longer than 1 second. The door is locked
and the window keeps closing while turn-
ing the key.
SPA1814
LOCKING WITH INSIDE LOCK KNOBGUID-A9282195-68F1-4CF5-AF88-B68E8AEC2AB5To lock the door individually, move the
inside lock knob to the lock position
*1
then close the door.
To unlock, move the inside lock knob to the
unlock position
*2.
When locking the door without an Intelli-
gent Key, be sure not to leave the
Intelligent Key inside the vehicle.
SPA2300
LOCKING WITH POWER DOOR LOCK
SWITCH
GUID-F5E2CE5C-C694-4102-AE6F-02ECD9FA4615Operating the power door lock switch will
lock or unlock all the doors. The switches
are located on the driver’s and front
passenger’s door armrests.
To lock the doors, push the power door
lock switch to the lock position
*1with the
driver’s or front passenger’s door open,
then close the door.
When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.
To unlock the doors including the fuel-filler
Pre-driving checks and adjustments3-5
Condition:

Black plate (156,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-14Pre-driving checks and adjustments
GUID-CD166E42-9584-4DAB-A5B7-A738C3B4BCBB
WARNING
The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA
advises that the radio waves may affect
aircraft navigation and communication sys-
tems. Do not operate the Intelligent Key
while on an airplane. Make sure the buttons
are not operated unintentionally when the
unit is stored during a flight.
It is possible to lock/unlock all doors, fuel-
filler door, activate the panic alarm and
open the windows by pushing the buttons
on the Intelligent Key from outside the
vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelli-
gent Key can operate at a distance of
approximately 33 ft (10 m) from the
vehicle. (The effective distance depends
upon the conditions around the vehicle.)
As many as 4 Intelligent Keys can be used
with one vehicle. For information concern-
ing the purchase and use of additional
Intelligent Keys, contact an INFINITI retai-
ler.The lock and unlock buttons on the
Intelligent Key will not operate when:
.
the distance between the Intelligent Key
and the vehicle is over 33 ft (10 m).
. the Intelligent Key battery is dis-
charged.
After locking with the remote keyless entry
function, pull the door handle to make sure
the doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons,
approach the vehicle to about 3 ft (1 m)
from the door.SPA2100
1. LOCK button
2. UNLOCK button
3. TRUNK button
4. PANIC button
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
GUID-62E72898-3584-4B12-9DFF-C68F94BD6708When you lock or unlock the doors or the
trunk lid, the hazard indicator will flash
and the horn (or the outside chime) will
sound as a confirmation. For details, see
“Setting hazard indicator and horn mode”
(P.3-16).
REMOTE KEYLESS ENTRY SYSTEM
Condition:

Black plate (158,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-16Pre-driving checks and adjustments
.Any of the buttons on the IntelligentKey are pushed. (Note: Panic button
should be pushed for more than 1
second.)
Setting hazard indicator and horn
mode
GUID-9A144FFD-F5E1-4E09-8D59-8443995F117DThis vehicle is set in hazard indicator and
horn mode when you first receive the
vehicle.
In hazard indicator and horn mode, when
the LOCK
button*1is pushed, the
hazard indicator flashes twice and the horn
chirps once. When the UNLOCK
button
*2is pushed, the hazard indicator flashes
once.
If horns are not necessary, the system can
be switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCK
button is pushed, neither the hazard
indicator nor the horn operates. Hazard indicator and horn mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCK
DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or trunk request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - onceHAZARD - none
OUTSIDE CHIME -
4
times
Remote keyless entry system
(Using
,orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none HAZARD - none
HORN - none
Hazard indicator mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCK
DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or trunk request switch) HAZARD -
twice
OUTSIDE CHIME - none HAZARD - none
OUTSIDE CHIME - noneHAZARD - none
OUTSIDE CHIME - none
Remote keyless entry system
(Using
,orbutton) HAZARD -
twice
HORN - none HAZARD - none
HORN - noneHAZARD - none
HORN - none
Condition:
