SUPPLEMENTAL AIR BAG WARNING
LABELS
GUID-0B65E0E3-218A-4A06-925F-DDB783835748Warning labels about the supplemental
front-impact air bag systems are placed in
the vehicle as shown in the illustration.
SRS air bagGUID-E4E32938-35BA-448F-83FA-D791212BFB56The warning labels*1are located on the
surface of the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-FC2CCCAD-ABA5-4075-9F93-F2472626804EThe supplemental air bag warning light,
displaying in the instrument panel, moni-
tors the circuits for the air bag systems,
pretensioners and all related wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing: .
The supplemental air bag warning light
remains on approximately 7 seconds
after the ignition switch is pushed to
the ON position.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light
does not come on at all.
Under these conditions, the front air bag,
side air bag, curtain air bag or pretensioner
systems may not operate properly. They
must be checked and repaired. Take your
vehicle to the nearest INFINITI retailer.
WARNING
If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, curtain air bag and/or pretensioner
systems will not operate in an accident. To
help avoid injury to yourself or others, have
your vehicle checked by a retailer as soon as
possible.
Safety —Seats, seat belts and supplemental restraint system1-55
Condition:

Black plate (78,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
1-56Safety—Seats, seat belts and supplemental restraint system

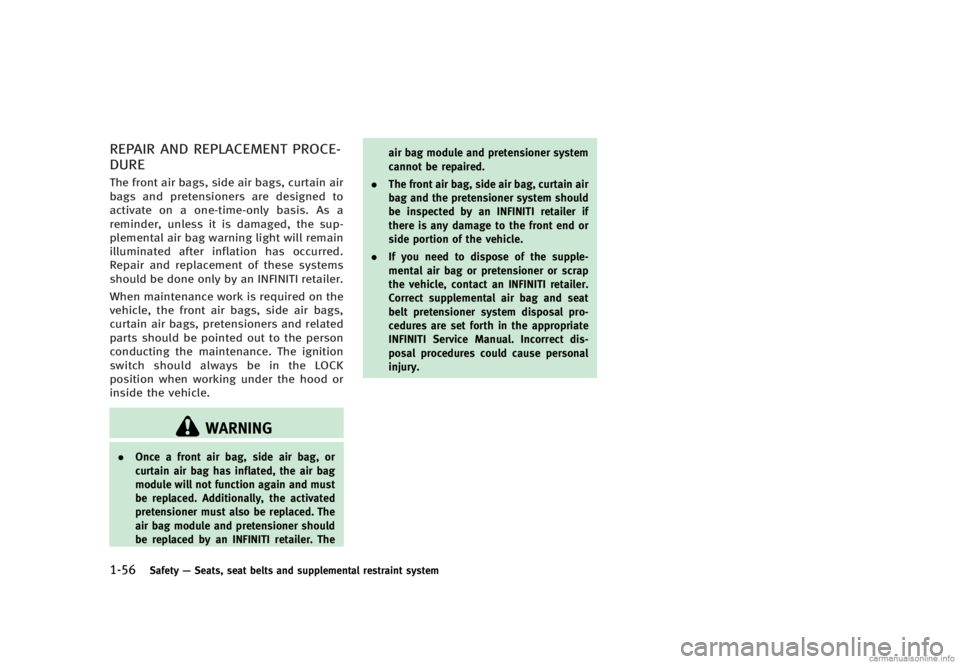

REPAIR AND REPLACEMENT PROCE-
DURE
GUID-14E865CD-CF42-4FB6-85F1-2404D96FDE4EThe front air bags, side air bags, curtain air
bags and pretensioners are designed to
activate on a one-time-only basis. As a
reminder, unless it is damaged, the sup-
plemental air bag warning light will remain
illuminated after inflation has occurred.
Repair and replacement of these systems
should be done only by an INFINITI retailer.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK
position when working under the hood or
inside the vehicle.
WARNING
. Once a front air bag, side air bag, or
curtain air bag has inflated, the air bag
module will not function again and must
be replaced. Additionally, the activated
pretensioner must also be replaced. The
air bag module and pretensioner should
be replaced by an INFINITI retailer. The air bag module and pretensioner system
cannot be repaired.
. The front air bag, side air bag, curtain air
bag and the pretensioner system should
be inspected by an INFINITI retailer if
there is any damage to the front end or
side portion of the vehicle.
. If you need to dispose of the supple-
mental air bag or pretensioner or scrap
the vehicle, contact an INFINITI retailer.
Correct supplemental air bag and seat
belt pretensioner system disposal pro-
cedures are set forth in the appropriate
INFINITI Service Manual. Incorrect dis-
posal procedures could cause personal
injury.
Condition:

Black plate (79,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2 Instruments and controls
Cockpit...
................................................................ 2-3
Instrument panel ...
................................................. 2-4
Meters and gauges ...
.............................................. 2-6
Speedometer and odometer ...
............................ 2-7
Tachometer ...
...................................................... 2-8
Engine coolant temperature gauge ...
.................. 2-8
Fuel gauge ...
...................................................... 2-9
Compass (if so equipped) ...
.................................... 2-9
Zone variation change procedure ...
................... 2-11
Warning/indicator lights and
audible reminders ...
............................................. 2-12
Checking bulbs ...
.............................................. 2-12
Warning lights ...
............................................... 2-12
Indicator lights ...
.............................................. 2-18
Audible reminders ...
......................................... 2-19
Dot matrix liquid crystal display ...
........................ 2-20
Indicators for operation ...
................................. 2-22
Indicators for maintenance ...
............................ 2-24
Trip computer ...
................................................ 2-26
Security systems ...
............................................... 2-28
Vehicle Security System ...
................................ 2-28
INFINITI Vehicle Immobilizer System ...
.............. 2-30
Windshield wiper and washer switch ...
................. 2-31
Rain-sensing auto wiper system (if
so equipped) ...
................................................. 2-33 Rear window and outside mirror
defroster switch
...
................................................ 2-34
Headlight and turn signal switch ...
....................... 2-34
Xenon headlights ...
......................................... 2-34
Headlight switch ...
.......................................... 2-35
Turn signal switch ...
........................................ 2-39
Fog light switch ...
........................................... 2-39
Horn ...
................................................................. 2-39
Heated seats (if so equipped) ...
........................... 2-40
SNOW mode switch (if so equipped) ...
................. 2-41
Vehicle Dynamic Control (VDC) OFF switch ...
......... 2-41
Clock ...
................................................................. 2-42
Adjusting the time ...
....................................... 2-42
Power outlet ...
..................................................... 2-42
Cigarette lighter and ashtrays (if so equipped) ...
.... 2-43
Front ...
............................................................ 2-43
Rear ...
............................................................. 2-44
Storage ...
............................................................. 2-44
Cup holders ...
................................................. 2-44
Sunglasses holder ...
...................................... 2-46
Glove box ...
.................................................... 2-47
Console box ...
................................................. 2-48
Card holder (if so equipped) ...
........................ 2-49
Storage box (if so equipped) ...
........................ 2-49
Coat hooks ...
.................................................. 2-50

Condition:
>

Black plate (82,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-4Instruments and controls
GUID-F966D69B-15F8-48D0-A86B-A60F682B16E9
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-41)
5. Clock (P.2-42)6. Center multi-function control panel
(P.4-3)
—Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9) —
Bluetooth
®Hands-Free Phone Sys-
tem (if so equipped) (P.4-85, P.4-96)
— Audio system (P.4-41)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.6-2)
9. Front passenger supplemental air bag (P.1-41)
10. Fuse box cover (P.8-24)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-21)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-31)
14. Cigarette lighter and ashtray (if so equipped) (P.2-43) or storage box (if
so equipped) (P.2-49)
—Power outlet (if so equipped)
(P.2-42)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-21)
16. Heated seat switch (if so equipped) (P.2-40)
17. SNOW mode switch (if so equipped) (P.2-41)
INSTRUMENT PANEL
Condition:

Black plate (84,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-6Instruments and controls
GUID-50C93020-C345-4E0C-9F52-C7AB04736560
SIC4288
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8)
5. Dot matrix liquid crystal display/ Odometer/twin trip odometer
(P.2-20)
6. Fuel gauge (P.2-9)
*: The needle indicators in the speed-
ometer, tachometer, engine coolant
temperature gauge and fuel gauge may move slightly after the ignition
switch is pushed to the LOCK posi-
tion. This is not a malfunction.
METERS AND GAUGES
Condition:

Black plate (87,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SIC4292
FUEL GAUGEGUID-A6CE9D87-1196-4EDB-BE07-B0479D286BC3The gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during
braking, turning, acceleration, or going up
or down hills.
The gauge needle returns to E (Empty) after
the ignition switch is pushed to the OFF
position.
Refill the fuel tank before the gauge
registers “E”(Empty).
The low fuel warning
appears on the
dot matrix liquid crystal display when the
fuel tank is getting low. Refuel as soon as it is convenient, preferably before the gauge
reaches
“E”. There will be a small reserve
of fuel in the tank when the fuel gauge
needle reaches “E”.
The
indicates that the fuel-filler door is
located on the passenger’s side of the
vehicle.
CAUTION
. If the vehicle runs out of fuel, the
malfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the
light
should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected by an INFINITI retailer.
. For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-18).
GUID-263D42A7-AD19-460F-8531-86F714066C53
SIC3181
When the ignition switch is pushed to the
ON position, the compass display
*Bwill
indicate the direction of the vehicle’s
heading.
NOS1741
If the display reads “C”, calibrate the
compass by driving the vehicle in 3
complete circles at less than 5 MPH (8
Instruments and controls2-9
COMPASS (if so equipped)
Condition:

Black plate (90,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-12Instruments and controls
GUID-4DFBC906-87A9-4F02-A005-17EFB9C1B112
All-Wheel Drive (AWD) warning light (AWD
models)*Intelligent Cruise Control (ICC) system
warning light (orange)*Exterior light indicator
Anti-lock Braking System (ABS) warning
lightIntelligent Key warning lightFront fog light indicator light
Low tire pressure warning lightFront passenger air bag status light
Automatic transmission check warning lightMaster warning lightHigh beam indicator light
Brake warning lightPreview Function warning light (orange)*Malfunction Indicator Light (MIL)
Seat belt warning lightSecurity indicator light
Charge warning lightSupplemental air bag warning lightTurn signal/hazard indicator lights
Engine oil pressure warning lightVehicle Dynamic Control (VDC) warning lightVehicle Dynamic Control (VDC) off indicator
light
4 Wheel Active Steer (4WAS) warning light*Automatic transmission position indicator
light**: if so equipped
CHECKING BULBSGUID-EA46E715-CDC1-4316-A1CC-964FA500463CWith all doors closed, apply the parking
brake and push the ignition switch to the
ON position without starting the engine.
The following lights will come on (if so
equipped):
,or,,,,,
The following lights come on briefly and
then go off (if so equipped):
,or,,,,,
If any light does not come on, it may
indicate a burned-out bulb or an open circuit in the electrical system. Have the
system checked by an INFINITI retailer.
Some indicators and warnings are also
displayed on the dot matrix crystal display
between the speedometer and tachometer.
(See
“Dot matrix liquid crystal display”
(P.2-20).)
WARNING LIGHTSGUID-7D034C77-E122-4514-8406-A8ED72A0DDF7
All-Wheel Drive (AWD) warning
light (AWD models) (if so equipped)
GUID-6272AC4F-020E-4475-8EA4-DEB8ABD3D971Thewarning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the AWD system malfunctions, or the
diameter of the front and the rear wheels
are different, the warning light will either
remain illuminated or blink. (See “All-
Wheel Drive (AWD)” (P.5-48).)
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Condition:

Black plate (91,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
CAUTION
.If the warning light comes on while
driving there may be a malfunction in
the AWD system. Reduce the vehicle
speed and have your vehicle checked by
an INFINITI retailer as soon as possible.
. If the AWD warning light blinks on when
you are driving:
—blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, and
idle the engine. The driving mode will
change to 2WD to prevent the AWD
system from malfunctioning. If the
warning light turns off, you can drive
again.
—blinks slowly (about once every 2seconds):
Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
. If the warning light is still on after the
above operations, have your vehicle
checked by an INFINITI retailer as soon as possible.
orAnti-lock Braking
System (ABS) warning light
GUID-999CB2F5-4FF3-4D41-ACF3-7E00ED4B6C0FWhen the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while
the engine is running, or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked by an
INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally, but without anti-
lock assistance. (See “Brake system”(P.5-
53).)
Automatic transmission check
warning light (if so equipped)
GUID-A564A816-81E3-40F1-8684-0ED502ABDB57When the ignition switch is pushed to the
ON position, the light comes on for 2
seconds. If the light comes on at any other
time, it may indicate the transmission is
not functioning properly. Have your INFINITI
retailer check and repair the transmission.
orBrake warning lightGUID-9EF95796-7290-4F31-AB06-6BE1BB80003DThis light functions for both the parking
brake and the foot brake systems.
Parking brake indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON
position, the light comes on when the
parking brake is applied.
Low brake fluid warning light:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON
position, the light warns of a low brake
fluid level. If the light comes on while the
engine is running with the parking brake
not applied, stop the vehicle and perform
the following:
1. Check the brake fluid level. If brake
fluid is necessary, add fluid and have
the system checked by your INFINITI
retailer. (See “Brake and clutch fluid”
(P.8-14).)
2. If the brake fluid level is correct, have the warning system checked by an
INFINITI retailer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the parking brake is released and
the brake fluid level is sufficient, if both
the brake warning light and the Anti-lock
Instruments and controls2-13
