2013 INFINITI FX display

Black plate (46,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
3. Map settings
3-2
MAP TYPES
Two types of map views are available: 2D
map and BirdviewTM(3D) map.
2D MAP
The 2D map displays the map in a 2-
dimensional environment similar to a road
map.
Screen information
JNC0199X
*1Vehicle icon:
Indicates the current vehicle location
and the direction of travel.
*2Guide point:
Indicates a guide point on the route.
*3Remaining time and distance to
the destination:
Indicates the approximate remaining
time and distance to the destination or
waypoint. This indicator will appear
when a destination or waypoint is set
and route guidance is started.
When the vehicle is not driven on the
suggested route, the screen displays
the direction to the destination and the
distance to the destination from the
current vehicle position.
“Switching estimated arrival time
display” (page 5-29)
*4Suggested route:
Appears in bold yellow during route
guidance.
*5/Direction indicator:
Indicates the directional setting of the
map. Touch the icon to change the
setting.
: North always pointing up.
Condition: Language=NAM_English/

Black plate (47,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
: Direction of the vehicle always
pointing up.
“Setting map orientation”
(page 3-14)
*6Scale indicator:
Indicates the scale of the map. Touch
the icon to display the scale bar.
The map scale can be adjusted using
the scale bar.
“Operating with touch panel op-
eration” (page 3-10)
*7Arrow:
Indicates the distance to the next
guide point and the turning direction
at that guide point.
*8Stored location (orange):
Displays the locations that are stored
in the Address Book. Icons can be
changed according to personal prefer-
ences.
“Storing location” (page 6-2)
*9Avoid Area (green or blue):
Displays the areas to avoid that are
stored in the Address Book with green
or blue icons. During the route search,
the route guidance is performed by
searching for a route that avoids those areas.
“Storing avoid area”
(page 6-7)
*10Street name:
Displays the name of the street the
vehicle is currently driving on.
*11Traffic indicator:
Displays the reception condition of the
traffic information transmitted from
the provider.
Green: Reception condition is good.
Gray: Reception condition is not good.
No mark: Subscription to NavTraffic
service is not detected.
BirdviewTM(3D) MAP
BirdviewTMdisplays the map from an
elevated perspective. In BirdviewTM, it is
easy to recognize an image of the route
because it provides a panoramic view over
a long distance.
IMA0073
INFO:
Note the following items about the BirdviewTM
display.
.“BirdviewTM” is a registered trademark of
Clarion Co., Ltd.
.The map in BirdviewTMalways appears with
the current forward direction facing up.
BUILDING GRAPHICS
In an area where the building graphics are
stored in the map data, the building
graphics are displayed when the map is
zoomed in. On the 2D map display, these
are called “Building footprint graphics”,
and on the Birdview
TMdisplay, these are
called “3D building graphics”.
The method to look at the map is the same
for the 2D and Birdview
TMmaps.
3. Map settings
3-3
Condition: Language=NAM_English/

Black plate (48,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
3. Map settings
3-4

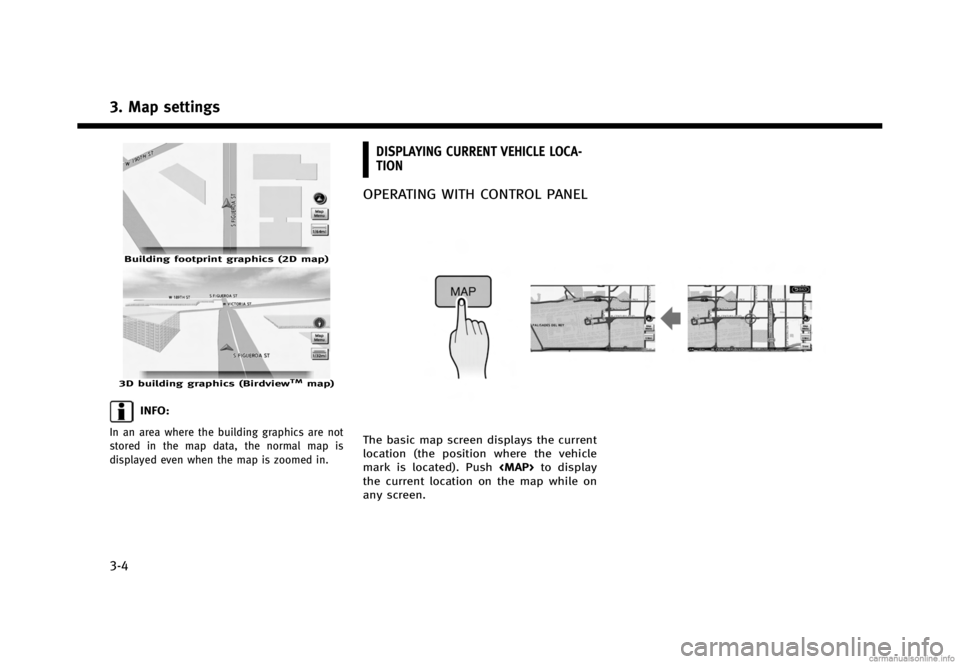

IMA0074Building footprint graphics (2D map)
IMA00753D building graphics (BirdviewTMmap)
INFO:
In an area where the building graphics are not
stored in the map data, the normal map is
displayed even when the map is zoomed in.
DISPLAYING CURRENT VEHICLE LOCA-
TION
OPERATING WITH CONTROL PANEL
IMA0076
The basic map screen displays the current
location (the position where the vehicle
mark is located). Push

Black plate (49,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
OPERATING WITH TOUCH PANEL
OPERATION
IMA0077After moving the map, touch [BACK] on the
map screen to display the current location
map screen.
MOVING MAP
IMA0171
The operations for moving across the map
are different between the 2D and Bird-
view
TMmaps.
2D MAP
Screen information:
*1Cross pointer
*2Distance from the current location to
the cross pointer
*3Street name
Operating with INFINITI controller
Push one of the directional buttons or the
slide switch. Press and hold a directional
button or the slide switch to move con-
tinuously across the map in a direction.
While moving across the map, the cross
pointer appears.
If the map scale is set to 1/8 mile (200 m)
or less, the street indicated by the cross
3. Map settings
3-5
Condition: Language=NAM_English/

Black plate (50,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
3. Map settings
3-6
pointer will blink in pink and the street
name will be displayed.
Operating with touch operation
IMA00791. Touch the screen.The cross pointer is displayed, and the
touched position is set as the center of
the screen.
IMA00802. Touch the direction to move to. The mapcontinues to scroll while the screen is
touched.
INFO:
While driving, one touch continuous scrolling is
disabled. Touch the screen again to scroll
further.
If the map screen is set to the building footprint
graphics, the map cannot be scrolled while
driving.
Fine-tuning the cursor position:
IMA00811. Touch [Slow].
The 8-directional key is displayed.
IMA00822. Touch the 8-directional key to adjustthe cross pointer position. Touch
[BACK] to complete the adjustment.
INFO:
Fine-tuning the cursor position is not possible
while driving.
Condition: Language=NAM_English/

Black plate (51,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
BirdviewTM(3D) MAP
IMA0172
Screen information:
*1Cross pointer
*2Street name
*3Distance from the vehicle position to
the cross pointer
Rotates the map clockwise.
Rotates the map counterclockwise.
Moves the cross pointer in the direction
of the arrow.
Operating with INFINITI controller
Push one of the directional buttons or the
slide switch. Press and hold a directional
button or the slide switch to move con-
tinuously across the map in a direction.
While moving on the map, the cross
pointer appears.
Operating with touch panel
IMA00841. Touch the screen.The cross pointer and 8-directional key
are displayed.
IMA00842. Touch the direction to move to. The mapcontinues to scroll while the screen is
touched.
3. Map settings
3-7
Condition: Language=NAM_English/

Black plate (53,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
Push or. A scale
appears on the right side of the screen.
To view the map in detail, push .
To view a wider area, push .
The scale will automatically disappear
when neither nor OUT> has been pushed for several sec-
onds.
If the scaling operation is not performed
for a specified period of time, the scale
display disappears.
INFO:
Free zoom:
The scale can be changed in smaller steps when
or is pushed and held
than when the button is pushed briefly. When
the button is pushed briefly, the scale can be
changed in large steps.
“Other navigation settings” (page 8-7)
OPERATING WITH CENTER DIAL
IMA0173
1. Turn the center dial when the map
screen is displayed. The map scale is
displayed at the right side of the
screen.
2. Use the center dial to adjust the map scale.
*1Clockwise: Zoom in
*2Counterclockwise: Zoom out
INFO:
Free zoom:
Depending on the setting, using the center dial
to change the map scale may adjust the scale
normally, or it may engage the free zoom (finer
scale adjustment in smaller steps).
“Other navigation settings” (page 8-7)
3. Map settings
3-9
Condition: Language=NAM_English/

Black plate (54,1)
[ Edit: 2012/ 11/ 8 Model: 08TJ-N ]
3. Map settings
3-10
OPERATING WITH TOUCH PANEL
OPERATION
IMA00891. Touch [].
The scale is displayed.
IMA00902. Touch [ZOOM IN] or [ZOOM OUT] to change the scale.
INFO:
Free zoom:
Once the [Small Step Zoom by Dial] is set to ON
in the setting screen, the scale can be changed
in smaller steps when [ZOOM IN] or [ZOOM OUT]
is pushed and held than when either button is
briefly pushed. If briefly pushed, the operation
returns to normal.
Voice command
1. Push >located on the steering
wheel.
2. After the tone sounds, speak a com- mand.
To change the map scale:
“Zoom In
<1 to 13>”(Alternate Com-
mand Mode)
“Zoom Out
<1 to 13>” (Alternate Com-
mand Mode)
MAP SCALE
Any required map scale (map coverage)
between 320 miles (640 km) and 1/64 of a
mile (25 m) can be selected.
Scale level for 2D map and Bird-
view
TMmap (3D) display
Normal Map US Units Metric Units
320 miles 640 km 80 miles 160 km
32 miles 64 km8 miles 16 km
5 miles 10 km
2 miles 4 km1 mile 2 km
1/2 mile 1 km
1/4 mile 500 m
1/8 mile 200 m
1/16 mile 100 m
1/32 mile 50 m
Shows build- ing footprint
graphics 1/32 mile 50 m
1/64 mile 25 m
Condition: Language=NAM_English/
