2013 HYUNDAI VELOSTER key

Maintenance
64 7
If the headlights or other electrical com-
ponents do not work and the fuses are
OK, check the fuse panel in the engine
compartment. If a fuse is blown, it must
be replaced.
Fuse switch
Always, put the fuse switch at the ON
position.
If you move the switch to the OFF posi-
tion, some items must be reset and
transmitter (or smart key) may not work
properly.
Engine compartment fuse
replacement
1. Turn the ignition switch and all other
switches off.
2. Remove the fuse panel cover by
pressing the tab and pulling up.
OFS070016OFS070019
CAUTION
Always place the fuse switch in the
ON position while driving the vehicle.

767
Maintenance
Instrument panel (Driver’s side fuse panel)
Description Fuse rating Protected component
C/LIGHTER 15A Cigarette Lighter
DRL 10A Not Used
INVERTER 1 10A Smart Key Control Module, A/C Inverter Module
MDPS 10A EPS Control Module
A/BAG IND 10A Instrument Cluster (Air Bag IND.)
POWER OUTLET 15A Power Outlet
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch
IG 2 10AEngine Room Fuse & Relay Box (Front Wiper Relay, Blower Relay), Crash Pad Switch,
Panaroma Sunroof Motor, A/C Control Module, IPS Control Module
WIPER FRT 25A Multifunction Switch, Front Wiper Motor, Engine Room Fuse & Relay Box (Front Wiper Relay)
CLUSTER 10A Instrument Cluster, Tire Pressure Monitoring Module, Sport Mode Switch, Shift Lever Indicator
AUDIO 2 10APower Outside Mirror Switch, AMP, A/V & Navigation Head Unit, MTS Module,
Smart Key Control Module, IPS Control Module
MULTIMEDIA 15A A/V & Navigation Head Unit, MTS Module
A/BAG 15A Passenger Occupant Detection Sensor, SRS Control Module, Telltale
IG 1 10ARear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor Center LH/RH, Rear Parking Assist
Buzzer, IPS Control Module, Driver/Passenger Seat Warmer, Driver/Passenger Seat Warmer Switch,
MTS Module
SMART KEY 1 15A Smart Key Control Module
MEMORY 10A Data Link Connector, Instrument Cluster, A/C Control Module
A/CON 10A ECM
ABS 10A ESC Module, ESC Off Switch, E/R Fuse & Relay Box (HAC Relay, Multipurpose Check Connector)
DR LOCK 20ADoor Lock Relay, Door Unlock Relay, Flasher Sound Relay, Tail Gate Latch Relay,
Two Turn Unlock Relay, IPS Control Module
FOLD'G MIRR/
FOG LP RR15A Not Used

Maintenance
68 7
Description Fuse rating Protected component
STOP LP 15A Stop Lamp Switch, Key Solenoid, Stop Signal Relay, Smart Key Control Module
ECU 1 10A Immobilizer Module, Smart Key Control Module, ECM, Stop Lamp Switch
AMP 25A AMP
INVERTER 2 25A A/C Inverter Module
INTERIOR LAMP 10A Luggage Room Lamp, Map Lamp, Room Lamp, Vanity Lamp LH/RH, Overhead Console Lamp
SMART KEY 2 10A Smart Key Control Module, Immobilizer Module, Start Stop Button Switch
VACUUM PUMP (T-GDI) 15AEngine Room Fuse & relay box (Vacuum Pump Relay)
TCU (GDI) 15A TCM
TAIL LP LH 10ARear Combination Lamp LH, License Lamp LH/RH, Shift Lever Indicator, Instrument Cluster,
Multifunction Switch, Passenger Power Window Switch, Power Window Main Switch, AUX & USB Jack,
Inside Miiror A/C Control Module, ESC Off Switch, A/V & Navigation Head Unit, Crash Pad Switch,
Driver/Passenger Seat Warmer Switch, Head Lamp LH
S/HEATER 20A Driver/Passenger Seat Warmer
P/WDW LH 25A Power Window Main Switch
START 10ABurglar Alarm Relay, Transaxle Range Switch, Smart Key Control Module, ECM, TCM,
Engine Room Fuse & Relay Box (Start Relay)
B/UP LP 1 15A Back-Up Lamp Switch, Transaxle Range Switch
TAIL LP RH 10A Head Lamp RH, Rear Combination Lamp RH
SAFETY POWER
WINDOW25A Driver Safety Power Window Module
P/WDW RH 25A Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH
B/UP LP 2 10AA/V & Navigation Head Unit, Transaxle Range Switch, MTS Module, TCM,
Back-Up Lamp Switch, Rear Combination Lamp LH/RH, IPS Control Module
ECU 2 15A Condenser, Ignition Coil #1/#2/#3/#4
HTD MIRR 10A ECM, A/C Control Module, Dirver/Passenger Power Outside Mirror
P/SEAT DRV 25A Not Used

771
Maintenance
Description Fuse rating Protected component
FUSESENSOR 1 20A ECM
SENSOR 2GDI 10AOil Control Valve #1 (Intake)/#2 (Exhaust), Purge Control Solenoid Valve,
Variable Intake Solenoid Valve, Canister Close Valve,
Engine Room Fuse & Relay Box (A/CON Relay)
T-GDI 10AOil Control Valve #1 (Intake)/#2 (Exhaust), Purge Control Solenoid Valve,
Variable Intake Solenoid Valve, Canister Close Valve,
Engine Room Fuse & Relay Box (A/CON Relay), Waste gate valve, Recirulation valve
SENSOR 3 15A ECM, Oxygen Sensor (Up)/(Down), Engine Room Fuse & Relay Box (HAC Relay)
ECU 2 15A ECM
EcoShift dual clutch
transmission 3 (GDI)15A TCM
F/PUMP 15A Engine Room Fuse & Relay Box (Fuel Pump Relay)
ABS 1 40A ESC Module
ECU 1 30A Engine Room Fuse & Relay Box (Engine Conrol Relay, Fuse - ECU 2, ECU 3)
EcoShift dual clutch
transmission 2 (GDI)40A TCM
B+ 3 50ASmart Junction Box (Tail Lamp Relay, IPS Control Module (ARISU RT),
Fuse - STOP LP, SMART KEY 1/2, INVERTER 2, DR LOCK )
ECU 3 10A Sport Mode Switch
VACUUM PUMP
(T-GDI)20A Engine Room Fuse & Relay Box (Vacuum Pump Relay)

CALIFORNIA PERCHLORATE NOTICE
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as
air bag inflators, seatbelt pretensioners
and keyless remote entry batteries, must
be disposed of according to Title 22
California Code of Regulations Section
67384.10 (a).
788
Maintenance

I5
Index
Engine temperature gauge ..........................................4-46
Tachometer ................................................................4-45
Fuel gauge ..................................................................4-47
Odometer ....................................................................4-47
Trip computer ............................................................4-48
Warning and indicators ..............................................4-50
Instrument panel illumination ......................................4-45
Instrument panel overview ..............................................2-3
Interior care ..................................................................7-84
Interior features ............................................................4-93
Ashtray ......................................................................4-97
Cigarette lighter ..........................................................4-96
Clothes hanger ............................................................4-98
Cup holder ..................................................................4-93
Digital clock ..............................................................4-97
Power outlet................................................................4-94
Sunvisor ......................................................................4-94
Floor mat anchor(s) ....................................................4-98
Interior light ..................................................................4-75
Interior overview ............................................................2-2
Jack and tools ................................................................6-12
Jump starting ..................................................................6-5Key positions ..................................................................5-5
Keys ................................................................................4-2
Label
Air bag warning label ................................................3-57
Tire specification and pressure label ............................8-9
Vehicle certification label ............................................8-8
Lap/shoulder belt ..........................................................3-15
Light bulbs ....................................................................7-72
Lighting ........................................................................4-67
Battery saver function ................................................4-67
Headlight escort function ..........................................4-67
Headlamp dealy ..........................................................4-67
Lubricants and capacities ................................................8-5
Maintenance
Explanation of scheduled maintenance items ............7-28
Maintenance services ..................................................7-3
Maintenance under severe usage conditions ..............7-27
Normal maintenance schedule ....................................7-7
Owner maintenance ......................................................7-4
Scheduled maintenance service....................................7-6
L
J
M
K

Index
6I
Tire maintenance ........................................................7-54
Maintenance schedule
Normal maintenance schedule ....................................7-7
Maintenance under severe usage conditions ..............7-27
Maintenance services ......................................................7-3
Manual climate control system ....................................4-79
Air conditioning ........................................................4-80
Climate control air filter ............................................4-87
Heating and air conditioning ......................................4-80
Manual heating and air conditioning ............................4-79
Manual transaxle ..........................................................5-13
Mirrors ..........................................................................4-41
Day/night rearview mirror ..........................................4-41
Inside rearview mirror ................................................4-41
Blue link ....................................................................4-41
Outside rearview mirror ............................................4-42
Moonroof, see sunroof ..................................................4-34
Multi fuse ......................................................................7-65
Neck restraints, see headrest..................................3-6, 3-11
Odometer ......................................................................4-47
Oil (Engine) ..................................................................7-31
Outside rearview mirror ................................................4-42Overheats ........................................................................6-6
Owner maintenance ........................................................7-4
Parking brake ................................................................5-25
Passenger's front air bag................................................3-44
Power brakes ................................................................5-25
Power outlet ..................................................................4-94
Power steering ..............................................................4-38
Power window lock button............................................4-28
Push starting ....................................................................6-5
Rear parking assist system ............................................4-62
Rear seat ........................................................................3-11
Recommended cold tire inflation pressures ..................7-49
Recommended lubricants and capacities ........................8-6
Recommended SAE viscosity number ........................8-7
Remote keyless entry ....................................................4-10
Road warning ..................................................................6-2
Rocking the vehicle ......................................................5-41
Scheduled maintenance service ......................................7-6
Normal maintenance schedule ....................................7-7
O
P
N
R
S

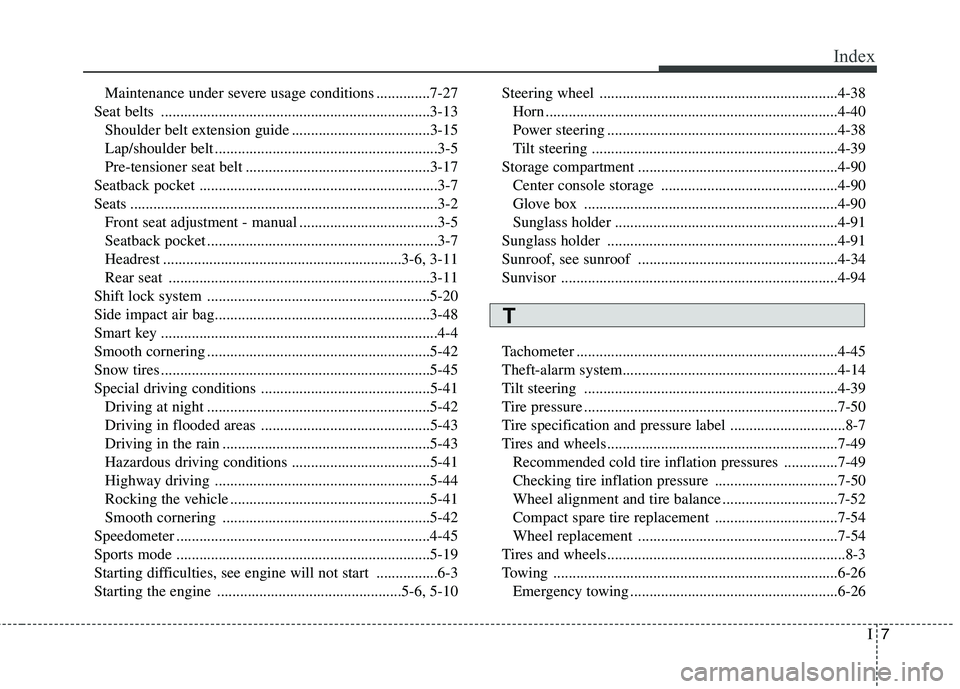

I7
Index
Maintenance under severe usage conditions ..............7-27
Seat belts ......................................................................3-13
Shoulder belt extension guide ....................................3-15
Lap/shoulder belt ..........................................................3-5
Pre-tensioner seat belt ................................................3-17
Seatback pocket ..............................................................3-7
Seats ................................................................................3-2
Front seat adjustment - manual ....................................3-5
Seatback pocket ............................................................3-7
Headrest ..............................................................3-6, 3-11
Rear seat ....................................................................3-11
Shift lock system ..........................................................5-20
Side impact air bag........................................................3-48
Smart key ........................................................................4-4
Smooth cornering ..........................................................5-42
Snow tires ......................................................................5-45
Special driving conditions ............................................5-41
Driving at night ..........................................................5-42
Driving in flooded areas ............................................5-43
Driving in the rain ......................................................5-43
Hazardous driving conditions ....................................5-41
Highway driving ........................................................5-44
Rocking the vehicle ....................................................5-41
Smooth cornering ......................................................5-42
Speedometer ..................................................................4-45
Sports mode ..................................................................5-19
Starting difficulties, see engine will not start ................6-3
Starting the engine ................................................5-6, 5-10Steering wheel ..............................................................4-38
Horn ............................................................................4-40
Power steering ............................................................4-38
Tilt steering ................................................................4-39
Storage compartment ....................................................4-90
Center console storage ..............................................4-90
Glove box ..................................................................4-90
Sunglass holder ..........................................................4-91
Sunglass holder ............................................................4-91
Sunroof, see sunroof ....................................................4-34
Sunvisor ........................................................................4-94
Tachometer ....................................................................4-45
Theft-alarm system........................................................4-14
Tilt steering ..................................................................4-39
Tire pressure ..................................................................7-50
Tire specification and pressure label ..............................8-7
Tires and wheels............................................................7-49
Recommended cold tire inflation pressures ..............7-49
Checking tire inflation pressure ................................7-50
Wheel alignment and tire balance ..............................7-52
Compact spare tire replacement ................................7-54
Wheel replacement ....................................................7-54
Tires and wheels..............................................................8-3
Towing ..........................................................................6-26
Emergency towing ......................................................6-26
T
