2013 HYUNDAI TUCSON odometer

439
Features of your vehicle
INSTRUMENT CLUSTER
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Shift position indicator
6. Fuel gauge
7. Odometer/Trip computer*
8. Warning and indicator lights
* : if equipped
OLM042051N
* The actual cluster in the vehicle may differ from the illustration.
For more details refer to the "Gauges" in the next pages.

Features of your vehicle
42
4

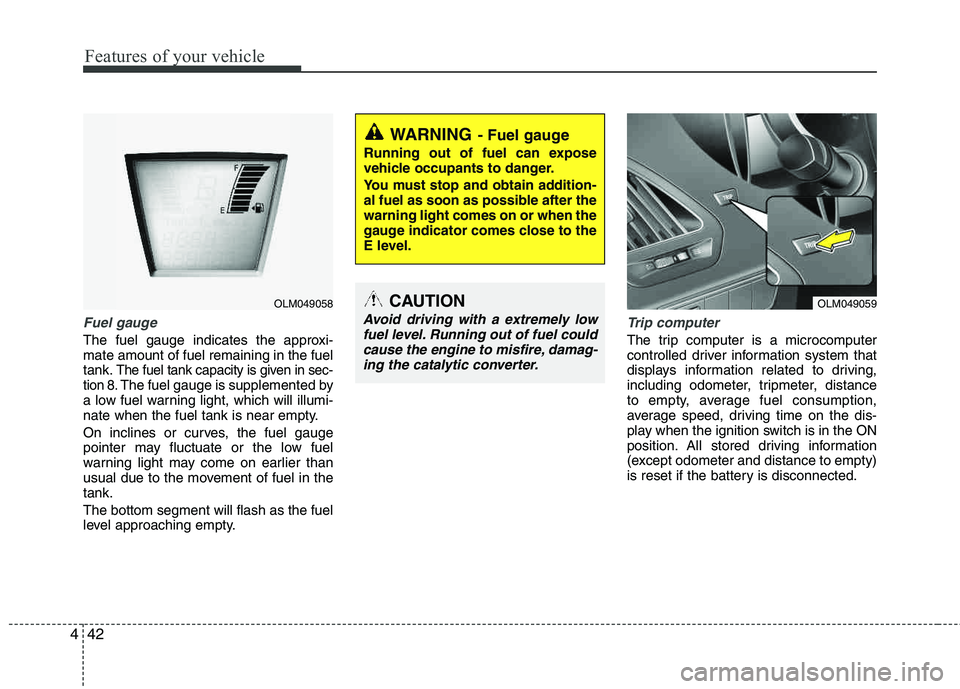

Fuel gauge
The fuel gauge indicates the approxi- mate amount of fuel remaining in the fueltank.
The fuel tank capacity is given in sec-
tion 8.The fuel gauge is supplemented by
a low fuel warning light, which will illumi-
nate when the fuel tank is near empty.
On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in the tank. The bottom segment will flash as the fuel
level approaching empty.
Trip computer
The trip computer is a microcomputer
controlled driver information system that
displays information related to driving,
including odometer, tripmeter, distance
to empty, average fuel consumption,
average speed, driving time on the dis-
play when the ignition switch is in the ON
position. All stored driving information
(except odometer and distance to empty)
is reset if the battery is disconnected.
WARNING- Fuel gauge
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addition-
al fuel as soon as possible after the warning light comes on or when the
gauge indicator comes close to the
E level.
CAUTION
Avoid driving with a extremely low
fuel level. Running out of fuel couldcause the engine to misfire, damag- ing the catalytic converter.
OLM049058OLM049059

443
Features of your vehicle
The odometer is always displayed until
the instrument panel is turned off.
Push the TRIP button for less than 1 sec-
ond to select tripmeter, distance to empty,
average fuel consumption, average speed,
driving time function as follows:Odometer The odometer indicates the total dis-
tance the vehicle has been driven.
You will also find the odometer useful to
determine when periodic maintenance
should be performed.Tripmeter This mode indicates the distance of indi-
vidual trips selected since the last trip- meter reset.
The meter's working range is from 0.0 to 999.9 miles (0.0 to 999.9 km).
Pressing the TRIP button for more than 1
second, when the tripmeter is being dis-
played, clears the tripmeter to zero (0.0).
OLM049060NOLM049061N
Tripmeter
Driving time
Distance to empty
Average fuel consumption
Average speed

447
Features of your vehicle
Electronic brake
force distribution
(EBD) system
warning light
If two warning lights shown illuminate at
the same time while driving, your vehicle
may have a malfunction with ABS andEBD system.
In this case, your ABS and regular brake
system may not work normally. Have the
vehicle checked by an authorized
HYUNDAI dealer as soon as possible.✽✽NOTICE
If the ABS warning light or EBD warn-
ing light is on and stays on, the
speedometer or odometer/tripmeter
may not work. Also, the EPS warning
light may illuminate and the steering
effort may increase or decrease. In this
case, have your vehicle checked by an
authorized HYUNDAI dealer as soon as
possible.Parking brake & brake fluid warning light
Parking brake warning
This light is illuminated when the parking
brake is applied with the ignition switch in
the START or ON position. The warning
light should go off when the parking
brake is released while engine is run-ning.
The parking brake warning chime will
sound to remind you that the parking
brake is applied when you are driving
above 6 mph (10 km/h). Always release
the parking brake before you drive.
Low brake fluid level warning
If the warning light remains on, it may
indicate that the brake fluid level in the
reservoir is low.
If the warning light remains on:
1. Drive carefully to the nearest safe location and stop your vehicle.
2. With the engine stopped, check the brake fluid level immediately and add
fluid as required. Then check all brake
components for fluid leaks.
WARNING
If both ABS and Brake warning
lights are on and stay on, your vehi-
cle’s brake system will not work
normally. So you may experience
an unexpected and dangerous situ-
ation during sudden braking. In this
case, avoid high speed driving and
abrupt braking. Have your vehicle
checked by an authorized HYUNDAI
dealer as soon as possible.

Maintenance
42
7
Compact spare tire replacement
A compact spare tire has a shorter
tread life than a regular size tire.
Replace it when you can see the
tread wear indicator bars on the tire.The replacement compact spare tire
should be the same size and design
tire as the one provided with your
new vehicle and should be mountedon the same compact spare tire
wheel. The compact spare tire is notdesigned to be mounted on a regular
size wheel, and the compact spare
tire wheel is not designed for mount-
ing a regular size tire. Wheel replacement
When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim widthand offset.
Tire traction
Tire traction can be reduced if you
drive on worn tires, tires that are
improperly inflated or on slippery
road surfaces. Tires should be
replaced when tread wear indicators
appear. Slow down whenever there
is rain, snow or ice on the road toreduce the possibility of losing con-
trol of the vehicle. Tire maintenance In addition to proper inflation, correct wheel alignment helps to decrease
tire wear. If you find a tire is worn
unevenly, have your dealer check thewheel alignment.
When you have new tires installed,
make sure they are balanced. This
will increase vehicle ride comfort and
tire life. Additionally, a tire should
always be rebalanced if it is removedfrom the wheel.
WARNING
A wheel that is not the correct
size may adversely affect wheel
and bearing life, braking and
stopping abilities, handling
characteristics, ground clear-
ance, body-to-tire clearance,
snow chain clearance,speedometer and odometer cal-
ibration, headlight aim and
bumper height.

I5
Index
Fluid Brakes/clutch fluid·······················································7-25
Washer fluid·································································7-26
Folding the rear seat ······················································3-13
Four wheel drive (4WD), See all wheel drive (AWD) ··5-24
Front fog light bulb replacement ···································7-61
Front seat adjustment - manual ·······································3-5
Front seat adjustment - power ·········································3-6
Fuel filler door ·······························································4-27
Fuel gauge······································································4-42
Fuel requirements ····························································1-3
Fuses ··············································································7-50 Fuse/relay panel description ········································7-54
Main fuse and multi fuse ·············································7-53
Memory fuse································································7-52
Gauge Engine temperature gauge ···········································4-40
Fuel gauge ···································································4-42
Glassroof, see sunroof ···················································4-30
Glove box·······································································4-87
Hazard warning flasher ··················································4-54
Hazardous driving conditions ········································5-49
Headlight bulb replacement ···········································7-60 Headlight escort function···············································4-55
Headlight welcome function··········································4-56
Headrest ··································································3-8, 3-12
Heating and air conditioning ·········································4-69
High mounted stop light replacement ···························7-64
Highway driving ····························································5-52
Hill-start assist control (HAC) ·······································5-39
Hitches ···········································································5-58
Hood···············································································4-25
Horn ···············································································4-35
How to use this manual ···················································1-2
Ignition key interlock system ········································5-20
Indicators and warnings ·················································4-45
Indicator symbols on the instrument cluster ···················1-7
Instrument cluster ··························································4-39
Engine temperature gauge ···········································4-41
Fuel gauge ···································································4-42
Instrument panel illumination ·····································4-40
Odometer/Tripmeter ····················································4-43
Speedometer ································································4-40
Tachometer ··································································4-40
Trip computer ······························································4-42
Warning and indicators ················································4-45
Instrument panel illumination········································4-40
Instrument panel overview···············································2-3
Interior care····································································7-71
G
H
I

I7
Index
Luggage net (holder) ·····················································4-93
Luggage rack, see roof rack···········································4-96
Lumbar support································································3-7
Main fuse and multi fuse ···············································7-53 Maintenance Explanation of scheduled maintenance items ·············7-18Maintenance services·····················································7-3
Maintenance under severe usage conditions ···············7-17
Normal maintenance schedule·······································7-7
Owner maintenance ·······················································7-4
Scheduled maintenance service ·····································7-6
Tire maintenance ·························································7-42
Maintenance services ·······················································7-3
Manual climate control system······································4-68 Air conditioning ··························································4-73
Climate control air filter ··············································4-75
Heating and air conditioning ·······································4-69
Manual heating and air conditioning ·····························4-79
Manual transaxle····························································5-13
Memory fuse ··································································7-52
Mirrors ···········································································4-36 Inside rearview mirror ·················································4-36
Outside rearview mirror ··············································4-37
Moonroof, see sunroof···················································4-30 Neck restraints, see headrest ··································3-8, 3-12
Occupant classification system ······································3-44
Odometer/Tripmeter ······················································4-43
Oil (Engine) ···································································7-21
Outside rearview mirror·················································4-37
Overheats ·········································································6-6
Owner maintenance ·························································7-4
Panoramic sunroof ·························································4-30
Parking brake························································5-31, 7-27
Passenger's front air bag ················································3-49
Position light bulb replacement ·····································7-61
Power brakes ··································································5-30
Power outlet ···································································4-91
Power window lock button ············································4-24
Pre-tensioner seat belt····················································3-24
Push starting·····································································6-5N
P
MO
