2013 Hyundai Sonata CD player

Features of your vehicle114 4❋ No logo will be shown if the HD Radio
®feature is not supported.
■ ■
CD Player : Audio with internal amplifier / Audio with external amplifier
YF HMA 4b-112~(Audio).qxp 3/5/2012 4:24 PM Page 114

4 141
Features of your vehicle

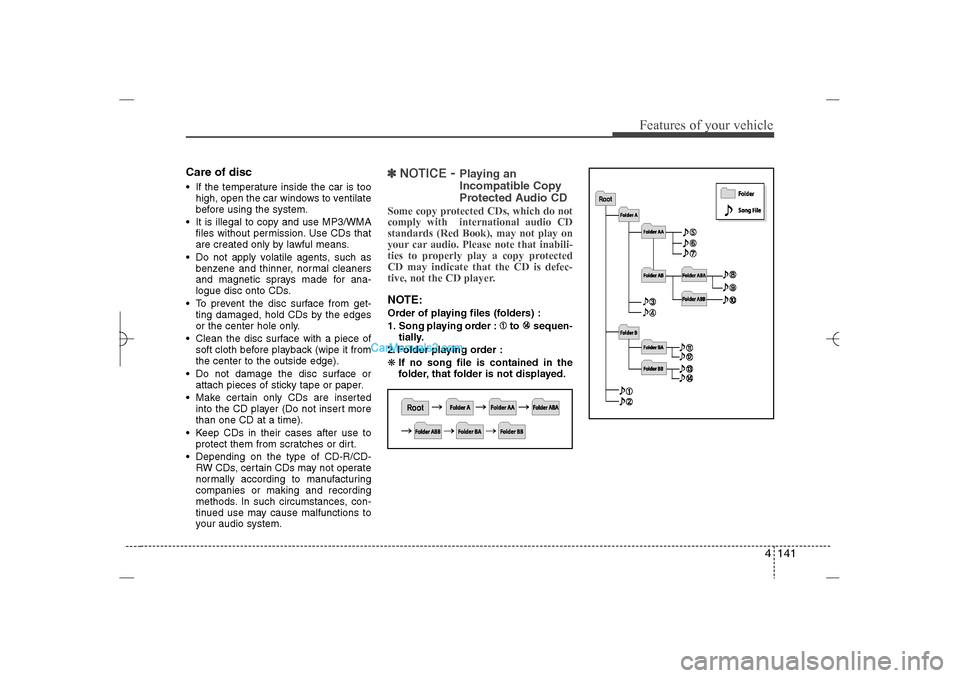

Care of disc If the temperature inside the car is too
high, open the car windows to ventilate
before using the system.
 It is illegal to copy and use MP3/WMA
files without permission. Use CDs that
are created only by lawful means.
 Do not apply volatile agents, such as
benzene and thinner, normal cleaners
and magnetic sprays made for ana-
logue disc onto CDs.
 To prevent the disc surface from get-
ting damaged, hold CDs by the edges
or the center hole only.
 Clean the disc surface with a piece of
soft cloth before playback (wipe it from
the center to the outside edge).
 Do not damage the disc surface or
attach pieces of sticky tape or paper.
 Make certain only CDs are inserted
into the CD player (Do not insert more
than one CD at a time).
 Keep CDs in their cases after use to
protect them from scratches or dirt.
 Depending on the type of CD-R/CD-
RW CDs, certain CDs may not operate
normally according to manufacturing
companies or making and recording
methods. In such circumstances, con-
tinued use may cause malfunctions to
your audio system.
✽ ✽
NOTICE
- Playing an
Incompatible Copy
Protected Audio CD
Some copy protected CDs, which do not
comply with international audio CD
standards (Red Book), may not play on
your car audio. Please note that inabili-
ties to properly play a copy protected
CD may indicate that the CD is defec-
tive, not the CD player.NOTE:Order of playing files (folders) :
1. Song playing order : to sequen-
tially.
2. Folder playing order :
❋If no song file is contained in the
folder, that folder is not displayed.
YF HMA 4b-112~(Audio).qxp 3/5/2012 4:24 PM Page 141

Features of your vehicle142 4
CAUTION IN USING
USB DEVICE
 To use an external USB device,
make sure the device is not con-
nected when starting up the vehi-
cle. Connect the device after
starting up.
 If you start the engine when the
USB device is connected, it may
damage the USB device. (USB
flashdrives are very sensitive to
electric shock.)
 If the engine is started up or
turned off while the external USB
device is connected, the external
USB device may not work.
 The System may not play inau-
thentic MP3 or WMA files.
1) It can only play MP3 files with
the compression rate between
8Kbps~320Kbps.
2) It can only play WMA music
files with the compression rate
between 8Kbps~320Kbps.
 Take precautions for static elec-
tricity when connecting or discon-
necting the external USB device.
(Continued)
(Continued)
 An encrypted MP3 PLAYER is not
recognizable.
 Depending on the condition of
the external USB device, the con-
nected external USB device can
be unrecognizable.
 When the formatted byte/sector
setting of External USB device is
not either 512BYTE or 2048BYTE,
then the device will not be recog-
nized.
 Use only a USB device formatted
to FAT 12/16/32.
 USB devices without USB I/F
authentication may not be recog-
nizable.
 Make sure the USB connection
terminal does not come in con-
tact with the human body or other
objects.
 If you repeatedly connect or dis-
connect the USB device in a short
period of time, it may break the
device.
 You may hear a strange noise
when connecting or disconnect-
ing a USB device.
(Continued)
(Continued)
 If you disconnect the external USB
device during playback in USB
mode, the external USB device can
be damaged or may malfunction.
Therefore, disconnect the external
USB device when the audio is
turned off or in another mode. (e.g,
Radio, XM or CD)
 Depending on the type and
capacity of the external USB
device or the type of the files
stored in the device, there is a dif-
ference in the time taken for
recognition of the device.
 Do not use the USB device for
purposes other than playing
music files.
 Playing videos through the USB
is not supported.
 Use of USB accessories such as
rechargers or heaters using USB
I/F may lower performance or
cause trouble.
(Continued)
YF HMA 4b-112~(Audio).qxp 3/5/2012 4:24 PM Page 142

4 143
Features of your vehicle
✽ ✽
NOTICE FOR USING THE
iPod
®DEVICE
• Some iPod models may not support
communication protocol and files may
not properly play.
Supported iPod models:
- iPod Mini
- iPod 4th(Photo) ~ 6th(Classic)
generation
- iPod Nano 1st~4th generation
- iPod Touch 1st~2nd generation
• The order of search or playback of
songs in the iPod can be different
from the order searched in the audio
system.
• If the iPod disabled due to its own
malfunction, reset the iPod. (Reset:
Refer to iPod manual)
• An iPod may not operate normally on
low battery.
• Some iPod devices, such as the
iPhone, can be connected through the
Bluetooth
®Wireless Technology inter-
face. The device must have audio
Bluetooth®Wireless Technology capa-
bility (such as for stereo headphone
Bluetooth®Wireless Technology). The
device can play, but it will not be con-
trolled by the audio system.
(Continued)
(Continued)
 Some USB flash memory readers
(such as CF, SD, micro SD, etc.) or
external-HDD type devices can be
unrecognizable.
 Music files protected by DRM
(DIGITAL RIGHTS MANAGE-
MENT) are not recognizable.
 The data in the USB memory may
be lost while using this audio.
Always back up important data on
a personal storage device.
 Please avoid using USB memory
products which can be used as key
chains or cellular phone acces-
sories as they could cause dam-
age to the USB jack. Please make
certain only to use plug type con-
nector products as shown below.
(Continued)
 If you use devices such as a USB
hub purchased separately, the
vehicle’s audio system may not
recognize the USB device. In that
case, connect the USB device
directly to the multimedia terminal
of the vehicle.
 If the USB device is divided by
logical drives, only the music files
on the highest-priority drive are
recognized by car audio.
 Devices such as MP3 Player/
Cellular phone/Digital camera can
be unrecognizable by standard
USB I/F can be unrecognizable.
 Charging through the USB may
not be supported in some mobile
devices.
 USB HDD or USB types liable to
connection failures due to vehicle
vibrations are not supported.
(i-stick type)
 Some non-standard USB devices
(METAL COVER TYPE USB) can
be unrecognizable.
(Continued)
YF HMA 4b-112~(Audio).qxp 3/5/2012 4:24 PM Page 143
