Features of your vehicle74 4Headlight position ( )When the light switch is in the headlight
position the head, tail, license and instru-
ment panel lights are ON.✽ ✽
NOTICEThe ignition switch must be in the ON
position to turn on the headlights.
Auto light position (if equipped)When the light switch is in the AUTO light
position, the taillights and headlights will
be turned ON or OFF automatically
depending on the amount of light outside
the vehicle.
OAM049042
OYF049208
CAUTION
 Never place anything over sensor
(1) located on the instrument
panel. This will ensure better
auto-light system control.
 Don’t clean the sensor using a
window cleaner. The cleaner may
leave a light film which could
interfere with sensor operation.
 If your vehicle has window tint or
other types of metallic coating on
the front windshield, the Auto
light system may not work prop-
erly.
YF HMA 4a-111.qxp 1/16/2012 6:31 PM Page 74

Features of your vehicle94 4Automatic heating and air condi-
tioning1. Press the AUTO button. The modes,
fan speeds, air intake and air-condi-
tioning will be controlled automatically
according to the temperature setting.
2. Turn the temperature control knob to
set the desired temperature.
✽ ✽
NOTICE• To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Front windshield defrost button
- Fan speed control button
The selected function will be con-
trolled manually while other functions
operate automatically.
• For your convenience and to improve
the effectiveness of the climate con-
trol, use the AUTO button and set the
temperature to 73°F (23°C).✽ ✽
NOTICENever place anything over the sensor
located on the instrument panel to
ensure better control of the heating and
cooling system.
OYF049121
OYF049161NOYFH041161N
■Type A■Type B
YF HMA 4a-111.qxp 3/5/2012 4:36 PM Page 94

What to do in an emergency10 6Changing a tire with TPMS
If you have a flat tire, the Low Tire
Pressure will come on. Have the flat
tire repaired by an authorized
HYUNDAI dealer as soon as possi-
ble or replace the flat tire with the
spare tire.
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specific wheels. It is rec-
ommended that you always have
your tires serviced by an authorized
HYUNDAI dealer.Even if you replace the low pressure
tire with the spare tire, the Low Tire
Pressure telltale/TPMS malfunction
indicator will remain on until the low
pressure tire is repaired and placed
on the vehicle.
After you replace the low pressure
tire with the spare tire, the TPMS
malfunction indicator may illuminate
after a few minutes because the
TPMS sensor mounted on the spare
wheel is not initiated.
Once the low pressure tire is reinflat-
ed to the recommended pressure
and installed on the vehicle or the
TPMS sensor mounted on the
replaced spare wheel is initiated by
an authorized HYUNDAI dealer, the
TPMS malfunction indicator and the
low tire pressure telltale will extin-
guish within a few minutes of driving.
If the indicator is not extinguished
after a few minutes of driving, please
visit an authorized HYUNDAI dealer.
CAUTION
If original mounted tire is
replaced with the spare tire, the
TPMS sensor on the replaced
spare wheel should be initiated
and the TPMS sensor on the
original mounted wheel should
be deactivated. If the TPMS sen-
sor on the original mounted
wheel located in the spare tire
carrier still activates, the tire
pressure monitoring system
may not operate properly. Have
the tire with TPMS serviced or
replaced by an authorized
HYUNDAI dealer.
CAUTION
NEVER use a puncture-repair-
ing agent to repair and/or inflate
a low pressure tire. The tire
sealant can damage the tire
pressure sensor. If used, you
will have to replace the tire pres-
sure sensor.
YF HMA 6.QXP 11/25/2009 1:58 PM Page 10

Maintenance30 7Replace the filter according to the
Maintenance Schedule.If the vehicle is operated in extremely
dusty or sandy areas, replace the ele-
ment more often than the usual recom-
mended intervals. (Refer to
“Maintenance under severe usage condi-
tions” in this section.)
Filter inspectionThe climate control air filter should be
replaced according to the Maintenance
Schedule. If the vehicle is operated in
severely air-polluted cities or on dusty
rough roads for a long period, it should
be inspected more frequently and
replaced earlier. When you replace the
climate control air filter, replace it per-
forming the following procedure, and be
careful to avoid damaging other compo-
nents.
Filter replacement1. Open the glove box and remove the
support strap (1).
CAUTION
 Do not drive with the air cleaner
removed; this will result in exces-
sive engine wear.
 When removing the air cleaner fil-
ter, be careful that dust or dirt
does not enter the air intake, or
damage may result.
 Use a HYUNDAI genuine part. Use
of non-genuine parts could dam-
age the air flow sensor.
CLIMATE CONTROL AIR FILTER
OYF079014
YF HMA 7.qxp 1/16/2012 6:18 PM Page 30

755
Maintenance
Instrument panel (Driver’s side fuse panel)
Description Fuse rating Protected component
P/SEAT DRI 30A Driver Manual Switch
AMP 30A AMP, JBL AMP
TRUNK 10A Trunk Lid Relay, Trunk Room Lamp, Fuel Filler Door & Trunk Lid Switch
SAFETY POWER
WINDOW25A Safety Power Window Module
P/WDW ASST 20A Passenger Power Window Switch
P/WDW LH 25A Power Window Main Switch, Rear Power Window Switch LH
SPARE 7.5A -
SPARE 10A -
PDM 2 7.5A FOB Holder, Start Stop Button Switch, PDM, Smart Key Module
MODULE 3 7.5A Key Solenoid, Sport Mode Switch
P/WDW RH 25A Power Window Main Switch, Rear Power Window Switch RH
SPARE 10A -
HTD MIRR 10A Driver/Passenger Power Outside Mirror
P/SEAT ASST 20A -
S/HEATER FRT 15A Driver/Passenger Seat Warmer Module
PDM 25A PDM
ROOM LP (POWER
CONNECTOR)10AInstrument Cluster, Driver/Passenger Door Lamp, Ignition Key ILL. & Door Warning Switch, BCM,
Tire Pressure Monitoring Module, A/C Control Module, Room Lamp, Front Monitor, Glove Box Lamp,
Data Link Connector, Vanity Lamp LH/RH, Auto Light & Photo Sensor, RF Receiver, Overhead Console
Lamp, Clock
AUDIO (POWER
CONNECTOR)15A Audio, A/V & Navigation Head Unit
YF HMA 7.qxp 1/16/2012 6:20 PM Page 55

Maintenance56 7
Description Fuse rating Protected component
CLOCK 10ABCM, Clock, Front Monitor, Smart Key Module, PDM, Audio, Power Outside Mirror Switch, AMP,
JBL AMP, Overhead Console Lamp, Rear Camera Module, A/V & Navigation Head Unit
SPARE 10A -
A/CON 7.5A E/R Fuse & Relay Box(Blower Relay), A/C Control Module
S/HEATER RR 20A Rear Seat Warmer Switch LH/RH
SUN ROOF 20A Sunroof Motor
POWER OUTLET 1 15A Front Power Outlet #1
MODULE 2 7.5A BCM, Rear Camera Module, Electro Chromic Mirror, Sunroof Motor
WIPER 25A E/R Fuse & Relay Box(Wiper Relay), Front Wiper Motor, Multifunction Switch(Wiper)
MODULE 5 7.5A PDM
DR LOCK 20A Door Lock/Unlock Relay
POWER OUTLET 1 15A Front Power Outlet #2
MODULE 1 7.5AInstrument Cluster(ON/START Input), Clock, Sport Mode Switch IND., Audio,
Driver/Passenger Seat Warmer Module, BCM
IG 1 20A E/R Fuse & Relay Box (Fuse - ESC 3 10A, ECU 4 10A, B/UP LP 10A, TCU 2 10A)
SPARE 20A -
A/BAG 15A SRS Control Module, Telltale Lamp, Passenger Weight Classification Sensor
START 1 7.5AW/O Smart Key-Ignition Lock Switch, Burglar Alarm Relay, E/R Fuse & Relay Box (Start 1 Relay)
With Smart Key-PDM
MDPS 10A Yaw Rate Sensor, ESP Off Switch, EPS Control Module
PDM 3 7.5A PDM, Smart Key Module
SPARE 10A -
A/BAG IND. 7.5A Instrument Cluster(IND.)
VACUUM PUMP
20A
Vacuum pump
YF HMA 7.qxp 1/16/2012 6:20 PM Page 56

757
Maintenance

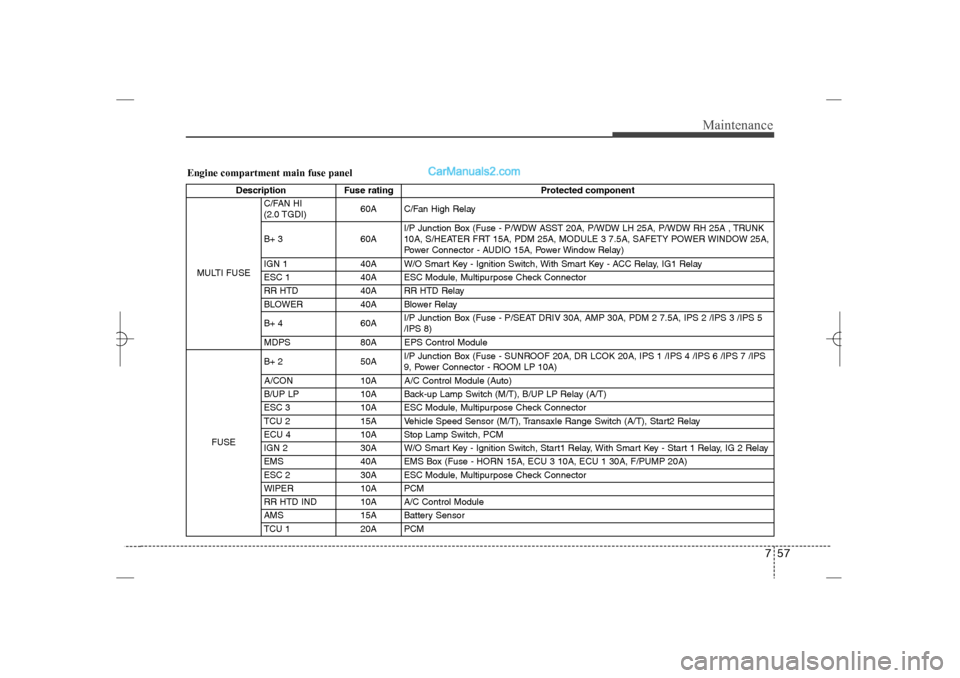

Engine compartment main fuse panel
Description Fuse rating Protected component
MULTI FUSEC/FAN HI
(2.0 TGDI)60A C/Fan High Relay
B+ 3 60AI/P Junction Box (Fuse - P/WDW ASST 20A, P/WDW LH 25A, P/WDW RH 25A , TRUNK
10A, S/HEATER FRT 15A, PDM 25A, MODULE 3 7.5A, SAFETY POWER WINDOW 25A,
Power Connector - AUDIO 15A, Power Window Relay)
IGN 1 40A W/O Smart Key - Ignition Switch, With Smart Key - ACC Relay, IG1 Relay
ESC 1 40A ESC Module, Multipurpose Check Connector
RR HTD 40A RR HTD Relay
BLOWER 40A Blower Relay
B+ 4 60AI/P Junction Box (Fuse - P/SEAT DRIV 30A, AMP 30A, PDM 2 7.5A, IPS 2 /IPS 3 /IPS 5
/IPS 8)
MDPS
80A
EPS Control Module
FUSEB+ 2 50AI/P Junction Box (Fuse - SUNROOF 20A, DR LCOK 20A, IPS 1 /IPS 4 /IPS 6 /IPS 7 /IPS
9, Power Connector - ROOM LP 10A)
A/CON
10A
A/C Control Module (Auto)
B/UP LP 10A Back-up Lamp Switch (M/T), B/UP LP Relay (A/T)
ESC 3 10A ESC Module, Multipurpose Check Connector
TCU 2 15A Vehicle Speed Sensor (M/T), Transaxle Range Switch (A/T), Start2 Relay
ECU 4 10A Stop Lamp Switch, PCM
IGN 2 30A W/O Smart Key - Ignition Switch, Start1 Relay, With Smart Key - Start 1 Relay, IG 2 Relay
EMS 40A EMS Box (Fuse - HORN 15A, ECU 3 10A, ECU 1 30A, F/PUMP 20A)
ESC 2 30A ESC Module, Multipurpose Check Connector
WIPER 10A PCM
RR HTD IND 10A A/C Control Module
AMS 15A Battery Sensor
TCU 1 20A PCM
YF HMA 7.qxp 1/16/2012 6:20 PM Page 57

Maintenance58 7
Description Fuse rating Protected component
FUSESTOP LP 15A Stop Lamp Switch
DEICER 20A Deicer Relay
SPARE 20A -
C/FAN (2.4 GDI) 40A C/Fan Low Relay, C/Fan High Relay
C/FAN LO
(2.0 TGDI)40A C/Fan Low Relay
IGN COIL 20A Ignition Coil #1 /#2 /#3 /#4, Condenser
SENSOR 1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)
SENSOR 2 15AImmobilizer Module, Camshaft Position Sensor #1 /#2, Purge Control Solenoid Valve,
Variable Intake Solenoid Valve, Crankshaft Position Sensor, Oil Control Valve #1 /#2,
Canister Close Valve
INJECTOR 15A F/Pump Relay
F/PUMP 20A F/Pump Relay
ECU 3 10A PCM
HORN 15A Horn Relay, B/Horn Relay
ECU 1 30A ECU Relay
SPARE 25A -
SPARE 20A -
SPARE 15A -
SPARE 10A -
