2013 Hyundai Sonata center console

345
Safety features of your vehicle
Always be sure that you and all vehicle
occupants are seated and restrained
properly (sitting upright with the seat in
an upright position, centered on the seat
cushion, with the person's legs comfort-
ably extended, feet on the floor, and
wearing the safety belt properly) for the
most effective protection by the air bag
and the safety belt.
 The OCS may not function properly if
the passenger takes actions which can
affect the classification system. These
include:
(1) Failing to sit in an upright position.
(2) Leaning against the door or center
console.
(3) Sitting towards the sides or the
front of the seat.
(4) Putting legs on the dashboard or
resting them on other locations
which reduce the passenger weight
on the front seat.
(5) Improperly wearing the safety belt.
(6) Reclining the seat back.
C040301ABHCondition and operation in the front passenger occupant classification system*1) The system judges a person of adult
size as an adult. When a smaller adult
sits in the front passenger seat, the
system may recognize him/her as a
child depending on his/her physique
and posture.
*2) Do not allow children to ride in the
front passenger seat. When a larger
child who has outgrown a child
restraint system sits in the front pas-
senger seat, the system may recog-
nize him/her as an adult depending
upon his/her physique or sitting posi-
tion.*3) Never install a child restraint system
on the front passenger seat.
WARNING
Riding in an improper position or
placing weight on the front passen-
ger's seat when it is unoccupied by
a passenger adversely affects the
occupant classification system
(OCS).
(Continued)
Condition detected by the
occupant classification system
Indicator/Warning light
Devices
PASSENGER
AIR BAG “OFF”
indicator light
SRS
warning light
Front passenger
air bag
1. Adult *
1or child age 13 and up*
2
Off
Off
Activated
2. Infant or child restraint system with
12 months old*
3
On
Off
Deactivated
3. Unoccupied
On
Off
Deactivated
4. Malfunction in the system
Off
On
Activated
YF HMA 3.qxp 5/16/2011 4:15 PM Page 45

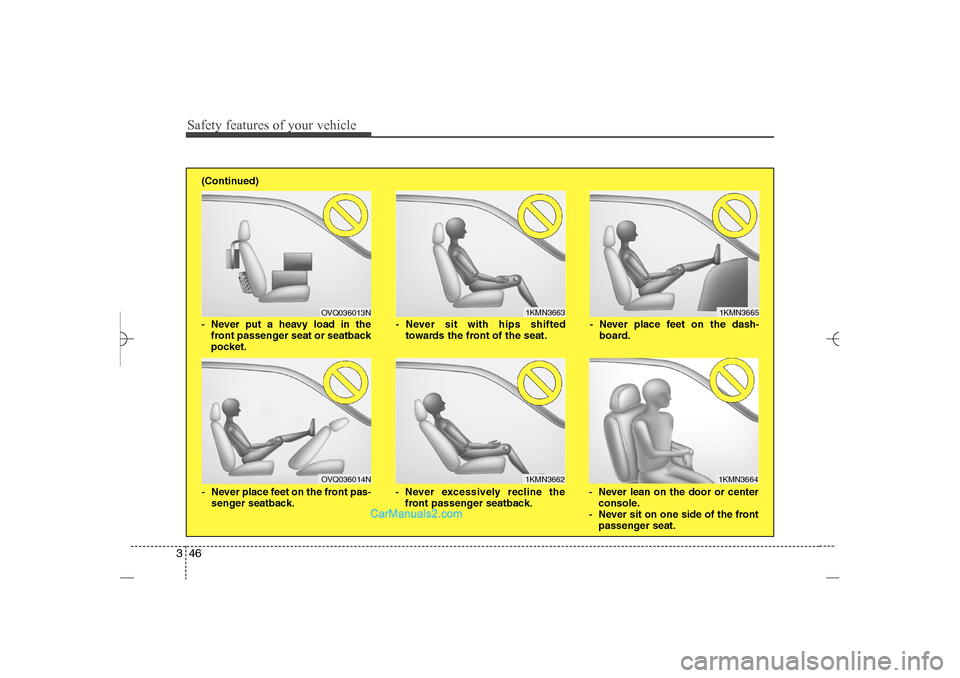

Safety features of your vehicle46 3
1KMN3663
1KMN36641KMN3665
- Never sit with hips shifted
towards the front of the seat.
- Never lean on the door or center
console.
- Never sit on one side of the front
passenger seat. - Never place feet on the dash-
board.
OVQ036013N
1KMN3662
- Never put a heavy load in the
front passenger seat or seatback
pocket.
- Never excessively recline the
front passenger seatback.
OVQ036014N
- Never place feet on the front pas-
senger seatback. (Continued)
YF HMA 3.qxp 5/16/2011 4:15 PM Page 46

Safety features of your vehicle48 3
(Continued)
 Do not place an electronic device
such as a laptop computer on the
front passenger seat. Its elec-
tronic field may cause the OCS to
switch to the "on" condition and
thus allow the passenger air bag
to deploy needlessly in a colli-
sion, increasing your repair
costs.
 A smaller-stature adult in the
front passenger’ seat who is not
seated correctly (for example:
seat excessively reclined, leaning
on the door or center console, or
hips shifted forward in the seat)
can cause a condition where the
occupant classification system
senses less weight than if the
occupant were seated properly
(sitting upright with the seatback
in an upright position, centered
on the seat cushion with their
seat belt on, legs comfortably
extended and their feet on the
floor).
This condition can result in an
adult potentially being misclassi-
fied as a child and illumination of
the PASS AIR BAG "OFF" indica-
tor.
(Continued)
 Accident statistics show that
children are safer if they are
restrained in the rear, as opposed
to the front seat. It is recom-
mended that child restraints be
secured in a rear seat, including
an infant riding in a rear-facing
infant seat, a child riding in a for-
ward-facing child seat and an
older child riding in a booster
seat.
 Air bags can only be used once –
have an authorized HYUNDAI
dealer replace the air bag imme-
diately after deployment.
 The occupant classification sys-
tem may not work properly if
water, coffee or any other liquid
including rain gets on the seat.
Keep the front seat dry at all
times.
(Continued)
 If the PASS AIR BAG "OFF" indi-
cator is illuminated when the
front passenger's seat is occu-
pied by an adult and he/she sits
properly (sitting upright with the
seatback in an upright position,
centered on the seat cushion
with their seat belt on, legs com-
fortably extended and their feet
on the floor), have that person sit
in the rear seat.
 Do not modify or replace the front
passenger seat. Don't place any-
thing on or attach anything such
as a blanket or seat heater to the
front passenger seat. This can
adversely affect the occupant
classification system.
 Do not sit on sharp objects such
as tools when occupying the
front passenger seat. This can
adversely affect the occupant
classification system.
 Do not use accessory seat cov-
ers on the front seats.
(Continued)
YF HMA 3.qxp 5/16/2011 4:15 PM Page 48

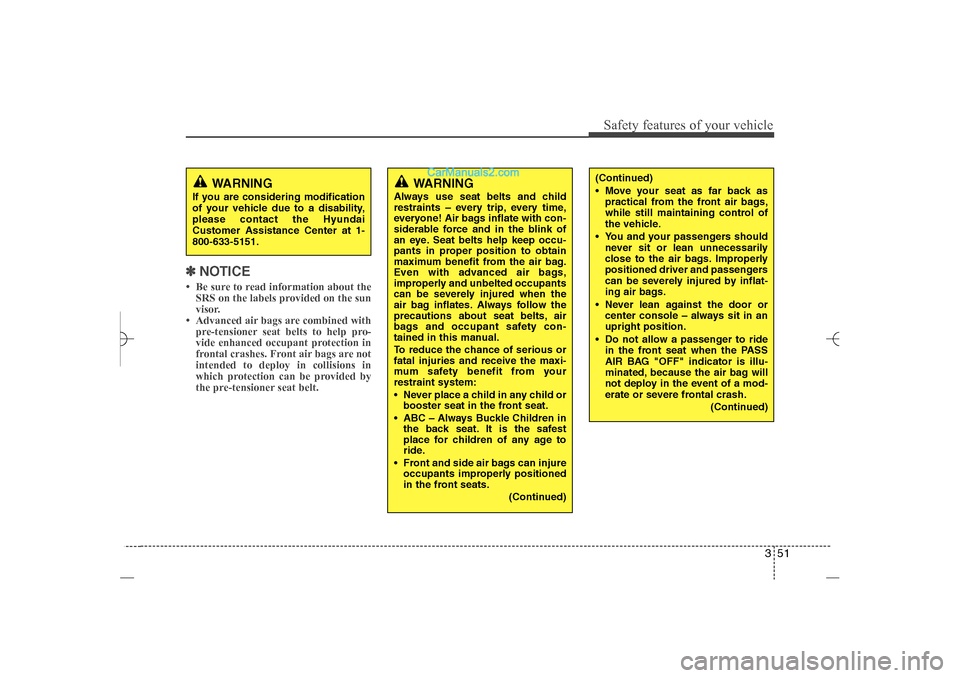

351
Safety features of your vehicle
✽ ✽
NOTICE• Be sure to read information about the
SRS on the labels provided on the sun
visor.
• Advanced air bags are combined with
pre-tensioner seat belts to help pro-
vide enhanced occupant protection in
frontal crashes. Front air bags are not
intended to deploy in collisions in
which protection can be provided by
the pre-tensioner seat belt.
(Continued)
 Move your seat as far back as
practical from the front air bags,
while still maintaining control of
the vehicle.
 You and your passengers should
never sit or lean unnecessarily
close to the air bags. Improperly
positioned driver and passengers
can be severely injured by inflat-
ing air bags.
 Never lean against the door or
center console – always sit in an
upright position.
 Do not allow a passenger to ride
in the front seat when the PASS
AIR BAG "OFF" indicator is illu-
minated, because the air bag will
not deploy in the event of a mod-
erate or severe frontal crash.
(Continued)
WARNING
Always use seat belts and child
restraints – every trip, every time,
everyone! Air bags inflate with con-
siderable force and in the blink of
an eye. Seat belts help keep occu-
pants in proper position to obtain
maximum benefit from the air bag.
Even with advanced air bags,
improperly and unbelted occupants
can be severely injured when the
air bag inflates. Always follow the
precautions about seat belts, air
bags and occupant safety con-
tained in this manual.
To reduce the chance of serious or
fatal injuries and receive the maxi-
mum safety benefit from your
restraint system:
 Never place a child in any child or
booster seat in the front seat.
 ABC – Always Buckle Children in
the back seat. It is the safest
place for children of any age to
ride.
 Front and side air bags can injure
occupants improperly positioned
in the front seats.
(Continued)
WARNING
If you are considering modification
of your vehicle due to a disability,
please contact the Hyundai
Customer Assistance Center at 1-
800-633-5151.
YF HMA 3.qxp 5/16/2011 4:15 PM Page 51

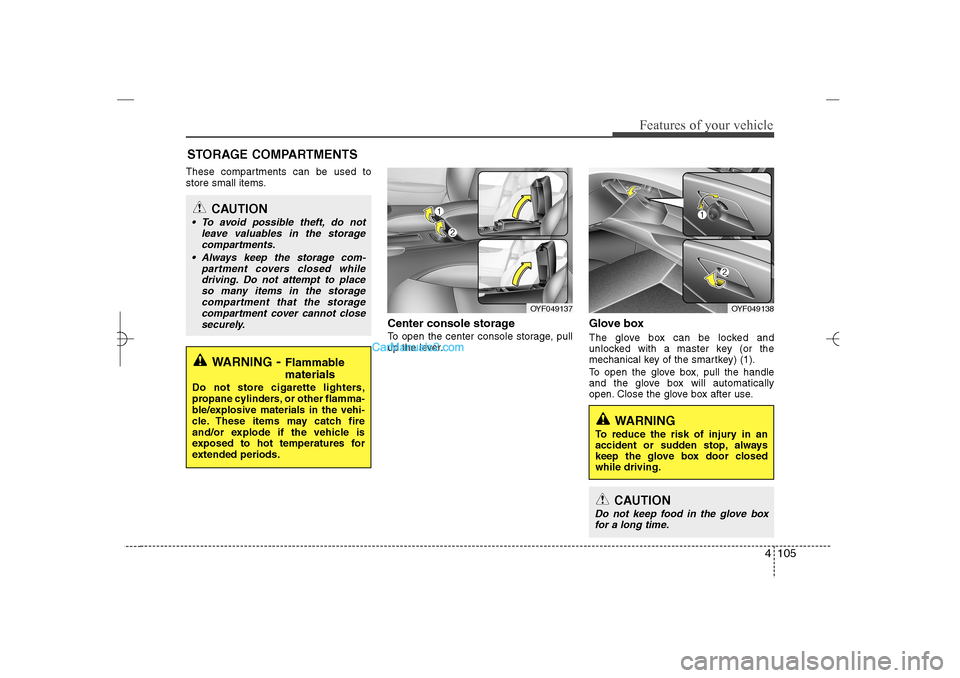

4 105
Features of your vehicle
These compartments can be used to
store small items.
Center console storage To open the center console storage, pull
up the lever.
Glove boxThe glove box can be locked and
unlocked with a master key (or the
mechanical key of the smartkey) (1).
To open the glove box, pull the handle
and the glove box will automatically
open. Close the glove box after use.
STORAGE COMPARTMENTS
WARNING
- Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the vehi-
cle. These items may catch fire
and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
CAUTION
 To avoid possible theft, do not
leave valuables in the storage
compartments.
 Always keep the storage com-
partment covers closed while
driving. Do not attempt to place
so many items in the storage
compartment that the storage
compartment cover cannot close
securely.
OYF049138
OYF049137
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closed
while driving.
CAUTION
Do not keep food in the glove box
for a long time.
YF HMA 4a-111.qxp 1/16/2012 6:35 PM Page 105

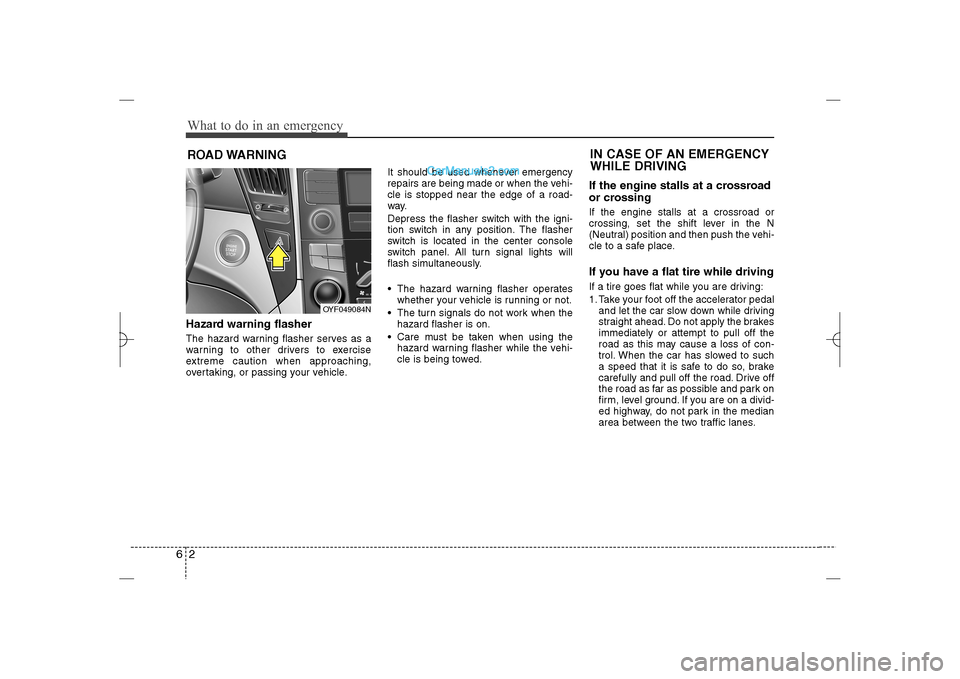

What to do in an emergency2 6ROAD WARNING Hazard warning flasher The hazard warning flasher serves as a
warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.It should be used whenever emergency
repairs are being made or when the vehi-
cle is stopped near the edge of a road-
way.
Depress the flasher switch with the igni-
tion switch in any position. The flasher
switch is located in the center console
switch panel. All turn signal lights will
flash simultaneously.
• The hazard warning flasher operates
whether your vehicle is running or not.
The turn signals do not work when the
hazard flasher is on.
Care must be taken when using the
hazard warning flasher while the vehi-
cle is being towed.
If the engine stalls at a crossroad
or crossingIf the engine stalls at a crossroad or
crossing, set the shift lever in the N
(Neutral) position and then push the vehi-
cle to a safe place.If you have a flat tire while drivingIf a tire goes flat while you are driving:
1. Take your foot off the accelerator pedal
and let the car slow down while driving
straight ahead. Do not apply the brakes
immediately or attempt to pull off the
road as this may cause a loss of con-
trol. When the car has slowed to such
a speed that it is safe to do so, brake
carefully and pull off the road. Drive off
the road as far as possible and park on
firm, level ground. If you are on a divid-
ed highway, do not park in the median
area between the two traffic lanes.IN CASE OF AN EMERGENCY
WHILE DRIVING
OYF049084N
YF HMA 6.QXP 11/25/2009 1:57 PM Page 2

I3
Index
California perchlorate notice ·········································7-76
Capacities (Lubricants) ····················································8-4
Care
Exterior care ······························································7-67
Interior care ·······························································7-71
Tire care·····································································7-37
Cargo weight ··································································5-51
Center console storage ·················································4-105
Central door lock switch················································4-19
Certification label ···················································5-49, 8-6
Changing tires ································································6-13
Chains
Tire chains ·································································5-43
Checking tire inflation pressure·····································7-38
Child restraint system ····················································3-29
Passenger seat belt ····················································3-31
Tether anchor system·················································3-33
Lower anchor system ················································3-35
Child-protector rear door lock ·······································4-21
Climate control system (Automatic) ·····························4-97
Air conditioning ······················································4-100
Automatic heating and air conditioning····················4-94
Manual heating and air conditioning ························4-95
Climate control system (Manual) ··································4-83
Air conditioning ························································4-90
Climate control air filter············································4-92
Heating and air conditioning·····································4-84Climate control air filter ················································4-94
Climate control air filter ················································7-30
Clock (Digital) ·····························································4-109
Clothes hanger ·····························································4-109
Combined instrument, see instrument cluster ···············4-50
Compact spare tire ·························································6-18
Compact spare tire replacement ····································7-42
Compass mirror, see the Electric chromic mirror (ECM)
with homeLink system and compass ························4-41
Consumer information ·····················································8-8
Coolant ···········································································7-24
Cooling fluid, see engine coolant ··································7-24
Crankcase emission control system ·······························7-73
Cruise control system ····················································5-31
Cup holder ···································································4-107
Curtain air bag ·······························································3-54
Dashboard, see instrument cluster ·································4-50
Dashboard illumination, see instrument panel
illumination ·······························································4-51
Daytime running light····················································4-73
Defogging (Windshield) ··············································4-101
Defogging logic (Windshield) ·····································4-103
Defroster (Rear window) ···············································4-82
Defrosting (Windshield) ··············································4-101
Digital clock·································································4-109
Dimensions ······································································8-2C
D
YF HMA INDEX.QXP 5/16/2011 5:52 PM Page 3

I9
Index
Sports mode ···································································5-17
Starting difficulties, see engine will not start ··················6-3
Starting the engine····················································5-6, 5-9
Steering wheel································································4-39
Horn···········································································4-40
Electric power steering··············································4-39
Tilt steering ·······························································4-39
Steering wheel audio control ·······································4-111
Storage compartment ···················································4-105
Center console storage ············································4-105
Glove box ································································4-105
Multi box ·································································4-106
Sunglass holder ·······················································4-106
Sunglass holder ····························································4-106
Sunroof···········································································4-32
Sunvisor ·······································································4-107
Tachometer·····································································4-51
Tether anchor system ·····················································3-33
Theft-alarm system ························································4-14
Tilt steering ····································································4-39
Tire specification and pressure label ·······························8-7
Tire chains······································································5-43
Tire pressure monitoring system (TPMS) ·······················6-7Tires and wheels ·····················································7-37, 8-3
Checking tire inflation pressure ································7-38
Compact spare tire replacement ································7-42
Recommended cold tire inflation pressures ··············7-37
Tire care·····································································7-37
Tire maintenance ·······················································7-42
Tire replacement ························································7-41
Tire rotation ·······························································7-39
Tire sidewall labeling ················································7-43
Tire traction ·······························································7-42
Wheel alignment and tire balance ·····························7-40
Wheel replacement ····················································7-42
Towing ···········································································6-20
Trailer towing ································································5-52
Transaxle
Automatic transaxle ··················································5-14
Manual transaxle ·······················································5-11
Trip computer ································································4-53
Trunk ··············································································4-22
Vehicle break-in process ··················································1-5
Vehicle certification label·······································5-49, 8-6
Vehicle data collection and event data
recorders (EDR) ··························································1-6
Vehicle identification number (VIN) ·······························8-6
Vehicle load limit ···························································5-46
Certification label ······················································5-49T
V
YF HMA INDEX.QXP 5/16/2011 5:52 PM Page 9
