767
Maintenance
6. Remove the screws and package tray.
7. Remove the fabric and nuts.
8. Change the HMSL to a new one.
9. Reinstall all components in the reverse
order of removal.
10. Connect the seat warmer cable
again.
11. Reinstall the screws for the seatback.
12. Reinstall the cushion.

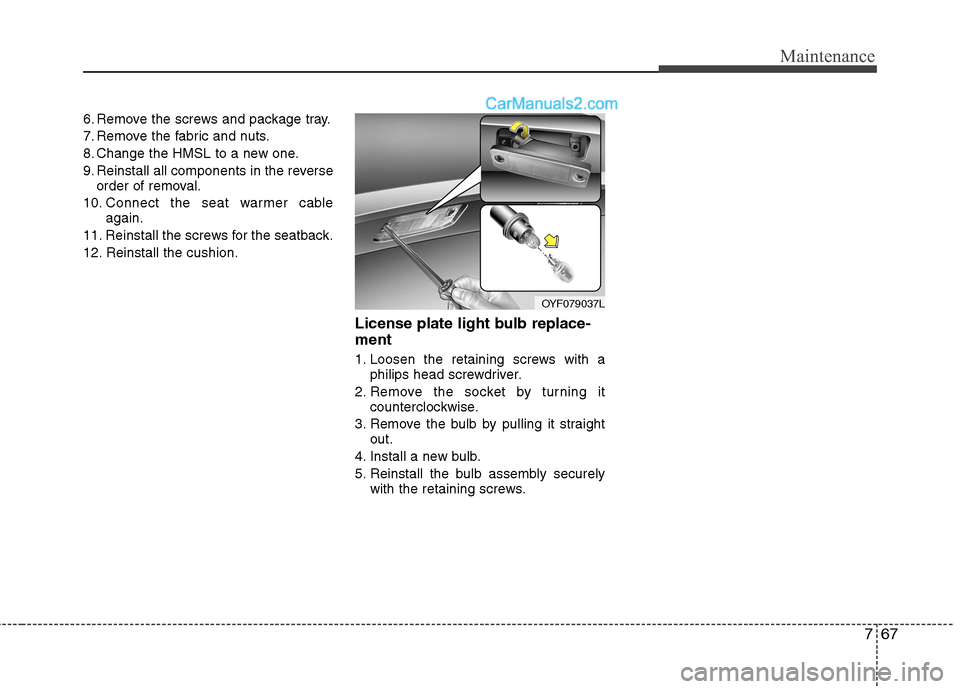

License plate light bulb replace-
ment
1. Loosen the retaining screws with a
philips head screwdriver.
2. Remove the socket by turning it
counterclockwise.
3. Remove the bulb by pulling it straight
out.
4. Install a new bulb.
5. Reinstall the bulb assembly securely
with the retaining screws.
OYF079037L
I3
Index
Capacity/Weight ······························································8-2
Care
Exterior care ······························································7-69
Interior care ·······························································7-73
Tire care·····································································7-37
Cargo weight ··································································5-43
Center console storage ·················································4-107
Central door lock switch················································4-12
Certification label ··························································5-41
Certification label ····························································8-7
Chains
Tire chains ·································································5-35
Changing tires (with spare tire) ·····································6-15
Checking tire inflation pressure·····································7-38
Child restraint system ····················································3-27
Lower anchor system ················································3-33
Seat belt ·····································································3-29
Tether anchor system·················································3-31
Child-protector rear door lock ·······································4-14
Climate control air filter ···························4-92, 4-103, 7-30
Clock (Digital) ·····························································4-110
Clothes hanger······························································4-111
Combined instrument, see instrument cluster ···············4-40
Compact spare tire (with spare tire) ······························6-15
Compact spare tire replacement ····································7-42
Components of the tire mobility kit ······························6-24
Consumer information ·····················································8-9
Coolant ···········································································7-24Cooling fluid, see engine coolant ··································7-24
Crankcase emission control system ·······························7-75
Cruise control system ····················································5-24
Cup holder ···································································4-108
Curtain air bag ·······························································3-53
Dashboard illumination,
see instrument panel illumination·······························4-41
Dashboard, see instrument cluster ·································4-40
Defogging (Windshield) ··············································4-104
Defogging logic (Windshield) ·····································4-106
Defroster (Rear window) ···············································4-81
Defrosting (Windshield) ··············································4-104
Digital clock·································································4-110
Dimensions ······································································8-3
Display illumination, see instrument panel illumination··4-41
Displays, see instrument cluster ····································4-40
Door locks ······································································4-11
Central door lock switch ···········································4-12
Child-protector rear door lock ··································4-14
Drinks holders, see cup holders···································4-108
Driver's 3-point system with emergency
locking retractor··························································3-17
Driver's air bag·······························································3-48
Driving at night······························································5-31
Driving in flooded areas ················································5-32
Driving in the rain ·························································5-32
Driving off-road ·····························································5-32
D
Index
6I
Aux, USB and iPod port ·········································4-112
Clothes hanger ·························································4-111
Cup holder ·······························································4-108
Digital clock ····························································4-110
Floor mat anchor(s) ·················································4-111
Power outlet·····························································4-110
Sunvisor···································································4-109
Interior light ···································································4-78
Interior overview ·····························································2-2
Inverter coolant ······························································7-24
Jack and tools (with spare tire) ······································6-14
Jump starting····································································6-6
Label
Air bag warning label················································3-62
Tire sidewall labeling ················································7-43
Tire specification and pressure label···························8-8
Vehicle certification label············································8-7
Latch system, see lower anchor system ························3-33
Light bulbs ·····································································7-60
Lighting··········································································4-71
Battery saver function ···············································4-71
Lower anchor system ·····················································3-33
Lubricants and capacities·················································8-5Maintenance
Explanation of scheduled maintenance items ···········7-19
Maintenance services ··················································7-3
Maintenance under severe usage conditions ·············7-18
Normal maintenance schedule ····································7-8
Owner maintenance·····················································7-5
Scheduled maintenance service ··································7-7
Tire maintenance ·······················································7-42
Maintenance schedule······················································7-7
Maintenance under severe usage conditions ·············7-18
Normal maintenance schedule ····································7-8
Maintenance services ·······················································7-3
Memory fuse ··································································7-51
Mirrors ···········································································4-31
Day/night rearview mirror ········································4-31
Electric chromic mirror (ECM) with Homelink system ··4-31
Inside rearview mirror···············································4-31
Outside rearview mirror ············································4-38
Multi box ·····································································4-108
Multi fuse ·······································································7-53
Neck restraints, see headrest ··································3-7, 3-11
J
L
M
N
