2013 HYUNDAI GENESIS G80 navigation

Features of your vehicle
54 4

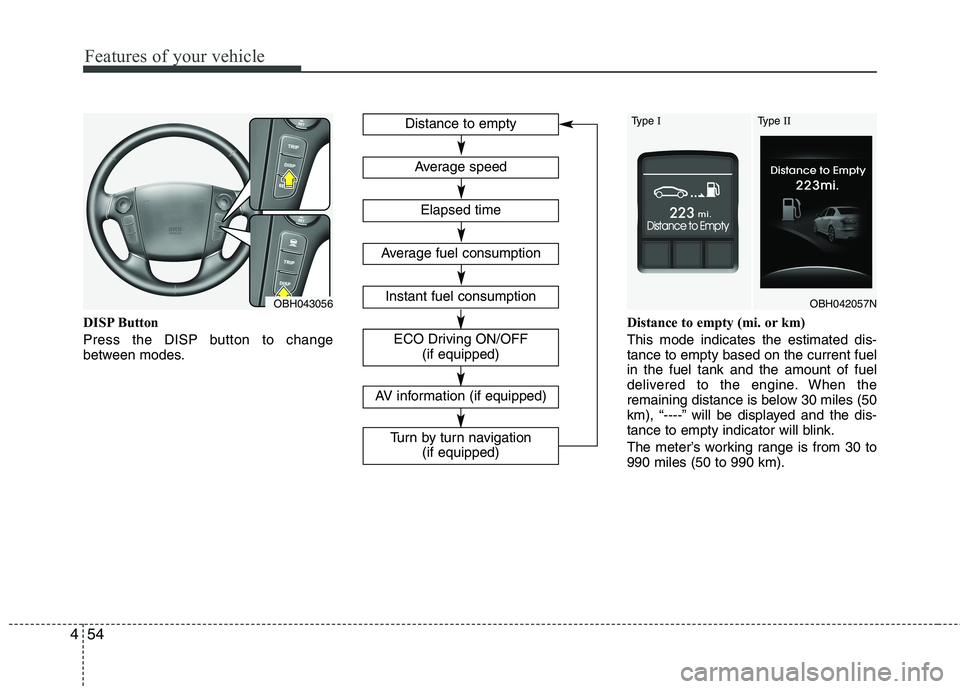

DISP Button
Press the DISP button to change
between modes.Distance to empty (mi. or km)
This mode indicates the estimated dis-
tance to empty based on the current fuel
in the fuel tank and the amount of fuel
delivered to the engine. When the
remaining distance is below 30 miles (50
km), “----” will be displayed and the dis-
tance to empty indicator will blink.
The meter’s working range is from 30 to
990 miles (50 to 990 km).
OBH043056OBH042057N
Type IType IIDistance to empty
Elapsed time
Average speed
Instant fuel consumption
ECO Driving ON/OFF
(if equipped)
Average fuel consumption
AV information (if equipped)
Turn by turn navigation
(if equipped)

457
Features of your vehicle
AV information (if equipped)
This mode displays the state of the AV
(RADIO, CD, USB, AUX etc.).Turn by turn navigation (if equipped)
This mode displays the information of the
navigation.
OBH042353LOBH042350L

Features of your vehicle
76 4
REAR VIEW CAMERA (IF EQUIPPED)
D330000ABH
The rearview camera will activate when
the back-up light is ON with the ignition
switch ON and the shift lever in the R
position.
This system is a supplemental system
that shows behind the vehicle through
the navigation display while backing-up.The green line (1) is the position 118.11
in (300 cm) from the rear bumper.
The yellow line (2) is the position 39.37 in
(100 cm) from the rear bumper.
The red line (3) is the position 19.68 in
(50 cm) from the rear bumper.
✽ ✽
NOTICE
The rearview camera may not operate
normally, when you drive in the
extremely high or low temperature area
(operating temperature : -20°C~65°C (-
13°F~149°F)).
D180000AUN
The hazard warning flasher should be
used whenever you find it necessary to
stop the car in a hazardous location.
When you must make such an emer-
gency stop, always pull off the road as far
as possible.
The hazard warning lights are turned on
by pushing in the hazard switch. This
causes all turn signal lights to blink. The
hazard warning lights will operate even
though the key is not in the ignition
switch.
To turn the hazard warning lights off,
push the switch a second time.
HAZARD WARNING FLASHER
OBH063001N
WARNING
This system is a supplementary
function only. It is the responsi-
bility of the driver to always
check the inside/outside rearview
mirror and the area behind the
vehicle before and while backing
up.
Always keep the camera lens
clean. If the lens is covered with
foreign matter, the camera may
not operate normally.
OBH043068N
OBH048069

4113
Features of your vehicle
D281400AFD
Aux, USB and iPod®port
If your vehicle has an aux and/or
USB(universal serial bus) port or iPod®
port, you can use an aux port to connect
audio devices and a USB port to plug in a
USB, and an iPod
®port to plug in an
iPod®.
✽ ✽
NOTICE
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable
audio device.
❈iPod®is a trademark of Apple Inc.
D281800ABH
Navigation system (if equipped)
The navigation system ascertains the
present position of your vehicle by using
information from satellites and guides
you to the place you assign as the desti-
nation.
CAUTION
Do not pull or fold the rear curtain
by hand. It could cause motor fail-
ure.
OBH041141N
OBH048139N
OBH049139N
Type A
Type B

Features of your vehicle
114 4
Detailed information for the navigation
system is described in a separately sup-
plied manual.
D282000ABH
DIS (Driver Information System)
(if equipped)
Information for DIS is provided in the DIS
manual.
D281900ABH
Bluetooth®Wireless Technology
hands-free (if equipped)
You can use a Bluetooth®Wireless
Technology phone.
Detailed information for the
Bluetooth®
Wireless Technology hands-free is
described in a separate manual.
CAUTION
If your vehicle is equipped with nav-
igation system, it contains mercury.
So if you need to have your vehicle
disposed, you should remove the
navigation system before disposal.
The removed navigation system
should be recycled, re-used or dis-
posed as hazardous waste.
OBH043139N

Index
4I
Indicator symbols on the instrument cluster ················· 1-7
Instrument cluster ························································ 4-48
Engine temperature gauge ········································· 4-51
Fuel gauge ································································· 4-52
Instrument panel illumination ··································· 4-50
Speedometer ······························································ 4-50
Tachometer ································································ 4-50
Trip computer ···························································· 4-52
Warning and indicators ·············································· 4-58
Warning on the LCD screen ······································ 4-68
Instrument panel overview ············································ 2-3
Interior features ························································· 4-106
Ashtray ···································································· 4-106
AUX, USB and iPod
®port ······································ 4-113
Bluetooth®Wireless Technology hands-free ··········· 4-114
Cigarette lighter ······················································· 4-106
Clothes hanger ························································· 4-111
Cup holder ······························································· 4-107
Digital clock ···························································· 4-109
DIS (Driver Information System)······························4-114
Floor mat anchor(s) ···················································4-111
Luggage net (holder) ··············································· 4-112
Navigation system ··················································· 4-113
Outside thermometer ··············································· 4-110
Power outlet ····························································· 4-108
Rear curtain ····························································· 4-112
Sunvisor ··································································· 4-107Interior light ································································· 4-85
Interior overview ··························································· 2-2
Key ················································································· 5-5
Ignition switch position ··············································· 5-5
Starting the engine ······················································· 5-6
Keys ··············································································· 4-3
Lane departure warning system (LDWS) ······················5-51
Light bulbs ··································································· 7-62
Headlight, position light, turn signal light, side marker
light and front fog light bulb replacement ············· 7-62
High mounted stop light replacement ······················· 7-65
Interior light bulb replacement ·································· 7-70
License plate light bulb replacement ························ 7-69
Door courtesy lamp bulb replacement ······················ 7-70
Rear combination light bulb replacement ················· 7-64
Side repeater light bulb replacement ························· 7-64
Lighting ······································································· 4-77
AFLS(Adaptive Front Lighting System) ·················· 4-81
Battery saver function ··············································· 4-77
Headlight escort function ············································4-77
