527
Driving your vehicle
✽ ✽

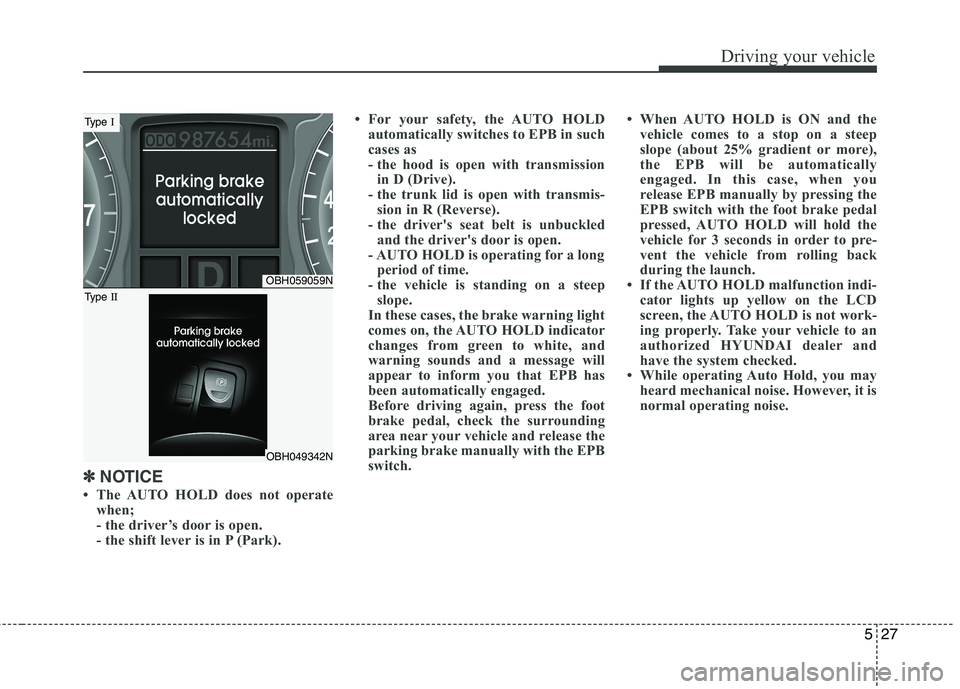

NOTICE
• The AUTO HOLD does not operate
when;
- the driver’s door is open.
- the shift lever is in P (Park).• For your safety, the AUTO HOLD
automatically switches to EPB in such
cases as
- the hood is open with transmission
in D (Drive).
- the trunk lid is open with transmis-
sion in R (Reverse).
- the driver's seat belt is unbuckled
and the driver's door is open.
- AUTO HOLD is operating for a long
period of time.
- the vehicle is standing on a steep
slope.
In these cases, the brake warning light
comes on, the AUTO HOLD indicator
changes from green to white, and
warning sounds and a message will
appear to inform you that EPB has
been automatically engaged.
Before driving again, press the foot
brake pedal, check the surrounding
area near your vehicle and release the
parking brake manually with the EPB
switch.• When AUTO HOLD is ON and the
vehicle comes to a stop on a steep
slope (about 25% gradient or more),
the EPB will be automatically
engaged. In this case, when you
release EPB manually by pressing the
EPB switch with the foot brake pedal
pressed, AUTO HOLD will hold the
vehicle for 3 seconds in order to pre-
vent the vehicle from rolling back
during the launch.
• If the AUTO HOLD malfunction indi-
cator lights up yellow on the LCD
screen, the AUTO HOLD is not work-
ing properly. Take your vehicle to an
authorized HYUNDAI dealer and
have the system checked.
• While operating Auto Hold, you may
heard mechanical noise. However, it is
normal operating noise.
OBH059059N
OBH049342N
Type I
Type II
What to do in an emergency
22 6
When towing your vehicle in an emer-
gency without wheel dollies :
1. Set the ignition switch in the ACC posi-
tion.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
F080200ABH
Removable towing hook
(if equipped)
1. Open the trunk, and remove the tow-
ing hook from the tool case.
2. Remove the hole cover by pressing the
lower part of the cover on the front or
rear bumper.
OBH068016
OBH069027
CAUTION
Do not tow the vehicle with the
rear wheels on the ground as this
may cause damage to the vehicle.
Do not tow with sling-type equip-
ment. Use wheel lift or flatbed
equipment.
CAUTION
Failure to place the transmission
shift lever in N (Neutral) may cause
internal damage to the transmis-
sion.
OBH068017
OBH068018
Front
Rear
Index
6I
Storage compartments ··············································· 4-104
Center console storage ············································ 4-104
Glove box ································································ 4-104
Sunglass holder ······················································· 4-105
Sunroof ········································································ 4-31
Theft-alarm system ······················································ 4-14
Tire pressure monitoring system (TPMS) ····················· 6-7
Changing a tire with TPMS ······································ 6-10
Low tire pressure position telltale ······························· 6-8
Low tire pressure telltale ············································· 6-8
TPMS (Tire pressure monitoring system)
malfunction indicator ················································ 6-9
Tire specification and pressure label ····························· 8-8
Tires and wheels ··················································· 7-34, 8-3
All season tires ·························································· 7-46
Checking tire inflation pressure ································ 7-35
Compact spare tire replacement ································ 7-39
Low aspect ratio tire ····················································7-44
Radial-ply tires ·························································· 7-47
Recommended cold tire inflation pressures ·············· 7-34
Snow tires ·································································· 7-47
Summer tires ····························································· 7-46
Tire care ····································································· 7-34
Tire chains ································································· 7-47
Tire maintenance ······················································· 7-39
Tire replacement ························································ 7-38Tire rotation ······························································· 7-36
Tire sidewall labeling ················································ 7-40
Tire terminology and definitions ······························· 7-44
Tire traction ······························································· 7-39
Wheel alignment and tire balance ····························· 7-37
Wheel replacement ···················································· 7-39
Towing ········································································· 6-21
Emergency towing ····················································· 6-23
Removable towing hook ············································· 6-22
Trailer towing·································································5-70
Trunk ············································································ 4-20
Emergency trunk safety release ································ 4-21
Trunk lid control button ············································ 4-22
Vehicle break-in process ················································ 1-5
Vehicle certification label ·············································· 8-7
Vehicle data collection and event data recorders ·········· 1-6
Vehicle identification number (VIN) ····························· 8-6
Vehicle load limit ························································· 5-64
Cargo capacity ··························································· 5-65
Certification label ······················································ 5-67
Seating capacity ························································· 5-64
Tire and loading information label ···························· 5-64
Towing capacity···························································5-65
Vehicle capacity weight ············································· 5-64
Vehicle weight ····························································· 5-69
Base curb weight ······················································· 5-69
V
T
