549
Driving your vehicle
Change to "winter weight" oil if
necessary In some climates it is recommended that
a lower viscosity "winter weight" oil be
used during cold weather. See section 8
for recommendations. If you aren't sure
what weight oil you should use, we rec-
ommend that you consult an authorized
HYUNDAI dealer.
Check spark plugs and ignition system
Inspect your spark plugs as described in
section 7 and replace them if necessary.
Also check all ignition wiring and compo-
nents to be sure they are not cracked,
worn or damaged in any way.
To keep locks from freezing
To keep the locks from freezing, squirt an
approved de-icer fluid or glycerine into
the key opening. If a lock is covered with
ice, squirt it with an approved de-icing
fluid to remove the ice. If the lock is
frozen internally, you may be able to thaw
it out by using a heated key. Handle the
heated key with care to avoid injury.Use approved window washer
anti-freeze in system
To keep the water in the window washer
system from freezing, add an approved
window washer anti-freeze solution in
accordance with instructions on the con-
tainer. Window washer anti-freeze is
available from an authorized HYUNDAI
dealer and most auto parts outlets. Donot use engine coolant or other types of
anti-freeze as these may damage thepaint finish.
Don't let your parking brake
freeze
Under some conditions your parking
brake can freeze in the engaged position.
This is most likely to happen when there
is an accumulation of snow or ice around
or near the rear brakes or if the brakes
are wet. If there is a risk the parking
brake may freeze, apply it only temporar-
ily while you put the gear shift lever in P
and block the rear wheels so the car can-
not roll. Then release the parking brake.
Don't let ice and snow accumu- late underneath
Under some conditions, snow and ice
can build up under the fenders and inter-
fere with the steering. When driving in
severe winter conditions where this may
happen, you should periodically check
underneath the car to be sure the move-
ment of the front wheels and the steering
components is not obstructed.
Carry emergency equipment
Depending on the severity of the weath-
er where you drive your car, you should
carry appropriate emergency equipment.
Some of the items you may want to carry
include tire chains, tow straps or chains,
flashlight, emergency flares, sand, a
shovel, jumper cables, a window scraper,
gloves, ground cloth, coveralls, a blanket,etc.

717
Maintenance
NORMAL MAINTENANCE SCHEDULE (CON.) - EXCEPT EUROPE, FOR RUSSIA
120,000km (80,000 miles) or 96months
❑Inspect air cleaner filter
(for Except China, India, Middle East)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect all electrical system
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch fluid (if equipped)
❑ Inspect brake/clutch pedal (if equipped)
❑ Inspect cooling system
❑ Inspect drive belts * 1
❑ Inspect disc brakes and pads
❑ Inspect fuel lines, hoses and connections
❑ Inspect manual transmission fluid
❑ Inspect parking brake
❑ Inspect power steering fluid and hoses
❑ Inspect propeller shaft
❑ Inspect rear differential oil * 8
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Inspect vapor and fuel filler cap
(Continued)
(Continued)
❑Replace air cleaner filter (for China, India, Middle East)
❑ Replace fuel tank air filter * 6
❑ Replace fuel filter * 6
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter * 2
- 2.0 engine : At first, replace at 5,000 km (3,000 miles) or 6 months after that, replace every 8,000 km (5,000 miles) or 6 months
- 3.8 engine
✓ For Middle East : Replace every 10,000 km
(6,250 miles) or 12 months * 3
✓ Except Middle East : Replace every 15,000 km
(10,000 miles) or 12 months
✓ For China : Replace every 5,000 km (3,100 miles) or
6 months
❑ Add fuel additives (Every 5,000km or 6months) * 4
❑ Engine coolant * 7
(At first, replace at 210,000 km (120,000 miles) or
120 months after that, replace every 40,000 km (25,000 miles) or 24 months * 7)
❑ Spark plugs
Replace every 165,000 km (110,000 miles) or 120 months * 9
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
18
7
MAINTENANCE UNDER SEVERE USAGE CONDITIONS (EXCEPT EUROPE, FOR RUSSIA)
The following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance itemMaintenance
operationMaintenance intervalsDriving condi- tion
Engine oil and engine oil filter
2.0 TCIREvery 5,000 km (3,000 miles) or 3 months
A, B, C, D, E, F,G, H, I, K, L
3.8L
For Middle East, ChinaREvery 5,000 km (3,000 miles) or 3 months
Except Middle EastREvery 7,500 km (4,500 miles) or 6 months
Air cleaner elementRReplace more frequently
depending on the conditionC, E
Spark plugs RReplace more frequently
depending on the conditionB, H
Manual transmission fluid REvery 120,000 km (80,000 miles)C, D, E, G, H, I, K
Automatic transmission fluidREvery 100,000 km (60,000 miles)A, C, F, G, I
Steering gear rack, linkage and bootsIInspect more frequently
depending on the conditionC, D, E, F, G

Maintenance
28
7
NORMAL MAINTENANCE SCHEDULE (CON.) - FOR EUROPE
120,000km (80,000 miles) or 96months
❑ Inspect air cleaner filter
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect all electrical systems
❑ Inspect automatic transmission fluid
❑ Inspect battery condition
❑ Inspect bolt and nuts on chassis and body
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch pedal (if equipped)
❑ Inspect cooling system
❑ Inspect drive belts * 1
At first, inspect at 90,000 km (60,000 miles) or 72 months
after that, inspect every 30,000 km (20,000 miles) or 24 months
❑ Inspect drive shaft and boots
❑ Inspect disc brakes and pads
❑ Inspect fuel tank air filter * 5
❑ Inspect fuel filter * 5
❑ Inspect fuel lines, hoses and connections
❑ Inspect manual transmission fluid
❑ Inspect parking brake
❑ Inspect power steering fluid and hoses
❑ Inspect propeller shaft
(Continued)
(Continued)
❑Inspect rear differential oil * 7
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect front suspension ball joints
❑ Inspect vacuum hose (for EGR & throttle body, if equipped)
❑ Inspect vapor and fuel filler cap
❑ Replace brake/clutch fluid (if equipped)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter * 2
❑ Add fuel additives * 3
(Every 15,000km or 12 months)
❑ Engine coolant * 6
At first, replace at 210,000 km (120,000 miles) or 120
months after that, replace every 30,000 km (20,000 miles)or 24 months * 6
❑ Spark plugs
Replace every 165,000 km (110,000 miles) or 120 months* 8
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

729
Maintenance

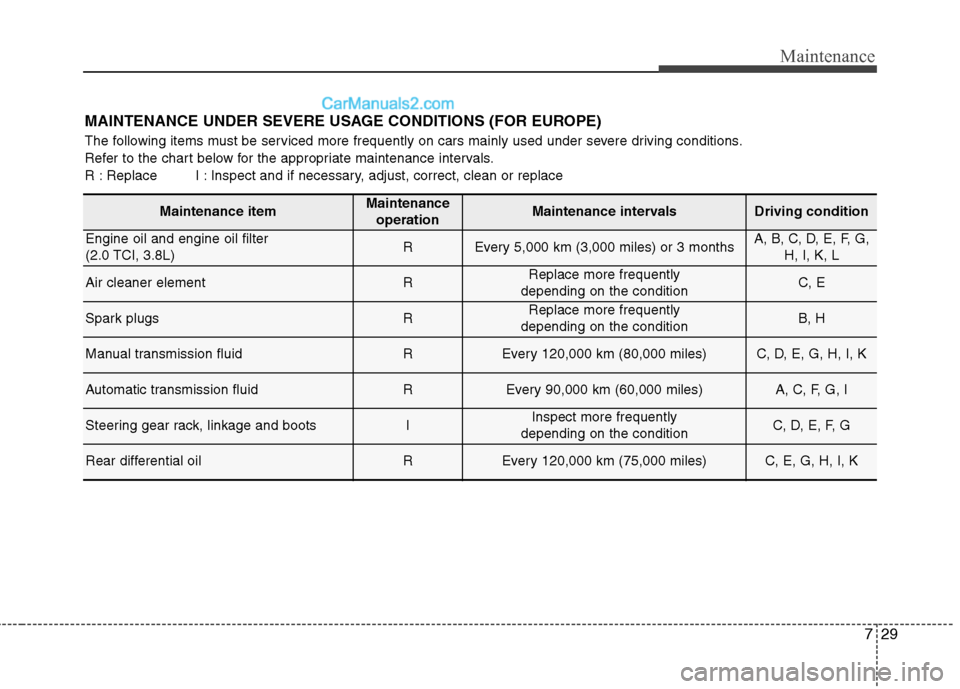

MAINTENANCE UNDER SEVERE USAGE CONDITIONS (FOR EUROPE)
The following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance itemMaintenanceoperationMaintenance intervalsDriving condition
Engine oil and engine oil filter
(2.0 TCI, 3.8L)REvery 5,000 km (3,000 miles) or 3 monthsA, B, C, D, E, F, G, H, I, K, L
Air cleaner elementRReplace more frequently
depending on the conditionC, E
Spark plugsRReplace more frequently
depending on the conditionB, H
Manual transmission fluid REvery 120,000 km (80,000 miles)C, D, E, G, H, I, K
Automatic transmission fluidREvery 90,000 km (60,000 miles)A, C, F, G, I
Steering gear rack, linkage and bootsIInspect more frequently
depending on the conditionC, D, E, F, G
Rear differential oilREvery 120,000 km (75,000 miles)C, E, G, H, I, K

Maintenance
32
7
Air cleaner filter
We recommend that the air cleaner filter
be replaced by an authorized HYUNDAI
dealer. Spark plugs
Make sure to install new spark plugs of
the correct heat range.
Valve clearance
Inspect excessive valve noise and/or
engine vibration and adjust if necessary.
We recommend that the system be
checked by an authorized HYUNDAI
dealer. Cooling system
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts. Coolant The coolant should be changed at the
intervals specified in the maintenance
schedule.
Manual transmission fluid (if equipped)
Inspect the manual transmission fluid
according to the maintenance schedule.Automatic transmission fluid (if equipped)
Automatic transmission fluid should not
be checked under normal usage condi-
tions.
We recommend that the automatic trans-
mission fluid be replaced by an author-
ized HYUNDAI dealer.
CAUTION
The use of a non-specified fluid
could result in transmission mal-function and failure.
Use only specified manual trans-mission fluid. (Refer to “Recommended lubricants and
capacities” in section 8.)
