Driving your vehicle
• Your vehicle speed can be reduced
due to a vehicle in the adjacent
lane. Adjust your vehicle speed by
depressing the brake pedal
according to the road condition
ahead and driving condition. Apply
the accelerator pedal and select
the appropriate set speed. Check
to be sure that the road conditions
permit safe operation of the smart
cruise control.
On inclines
• During uphill or downhill driving,
the smart cruise control system
may not detect a moving vehicle in
your lane, and cause your vehicle
to accelerate to the set speed.
Also, the vehicle speed will rapidly
down when the vehicle ahead is
recognized suddenly.
• Select the appropriate set speed
on inclines and adjust your vehicle
speed by depressing the accelera-
tor or brake pedal according to the
road condition ahead and driving
condition.
Lane changing
• A vehicle which moves into your
lane from an adjacent lane cannot
be recognized by the sensor until it
is in the sensor's detection range.
• The sensor may not detect imme-
diately when a vehicle cuts in sud-
denly. Always pay attention to the
traffic, road and driving conditions.
• If a vehicle which moves into your
lane is slower than your vehicle,
your speed may decrease to main-
tain the distance to the vehicle
ahead.
OBH058053
OBH058030
OBH058045

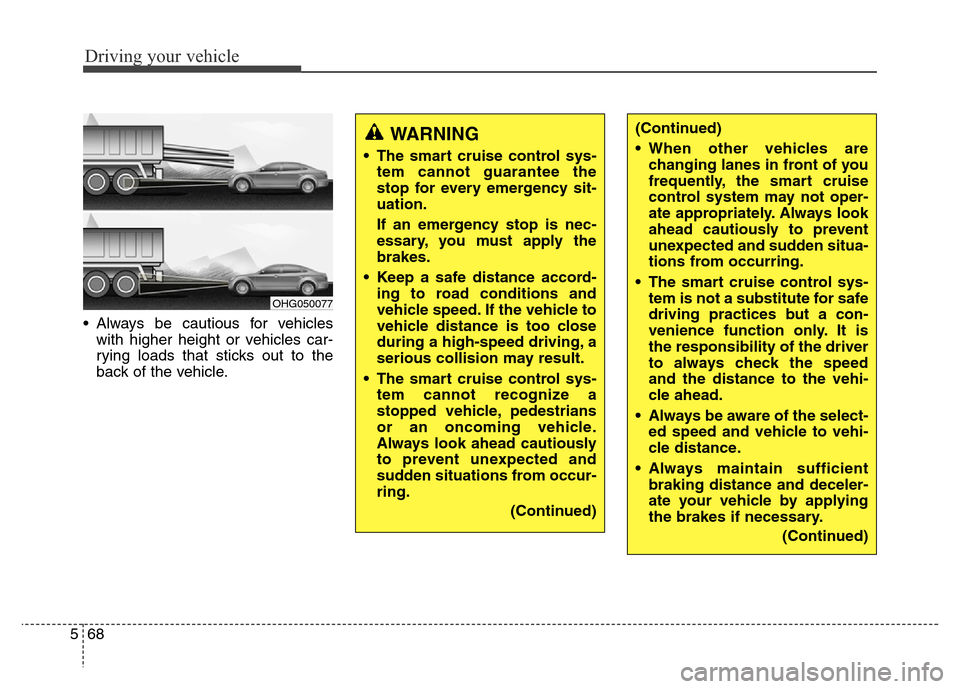

Driving your vehicle
68 5
• Always be cautious for vehicles
with higher height or vehicles car-
rying loads that sticks out to the
back of the vehicle.
OHG050077
WARNING
• The smart cruise control sys-
tem cannot guarantee the
stop for every emergency sit-
uation.
If an emergency stop is nec-
essary, you must apply the
brakes.
• Keep a safe distance accord-
ing to road conditions and
vehicle speed. If the vehicle to
vehicle distance is too close
during a high-speed driving, a
serious collision may result.
• The smart cruise control sys-
tem cannot recognize a
stopped vehicle, pedestrians
or an oncoming vehicle.
Always look ahead cautiously
to prevent unexpected and
sudden situations from occur-
ring.
(Continued)
(Continued)
• When other vehicles are
changing lanes in front of you
frequently, the smart cruise
control system may not oper-
ate appropriately. Always look
ahead cautiously to prevent
unexpected and sudden situa-
tions from occurring.
• The smart cruise control sys-
tem is not a substitute for safe
driving practices but a con-
venience function only. It is
the responsibility of the driver
to always check the speed
and the distance to the vehi-
cle ahead.
• Always be aware of the select-
ed speed and vehicle to vehi-
cle distance.
• Always maintain sufficient
braking distance and deceler-
ate your vehicle by applying
the brakes if necessary.
(Continued)

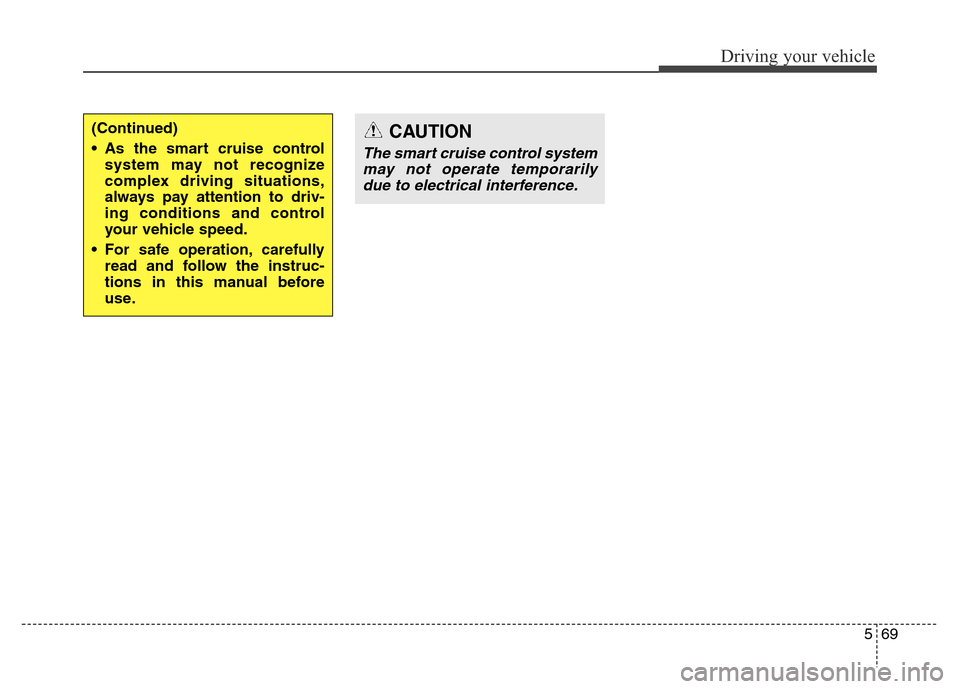

569
Driving your vehicle
CAUTION
The smart cruise control system
may not operate temporarily
due to electrical interference.
(Continued)
• As the smart cruise control
system may not recognize
complex driving situations,
always pay attention to driv-
ing conditions and control
your vehicle speed.
• For safe operation, carefully
read and follow the instruc-
tions in this manual before
use.

755
Maintenance
SymbolFuse NameFuse ratingProtected component
Shift Lever B+10AElectric ATM Shift Lever, Sport Mode Switch
Multi Media15AA/V & Navigation Head Unit, Front Monitor, Split Unit, MTS Module, Front DIS Switch, Rear
Monitor LH/RH, Rear Console Switch, Rear Audio Switch
BCM10ABCM
IG130AE/R Junction Box (Fuse - B/UP LAMP, ESC, EHPS, AFLS, INJECTOR (IG1), CRUISE
(IG1), ECU (IG1), TCU)
Module 110AHead-Up Display, Rain Sensor, Rear Power Seat Switch RH
Fuel Lid10AFuel Filler Door Switch, Front Console Switch
Folding Mirror10ADriver/Passenger Door Module
Air Bag15ASRS Control Module, Driver/Passenger Pre-Safe Seat Belt
Module 410AE/R Junction Box (FAM), Multifunction Switch, Driver/Passenger Door Module
ECS15AECS Control Module
Audio (IG1)10AA/V & Navigation Head Unit, MTS Module
AFLS10AHead Lamp LH/RH, Adaptive Front Lighting Module, Auto Head Lamp Leveling Device
Module
P/Door Driver15ADriver Power Door Latch, Driver Power Seat Switch, Driver Door Lamp, Driver Door Mood
Lamp, Driver Smart Key Outside Handle
Rear LH S/Heater15ARear CCS Control Module LH, Rear Seat Warmer Module LH
Module 210APower Trunk Lid Control Module, Electro Chromic Mirror, Electric Parking Brake Switch,
A/T Console Switch

763
Maintenance
Fuse NameFuse ratingProtected component
WIPER (B+)30AElectronic Control Wiper Module
FAM 2 (B+)40AFA M
FAM 1 (B+)40AFA M
START30AStart Relay
WASHER15AWasher Relay
WIPER (IG2)10AElectronic Control Wiper Module
DEICER15ADeicer Relay
CRUISE (B+)10AH/Lamp Relay, Smart Cruise Control Module
HORN15AHorn Relay
EPB 215AElectric Parking Brake Module
EPB 115AElectric Parking Brake Module
A/CON10AA/C Control Module
BLOWER40ABlower Relay
PRESAFETY
SEAT BELT LH40ADriver Pre-Safe Seat Belt
RR HTD40ARR HTD Relay
PRESAFETY
SEAT BELT RH40APassenger Pre-Safe Seat Belt
ECU (IG1)10AECM, Alternator (G8BE)
ESC10AESC Module, E/R Fuse & Relay Box (Multipurpose Check Connector)
EHPS10AEHPS Module
AFLS10AHead Lamp LH/RH
TCU15ATCM, Transmission Range Switch, Transmission Park Position Sensor & Switch
HTD MIRR10ADriver/Passenger Power Outside Mirror
F/PUMP20AF/Pump Relay

Maintenance
64 7
Fuse NameFuse ratingProtected component
ROOM LAMP10ARoom Lamp Relay
ECU (B+)15AECM/TCM, Injector Drive Box (G6DJ)
B/UP LAMP10AAlternator (G6DJ), E/R Fuse & Relay Box (Vacuum Pump Relay (G6DJ), B/Up Lamp Relay, P/N Relay),
Steering Angle Sensor, Brake Vacuum Switch (G6DJ)
CRUISE (IG1)10ASmart Cruise Control Module
INJECTOR (IG1)10AInjector Drive Box
H/LAMP LH15AHead Lamp LH
H/LAMP RH15AHead Lamp RH
SENSOR 310AECM, F/Pump Relay, Camshaft Position Sensor (BANK1/BANK2) (Intake/Exhaust) (G8BE)
SENSOR 210AECM (G6DJ), Variable Intake Solenoid Valve (G6DJ), Canister Purge Solenoid Valve (G6DJ), Oil Control
Valve #1 ~ #4 E/R Fuse & Relay Box (C/Fan Relay), Purge Control Solenoid Valve (G8BE)
SENSOR 110AECM, Oxygen Sensor #1 ~ #4
INJECTOR (B+)15AInjector Drive Box
IGN COIL20ACondenser #1/#2, Ignition Coil #1 ~ #6 (G6DJ), Ignition Coil #1 ~ #8 (G8BE)
ECU30AECU Relay
