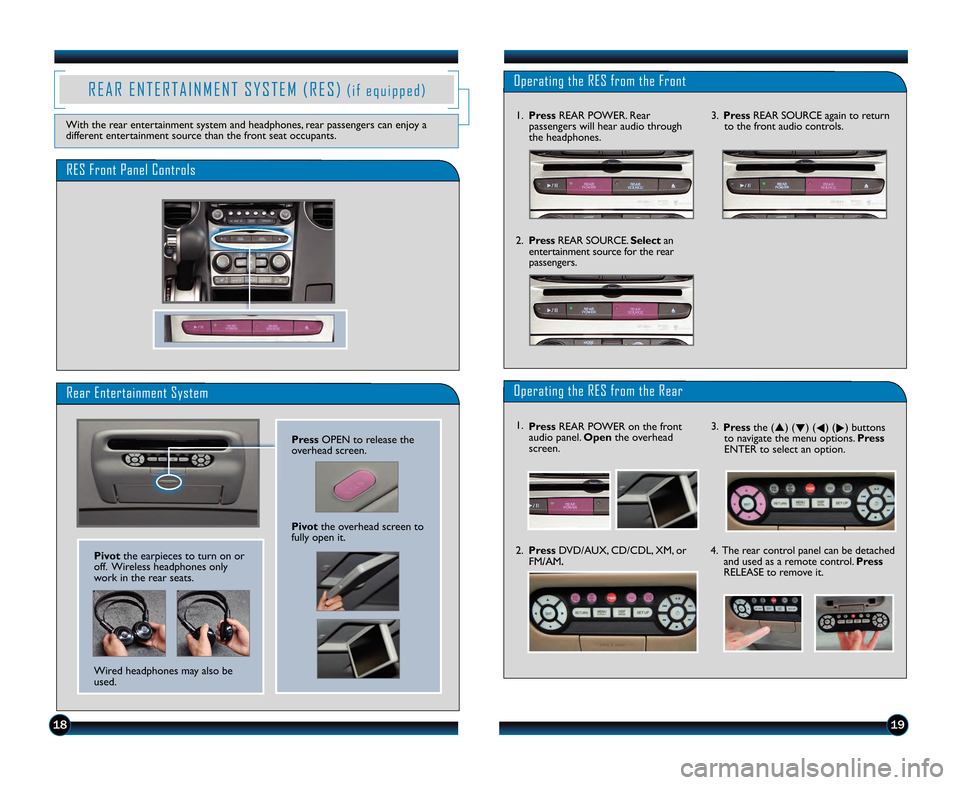

R E A R E N T E R T A I N M E N T S Y S T E M ( R E S )( i f e q u i p p e d )
With the rear entertainment system and headphones, rear passengers can enjoy a
different entertainment source than the front seat occupants.
Rear Entertainment System
PressOPEN to release the
overhead screen.
Pivot the overhead screen to
fully open it.
RES Front Panel Controls
Operating the RES from the Front
1. Press REAR POWER. Rear
passengers will hear audio through
the headphones.
2. Press REAR SOURCE. Selectan
entertainment source for the rear
passengers. \f.
Press REAR SOURCE again to return
to the front audio controls.
Operating the RES from the Rear
\f. Press the (p) (
q) (
t) (
u) buttons
to navigate the menu options. Press
ENTER to select an option.
2. Press DVD\bAUX, CD\bCDL, XM, or
FM\bAM. 4. The rear control panel can be detached
and used as a remote control. Press
RELEASE to remove it. 1. Press REAR POWER on the front
audio panel. Open the overhead
screen.
Pivot the earpieces to turn on or
off. Wireless headphones only
work in the rear seats.
Wired headphones may also be
used.
