2013 HONDA ODYSSEY power steering fluid

293
uuWhen DrivinguPrecautions While Driving
Driving
Precautions While DrivingAvoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.■
In Rain
■
Other Precautions
1Precautions While DrivingNOTICEDo not operate the shift lever while pressing the
accelerator pedal. You could damage the
transmission.
If the ignition switch is turned to ACCESSORY
(q or
LOCK
(0 while driving, the engine will shut down
and all steering and brake power assist functions will
stop, making it difficult to control the vehicle.
Do not put the shift lever in
(N, as you will lose
engine braking (and acceleration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as to not damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.

323
Maintenance
This chapter discusses basic maintenance.
Before Performing Maintenance
Inspection and Maintenance ............ 324Safety When Performing Maintenance..... 325Parts and Fluids Used in Maintenance
Service ........................................... 326
Maintenance Minder™.................... 327
Maintenance Under the HoodMaintenance Items Under the Hood ..... 335Opening the Hood ........................... 336
Recommended Engine Oil ................ 337
Oil Check ......................................... 338
Adding Engine Oil ............................ 339Changing the Engine Oil and Oil Filter ..... 340
Engine Coolant ................................ 342
Transmission Fluid ............................ 344
Brake Fluid ....................................... 345
Power Steering Fluid Check.............. 346
Refilling Window Washer Fluid......... 346
Replacing Light Bulbs....................... 347Checking and Maintaining Wiper Blades
.... 358
Checking and Maintaining Tires
Checking Tires ................................. 362Tire and Loading Information Label ...... 363Tire Labeling .................................... 363DOT Tire Quality Grading (U.S. Vehicles)....... 365Wear Indicators................................ 367Tire Service Life ................................ 367
Tire and Wheel Replacement ........... 368
Tire Rotation .................................... 369
Winter Tires ..................................... 370
Battery............................................... 371
Remote Transmitter Care................. 372
Remote Control and Wireless
Headphone Care
*........................... 374
Heating and Cooling System
*/Climate
Control System
* Maintenance....... 376
Cleaning
Interior Care .................................... 377
Exterior Care.................................... 379
* Not available on all models

329
uuMaintenance Minder™uTo Use Maintenance Minder
TM
Continued
Maintenance
■
Maintenance Service Items
1Maintenance Service Items•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.•Inspect idle speed every 160,000 miles (256,000
km).•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message Maintenance
Minder Indicator
Sub Items Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.CODE
Maintenance Main Items
A
●Replace engine oil
*1
B
●Replace engine oil
*1 and oil filter
●Inspect front and rear brakes/service as necessary●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system
#
●Inspect fuel lines and connections
#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110ºF, 43ºC), in very low temperatures (under
20ºF, 29ºC), replace every 60,000 miles/100,000 km.CODE
Maintenance Sub Items
1
●Rotate tires
2
●Replace air cleaner element
*2
●Replace dust and pollen filter
*3
●Inspect drive belt
3●Replace transmission fluid
4
●Replace spark plugs●Replace timing belt and inspect water pump
*4
●Inspect valve clearance
5●Replace engine coolant

333
uuMaintenance Minder™uTo Use Maintenance Minder
TM
Continued
Maintenance
■
Maintenance Service Items
1Maintenance Service Items•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.•Inspect idle speed every 160,000 miles (256,000
km).•Adjust the valves during services A, B, 1, 2, or 3
only if they are noisy.
Maintenance Minder Message System Message
Indicator
Sub Items Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.CODE
Maintenance Main Items
A
●Replace engine oil
*1
B
●Replace engine oil
*1 and oil filter
●Inspect front and rear brakes/service as necessary●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system
#
●Inspect fuel lines and connections
#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110ºF, 43ºC), in very low temperatures (under
20ºF, 29ºC), replace every 60,000 miles/100,000 km.CODE
Maintenance Sub Items
1
●Rotate tires
2
●Replace air cleaner element
*2
●Replace dust and pollen filter
*3
●Inspect drive belt
3●Replace transmission fluid
4
●Replace spark plugs●Replace timing belt and inspect water pump
*4
●Inspect valve clearance
5●Replace engine coolant

335Maintenance

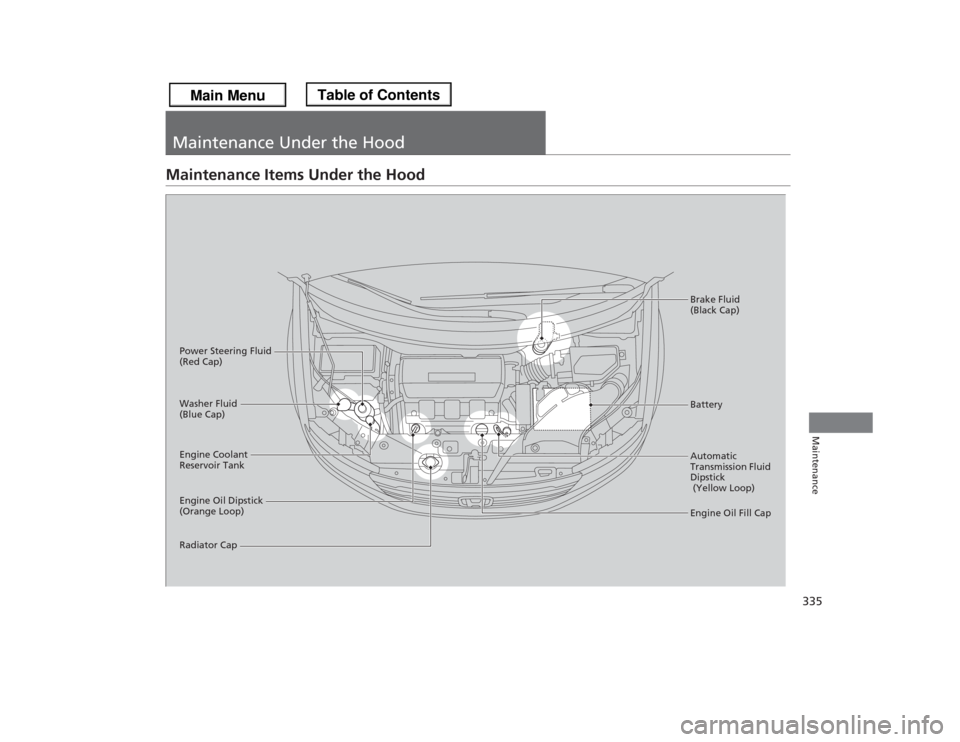

Maintenance Under the HoodMaintenance Items Under the Hood
Engine Oil Dipstick
(Orange Loop) Washer Fluid
(Blue Cap)
Engine Coolant
Reservoir Tank
Radiator CapBrake Fluid
(Black Cap)
Engine Oil Fill Cap Automatic
Transmission Fluid
Dipstick
(Yellow Loop) BatteryPower Steering Fluid
(Red Cap)

346
uuMaintenance Under the HooduPower Steering Fluid Check
Maintenance
Power Steering Fluid CheckWe recommend that you check the power steering fluid level every time you refuel.
Check when the engine is not running.
1.Look at the side of the reservoir. The fluid
should be between the UPPER LEVEL and
LOWER LEVEL.
2.Add power steering fluid if necessary to the
UPPER LEVEL mark.
uInspect the system for a leak. If the fluid
level goes below the LOWER LEVEL
frequently, have the system inspected as
soon as possible.Refilling Window Washer FluidCheck the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, the washer level
indicator comes on.
Pour the washer fluid carefully. Do not overflow the reservoir.Specified fluid: Honda Power Steering Fluid
1Power Steering Fluid CheckNOTICETurning the steering wheel to full left or right lock
and holding it there can damage the power steering
pump.NOTICEPour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; it could damage
components in the engine compartment.
Upper LevelLower Level
1Refilling Window Washer FluidNOTICEDo not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle's paint. A
vinegar/water solution can damage the windshield
washer pump.
Canadian models

Index
425Index
Index
AABS (Anti-lock Brake System).................. 310
AC Power Outlet...................................... 176
Accessories and Modifications................ 322
Accessory Power Sockets......................... 175
Additives
Coolant .................................................. 342
Engine Oil ............................................... 337
Washer ................................................... 346
Additives, Engine Oil............................... 337
Adjusting
Armrest .................................................. 167
Front Seats.............................................. 153
Head Restraints ....................................... 156
Mirrors.................................................... 151
Rear Seats ............................................... 161
Steering Wheel ....................................... 150
Temperature ........................................... 100
Air Conditioning System
(Climate Control System)....................... 186
Changing the Mode................................ 186
Defrosting the Windshield
and Windows........................................ 187
Dust and Pollen Filter .............................. 376
Recirculation/Fresh Air Mode................... 186
Sensors ................................................... 191
Using Automatic Climate Control............ 186
Air Conditioning System
(Heating and Cooling System)............... 182
Cooling................................................... 184Defrosting the Windshield
and Windows ........................................ 184
Dust and Pollen Filter ............................... 376
Heating ................................................... 183
Air Pressure....................................... 363, 413
Airbags........................................................ 39
Advanced Airbags ..................................... 45
After a Collision......................................... 43
Airbag Care ............................................... 53
Event Data Recorder .................................. 22
Front Airbags (SRS) .................................... 42
Indicator ........................................ 50, 76, 80
Passenger Airbag Off Indicator .................. 51
Sensors...................................................... 39
Side Airbag Cutoff System ......................... 48
Side Airbag Off Indicator ........................... 52
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 49
AM/FM Radio............................................ 200
Anti-lock Brake System (ABS).................. 310
Indicator .................................................... 75
Armrest..................................................... 167
Audio Remote Controls............................ 198
Audio System............................................ 194
Adjusting the Sound ................................ 199
Auxiliary Input Jack .................................. 195
Error Messages ........................................ 230
General Information ................................ 232
MP3/WMA/AAC ...................................... 221
Reactivating............................................. 196
Recommended CDs ................................. 233Recommended Devices............................ 235
Remote Controls ..................................... 198
Security Code .......................................... 196
Theft Protection ...................................... 196
USB Adapter Cable.................................. 195
USB Flash Drives ...................................... 235
Audio/Information Display........................ 91
Authorized Manuals................................ 421
Auto Door Locking/Unlocking................. 115
Customize ............................................... 116
Automatic Lighting.................................. 142
Automatic Transmission........................... 294
Creeping ................................................. 294
Fluid ........................................................ 344
Kickdown ................................................ 294
Operating the Shift Lever................... 16, 296
Shift Lever Does Not Move ...................... 395
Shifting ................................................... 295
Auxiliary Input Jack.................................. 195
Average Fuel Economy.................. 88, 92, 99
Average Speed................................... 92, 100
BBattery...................................................... 371
Charging System Indicator................. 73, 398
Jump Starting .......................................... 393
Maintenance (Checking the Battery) ........ 371
Maintenance (Replacing) ................. 372, 374
Belts (Seat).................................................. 30
Beverage Holders..................................... 173

427Index
Keys........................................................ 109
Locking/Unlocking the Doors
from the Inside...................................... 113
Locking/Unlocking the Doors
from the Outside................................... 111
Lockout Prevention System ..................... 112
DOT Tire Quality Grading........................ 365
Driving...................................................... 279
Automatic Transmission .......................... 294
Braking ................................................... 308
Cruise Control ........................................ 297
Shifting Gear .......................................... 295
Starting the Engine ................................. 291
Driving Position Memory System............ 148
Dust and Pollen Filter.............................. 376EElapsed Time........................................ 92, 99
Electronic Stability Control (ESC)............ 300
Emergency................................................ 409
Emissions Testing (Readiness Codes)...... 417
Engine....................................................... 414
Coolant .................................................. 342
Jump Starting ......................................... 393
Oil .......................................................... 337
Starting................................................... 291
Switch Buzzer ......................................... 140
Engine Coolant........................................ 342
Adding to the Radiator ........................... 343
Adding to the Reserve Tank .................... 342Overheating ............................................ 396
Temperature Gauge .................................. 86
Engine Oil................................................. 337
Adding .................................................... 339
Checking ................................................. 338
Displaying Oil Life ............................ 327, 331
Low Oil Pressure Indicator.................. 72, 398
Recommended Engine Oil........................ 337
Exhaust Gas Hazard
(Carbon Monoxide).................................. 68
Exterior Care (Cleaning)........................... 379
Exterior Mirrors........................................ 152
FFeatures..................................................... 193
Filters
Dust and Pollen ....................................... 376
Oil ........................................................... 340
Flat Tire..................................................... 383
Flip-up Trash Bag Ring............................. 171
Floor Mats................................................. 378
Fluids
Automatic Transmission........................... 344
Brake....................................................... 345
Engine Coolant........................................ 342
Power Steering ........................................ 346
Windshield Washer.................................. 346
Fog Light Indicator..................................... 80
Folding Down the Rear Seats.......... 161, 165
Foot Brake................................................. 309Front Airbags (SRS)..................................... 42
Front Seats................................................ 153
Adjusting ................................................ 153
Fuel...................................................... 17, 318
Economy ................................................. 321
Gauge ....................................................... 86
Instant Fuel Economy .................... 88, 92, 99
Low Fuel Indicator ..................................... 75
Range ........................................... 88, 92, 99
Recommendation .................................... 318
Refueling................................................. 318
Fuel Economy........................................... 321
Fuel Fill Cap........................................ 17, 320
Message.................................................. 399
Fuel Fill Door...................................... 17, 319
Fuses.......................................................... 403
Inspecting and Changing......................... 408
Locations................. 403, 404, 405, 406, 407
GGasoline (Fuel)
Economy ................................................. 321
Gauge ....................................................... 86
Information ............................................. 318
Instant Fuel Economy .................... 88, 92, 99
Low Fuel Indicator ..................................... 75
Refueling................................................. 318
Gauges........................................................ 86
Gear Shift Lever Positions
Automatic Transmission .......................... 295
